Doc. No.:082603-01 802.11g Wireless LAN Card User’s Manual REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interface, and 2) This device must accept any interface received, including interface that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ω Reorient or relocate the receiving antenna. ω Increase the distance between the equipment and receiver. ω Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. NOTICE: To comply with FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate the device. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Table of Contents INTRODUCTION.................................................................................................1 WIRELESS NETWORK OPTIONS..........................................................................1 The Peer-to-Peer Network....................................................................1 The Access Point Network...................................................................2 LED INDICATORS.................................................................................................2 Power Indicator: (Orange LED)..........................................................2 Act Indicator: (Green LED).................................................................3 INSTALLATION...................................................................................................4 INSTALL THE DRIVER & UTILITY.......................................................................4 INSTALL THE DEVICE...........................................................................................7 Note for Windows 98 users:.................................................................7 Note for Windows 2000 users:............................................................8 Note for Windows XP users:................................................................8 Verify Device Installation.....................................................................9 NETWORK CONNECTION...........................................................................11 IN WINDOWS 98/ME..........................................................................................11 IN WINDOWS 2000/XP......................................................................................14 CONFIGURATION............................................................................................17 THE NETWORK STATUS ICON...........................................................................17 ACCESSING THE CONFIGURATION UTILITY....................................................18 MAIN TAB............................................................................................................19 ADVANCED TAB.................................................................................................25 SECURITY TAB....................................................................................................25 STATISTICS TAB..................................................................................................27 ABOUT TAB.........................................................................................................28 UNINSTALLATION..........................................................................................30 - 1 - INTRODUCTION The 802.11g Wireless LAN Card is a device that allows you connect your computer to a wireless local area network (LAN). A wireless LAN allows your system to use wireless Radio Frequency (RF) technology to transmit and receive data without having to physically attach to the network. The Wireless protocols that come with this product ensure data security and isolation from interference generated by other radio frequencies. This card also allows you to take full advantage of your computer’s mobility with access to real-time information and online services anytime and anywhere. In addition, this device eliminates the bother of pulling cable through walls and under furniture. It even allows you to place your system in locations where cabling is impossible. Modifying and augmenting networks has never been so easy. Wireless Network Options The Peer-to-Peer Network This network installation lets you set a small wireless workgroup easily and quickly. Equipped with wireless PC Cards or wireless PCI, you can share files and printers between each PC and laptop. - 2 - You can also use one computer as an Internet Server to connect to a wired global network and share files and inf…

Text truncated - open the document above for the full version.

1 Mike Kuo From: S. S. Liou [[email protected]] Sent: November142003Friday 3:24 AM To: Mike Kuo Subject: Re: Abocom System FCC ID:MQ4WG2K4, AN03T3236 Revised User Manual.pdf Channel_Justificatio n.pdf B31030204-SAR-FC C_Revised.pdf Hi Mike, Ans. #1: please refer to attached file Revised User Manual.pdf Ans, #2: please refer to attached files Revised User Manual.pdf and Channel_Justification.pdf Ans. #3: please refer to attached file B31030204-SAR-FCC_Revised.pdf Ans. #4: Yes, the EUT is inserted in the lower PCMCIA slot of notebook computer during SAR evaluation. Best regards, ================================ S. S. Liou Engineer / EMC Dep. II ETC ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "ETC/Iris (E-mail)" <[email protected]> Cc: "Will Yauo (E-mail)" <[email protected]> Sent: Tuesday, November 11, 2003 2:00 AM Subject: Abocom System FCC ID:MQ4WG2K4, AN03T3236 > Question #1: The RF exposure warning statement contains in the user manual > does not applicable to this device. The EUT contains in this filing is a > PCMCIA card. When this device is used with typical notebook computer, 20 cm > separation distance will not be able maintained by the user. Please provide > revised user manual . > > Question #2: Page 20 of user manual mentioned that this device is capable of > operating in 14 channel and provide the option for the user to select the > channel based upon the country. Per FCC policy, such channel selection is > not allowed due to the applicant will have no control on which channel that > end user may be selected and have possibilities to select the channel beyond > 11 channel ( 2412-2462Mhz). Please provide revised user manual AND > technical description to demonstrate the methods that the applicant will be > used to prevent un-authorized channel will be used when the device is used > in the U.S. > > Question #3: Page 14 of SAR test report, based upon the dipole calibration > file, the target value ( 54.8) of Dipole is given when the head liquid in > used. However, test report indicates that body liquid was used during > system validation tests. Please explain. > > Question #4: Please confirm that the EUT is inserted in the lower PCMICA > slot of notebook computer during SAR evaluation. > > FYI : In the future filing, please indicate the configuration number on 2 each > SAR plots for easy reference. > > > Best Regards > > Mike Kuo > Compliance Certification Services > 561F Monterey Road > Morgan Hill CA 95037 > Tel: (408)463-0885 x: 105 > Fax: (408)463-0888 > http://www.ccsemc.com >

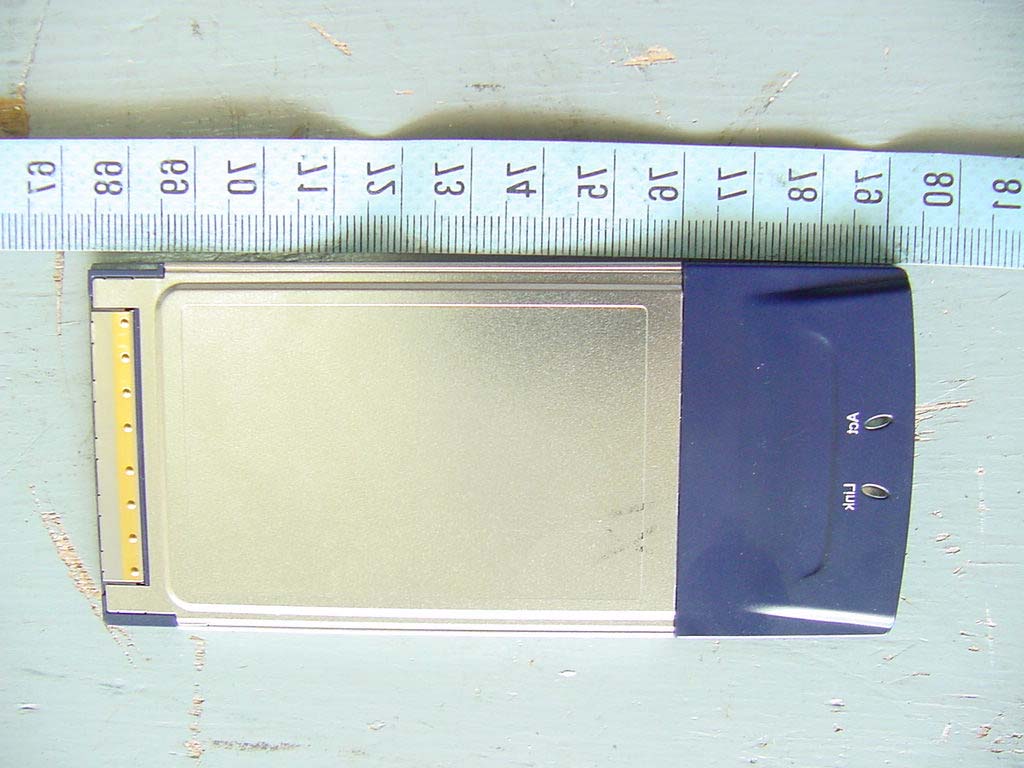

ETC Report No. : ET92R-08-073-03 FCC ID.: MQ4WG2K4 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Total View of EUT Rear View of EUT

ETC Report No. : ET92R-08-073-03 FCC ID.: MQ4WG2K4 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of Main PCB ETC Report No. : ET92R-08-073-03 FCC ID.: MQ4WG2K4 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of Main PCB

Compliance Certification Services Inc. Report No: B31030204-SAR-FCC Date of Issue: October 31, 2003 Page 1 of 1 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for Wireless LAN CardBus PC Card (802.11b/g) Model: WG2400 FCC ID: MQ4WG2K4 October 31, 2003 REPORT NO: B31030204 Prepared for AboCom Systems Inc. 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Taiwan , R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No: B31030204-SAR-FCC Date of Issue: October 31, 2003 Page 2 of 2 CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: October 30, 2003 AboCom System Inc. 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, APPLICANT: Taiwan , R.O.C. BRAND/MODEL: AboCom /WG2400 FCC ID: MQ4WG2K4 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 15.90 dBm Max. SAR (1g): 0.426 mW/g Application Type: Certification FCC Rule Part(s): 15C Note: This Report is only applicable for 802.11b/g. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Approved by: Reviewed by: for Jonson Lee / Director Miro Chueh / Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: B31030204-SAR-FCC Date of Issue: October 31, 2003 Page 3 of 3 T ABLE O F C ONTENTS 1. EUT D ESCRIPTION .......................................................................................................... 4 2. R EQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC .......................... 5 3. D OSIMETRIC ASSESSMENT SYSTEM................................................................................ 5 3.1. M EASUREMENT S YSTEM D IAGRAM ................................................................................... 6 3.2. S YSTEM C OMPONENTS ....................................................................................................... 7 DASY4 M EASUREMENT S ERVER ...................................................................................... 7 D ATA A CQUISITION E LECTRONICS (DAE) ........................................................................ 7 SAM PHANTOM (V4.0)...................................................................................................... 8 D EVICE H OLDER FOR SAM T WIN P HANTOM .................................................................... 8 S YSTEM V ALIDATION K ITS ................................................................................................ 8 4. E VALUATION PROCEDURES............................................................................................. 9 5. M EASUREMENT UNCERTAINTY..................................................................................... 12 6. E XPOSURE LIMIT........................................................................................................... 13 7. M EASUREMENT RESULTS.............................................................................................. 14 7.1. S YSTEM P ERFORMANCE C HECK ....................................................................................... 14 7.2. TEST LIQUID CONFIRMATION........................................................................................... 15 7.3. EUT T UNE - UP P ROCEDURES ............................................................................................ 16 7.4. SAR M EASUREMENTS R ESULTS ...................................................................................... 17 8. EUT P HOTOS................................................................................................................. 20 9. E QUIPMENT LIST & CALIBRATION STATUS................................................................. 21 10. R EFERENCES.................................................................................................................. 22 11. A TTACHMENTS .............................................................................................................. 23 Compliance Certification Services Inc. Report No: B31030204-SAR-FCC Date of Issue: October 31, 2003 Page 4 of 4 1. EUT DESCRIPTION AboCom System Inc. 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, APPLICANT: Taiwan , R.O.C. BRAND/MODEL: AboCom /WG2400 FCC ID: MQ4WG2K4 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: 802.11b Direct Sequence Spread Spectrum 802.11g Orthogonal Frequency Division Multiplexing (OFDM) Tx Frequency: 2412 ~ 2462 MHz Max. O/P Power: (Conducted/Peak) 15.90 dBm Max. SAR (1g): 0.426 mW/g Application Type: Certification FCC Rule Part(s): 15C Antennas: Main: Manufactured by AboCom, Mono pole (Mount on PCB) ty…

Text truncated - open the document above for the full version.

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless LAN CardBus PC Card (802.11b/g) FCC ID. : MQ4WG2K4 MODEL : WG2400 for APPLICANT: AboCom Systems Inc. ADDRESS:1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail:[email protected] Report Number : ET92R-08-073-03 ETC Report No. : ET92R-08-073-03MQ4WG2K4 Rev No 1 0 TEST REPORT CERTIFICATION Applicant: AboCom Systems Inc. 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Taiwan, R.O.C. Manufacturer: AboCom Systems Inc. No. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsuan 350, Taiwan, R.O.C. Description of EUT: a) Type of EUT: Wireless LAN CardBus PC Card (802.11b/g) b) Trade Name: AboCom c) Model No.: WG2400 d) Power Supply: From Notebook PC Regulation Applied: FCC Rules and Regulations Part 15 Subpart B & C (2002) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :Sep. 03, 2003 Test Engineer : ( Tien Lu Liao ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET92R-08-073-03MQ4WG2K4 Rev No 1 0 Table of ContentsPage 1 GENERAL INFORMATION....................................................................................................... 1 1.1 Product Description........................................................................................................................ 1 1.2 Characteristics of Device................................................................................................................ 1 1.3 Test Methodology.......................................................................................................................... 1 1.4 Test Facility.................................................................................................................................... 1 2 PROVISIONS APPLICABLE....................................................................................................... 2 2.1 Definition........................................................................................................................................ 2 2.2 Requirement for Compliance........................................................................................................... 3 2.3 Restricted Bands of Operation........................................................................................................ 5 2.4 Labeling Requirement..................................................................................................................... 5 2.5 User Information............................................................................................................................ 6 3. SYSTEM TEST CONFIGURATION........................................................................................... 7 3.1 Justification..................................................................................................................................... 7 3.2 Devices for Tested System............................................................................................................. 7 4 RADIATED EMISSION MEASUREMENT.............................................................................. 8 4.1 Applicable Standard....................................................................................................................... 8 4.2 Measurement Procedure................................................................................................................. 8 4.3 Measuring Instrument................................................................................................................... 10 4.4 Radiated Emission Data................................................................................................................ 11 4.4.1 RF Portion...............................................................................................................................11 4.4.2 Radiated Eimssion of Restricted bands......................................................................................17 4.4.3 Other Emission........................................................................................................................21 4.5 Field Strength Calculation............................................................................................................. 22 4.6 Photos of Radiation Measuring Setup............................................................................................ 23 5 CONDUCTED EMISSION MEASUREMENT........................................................................ 24 5.1 Standard Applicable..................................................................................................................... 24 5.2 Measurement Procedure............................................................................................................... 24 5.3 Conducted Emission Data............................................................................................................. 25 5.4 Result Data Calculation................................................................................................................. 28 5.5 Conducted Measurement Equipment............................................................................................. 29 5.6 Photos of Conduction Measuring Setup........................................................................................ 30 6 ANTENNA REQUIREMENT............................…

Text truncated - open the document above for the full version.

ETC Report No. : ET92R-08-073-03 FCC ID.: MQ4WG2K4 Rev. No 2.0 Photos of Radiation Measuring Setup ETC Report No. : ET92R-08-073-03 FCC ID.: MQ4WG2K4 Rev. No 2.0 Photos of Conduction Measuring Setup
