MQ4WM3210802.11 a/b/g Wireless LAN Mini PCI Card

802.11 a/b/g Wireless LAN Mini PCI Card User’s Manual REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:1) This device may not cause harmful interference, and 2) This device must accept any interfaerence received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter . If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is restricted in indoor environment only. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end prouduct which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operationis subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: MQ4WM3210 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This module has two antenna connectors with receiver diversity function. Only 1 antenna will be attached in CON2 port for transmission/receiving mode in both 2.4GHz/5GHz frequency. Table of Contents INTRODUCTION ...................................................................................................1 WIRELESS NETWORK OPTIONS...............................................................................1 The Peer-to-Peer Network .........................................................................1 The Access Point Network ........................................................................2 INSTALLATION ....................................................................................................3 HARDWARE INSTALLATION.....................................................................................3 SOFTWARE INSTALLATION......................................................................................4 Device Installation Verification .................................................................6 CONFIGURATION ................................................................................................7 ACCESSING THE CONFIGURATION UTILITY..............................................................8 PROFILE TAB..........................................................................................................8 LINK STATUS........................................................................................................13 SITE SURVEY........................................................................................................13 STATISTICS...........................................................................................................15 ADVANCED..........................................................................................................15 ABOUT................................................................…

Text truncated - open the document above for the full version.

Page No. : 8 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2006/11/2 FCC ID: MQ4WM3210 Dear Reviewer, We, Sporton International Inc., are authorized by AboCom Systems, Inc. to have their state-of-the-art 802.11 a/b/g Wireless LAN Mini PCI Card approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip RT2561-LQFP128. 3. The requirement of power supply regulation: The part number of the power regulator is AME8800MEET. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: RF exposure requirement can be fulfilled only for mobile configuration. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Signature : Name : Roger Sheng Job Title : Manager

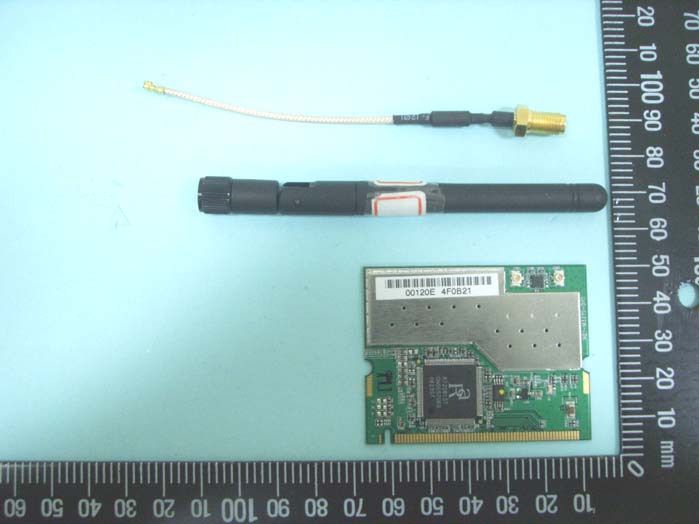

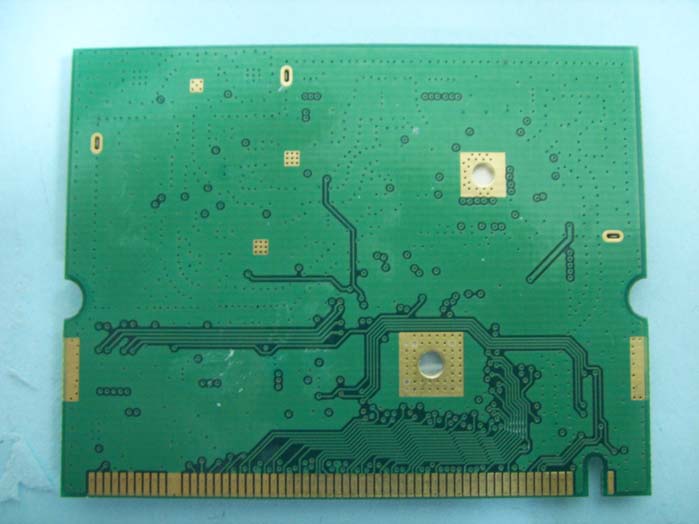

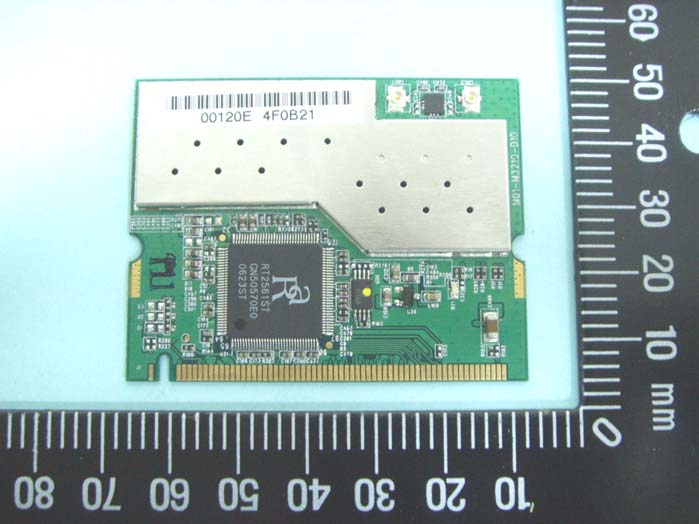

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 27, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 27, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 27, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 27, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 27, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 27, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 27, 2006 FAX : 886-2-2696-2255

Report No.:FR692609-AB FCC ID: MQ4WM3210 Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.:FR692609-AB FCC ID: MQ4WM3210 Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.:FR692609-AB FCC ID: MQ4WM3210 Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b/g : 21.78dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 21.7800 150.6607 0.047528 1 Complies Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11a (Band 3): 21.88dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 21.8800 154.1700 0.048635 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.407-2006-6-16-e FCC RADIO TEST REPORT Applicant’s company Noah International Taiwan Corp. Applicant Address 7F, NO.90, Chung Shan N. Rd., Sec 6, Taipei, Taiwan FCC ID MQ4WM3210 Manufacturer’s company Wistron Neweb Corporation Manufacturer Address No. 10-1, Li-Hsin Rd. 1, Science-Based Industrial Park, Hsinchu 300, Taiwan R.O.C Product Name IEEE 802.11a/g Wireless Access Point Brand Name I-O DATA DEVICE, INC. Model Name WN-AG/A(B) Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Sep. 23, 2006 Final Test Date Oct. 11, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR692609-AA Report Format Version: RF-15.407-2006-2-17-d Page No. : i of ii FCC ID: MQ4WM3210 Issued Date : Oct. 27, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................3 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................4 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.9. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ..................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................8 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................12 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................16 4.4. Power Spectral Density Measurement ..............................................................................................................................................20 4.5. Peak Excursion Measurement ...........................................................................................................................................................24 4.6. Radiated Emissions Measurement ....................................................................................................................................................28 4.7. Band Edge Emissions Measurement .................................................................................................................................................40 4.8. Frequency Stability Measurement ....................................................................................................................................................44 4.9. Antenna Requirements .....................................................................................................................................................................46 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 47 6. TEST LOCATION.............................................................................................................................................. 49 APPENDIX A. PHOTOGRAPHS OF EUT.................................................................…

Text truncated - open the document above for the full version.

Report No.: FR692609 FCC ID: MQ4WM3210 Page No. : 1 of 8 Appendix B. Test Photos Report No.: FR692609 FCC ID: MQ4WM3210 Page No. : 2 of 8 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR692609 FCC ID: MQ4WM3210 Page No. : 3 of 8 SIDE VIEW Report No.: FR692609 FCC ID: MQ4WM3210 Page No. : 4 of 8 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR692609 FCC ID: MQ4WM3210 Page No. : 5 of 8 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR692609 FCC ID: MQ4WM3210 Page No. : 6 of 8 SIDE VIEW Report No.: FR692609 FCC ID: MQ4WM3210 Page No. : 7 of 8 Above 1GHz FRONT VIEW REAR VIEW Report No.: FR692609 FCC ID: MQ4WM3210 Page No. : 8 of 8 SIDE VIEW
