MQ4WM5100802.11n compliant 2.4GHz Mini-PCI Module

802.11n compliant 2.4GHz Mini-PCI Module User’s Manual REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. CAUTION 1. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3. For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not possible. Agency in the United States of America: Company Name: Xterasys Corporation Tel: 909-590-0600 Fax: 909-590-0388 Address: 4711 CHINO AVE. CHINO, CA91710 USA Table of Contents INTRODUCTION ...................................................................................................1 WIRELESS NETWORK OPTIONS...............................................................................1 The Peer-to-Peer Network .........................................................................1 The Access Point Network ........................................................................2 INSTALLATION ....................................................................................................3 INSTALL THE DEVICE..............................................................................................3 INSTALL THE DRIVER & UTILITY............................................................................3 Verify Device Installation........................................................................10 CONFIGURATION ..............................................................................................11 ACCESSING THE CONFIGURATION UTILITY............................................................11 CURRENT STATUS TAB.........................................................................................12 PROFILE MANAGER TAB.......................................................................................13 DIAGNOSTICS TAB................................................................................................19 ACTION................................................................................................................20 OPTIONS...............................................................................................................21 HELP....................................................................................................................23 UNINSTALLATION.............................................................................................24 - 1 - INTRODUCTION The 802.11n compliant 2.4GHz Mini-PCI Module is a device that allows you connect your computer to a wireless local area network (LAN). A wireless LAN allows your system to use wireless Radio Frequency (RF) technology to transmit and receive data without physically attaching to the network. The Wireless protocols that come with this product ensure data security and isolation from interference generated by other radio frequencies. This card also allows you to take full advantage of your computer’s mobility with access to real-time information and online services anytime and anywhere. In addition, this device eliminates the bother of pulling cable through walls and under furniture. It even allows you to place your system in locations where cabling is impossible. Modifying and augmenting networks has never been so easy. Wireless Network Options The Peer-to-Peer Network This network installation lets you set a small wireless workgroup easily and quickly. Equipped with wireless PC Cards or wireless PCI, you can share files and printers between each PC and laptop. - 2 - You can also use one computer as an Internet Server to connect to a wired global network and share files and information with other computers via a wireless LAN. The Access Point Network The network installation allows you to share files, printers, and Internet access much more conveniently. With Wireless LAN Cards, you can connect wireless LAN to a wired global network via an Access Point. - 3 - INSTALLATION Install the device 1. Make sure the computer is turned off. Remove the expansion slot cover from the computer. 2. Carefully slide the 802.11n compliant 2.4GHz Mini-PCI Module into the mini PCI slot. Push evenly and slowly and ensure it is properly se…

Text truncated - open the document above for the full version.

Page No. : 8 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2007/9/11 FCC ID: MQ4WM5100 Dear Reviewer, We, Sporton International Inc., are authorized by AboCom Systems Inc. to have their state-of-the-art 802.11n compliant 2.4GHz Mini-PCI Module approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AR5416. 3. The requirement of power supply regulation: The part number of the power regulator is MP2106DK. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: RF exposure requirement can be fulfilled only for mobile configuration. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

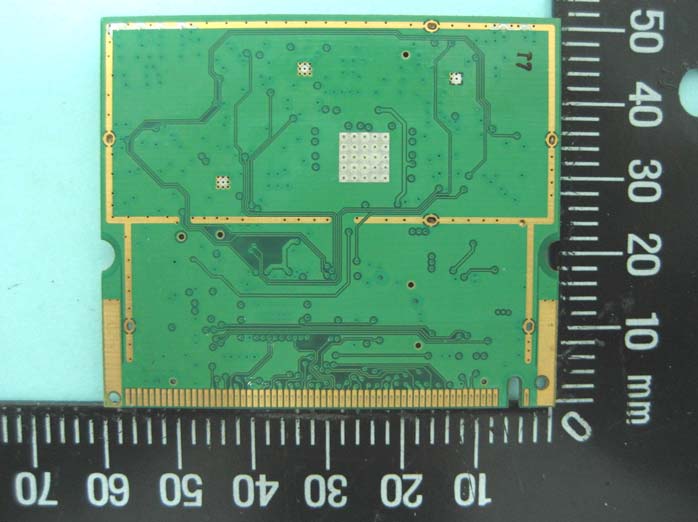

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 11, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 11, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 11, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 11, 2007 FAX : 886-2-2696-2255

45.0mm 20.0mm

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 11, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 11, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Sep. 11, 2007 FAX : 886-2-2696-2255

FCC ID: MQ4WM5100 Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure FCC ID: MQ4WM5100 Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC ID: MQ4WM5100 Page No. : C3 of C3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for draft n 20MHz Ant. A + Ant. B + Ant. C : 27.83dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 27.8342 607.3242 0.191589 1 Complies Antenna Type : Dipole Antenna Max Conducted Power for draft n 40MHz Ant. A + Ant. B+ Ant. C : 25.52 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 25.5200 356.4511 0.112448 1 Complies Antenna Type : Dipole Antenna Max Conducted Power for 802.11 b/g : 27.91 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 27.9142 618.6133 0.195150 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company AboCom Systems, Inc. Applicant Address No.77, Youyi Rd., Jhunan Township, Miaoi Country 350, Taiwan FCC ID MQ4WM5100 Manufacturer’s company AboCom Systems, Inc. Manufacturer Address No.77, Youyi Rd., Jhunan Township, Miaoi Country 350, Taiwan Product Name 802.11n compliant 2.4GHz Mini-PCI Module Brand Name AboCom Model Name WM5100 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Aug. 03, 2007 Final Test Date Sep. 10, 2007 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR790603-AB Report Format Version: 01 Page No. : i of ii FCC ID: MQ4WM5100 Issued Date : Sep. 11, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................5 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................6 3.9. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ..................................................................................................................................................... 9 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................9 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................13 4.3. Power Spectral Density Measurement ..............................................................................................................................................16 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................21 4.5. Radiated Emissions Measurement ....................................................................................................................................................26 4.6. Band Edge Emissions Measurement .................................................................................................................................................44 4.7. Antenna Requirements .....................................................................................................................................................................51 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 52 6. TEST LOCATION.............................................................................................................................................. 54 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 55 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A6 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B8 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE...........................................................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company AboCom Systems, Inc. Applicant Address No.77, Youyi Rd., Jhunan Township, Miaoi Country 350, Taiwan FCC ID MQ4WM5100 Manufacturer’s company AboCom Systems, Inc. Manufacturer Address No.77, Youyi Rd., Jhunan Township, Miaoi Country 350, Taiwan Product Name 802.11n compliant 2.4GHz Mini-PCI Module Brand Name AboCom Model Name WM5100 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Aug. 03, 2007 Final Test Date Sep. 10, 2007 Submission Type Original Equipment Statement Test result included is only for the Draft n part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR790603-AA Report Format Version: 01 Page No. : ii of ii FCC ID: MQ4WM5100 Issued Date : Sep. 11, 2007 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 10 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................10 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................14 4.3. Power Spectral Density Measurement ..............................................................................................................................................17 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................22 4.5. Radiated Emissions Measurement ....................................................................................................................................................27 4.6. Band Edge Emissions Measurement .................................................................................................................................................45 4.7. Antenna Requirements .....................................................................................................................................................................52 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 53 6. TEST LOCATION.............................................................................................................................................. 55 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 56 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A6 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B8 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE..............................................................................…

Text truncated - open the document above for the full version.

Report No.: FR790603 FCC ID: MQ4WM5100 Page No. : 1 of 8 Appendix B. Test Photos Report No.: FR790603 FCC ID: MQ4WM5100 Page No. : 2 of 8 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR790603 FCC ID: MQ4WM5100 Page No. : 3 of 8 SIDE VIEW Report No.: FR790603 FCC ID: MQ4WM5100 Page No. : 4 of 8 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR790603 FCC ID: MQ4WM5100 Page No. : 5 of 8 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR790603 FCC ID: MQ4WM5100 Page No. : 6 of 8 SIDE VIEW Report No.: FR790603 FCC ID: MQ4WM5100 Page No. : 7 of 8 Above 1GHz FRONT VIEW REAR VIEW Report No.: FR790603 FCC ID: MQ4WM5100 Page No. : 8 of 8 SIDE VIEW
