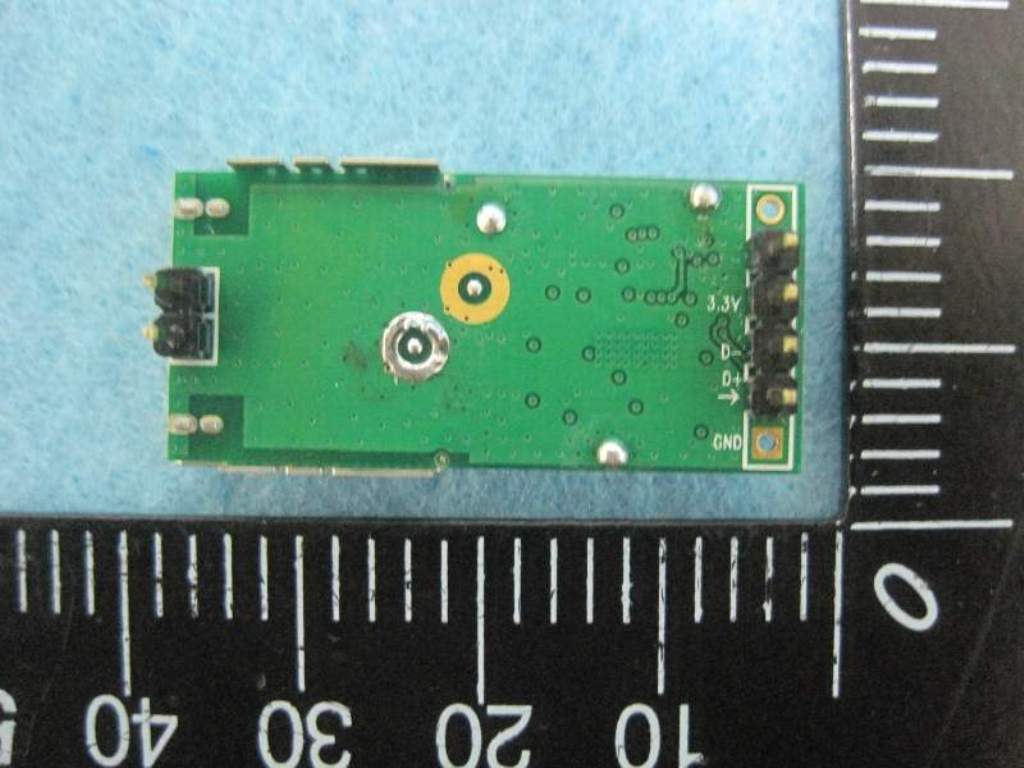

REPORT NO.:EP2O2908 SPORTON International Inc. PAGE NUMBER : 1 OF 1 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 23, 2012 FAX : 886-2-2696-2255 Photographs of EUT

REPORT NO.:EP2O2908 SPORTON International Inc. PAGE NUMBER : 1 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 23, 2012 FAX : 886-2-2696-2255 Photographs of EUT REPORT NO.:EP2O2908 SPORTON International Inc. PAGE NUMBER : 2 OF 2 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 23, 2012 FAX : 886-2-2696-2255

Report No.: FR2O2908 FCC ID: MQ4WM5504 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR2O2908 FCC ID: MQ4WM5504 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR2O2908 FCC ID: MQ4WM5504 Page No. : B3 of B3 1.3. Calculated Result and Limit Antenna Type : Metal Max Conducted Power for IEEE 802.11b: 21.77 dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.90 1.9498 21.7700 150.3142 0.058338 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Abocom Systems, Inc Applicant Address No.77, Yu-Yih Rd., Chu-Nan, Miao-Lih County 35059, Taiwan R.O.C. FCC ID MQ4WM5504 Manufacturer’s company Abocom Systems, Inc Manufacturer Address No.77, Yu-Yih Rd., Chu-Nan, Miao-Lih County 35059, Taiwan R.O.C. Product Name 802.11n/b/g WLAN Module Brand Name AboCom Model Name WM5504 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Oct. 29, 2012 Final Test Date Nov. 12, 2012 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v02 and KDB 662911 D01 v01r02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR2O2908 Report Format Version: 01 Page No. : iof ii FCC ID: MQ4WM5504 Issued Date : Nov. 23, 2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................15 4.3. Power Spectral Density Measurement ..............................................................................................................................................17 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................22 4.5. Radiated Emissions Measurement ....................................................................................................................................................26 4.6. Band Edge Emissions Measurement .................................................................................................................................................38 4.7. Antenna Requirements .....................................................................................................................................................................51 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 52 6. TEST LOCATION.............................................................................................................................................. 54 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 55 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A6 APPENDIX B. MAXIMUM PERMISSIBLE EXPOSUR ............................................................................................ B1 ~ B3 Report No.: FR2O2908 Report Format Version: 01 Page No. : iiof ii …

Text truncated - open the document above for the full version.

Report No.: FR2O2908 FCC ID: MQ4WM5504 Page No. : A1 of A6 Appendix A. Test Photos Report No.: FR2O2908 FCC ID: MQ4WM5504 Page No. : A2 of A6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR2O2908 FCC ID: MQ4WM5504 Page No. : A3 of A6 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR2O2908 FCC ID: MQ4WM5504 Page No. : A4 of A6 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR2O2908 FCC ID: MQ4WM5504 Page No. : A5 of A6 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR2O2908 FCC ID: MQ4WM5504 Page No. : A6 of A6 SIDE VIEW
