MQ4WPG2401802.11g Wireless LAN PCI Card

802.11g Wireless LAN Card User’s Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. AboCom declared that WPG2401 is limited in CH1~11 from 2400 to 2483.5 MHz by specified firmware controlled in USA. Table of Contents INTRODUCTION...................................................................................................1 WIRELESS NETWORK OPTIONS...............................................................................1 The Peer-to-Peer Network.........................................................................1 The Access Point Network........................................................................2 LED INDICATORS FOR WIRELESS CARDBUS CARD.................................................2 Power Indicator: (Orange LED).................................................................2 Act Indicator: (Green LED).......................................................................2 INSTALLATION....................................................................................................3 INSTALL THE DRIVER & UTILITY............................................................................3 INSTALL THE DEVICE..............................................................................................6 Note for Windows 98 users:......................................................................6 Note for Windows XP users:.....................................................................7 Verify Device Installation..........................................................................8 NETWORK CONNECTION.................................................................................9 IN WINDOWS 98/ME..............................................................................................9 IN WINDOWS 2000/XP.........................................................................................12 CONFIGURATION..............................................................................................15 ACCESSING THE CONFIGURATION UTILITY............................................................15 MAIN TAB............................................................................................................16 PROFILE MANAGER TAB.......................................................................................25 INFORMATION TAB...............................................................................................26 ABOUT TAB..........................................................................................................28 UNINSTALLATION.............................................................................................29 - 1 - INTRODUCTION The 802.11g Wireless LAN Card is a device that allows you connect your computer to a wireless local area network (LAN). A wireless LAN allows your system to use wireless Radio Frequency (RF) technology to transmit and receive data without physically attaching to the network. The Wireless protocols that come with this product ensure data security and isolation from interference generated by other radio frequencies. This card also allows you to take full advantage of your computer’s mobility with access to real-time information and online services anytime and anywhere. In addition, this device eliminates the bother of pulling cable through walls and under furniture. It even allows you to place your system in locations where cabling is impossible. Modifying and augmenting networks has never been so easy. Wireless Network Options The Peer-to-Peer Network This network installation lets you set a small wireless workgroup easily and quickly. Equipped with wireless PC Cards or wireless PCI, you can share files and printers between each PC and laptop. - 2 - You can also use one computer as an Internet Server to connect to a wired global network and share files and information with other computers via a wireless LAN. The Access Point Network The network installation allows you to share files, printers, and Internet access much more conveniently. With Wireless LAN Cards, you can connect wireless LAN to a wired global network via an Acc…

Text truncated - open the document above for the full version.

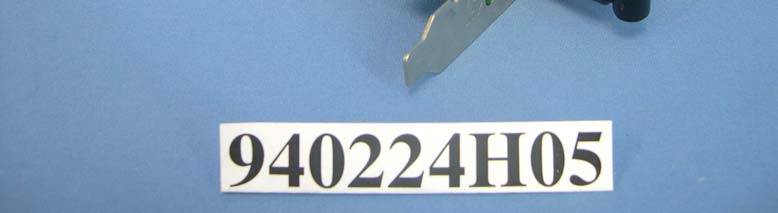

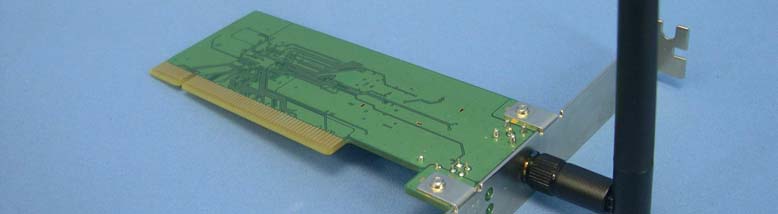

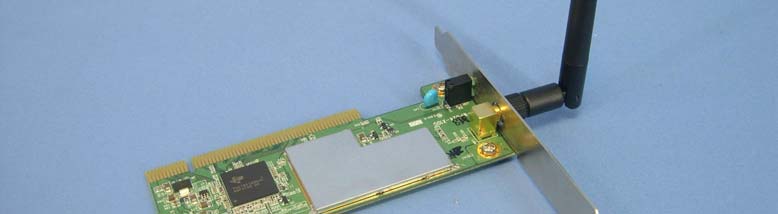

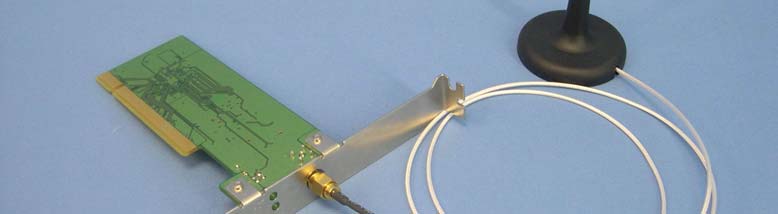

Page 1 CONSTRUCTION PHOTOS OF EUT Antenna model: W111-094-D8 Page 2 Antenna model: W111-094-D800 Page 3 Antenna model: SJW-0007A Page 4 Antenna model: AN2400-0101RS

FCC ID: MQ4WPG2401 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13

FCC ID: MQ4WPG2401 Report No. RF940224H05 Operational Description This device is an 802.11g Wireless LAN PCI Card, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (802.11g Wireless LAN PCI Card) is powered by host equipment. The antenna used in this product are as following. No.ModelGain (dBi)Antenna TypeAntenna ConnectorRemark 1W111-094-D80dBiDipole AntennaReverse SMAWith cable, white 2W111-094-D8000dBiDipole AntennaReverse SMAWith cable, black 3SJW-0007A5dBiDipole AntennaSMA ReverseNA 4AN2400-0101RS2dBiDipole AntennaSMA ReverseNA The other instruction, please have a look at the users manual.

FCC ID: MQ4WPG2401 ADT No.: 940224H051 RF EXPOSURE REPORT REPORT NO.: SA940224H05 MODEL NO.: WPG2401 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: AboCom Systems, Inc. ADDRESS: 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: MQ4WPG2401 ADT No.: 940224H052 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: MQ4WPG2401 ADT No.: 940224H053 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This is a stand alone radio device. So under normal use condition, it is easy to be re- located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: MQ4WPG2401 ADT No.: 940224H054 6 Test Results 6.1 Antenna Gain No.ModelGain (dBi)Antenna TypeAntenna ConnectorRemark 1W111-094-D80dBiDipole AntennaReverse SMAWith cable, white 2W111-094-D8000dBiDipole AntennaReverse SMAWith cable, black 3SJW-0007A5dBiDipole AntennaSMA ReverseNA 4AN2400-0101RS2dBiDipole AntennaSMA ReverseNA 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241253.08844440.0105615861.0 6243753.57966580.0106593111.0 11246248.19477980.0095880241.0 Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241253.08844440.0105615861.0 6243753.57966580.0106593111.0 11246248.19477980.0095880241.0 Antenna 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241253.08844440.0333986671.0 6243753.57966580.0337077011.0 11246248.19477980.0303199951.0 Antenna 4 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241253.08844440.0167389851.0 6243753.57966580.0168938691.0 11246248.19477980.0151959951.0 FCC ID: MQ4WPG2401 ADT No.: 940224H055 For Part 802.11g: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.81071710.0079200721.0 6243777.26805850.0153719561.0 11246231.62277660.0062911371.0 Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.81071710.0079200721.0 6243777.26805850.0153719561.0 11246231.62277660.0062911371.0 Antenna 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.81071710.0250454671.0 6243777.26805850.0486103931.0 11246231.62277660.0198943211.0 Antenna 4 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241239.81071710.0125524681.0 6243777.26805850.0243629081.0 11246231.62277660.009970781.0

FCC ID: MQ4WPG2401 Report No.: RF940224H051Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.:RF940224H05 MODEL NO.:WPG2401 RECEIVED:Feb. 02, 2005 TESTED:Mar. 14 to 16, 2005 ISSUED: Mar. 21, 2005 APPLICANT:AboCom Systems, Inc. ADDRESS:1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: MQ4WPG2401 Report No.: RF940224H052Report Format Version 2.0.1 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST ........................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST PROCEDURES..................................................................................11 4.1.4TEST SETUP ...............................................................................................11 4.1.5EUT OPERATING CONDITIONS................................................................ 12 4.1.6TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 15 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 15 4.2.2TEST INSTRUMENTS ................................................................................ 16 4.2.3TEST PROCEDURES................................................................................. 17 4.2.4TEST SETUP .............................................................................................. 18 4.2.5EUT OPERATING CONDITIONS................................................................ 18 4.2.6TEST RESULTS –ANTENNA 1 ................................................................... 19 4.2.7TEST RESULTS –ANTENNA 2 ................................................................... 20 4.2.8TEST RESULTS –ANTENNA 3 ................................................................... 21 4.2.9TEST RESULTS –ANTENNA 4 ................................................................... 22 4.2.10 TEST RESULTS – DSSS (ANTENNA 2)..................................................... 23 4.2.11 TEST RESULTS – DSSS (ANTENNA 3)..................................................... 26 4.2.12 TEST RESULTS –(ANTENNA2 – OFDM ) .................................................. 29 4.2.13 TEST RESULTS –(ANTENNA3 – OFDM ) .................................................. 32 4.36dB BANDWIDTH MEASUREMENT .......................................................... 35 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 35 4.3.2TEST INSTRUMENTS ................................................................................ 35 4.3.3TEST PROCEDURE ................................................................................... 36 4.3.4TEST SETUP .............................................................................................. 36 4.3.5EUT OPERATING CONDITIONS................................................................ 36 4.3.6TEST RESULTS - DSSS............................................................................. 37 4.3.7TEST RESULTS -OFDM ............................................................................. 40 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 43 FCC ID: MQ4WPG2401 Report No.: RF940224H053Report Format Version 2.0.1 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 43 4.4.2TEST INSTRUMENTS ................................................................................ 43 4.4.3TEST PROCEDURES................................................................................. 44 4.4.4TEST SETUP .............................................................................................. 44 4.4.5EUT OPERATING CONDITIONS................................................................ 44 4.4.6TEST RESULTS - DSSS............................................................................. 45 4.4.7TEST RESULTS - OFDM ............................................................................ 46 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 47 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 47 4.5.2TEST INSTRUMENTS ................................................................................ 47 4.5.3TEST PROCEDURE ................................................................................... 48 4.5.4TEST SETUP .....…

Text truncated - open the document above for the full version.

FCC ID: MQ4WPG2401 Report No.: RF940224H0570Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: MQ4WPG2401 Report No.: RF940224H0571Report Format Version 2.0.1 RADIATED EMISSION TEST (ANTENNA 1) FCC ID: MQ4WPG2401 Report No.: RF940224H0572Report Format Version 2.0.1 RADIATED EMISSION TEST (ANTENNA 2) FCC ID: MQ4WPG2401 Report No.: RF940224H0573Report Format Version 2.0.1 RADIATED EMISSION TEST (ANTENNA 3) FCC ID: MQ4WPG2401 Report No.: RF940224H0574Report Format Version 2.0.1 RADIATED EMISSION TEST (ANTENNA 4)
