MQ4WPG2500Wireless PCI Card

802.11g Wireless PCI Adapter User’s Manual REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interface, and 2) This device must accept any interface received, including interface that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ◗ Reorient or relocate the receiving antenna. ◗ Increase the distance between the equipment and receiver. ◗ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. CAUTION: 1) To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2) This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Table of Contents INTRODUCTION ...................................................................................................1 W IRELESS N ETWORK O PTIONS ...............................................................................1 The Peer-to-Peer Network .........................................................................1 The Access Point Network ........................................................................2 INSTALLATION ....................................................................................................3 I NSTALL THE D RIVER & U TILITY ............................................................................3 I NSTALL THE DEVICE ..............................................................................................6 Verify Device Installation..........................................................................6 NETWORK CONNECTION .................................................................................8 I N W INDOWS 98/ME ..............................................................................................8 I N W INDOWS 2000/XP .........................................................................................11 CONFIGURATION ..............................................................................................14 A CCESSING THE C ONFIGURATION U TILITY ............................................................14 E ASY C ONFIG .......................................................................................................15 M AIN T AB ............................................................................................................18 P ROFILE M ANAGER T AB .......................................................................................20 I NFORMATION T AB ...............................................................................................25 A BOUT T AB ..........................................................................................................26 UNINSTALLATION.............................................................................................27 - 1 - INTRODUCTION The 802.11g Wireless LAN Card is a device that allows you connect your computer to a wireless local area network (LAN). A wireless LAN allows your system to use wireless Radio Frequency (RF) technology to transmit and receive data without physically attaching to the network. The Wireless protocols that come with this product ensure data security and isolation from interference generated by other radio frequencies. This card also allows you to take full advantage of your computer’s mobility with access to real-time information and online services anytime and anywhere. In addition, this device eliminates the bother of pulling cable through walls and under furniture. It even allows you to place your system in locations where cabling is impossible. Modifying and augmenting networks has never been so easy. Wireless Network Options The Peer-to-Peer Network This network installation lets you set a small wireless workgroup easily and quickly. Equipped with wireless PC Cards or wireless PCI, you can share files and printers between each PC and laptop. - 2 - You can also use one computer as an Internet Server to connect to a wired global network and share files and information with other computers via a wireless LAN. The Access Point Network The network installation allows you to share files, printers, and Internet access much more conveniently. With Wireless LAN Cards, you can connect wireless LAN to a wired global network via an Access Point. - 3 - INSTALLATION Caution: Do not insert the Wireless LAN Card into your computer until the procedures in “Install the Driver & Utility” has been performed. Install the Driver & Utility 1. Exit all Windows programs. Insert the CD-ROM into the CD-ROM drive of your computer. If the CD-ROM is not launched automatically, go to your CD-ROM drive (e.g. drive D) and double-click on Setup.exe. 2. The main screen of the…

Text truncated - open the document above for the full version.

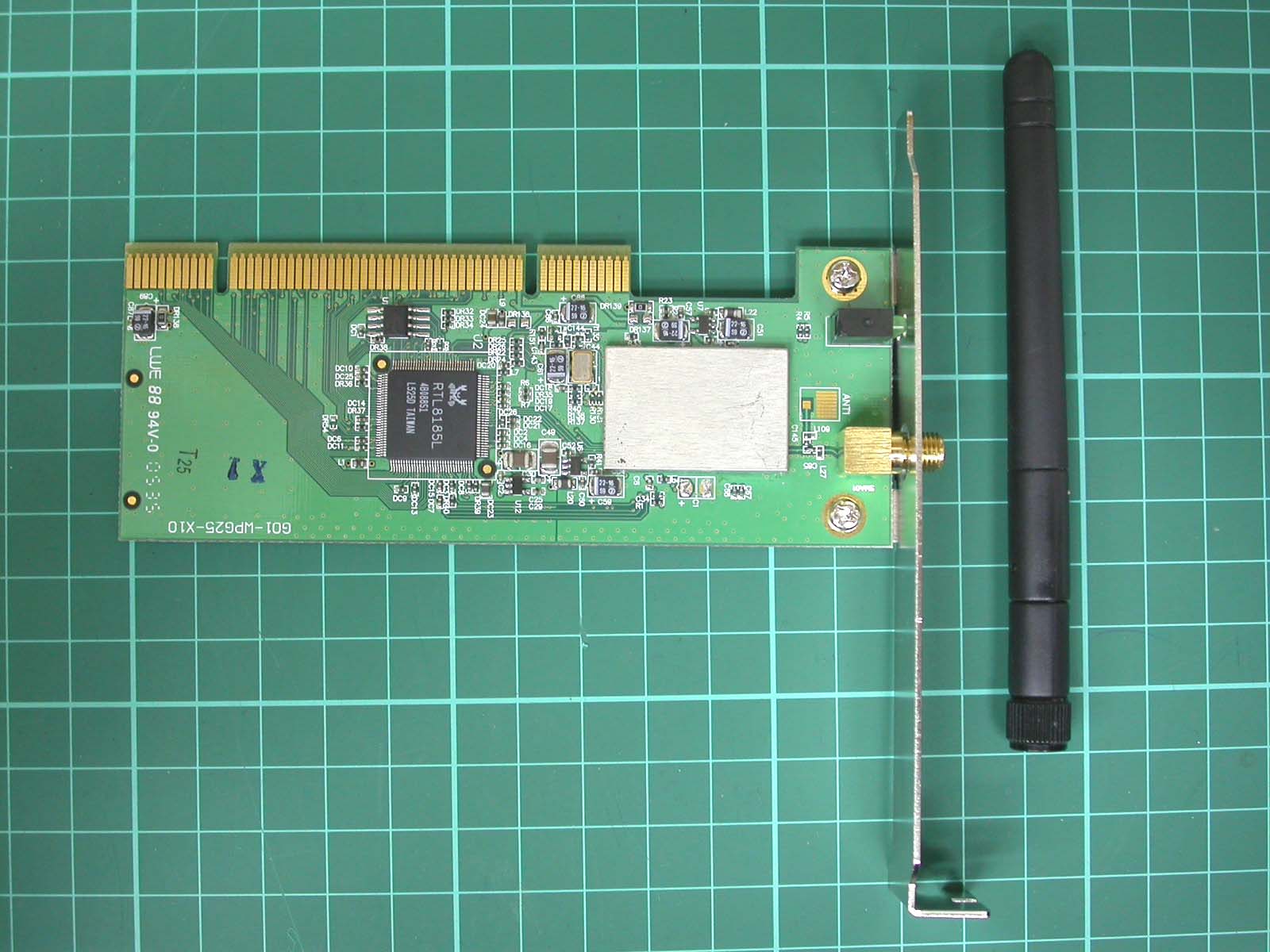

Photo 1: External photo of EUT Replaceable antenna Connector Type: Reverse SMA WPG2500 Photo 2: External photo of EUT Permanently connected antenna Connector Type: N/A (Antenna with coaxial cable is soldered in the PCB Antenna) WPG2501

FCC ID Location 45.0mm 20.0mm

Photo 1: Internal photo of EUT Replaceable antenna Connector Type: Reverse SMA WPG2500 Photo 2: Internal photo of EUT Replaceable antenna Connector Type: Reverse SMA WPG2500 Photo 3: Internal photo of EUT Replaceable antenna Connector Type: Reverse SMA WPG2500 Photo 4: Internal photo of EUT Replaceable antenna Connector Type: Reverse SMA WPG2500 Photo 5: Internal photo of EUT Permanently connected antenna Connector Type: N/A (Antenna with coaxial cable is soldered in the PCB Antenna) WPG2501 Photo 6: Internal photo of EUT Permanently connected antenna Connector Type: N/A (Antenna with coaxial cable is soldered in the PCB Antenna) WPG2501 Photo 7: Internal photo of EUT Permanently connected antenna Connector Type: N/A (Antenna with coaxial cable is soldered in the PCB Antenna) WPG2501

FCC ID. : MQ4WPG2500 Report No.: EME-051087 Page 1 of 7 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-051087 Model No. : WPG2500, WPG2501 Issued Date : Oct. 24, 2005 Applicant : AboCom Syatems, Inc. 1F, No. 21, Yanfa 2 nd Road, SBIP, Hsinchu City 300, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 7 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID. : MQ4WPG2500 Report No.: EME-051087 Page 2 of 7 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 4. Test results .................................................................................................................... 6 FCC ID. : MQ4WPG2500 Report No.: EME-051087 Page 3 of 7 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 Wireless 802.11g PCI Card-Model: WPG2500, WPG2501 FCC ID: MQ4WPG2500 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Complies FCC ID. : MQ4WPG2500 Report No.: EME-051087 Page 4 of 7 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is near by the human body (assume 0.1cm), the EUT was defined as a Portable Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : MQ4WPG2500 Report No.: EME-051087 Page 5 of 7 3. RF Exposure calculations From §FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4*π*20 2 = 0.00995 (mW/cm 2 ) FCC ID. : MQ4WPG2500 Report No.: EME-051087 Page 6 of 7 4. Test results For Mode No.: WPG2500 (Replaceable antenna, Connector Type: Reverse SMA): Test Mode: 802.11b(DSSS Modulation) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412.00 1.78 104.95 0.037130444 1.0 6 (middle) 2437.00 1.78 101.39 0.035869898 1.0 11 (highest) 2462.00 1.78 91.20 0.032264887 1.0 Test Mode: 802.11g(OFDM Modulation) operating mode Te s t M o d e : 802.11g(OFDM Modulation) operating modeChannel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412.00 1.78 116.68 0.041279093 1.0 6 (middle) 2437.00 1.78 107.89 0.038170702 1.0 11 (highest) 2462.00 1.78 99.54 0.035215199 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time. FCC ID. : MQ4WPG2500 Report No.: EME-051087 Page 7 of 7 For Mode No.: WPG2501 (Permanently connected antenna, Connector Type: N/A (Antenna with coaxial cable is soldered in the PCB Antenna): Test Mode: 802.11b(DSSS Modulation) operating mode Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412.00 1.78 107.40 0.037995323 1.0 6 (middle) 2437.00 1.78 102.57 0.036285252 1.0 11 (highest) 2462.00 1.78 94.62 0.033475737 1.0 Test Mode: 802.11g(OFDM Modulation) operating mode Te s t M o d e : 802.11g(OFDM Modulation) operating modeChannel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 (lowest) 2412.00 1.78 121.90 0.043125103 1.0 6 (middle) 2437.00 1.78 108.14 0.038258694 1.0 11 (highest) 2462.00 1.78 100.69 0.035622972 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to …
