MQ4WR254802.11b+g Wireless Router

Multi-Function 802.11b+g Wireless Router 802.11g/802.11b Wireless Access Point Broadband Internet Access 4-Port Switching Hub Model No.: WR254 User’s Manual Model No.: WR254 Table of Contents INTRODUCTION................................................................................................................2 Wireless Router Features.............................................................................................2 Package Contents..........................................................................................................4 Physical Details.............................................................................................................5 INSTALLATION.................................................................................................................7 Requirements................................................................................................................7 Procedure......................................................................................................................7 SETUP..................................................................................................................................9 Overview.......................................................................................................................9 Configuration Program..............................................................................................10 Setup Wizard..............................................................................................................12 Configuration via Web...............................................................................................15 PC CONFIGURATION.....................................................................................................31 Overview.....................................................................................................................31 Windows Clients.........................................................................................................31 Macintosh Clients.......................................................................................................43 Linux Clients...............................................................................................................43 Other Unix Systems....................................................................................................43 Wireless Station Configuration..................................................................................44 APPENDIX A TROUBLESHOOTING...............................................................45 Overview.....................................................................................................................45 General Problems.......................................................................................................45 Internet Access............................................................................................................45 Wireless Access...........................................................................................................46 APPENDIX B ABOUT WIRELESS LANS.........................................................47 Modes..........................................................................................................................47 BSS/ESS......................................................................................................................47 Channels......................................................................................................................48 WEP............................................................................................................................48 Wireless LAN Configuration......................................................................................48 APPENDIX C SPECIFICATIONS....................................................................................49 Multi-Function Wireless Router.................................................................................49 Wireless Interface.......................................................................................................49 Regulatory Approvals.................................................................................................50 Model No: WR254 2 Introduction This Chapter provides an overview of the Wireless Router's features and capabilities. Congratulations on the purchase of your new Wireless Router. The Wireless Router is a multi- function device providing the following services: • Shared Broadband Internet Access for all LAN users. • 4-Port Switching Hub for 10BaseT or 100BaseT connections. • Wireless Access Point for 802.11b and 802.11g Wireless Stations. Wireless Router Features The Wireless Router incorporates many advanced features, carefully designed to provide sophisticated functions while being easy to use. Internet Access Features • Shared Internet Access. All users on the LAN or WLAN can access the Internet through the Wireless Router, using only a single external IP Address. The local (invalid) IP Addresses are hidden from external sources. This process is called NAT (Network Ad- dress Translation). • DSL & Cable Modem Support. The Wireless Router has a 10/100BaseT Ethernet port for connecting a DSL or Cable Modem. All popular DSL and Cable Modems are supported. SingTel RAS and Big Pond (Australia) login support is also included. • PPPoE, and PPTP. The Internet (WAN port) connection supports PPPoE (PPP over Ethernet), PPTP (Peer-to-Peer Tunneling Protocol), as well as "Direct Connection" type services. Unnumbered IP with PPPoE is also supported. • Fixed or Dynamic IP Address. On the Internet (WAN port) connection, the Wireless Router supports both Dynamic IP Address (IP Address is allocated on connection) and Fixed IP Address. 1 Model No.: WR254 Introduction 3 Advanced Internet Functions • Communication Applications. Support for Internet comm…

Text truncated - open the document above for the full version.

AboCom Systems, Inc. Head Office: 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Factory: No. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsian 350, Taiwan, R.O.C. Mobile Interconnected Products: 8F, No. 123, Lane 235, Bao-Chiao Rd, Hsin-Tien City, Taipei 231, Taiwan, R.O.C. Attention: Application Examiner Re: Request for confidentiality Applicant: AboCom Systems, Inc FCC ID: MQ4WR254 To whom it may concern, Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by AboCom Systems, Inc to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] • Schematics • Detailed Block diagrams Rationale for request for confidentiality: AboCom System, Inc. has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] If you have questions or need further information, please contact the undersigned. Sincerely, Project Manager AboCom System, Inc

AboCom Systems, Inc. Head Office: 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Factory: No. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsian 350, Taiwan, R.O.C. Mobile Interconnected Products: 8F, No. 123, Lane 235, Bao-Chiao Rd, Hsin-Tien City, Taipei 231, Taiwan, R.O.C. "I, an officer of AboCom Systems, Inc do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By Ken Yang Signature Printed Title Project Manager

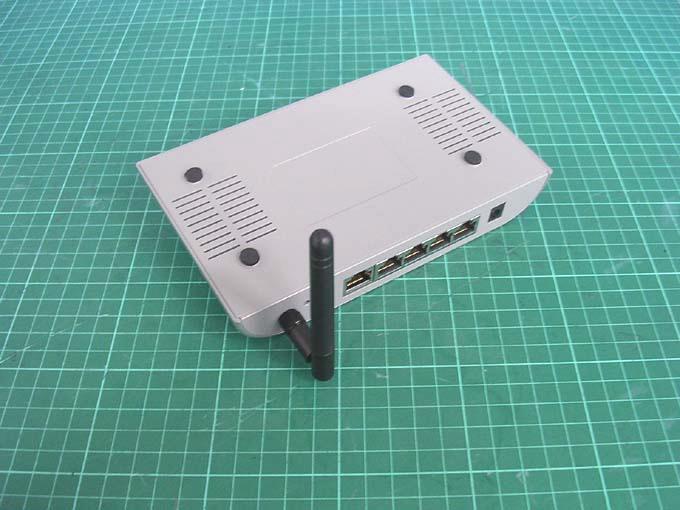

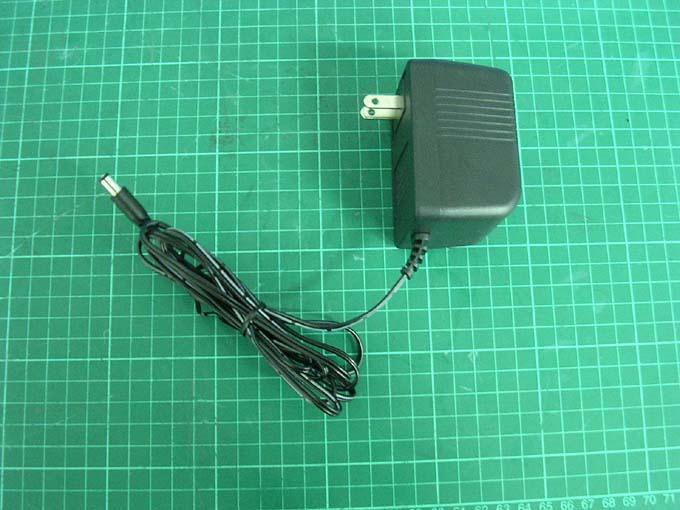

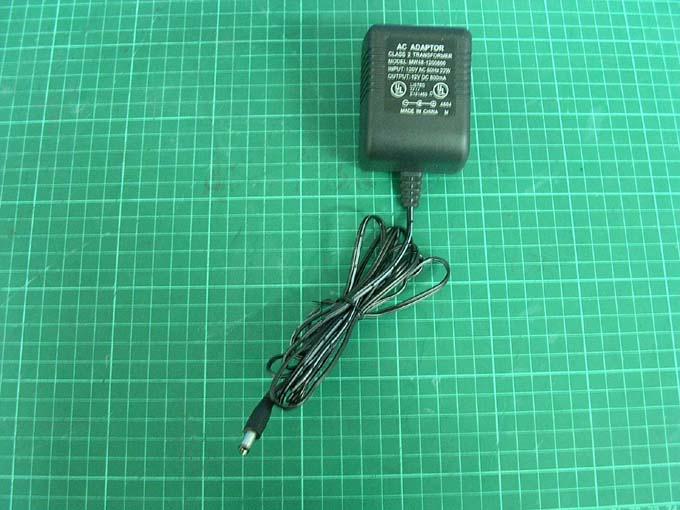

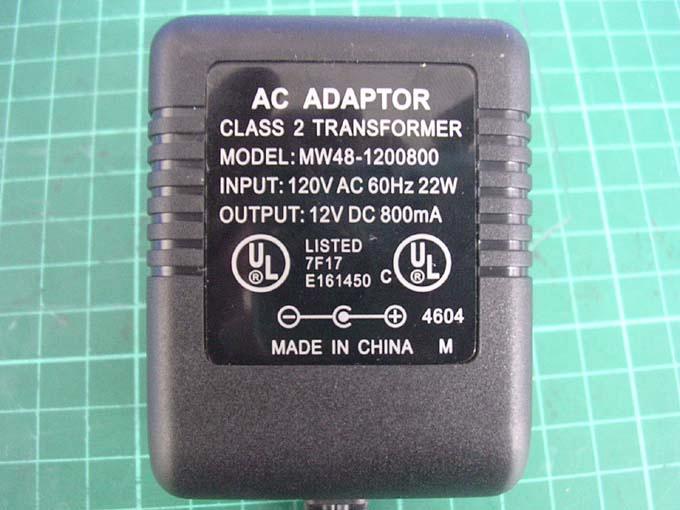

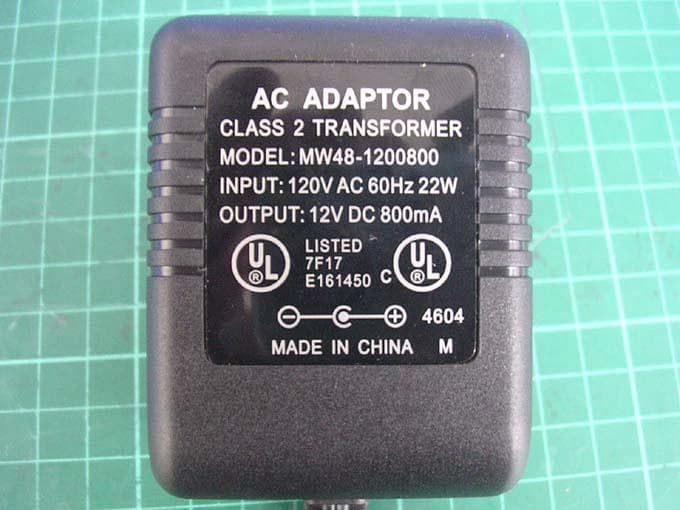

Photo 1: External photo of EUT WR254 Photo 2: External photo of EUT WR254 Photo 3: External photo of Adapter Photo 4: External photo of Adapter Photo 5: External photo of Adapter

Label location 59mm 3 3 m m Label location

Photo 1: Internal photo of EUT WR254 Photo 2: Internal photo of EUT WR254 Photo 3: Internal photo of EUT RF Circuit WR254 Photo 4: Internal photo of EUT WR254 Photo 5: Internal photo of EUT Antenna WR254

Model No.: WR254 Technical Description Congratulations on the purchase of your new Wireless Router. The Wireless Router is a multi-function device providing the following services: • Shared Broadband Internet Access for all LAN users. • 4-Port Switching Hub for 10BaseT or 100BaseT connections. • Wireless Access Point for 802.11b and 802.11g Wireless Stations. Wireless Router Features The Wireless Router incorporates many advanced features, carefully designed to provide sophisticated functions while being easy to use. Internet Access Features • Shared Internet Access. All users on the LAN or WLAN can access the Internet through the Wireless Router, using only a single external IP Address. The local (invalid) IP Addresses are hidden from external sources. This process is called NAT (Network Address Translation). • DSL & Cable Modem Support. The Wireless Router has a 10/100BaseT Ethernet port for connecting a DSL or Cable Modem. All popular DSL and Cable Modems are supported. SingTel RAS and Big Pond (Australia) login support is also included. • PPPoE, and PPTP. The Internet (WAN port) connection supports PPPoE (PPP over Ethernet), PPTP (Peer-to-Peer Tunneling Protocol), as well as "Direct Connection" type services. Unnumbered IP with PPPoE is also supported. • Fixed or Dynamic IP Address. On the Internet (WAN port) connection, the Wireless Router supports both Dynamic IP Address (IP Address is allocated on connection) and Fixed IP Address. Model No.: WR254 Advanced Internet Functions • Communication Applications. Support for Internet communication applications, such as interactive Games, Telephony, and Conferencing applications, which are often difficult to use when behind a Firewall, is included. • Special Internet Applications. Applications which use non-standard connections or port numbers are normally blocked by the Firewall. The ability to define and allow such applications is provided, to enable such applications to be used normally. • Virtual Servers. This feature allows Internet users to access Internet servers on your LAN. The required setup is quick and easy. • DDNS Support. DDNS (Dynamic DNS) allows Internet users to connect to Virtual Servers on your LAN using a domain name, even if your IP address is not fixed. • Multi-DMZ. For each WAN (Internet) IP address allocated to you, one (1) PC on your local LAN can be configured to allow unrestricted 2-way communication with Servers or individual users on the Internet. This provides the ability to run programs which are incompatible with Firewalls. • URL Filter. Use the URL Filter to block access to undesirable Web sites by LAN users. • Internet Access Log. See which Internet connections have been made. • Access Control. Using the Access Control feature, you can assign LAN users to different groups, and determine which Internet services are available to each group. • VPN Pass through Support. PCs with VPN (Virtual Private Networking) software using PPTP, L2TP and IPSec are transparently supported - no configuration is required. Wireless Features • Standards Compliant. The Wireless Router complies with the IEEE802.11g (DSSS) specifications for Wireless LANs. • Supports both 802.11b and 802.11g Wireless Stations. The 802.11g standard provides for backward compatibility with the 802.11b standard, so both 802.11b and 802.11g Wireless stations can be used simultaneously. • Speeds to 54Mbps. All speeds up to the 802.11g maximum of 54Mbps are supported. • WEP support. Support for WEP (Wired Equivalent Privacy) is included. Key sizes of 64 Bit and 128 Bit are supported. • Wireless MAC Access Control. The Wireless Access Control feature can check the the MAC address (hardware address) of Wireless stations to ensure that only trusted Wireless Stations can access your LAN. • Simple Configuration. If the default settings are unsuitable, they can be changed quickly and easily. Model No.: WR254 LAN Features • 4-Port Switching Hub. The Wireless Router incorporates a 4-port 10/100BaseT switching hub, making it easy to create or extend your LAN. • DHCP Server Support. Dynamic Host Configuration Protocol provides a dynamic IP address to PCs and other devices upon request. The Wireless Router can act as a DHCP Server for devices on your local LAN and WLAN. • Multi Segment LAN Support. LANs containing one or more segments are supported, via the Wireless Router's RIP (Routing Information Protocol) support and built-in static routing table. Configuration & Management • Easy Setup. Use your WEB browser from anywhere on the LAN or WLAN for configuration. • Configuration File Upload/Download. Save (download) the configuration data from the Wireless Router to your PC, and restore (upload) a previously-saved configuration file to the Wireless Router. • Remote Management. The Wireless Router can be managed from any PC on your LAN. And, if the Internet connection exists, it can also (optionally) be configured via the Internet. • Network Diagnostics. You can use the Wireless Router to perform a Ping or DNS lookup. • UPnP Support. UPnP (Universal Plug and Play) allows automatic discovery and configuration of the Wireless Router. UPnP is by supported by Windows ME, XP, or later. Security Features • Password - protected Configuration. Optional password protection is provided to prevent unauthorized users from modifying the configuration data and settings. • Wireless LAN Security . WEP (Wired Equivalent Privacy) is supported, as well as Wireless access control to prevent unknown wireless stations from accessing your LAN. • NAT Protection. An intrinsic side effect of NAT (Network Address Translation) technology is that by allowing all LAN users to share a single IP address, the location and even the existence of each PC is hidden. From the external viewpoint, there is no network, only a single device - the Wireless Router. • Stateful Inspection Firewall. All incoming data packets are monitored and all incoming server requests are filtered, thus protecting your network…

Text truncated - open the document above for the full version.

FCC ID.: MQ4WR254 Report No.: EME-050128 Page 1 of 5 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-050128 Model No. : WR254 Issued Date : May 2, 2005 Applicant : AboCom Systems, Inc. 1F, No. 21, Yanfa 2 nd Rd., SBIP, HsinChu City 300, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 5 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Jackey Chiu Project Engineer Reviewed By Jerry Liu FCC ID.: MQ4WR254 Report No.: EME-050128 Page 2 of 5 Table of Contents Summary of Tests.........................................................................................................3 1. Introduction..............................................................................................................4 2. RF Exposure Limit....................................................................................................4 3. RF Exposure calculations..........................................................................................5 4. Test results................................................................................................................5 FCC ID.: MQ4WR254 Report No.: EME-050128 Page 3 of 5 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 Wireless Router-Model: WR254 FCC ID: MQ4WR254 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Complies FCC ID.: MQ4WR254 Report No.: EME-050128 Page 4 of 5 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID.: MQ4WR254 Report No.: EME-050128 Page 5 of 5 3. RF Exposure calculations From § FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4*π*20 2 = 0.00995 (mW/cm 2 ) 4. Test results Test Mode: 802.11b operation mode (DSSS Modulation) Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 2412 1.58 62.81 0.019804275 1.0 6 2437 1.58 66.37 0.020926758 1.0 11 2462 1.58 63.97 0.020170028 1.0 Test Mode: 802.11g operation mode (OFDM Modulation) Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 2412 1.58 135.83 0.042827808 1.0 6 2437 1.58 137.09 0.043225091 1.0 11 2462 1.58 138.68 0.043729579 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

FCC ID. : MQ4WR254 Report No.: EME-050128 Page 1 of 50 EMC TEST REPORT Report No. : EME-050128 Model No. : WR254 Issued Date : May 2, 2005 Applicant : AboCom Systems, Inc. 1F, No. 21, Yanfa 2 nd Rd., SBIP, HsinChu City 300, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 50 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Jackey Chiu Project Engineer Reviewed By Jerry Liu FCC ID. : MQ4WR254 Report No.: EME-050128 Page 2 of 50 Table of Contents Summary of Tests.........................................................................................................4 1. General information.................................................................................................5 1.1 Identification of the EUT....................................................................................5 1.2 Additional information about the EUT................................................................5 1.3 Antenna description............................................................................................6 1.4 Peripherals equipment.........................................................................................6 2. Test specifications....................................................................................................7 2.1 Test standard.......................................................................................................7 2.2 Operation mode..................................................................................................7 2.3 Test equipment....................................................................................................8 3. Minimum 6dB Bandwidth test..................................................................................9 3.1 Operating environment.......................................................................................9 3.2 Test setup & procedure.......................................................................................9 3.3 Measured data of Minimum 6dB Bandwidth test results.....................................9 4. Maximum Output Power test...................................................................................16 4.1 Operating environment......................................................................................16 4.2 Test setup & procedure......................................................................................16 4.3 Measured data of Maximum Output Power test results.......................................16 5. Radiated Emission test.............................................................................................17 5.1 Operating environment......................................................................................17 5.2 Test setup & procedure......................................................................................17 5.3 Emission limits..................................................................................................18 5.4 Radiated spurious emission test data..................................................................19 5.4.1 Measurement results: frequencies equal to or less than 1 GHz.........................19 5.4.2 Measurement results: frequency above 1GHz.................................................21 6. Power Spectrum Density test...................................................................................27 6.1 Operating environment......................................................................................27 6.2 Test setup & procedure......................................................................................27 6.3 Measured data of Power Spectrum Density test results.......................................27 7. Emission on the band edge §FCC 15.247(C)............................................................34 7.1 Band-edge (Conducted method).........................................................................35 7.2 Band-edge (Radiated method)............................................................................39 FCC ID. : MQ4WR254 Report No.: EME-050128 Page 3 of 50 8. Power Line Conducted Emission test §FCC 15.207.................................................47 8.1 Operating environment......................................................................................47 8.2 Test setup & procedure......................................................................................47 8.3 Emission limit...................................................................................................48 8.4 Uncertainty of Conducted Emission...................................................................48 8.5 Power Line Conducted Emission test data..........................................................49 FCC ID. : MQ4WR254 Report No.: EME-050128 Page 4 of 50 Summary of Tests Wireless Router-Model: WR254 FCC ID: MQ4WR254 Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Complies Maximum Output Power test 15.247(b) Complies Radiated Spurious Emission test 15.205, 15.209 Complies Power Spectrum Density test 15.247(d) Complies Power Line Conducted Emission test 15.207 Complies FCC ID. : MQ4WR254 Report No.: EME-050128 Page 5 of 50 1. General information 1.1 Identification of the EUT Applicant : AboCom Systems, Inc. Product : Wireless Router Model No. : WR254 FCC ID. : MQ4WR254 Frequency Range : 2400 MHz to 2483.5MHz Channel Number : 11 Channels Frequency of Each Channel : 2412MHz, 2417MHz, 2422MHz, 2427MHz, 2432MHz, 2437MHz, 2442MHz, 2447MHz, 2452MHz, 2457MHz, 2462MHz Type of Modulation : DSSS, OFDM Rated Power : 120Vac, 60Hz with adapter (MW48-1200800) Power Cord : N/A Sa…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up WR254 Photo 2: Conducted Emission Test Set-up WR254

Photo 1: Radiated Emission Test Set-up WR254 Photo 2: Radiated Emission Test Set-up WR254
