MQ4WR5204U802.11b/g/n Compact Wireless Router with USB2.0 Port

802.11b/g/n Compact Wireless Router with USB2.0 Port User’s Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. † Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION: 1. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Table of Content CHAPTER 1: INTRODUCTION.............................................................................. 1 Features......................................................................................................................................... 1 Physical Details........................................................................................................................... 2 CHAPTER 2: ABOUT OPERATION MODES....................................................... 4 Access Point Mode..................................................................................................................... 4 Gateway Mode............................................................................................................................ 5 CHAPTER 3: CONFIGURATION........................................................................... 6 Hardware Connection............................................................................................................... 6 Login............................................................................................................................................... 7 Wizard.......................................................................................................................................... 10 Operation Mode........................................................................................................................ 15 Internet Settings...................................................................................................................... 16 Wireless Settings..................................................................................................................... 24 Firewall........................................................................................................................................ 40 Administrator............................................................................................................................ 47 CHAPTER 4: PC CONFIGURATION................................................................. 51 Overview..................................................................................................................................... 51 Windows Clients....................................................................................................................... 51 Macintosh Clients..................................................................................................................... 57 Linux Clients.............................................................................................................................. 57 Other Unix Systems................................................................................................................. 57 Wireless Station Configuration........................................................................................... 58 APPENDIX A: TROUBLESHOOTING................................................................. 59 Overview..................................................................................................................................... 59 General Problems..................................................................................................................... 59 Internet Access......................................................................................................................... 59 Wireless Access........................................................................................................................ 60 APPENDIX B: ABOUT WIRELESS LANS.......................................................... 62 BSS....................................................................................................................................…

Text truncated - open the document above for the full version.

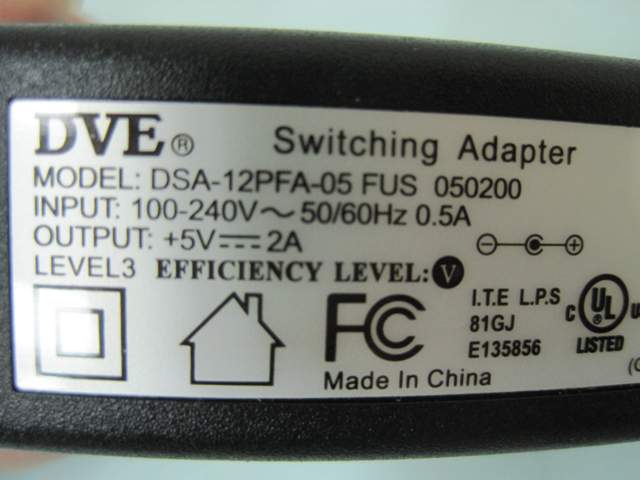

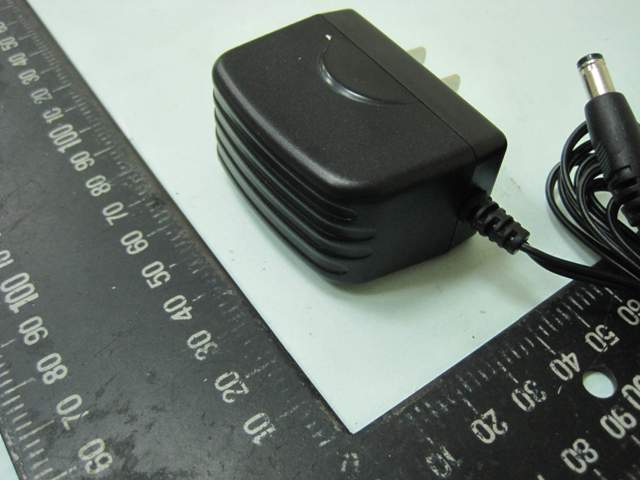

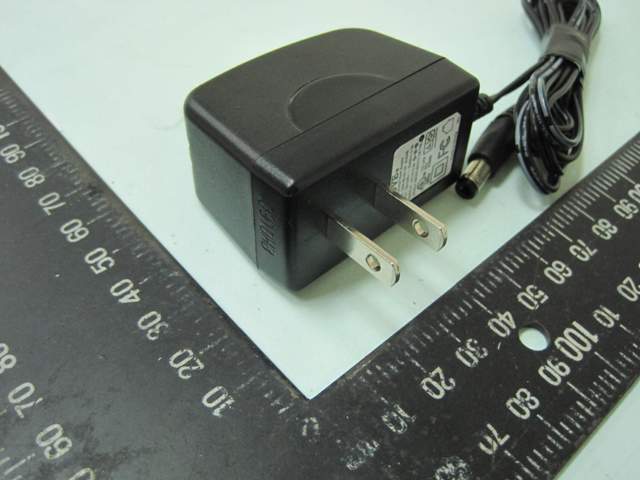

SPORTON International Inc. PAGE NUMBER : A1 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT EUT 1 with Type 1 Model No.: WR5204UE SPORTON International Inc. PAGE NUMBER : A2 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 Adapter 1 Brand Name: DVE Model No.: DSA-12PFA-05 FUS 050200 SPORTON International Inc. PAGE NUMBER : A5 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 EUT 1 with Type 2 Model No.: WR5204U SPORTON International Inc. PAGE NUMBER : A8 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 Adapter 1 Brand Name: DVE Model No.: DSA-12PFA-05 FUS 050200 SPORTON International Inc. PAGE NUMBER : A14 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 EUT 2 with Type 3 Model No.: WAP5204 SPORTON International Inc. PAGE NUMBER : A16 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A17 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A18 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A19 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 Adapter 2 Brand Name: DVE Model No.: DSA-6E-05 US 050080 SPORTON International Inc. PAGE NUMBER : A20 OF A20 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT EUT 1 with Type 1 Model No.: WR5204UE SPORTON International Inc. PAGE NUMBER : A2 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 EUT 1 with Type 2 Model No.: WR5204U SPORTON International Inc. PAGE NUMBER : A6 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 EUT 2 with Type 3 Model No.: WAP5204 SPORTON International Inc. PAGE NUMBER : A12 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 21, 2010 FAX : 886-2-2696-2255

Report No.: FR020507 FCC ID: MMQ4WR5204U Page No. : C1 of C6 Appendix C. Maximum Permissible Exposure Report No.: FR020507 FCC ID: MMQ4WR5204U Page No. : C2 of C6 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR020507 FCC ID: MMQ4WR5204U Page No. : C3 of C6 1.3. Calculated Result and Limit <For WLAN Function>: Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11g Ant. A: 21.48 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.84 1.9231 21.4800 140.6048 0.053821 1 Complies <For WLAN Function>: Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n 40MHz MCS0 Ant. B: 23.44 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.00 1.5849 23.4400 220.8005 0.069655 1 Complies Report No.: FR020507 FCC ID: MMQ4WR5204U Page No. : C4 of C6 <For GSM 850 Function>: 3G USB Dongle 1 (Mode 1), FCC ID: Q78-ZTEMF626 Antenna Type : Fixed Internal Antenna Frequency (MHz) ERP power(dBm) EIRP(dBm) EIRP(mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 824.2 27.4900 29.6300 918.3326 0.1828 0.549 Complies 836.4 28.9600 31.1000 1288.2496 0.256419 0.549 Complies 848.8 29.9900 32.1300 1633.0519 0.325050 0.549 Complies CONCULSION: Both of the WLAN and GSM 850 can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density <For Ant. A>: Therefore, the worst-case situation is 0.053821 / 1 + 0.325050 / 0.549 = 0.645898, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. <For Ant. B>: Therefore, the worst-case situation is 0.069655 / 1 + 0.325050 / 0.549 = 0.661732, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. Report No.: FR020507 FCC ID: MMQ4WR5204U Page No. : C5 of C6 <For GSM 850 Function> 3G USB Dongle 2 (Mode 2), FCC ID: QISE169 Antenna Type : Fixed Internal Antenna Frequency (MHz) ERP power(dBm) EIRP(dBm) EIRP(mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 824.2 31.7800 33.9200 2466.0393 0.490852 0.549 Complies 836.4 31.7500 33.8900 2449.0632 0.487473 0.549 Complies 848.8 31.7300 33.8700 2437.8108 0.485233 0.549 Complies CONCULSION: Both of the WLAN and GSM 850 can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density <For Ant. A>: Therefore, the worst-case situation is 0.053821 / 1 + 0.490852 / 0.549 = 0.947905, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. <For Ant. B>: Therefore, the worst-case situation is 0.069655 / 1 + 0.490852 / 0.549 = 0.963739, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. Report No.: FR020507 FCC ID: MMQ4WR5204U Page No. : C6 of C6 <For GSM 1900 Function>: 3G USB Dongle 3 (Mode 3), FCC ID: QISE220 Antenna Type : Fixed Internal Antenna Frequency (MHz) ERP power(dBm) EIRP(dBm) EIRP(mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 1850.2 26.6700 28.8100 760.3263 0.151339 1 Complies 1880 26.9200 29.0600 805.3784 0.160306 1 Complies 1909.8 26.7900 28.9300 781.6278 0.155579 1 Complies CONCULSION: Both of the WLAN and GSM 1900 can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density <For Ant. A>: Therefore, the worst-case situation is 0.053821 / 1 + 0.160306 / 1 = 0.214127, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. <For Ant. B>: Therefore, the worst-case situation is 0.069655 / 1 + 0.160306 / 1 = 0.229961, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : D1 of D7 Appendix D. Co-location Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : D2 of D7 1. Results of Radiated Emissions for Co-located Temperature 24°C Humidity 56% Test Engineer Allen Liu Configurations 11G CH 6 + GSM850 CH128 / Mode 1 Test Date Apr. 09, 2010 Horizontal Vertial Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : D3 of D7 Temperature 24°C Humidity 56% Test Engineer Allen Liu Configurations 11G CH 6 + GSM850 CH128 / Mode 2 Test Date Apr. 09, 2010 Horizontal Vertial Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : D4 of D7 Temperature 24°C Humidity 56% Test Engineer Allen Liu Configurations 11G CH 6 + GSM1900 CH661 / Mode 3 Test Date Mar. 01, 2010 Horizontal Vertial Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : D5 of D7 Temperature 24°C Humidity 56% Test Engineer Allen Liu Configurations 11G CH 6 + GSM850 CH128 / Mode 4 Test Date Apr. 09, 2010 Horizontal Vertial Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : D6 of D7 Temperature 24°C Humidity 56% Test Engineer Allen Liu Configurations 11G CH 6 + GSM850 CH128 / Mode 5 Test Date Apr. 09, 2010 Horizontal Vertial Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : D7 of D7 Temperature 24°C Humidity 56% Test Engineer Allen Liu Configurations 11G CH 6 + GSM1900 CH661 / Mode 6 Test Date Feb. 10, 2010 Horizontal Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Abocom Systems, Inc Applicant Address No.77, Yu-Yih Rd., Chu-Nan, Miao-Lih County 35059, Taiwan R.O.C. FCC ID MQ4WR5204U Manufacturer’s company Abocom Systems, Inc Manufacturer Address No.77, Yu-Yih Rd., Chu-Nan, Miao-Lih County 35059, Taiwan R.O.C. Product Name 802.11b/g/n Compact Wireless Router with USB2.0 Port Brand Name Abocom Model Name WR5204U, WR5204UE, WAP5204 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Feb. 05, 2010 Final Test Date Apr. 09, 2010 Submission Type Original Equipment Multiple Listing Please refer to section 3.7 Statement Test result included in this report is for the 802.11n and 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR020507 Report Format Version: 01 Page No. : i of ii FCC ID: MQ4WR5204U Issued Date : Apr. 21, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................8 3.7. Table for Multiple Listing......................................................................................................................................................................9 3.8. Table for Supporting Units ...................................................................................................................................................................9 3.9. Table for Parameters of Test Software Setting ...................................................................................................................................10 3.10. Test Configurations ...........................................................................................................................................................................12 4. TEST RESULT ................................................................................................................................................... 16 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................16 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................20 4.3. Power Spectral Density Measurement ..............................................................................................................................................31 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................42 4.5. Radiated Emissions Measurement ....................................................................................................................................................59 4.6. Band Edge Emissions Measurement .................................................................................................................................................89 4.7. Antenna Requirements ...................................................................................................................................................................106 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................. 107 6. TEST LOCATION............................................................................................................................................ 108 7. TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 109 APPENDIX A. PHOTOGRAPHS OF EUT.............................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : 1 of 8 Appendix B. Test Photos Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : 2 of 8 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 3 FRONT VIEW REAR VIEW Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : 3 of 8 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : 4 of 8 Test Configuration: 30MHz ~1GHz Test Mode: Mode 4 FRONT VIEW REAR VIEW Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : 5 of 8 Test Configuration: Above 1GHz Test Mode: Mode 1 with Ant. A FRONT VIEW REAR VIEW Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : 6 of 8 Test Configuration: Above 1GHz Test Mode: Mode 2 with Ant. B FRONT VIEW REAR VIEW Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : 7 of 8 Test Configuration: Co-location Test Mode: Mode 1 ~ Mode 3 FRONT VIEW REAR VIEW Report No.: FR020507 FCC ID: MQ4WR5204U Page No. : 8 of 8 Test Configuration: Co-location Test Mode: Mode 4 ~ Mode 6 FRONT VIEW REAR VIEW
