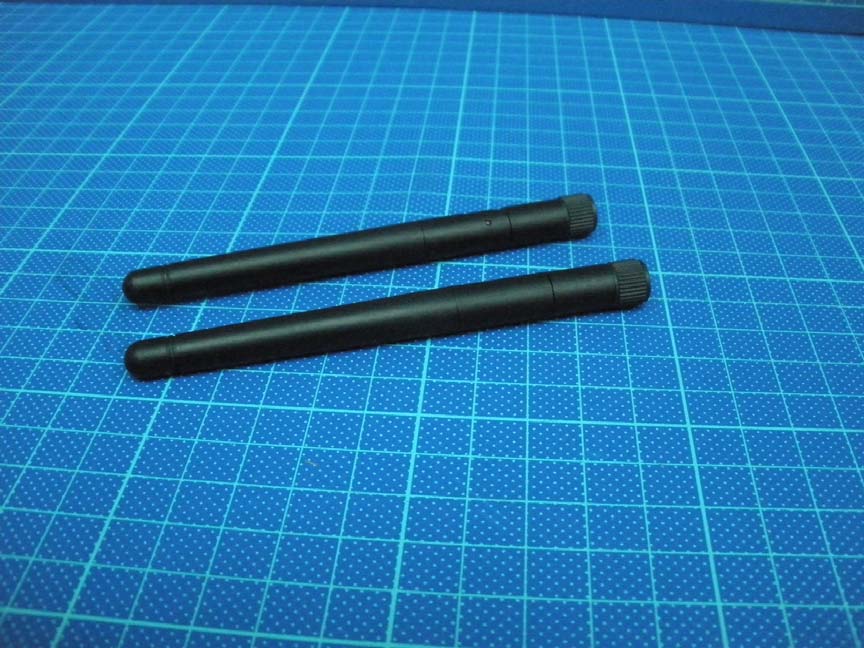

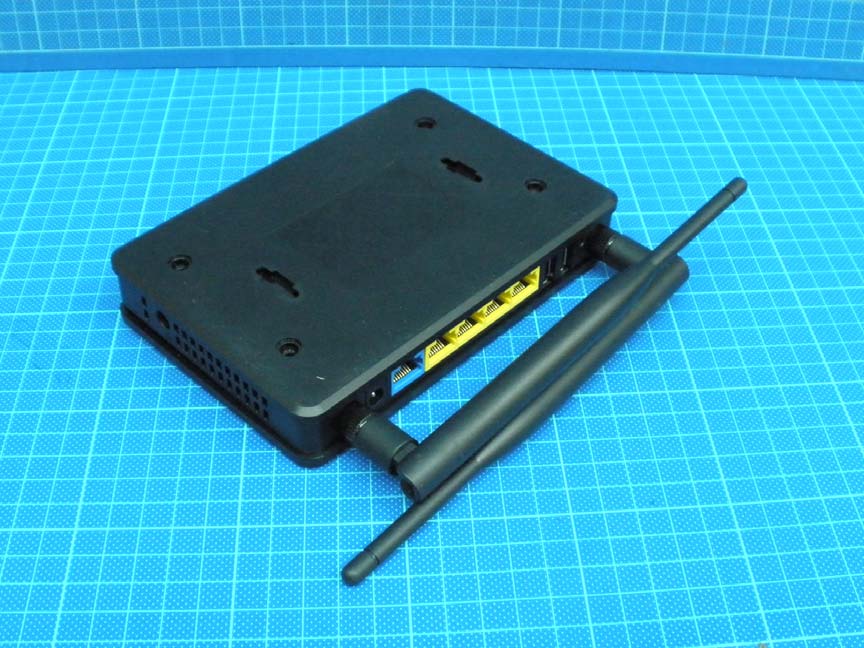

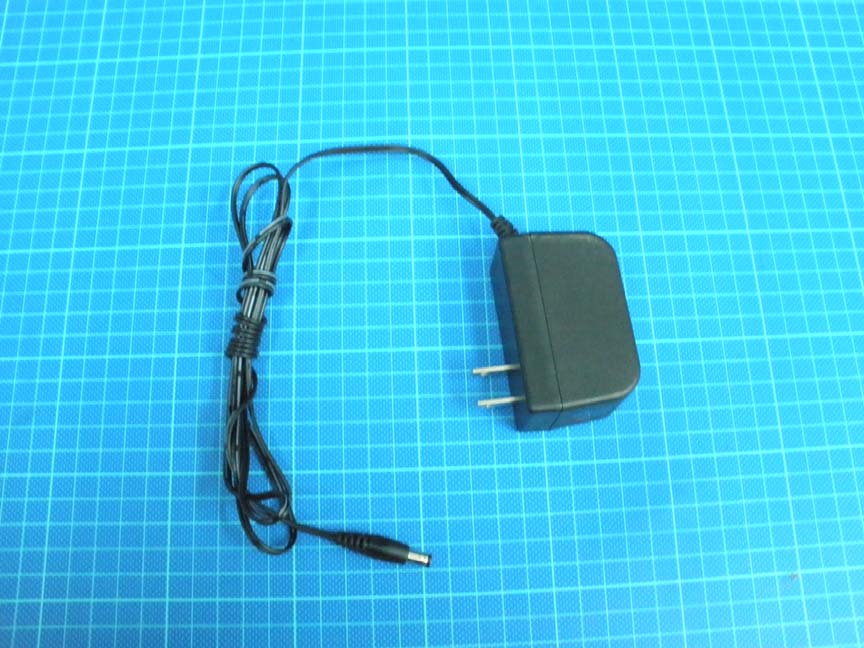

External photo of EUT Antenna Antenna External photo of EUT 2 dBi Antenna 5 dBi Antenna External photo of EUT Adapter: DSA-20PFE-05 FUS 120150 Adapter: DSA-20PFE-05 FUS 120150

FCC ID Label Location

Internal photo of EUT Internal photo of EUT Antenna Connect Antenna Connect Internal photo of EUT

Annex 3G USB Router Co-located with WR5205G Applicant Name: Huawei Technologies Co., Ltd. Model: E169 FCC ID: QISE169

FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 1 of 89 EMC TEST REPORT Report No. : TS10100036-EME Model No. : WR5205G Issued Date : May 09, 2011 Applicant: AboCom System, Inc. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsuan, Taiw an Test Method / Standard: CFR 47 FCC Part 15.247 & ANSI C63.4 2003 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Jill Chen / Assistant These measurements were taken by: Sign on File Terry Hsu / Engineer The test report was reviewed by: Name Jimmy Yang Title Engineer FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 2 of 89 Table of Contents 1. Summary of Test Data................................................................................................. 3 2. General Information .................................................................................................... 4 3. Maximum 6 dB Bandwidth .......................................................................................... 7 4. 99 % Occupied Bandwidth ........................................................................................ 20 5. Maximum Output Power............................................................................................ 33 6. Power Spectral Density ............................................................................................. 35 7. RF Antenna conducted Spurious............................................................................... 48 8. Radiated Spurious Emission..................................................................................... 60 9. Emission on Band Edge............................................................................................ 71 Appendix A: Test Equipment List................................................................................... 89 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 3 of 89 1. Summary of Test Data Test/Requirement Description Applicable Rule Result Minimum 6 dB Bandwidth 15.247(a)(2) Pass Maximum Output Power 15.247(b) Pass Power Spectral Density 15.247(e) Pass RF Antenna Conducted Spurious 15.247(d) Pass Radiated Spurious Emission 15.247(d), 15.205, 15.209 Pass Emission on the Band Edge 15.247(d) Pass AC Power Line Conducted Emission 15.207 Pass FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 4 of 89 2. General Information Identification of the EUT Product: Wireless 11n Giga Router Model No.: WR5205G FCC ID.: MQ4WR5205G Frequency Range: 1. 2412 MHz ~ 2462 MHz for 802.11b, 802.11g, 802.11n HT20 2. 2422 MHz ~ 2452 MHz for 802.11n HT40 Channel Number: 1. 11 channels for 2412 MHz ~ 2462 MHz 2. 7 channels for 2422 MHz ~ 2452 MHz Rated Power: DC 12 V from Adapter Power Cord: N/A Data Cable: RJ-45 UTP Cat.5 10 meter × 1 Sample Received: Sep. 24, 2010 Test Date(s): Mar. 08, 2011 ~ May 03, 2011 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 5 of 89 Description of EUT The EUT is a Wireless 11n Giga Router, and was defined as information technology equipment. For more detail features, please refer to User's manual as file name “Installation guide.pdf” Antenna description (1) Antenna 1 The antenna is affixed to the EUT using a unique connector, which allows for replacement of a broken antenna, but DOES NOT use a standard antenna jack or electrical connector. Antenna Gain : 2 dBi Antenna Type : Dipole antenna Connector Type : SMA reverse (2) Antenna 2 The antenna is affixed to the EUT using a unique connector, which allows for replacement of a broken antenna, but DOES NOT use a standard antenna jack or electrical connector. Antenna Gain : 5 dBi Antenna Type : Dipole antenna Connector Type : SMA reverse Adapter information The EUT will be supplied with a power supply from below list: No. Brand Model no. Specification Adapter DVE DSA-20PFE-05 FUS 120150 I/P: 100-240 Vac, 50-60 Hz, 0.7 A O/P: +12 Vac, 1.5 A Peripherals equipment Peripherals Brand Model No. Serial No. Description of Data Cable Notebook PC DELL Latitude D6102YWZK1S N/A FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 6 of 89 Operation mode The EUT was supplied with 12 Vdc from adapter (Test voltage: 120Vac, 60Hz) and it was run in TX mode that was controlled by “QA” program. The EUT was transmitted continuously during the test. All the antennas were verified, the worst case was antenna gain 5 dBi. With individual verifying, the maximum output power was found out 1 Mbps data rate for 802.11b mode and 6 Mbps data rate for 802.11g mode, 6.5 Mbps data rate for 802.11n HT 20 mode and 13 Mbps data rate for 802.11n HT 40 mode. The final tests were executed under these conditions recorded in this report individu…

Text truncated - open the document above for the full version.

FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 46 of 89 Chain 1: Power Spectral Density @ 802.11n HT40 mode channel 3 Chain 1: Power Spectral Density @ 802.11n HT40 mode channel 6 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 47 of 89 Chain 1: Power Spectral Density @ 802.11n HT40 mode channel 9 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 48 of 89 7. RF Antenna conducted Spurious Name of Test RF Antenna Conducted Spurious Base Standard FCC 15.247(d) Test Result: Complies Measurement Data: See plots below Method of Measurement: Reference FCC document: KDB558074 The measurements were performed from 30 MHz to 25 GHz(for 2.4G) and 30 MHz to 40 Method of Measurement: Reference FCC document: KDB558074 The measurements were performed from 30 MHz to 25 GHz RF antenna conducted per FCC 15.247 (d) was measured from the EUT antenna port using a 50 ohm spectrum analyzer with the resolution bandwidth set at 100 kHz, and the video bandwidth set at 100 kHz. Harmonics and spurious noise must be at least 20 dB down from the highest emission level within the authorized band as measured with a 100 kHz RBW. The table below is the results from the highest emission for each channel within the authorized band. This table was used to determine the spurious limits for each channel. Test Diagram: Spectrum Analyzer Attenuator, DC block and high pass filter if necessary EUT FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 49 of 89 Chain 0: Conducted spurious @ 802.11b mode channel 1 Chain 0: Conducted spurious @ 802.11b mode channel 6 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 50 of 89 Chain 0: Conducted spurious @ 802.11b mode channel 11 Chain 0: Conducted spurious @ 802.11g mode channel 1 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 51 of 89 Chain 0: Conducted spurious @ 802.11g mode channel 6 Chain 0: Conducted spurious @ 802.11g mode channel 11 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 52 of 89 Chain 1: Conducted spurious @ 802.11g mode channel 1 Chain 1: Conducted spurious @ 802.11g mode channel 6 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 53 of 89 Chain 1: Conducted spurious @ 802.11g mode channel 11 Chain 0: Conducted spurious @ 802.11n HT20 mode channel 1 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 54 of 89 Chain 0: Conducted spurious @ 802.11n HT20 mode channel 6 Chain 0: Conducted spurious @ 802.11n HT20 mode channel 11 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 55 of 89 Chain 1: Conducted spurious @ 802.11n HT20 mode channel 1 Chain 1: Conducted spurious @ 802.11n HT20 mode channel 6 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 56 of 89 Chain 1: Conducted spurious @ 802.11n HT20 mode channel 11 Chain 0: Conducted spurious @ 802.11n HT40 mode channel 3 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 57 of 89 Chain 0: Conducted spurious @ 802.11n HT40 mode channel 6 Chain 0: Conducted spurious @ 802.11n HT40 mode channel 9 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 58 of 89 Chain 1: Conducted spurious @ 802.11n HT40 mode channel 3 Chain 1: Conducted spurious @ 802.11n HT40 mode channel 6 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 59 of 89 Chain 1: Conducted spurious @ 802.11n HT40 mode channel 9 FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 60 of 89 8. Radiated Spurious Emission Name of Test Radiated Spurious Emission Base Standard FCC 15.247(d), 15.209, 15.205 Test Result: Complies Measurement Data: See Tables below Method of Measurement: Reference FCC document: KDB558074, ANSI C63.4 The frequency range from 30 MHz to 1000 MHz using Bilog Antenna. The frequency range over 1 GHz using Horn Antenna. Radiated emissions were invested cover the frequency range from 30 MHz to 1000 MHz using a receiver RBW of 120 kHz record QP reading, and the frequency over 1 GHz using a spectrum analyzer RBW of 1 MHz and 10 Hz VBW record Average reading. (15.209 paragraph), the Peak reading (1 MHz RBW/VBW) recorded also on the report. The EUT for testing is arranged on a wooden turntable. If some peripherals apply to the EUT, the peripherals will be connected to EUT and the whole system. During the test, all cables were arranged to produce worst-case emissions. The signal is maximized through rotation. The height of antenna and polarization is changing constantly for exploring for maximum signal level. The height of antenna can be up to 4 meters and down to 1 meter. The measurement for radiated emission will be done at the distance of three meters unless the signal level is too low to measure at that distance. In the case of the reading under noise floor, a pre-amplifier is used and/or the test is conducted at a closer distance. And then all readings are extrapolated back to the equivalent 3 meters reading using inverse scaling with distance. The EUT configuration please refer to the “Spurious set-up photo.pdf”. FCC ID. : MQ4WR5205G Report No.: TS10100036-EME Page 61 of 89 Test Diagram: Emission Limit: The spurious Emission shall test through the 10th harmonic. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a). Frequency (MHz) Limits (dBμV/m@ 3 meter) 30-88 40 88-216 43.5 216-960 46 Above 960 54 Remark: 1. In the above table, the tighter limit applies at the band edges. 2. Distance refers to the distance in meters between the measuring instrument antenna and the closed point of any part of the device or system Note: (1) The EUT was tested while in a continuous transmit mode and the worst case data rates are Mbps data rate for 802.11b mode, 6 Mbps data rate for 802.11g mode, 6.5 Mbps data rate for 802.11n HT20 mode and 13 Mbps data rate for 802.11n HT40 mode. The EUT was tuned to a low, middle and high channel. (2) The EUT operating at 2.4 GHz ISM band. Frequency Range scanned from 30 MHz to 25 GHz. Horn or Bilog Antenna RF Test Receiver Ground Plane Antenna To w e r □ 3 meter 1-4 meter 0.…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up photo Photo 2: Radiated Emission Test set-up photo
