MQ4WU5508802.11b/g/n 2T2R Wireless Mini USB

802.11b/g/n 2T2R Wireless Mini USB WU5508 User’s Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. SAR compliance has been established in typical laptop computer(s) with USB slot, and product could be used in typical laptop computer with USB slot. Other application like handheld PC or similar device has not been verified and may not compliance with related RF exposure rule and such use shall be prohibited. CE Statement: Hereby, AboCom, declares that this device is in compliance with the essential requirement and other relevant provisions of the R&TTE Driective 1999/5/EC. Table of Contents CHAPTER 1: INTRODUCTION........................................................1 FEATURES................................................................................................1 PHYSICAL DETAILS....................................................................................1 CHAPTER 2: INSTALLATION..........................................................3 FOR WINDOWS 2000/XP..........................................................................3 Install Software............................................................................................................3 Install Hardware..........................................................................................................5 Verification...................................................................................................................5 FOR WINDOWS VISTA...............................................................................6 Install Software............................................................................................................6 Install Hardware..........................................................................................................8 Verification...................................................................................................................8 FOR WINDOWS 7......................................................................................9 Install Software............................................................................................................9 Install Hardware........................................................................................................11 Verification.................................................................................................................11 CHAPTER 3: NETWORK CONNECTION......................................12 HOW TO MAKE A CONNECTION..................................................................12 HOW TO ADD A PROFILE..........................................................................14 CHAPTER 4: UTILITY CONFIGURATION..................................15 FOR WINDOWS 2000/XP........................................................................15 Station Mode..............................................................................................................15 Switch to AP Mode.....................................................................................................24 Soft AP mode.............................................................................................................25 FOR WINDOWS VISTA.............................................................................30 Station Mode..............................................................................................................30 Switch to AP Mode.....................................................................................................39 Soft AP mode.............................................................................................................40 FOR WINDOWS 7....................................................................................45 Station Mode..............................................................................................................45 …

Text truncated - open the document above for the full version.

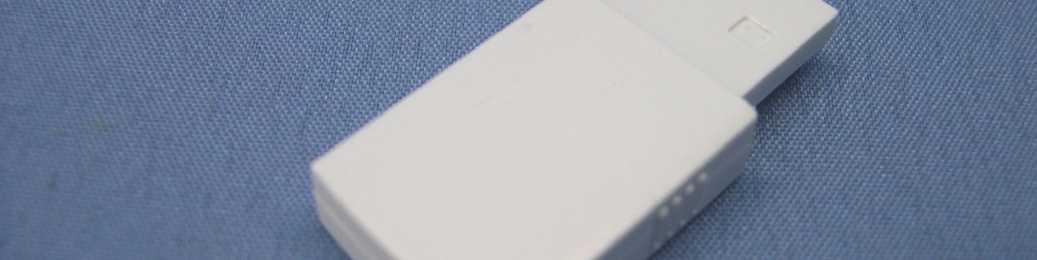

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: MQ4WU5508 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. LABEL

Page 2 Page 3

Report No.: SA990623E06 1 Report Format Version 3.0.1 SAR TEST REPORT REPORT NO.: SA990623E06 MODEL NO.: WU5508 FCC ID: MQ4WU5508 RECEIVED: Jun. 23, 2010 TESTED: Jul. 27 ~ Jul. 28, 2010 ISSUED: Aug. 12, 2010 APPLICANT: AboCom Systems, Inc. ADDRESS: 1F, No.21, R&D Rd.II, SBIP, Hsin-Chu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 28 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: SA990623E06 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION .............................................................................................................. 3 2. GENERAL INFORMATION .............................................................................................. 4 2.1 GENERAL DESCRIPTION OF EUT................................................................................. 4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .................................................. 5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ........................................................ 6 2.4 TEST EQUIPMENT .......................................................................................................... 9 2.5 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ..................... 10 2.6 DESCRIPTION OF SUPPORT UNITS........................................................................... 13 3. DESCRIPTION OF ANTENNA LOCATION .................................................................... 14 4. RECIPES FOR TISSUE SIMULATING LIQUIDS ........................................................... 15 5. SYSTEM VALIDATION................................................................................................... 19 5.1 TEST PROCEDURE ...................................................................................................... 19 5.2 VALIDATION RESULTS ................................................................................................. 20 5.3 SYSTEM VALIDATION UNCERTAINTIES ..................................................................... 21 6. TEST RESULTS ............................................................................................................. 22 6.1 TEST PROCEDURES .................................................................................................... 22 6.2 CONDUCTED POWER.................................................................................................. 24 6.3 DESCRIPTION OF TEST CONDITION.......................................................................... 24 6.4 MEASURED SAR RESULT............................................................................................ 25 6.5 POWER DRIFT TABLE .................................................................................................. 26 6.6 SAR LIMITS ................................................................................................................... 27 7. INFORMATION ON THE TESTING LABORATORIES................................................... 28 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION Report No.: SA990623E06 3 Report Format Version 3.0.1 1. CERTIFICATION PRODUCT: 802.11b/g/n 2T2R Wireless Mini USB MODEL: WU5508 BRAND: AboCom APPLICANT: AboCom Systems, Inc. TESTED: Jul. 27 ~ Jul. 28, 2010 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) RSS-102 The above equipment (model: WU5508) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Aug. 12, 2010 Polly Chien / Specialist TECHNICAL ACCEPTANCE : , DATE :Aug. 12, 2010 Responsible for RF Mason Chang / Engineer APPROVED BY : , DATE :Aug. 12, 2010 Gary Chang / Assistant Manager Report No.: SA990623E06 4 Report Format Version 3.0.1 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT EUT 802.11b/g/n 2T2R Wireless Mini USB MODEL NO. WU5508 FCC ID MQ4WU5508 POWER SUPPLY 5Vdc from host equipment MODULATION TYPE CCK, DQPSK, DBPSK for DSSS 64QAM, 16QAM, QPSK, BPSK for OFDM MODULATION TECHNOLOGY DSSS, OFDM TRANSFER RATE 802.11b: 11 / 5.5 / 2 / 1Mbps 802.11g: 54 / 48 / 36 / 24 / 18 / 12 / 9 / 6Mbps HT20 MCS 0~7 (800ns GI): 65 / 58.5 / 52 / 39 / 26 / 19.5 / 13 / 6.5Mbps. HT20 MCS 8~15 (800ns GI): 130 / 117 / 104 / 78 / 52 / 39 / 26 / 13Mbps. HT40 MCS 0~7 (800ns GI): 135 / 121.5 / 108 / 81 / 54 / 40.5 / 27 / 13.5Mbps. HT40 MCS 8~15 (800ns GI): 270 / 243 / 216 / 162 /108 / 81 / 54 / 27Mbps. HT20 MCS 0~7 (400ns GI): 72.2 / 65 / 57.8 / 43.3 / 28.9 / 21.7 / 14.4 / 7.2Mbps. HT20 MCS 8~15 (400ns GI): 144.444 / 130 / 115.556 / 86.667 / 57.778 / 43.333 / 28.889 / 14.444Mbps. HT40 MCS 0~7 (400ns GI): 150 / 135 / 120 / 90 / 60 / 45 / 30 / 15Mbps. HT40 MCS 8~15 (400ns GI): 300 / 270 / 240 / 180 / 120 / 90 / 60 / 30Mbps. OPERATING FREQUENCY 2412 ~ 2462MHz NUMBER OF CHANNEL 11 for 802.11b, 802.11g, 802.11n (20MHz) 7 for 802.11n (40MHz) MAXIMUM SAR (1g) 1.01W/kg ANTENNA TYPE Please see note 1 DATA CABLE NA I/O PORTS USB ACCESSORY DEVICES…

Text truncated - open the document above for the full version.

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: PHANTOM D2: DOSIMETRIC E-FIELD PROBE

D3: DAE D4: SYSTEM VALIDATION DIPOLE

Report No.: RF990623E06 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990623E06 MODEL NO.: WU5508 FCC ID: MQ4WU5508 RECEIVED: Mar. 29, 2010 TESTED: Mar. 29, 2010 & July 06 to 16, 2010 ISSUED: Aug. 13, 2010 APPLICANT: AboCom Systems, Inc. ADDRESS: 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990623E06 2 Report Format Version 3.0.1 Table of Contents 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.......................................................................10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................14 3.4 DESCRIPTION OF SUPPORT UNITS.................................................................15 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................15 4. TEST TYPES AND RESULTS..............................................................................16 4.1 CONDUCTED EMISSION MEASUREMENT........................................................16 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.....................................16 4.1.2 TEST INSTRUMENTS.........................................................................................16 4.1.3 TEST PROCEDURES..........................................................................................17 4.1.4 DEVIATION FROM TEST STANDARD.................................................................17 4.1.5 TEST SETUP.......................................................................................................18 4.1.6 EUT OPERATING CONDITIONS.........................................................................18 4.1.7 TEST RESULTS...................................................................................................19 4.2 RADIATED EMISSION MEASUREMENT.............................................................21 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT..........................................21 4.2.2 TEST INSTRUMENTS.........................................................................................22 4.2.3 TEST PROCEDURES..........................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD.................................................................23 4.2.5 TEST SETUP.......................................................................................................24 4.2.6 EUT OPERATING CONDITIONS.........................................................................24 Report No.: RF990623E06 3 Report Format Version 3.0.1 4.2.7 TEST RESULTS...................................................................................................25 4.3 6dB BANDWIDTH MEASUREMENT....................................................................54 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT.................................................54 4.3.2 TEST INSTRUMENTS.........................................................................................54 4.3.3 TEST PROCEDURE............................................................................................54 4.3.4 DEVIATION FROM TEST STANDARD.................................................................54 4.3.5 TEST SETUP.......................................................................................................54 4.3.6 EUT OPERATING CONDITIONS.........................................................................54 4.3.7 TEST RESULTS...................................................................................................55 4.4 MAXIMUM PEAK OUTPUT POWER....................................................................59 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.....................59 4.4.2 INSTRUMENTS...................................................................................................59 4.4.3 TEST PROCEDURES..........................................................................................59 4.4.4 DEVIATION FROM TEST STANDARD.................................................................59 4.4.5 TEST SETUP.......................................................................................................59 4.4.6 EUT OPERATING CONDITIONS.........................................................................59 4.4.7 TEST RESULTS...................................................................................................60 4.5 POWER SPECTRAL DENSITY MEASUREMENT...............................................62 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.............................62 4.5.2 TEST INSTRUMENTS.........................................................................................62 4.5.3 TEST PROCEDURE.................................................................................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION BODY POSITION: Horizontal up Horizontal Down Vertical front Vertical back Tip TEST SET UP PHOTO

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
