802.11b/g Mini Wireless LAN USB 2.0 Adapter User’s Manual Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). Channel The Wireless Channel sets the radio frequency used for communication. Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference. In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an Access Point. If more than one Access Point can be used, the one with the strongest signal is used. (This can only happen within an ESS.) If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the same Channel. However, most Wireless stations will still scan all Channels to see if there is an existing "Ad-hoc" group they can join. This device has been tested and meets the FCC RF exposure guidelines. The maximum SAR value reported is 0.21w/kg Table of Contents INTRODUCTION...................................................................................................1 FEATURES..............................................................................................................1 SOFTWARE INSTALLATION.............................................................................2 STEP 1: INSTALL THE DRIVER & UTILITY................................................................2 HARDWARE INSTALLATION............................................................................5 WINDOWS 2000/XP...............................................................................................5 WINDOWS 98/ME...................................................................................................6 NETWORK CONNECTION.................................................................................8 IN WINDOWS 98SE/ME..........................................................................................8 IN WINDOWS 2000/XP.........................................................................................11 IP ADDRESS.........................................................................................................13 Configuration Utility.............................................................................................14 STATION...............................................................................................................16 ACCESS POINT......................................................................................................24 Appendix................................................................................................................30 SOFT AP CONFIGURATION....................................................................................30 - 1 - INTRODUCTION The 802.11b+g Wireless LAN USB Adapter is designed for a USB type A port of a laptop or desktop computer for creating a wireless workstation . It is USB 2.0 compliant which connects to any available USB port on a notebook or desktop computer. The 802.11b+g Wireless LAN USB Adapter complies with IEEE 802.11g standard that offers a data rate up to 54Mbps in a wireless LAN environment. It is backward compliant with IEEE 802.11b specification. The high-speed wireless network card can plug into your notebook or desktop PC and accesses to the LAN or peer-to-peer networking easily without wires or cables. Whether you’re at your desk or in the boardroom, it allows you to share printers, files, and other network resources. Features ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ ¾ Complies with IEEE 802.11g standard for 2.4GHz Wireless LAN USB 2.0 compliant USB Plug & Play Interoperable with existing network infrastructure Secure information transmission Freedom to roam while staying connected Compatible with specialty wireless products and services Up to 54 Mbps data rate Antenna is built in the card with LED indication Low power consumption Easy to install and configure - 2 - SOFTWARE INSTALLATION Step 1: Install the Driver & Utility For Windows 98, 2000, ME and XP users Caution! Do not insert the wireless LAN adapter into your computer until the procedures in “ Install the Driver& Utility” have been performed. 1. Exit all Windows programs. Insert the included CD-ROM into your computer. The CD-ROM will run automatically. 2. When the Main Menu screen appears, click “ Driver & Utility Installation” to continue. 3. When the Welcome screen appears, click Next to continue. 4. The installation program will start running automatically. Follow the on-screen instruction to proceed. 5. C…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. 4F-2, No. 28, Lane 78, Xing-Ai Rd. Nei-hu, Taipei City 114 Taiwan R.O.C 11478284-2F Tel: 886-2-2792-3366 Fax: 886-2-2792-1100 To whom it may concern The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC rules (CFR47) regarding 802.11b/g Mini Wireless LAN USB2.0 Adapter for the AboCom model WUG2670. Data within this report demonstrates that the equipment tested complied with the FCC limits for intentional radiators. Exclusive Certificate Corp. (ECC), as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact ECC for assistance. Ivy Chen TEL: +886-2-2792-3366 # 204 FAX: +886-2-2792-1100 E-mail: [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 16, 2005 RE: AboCom System Inc. FCC ID: MQ4WUG2670 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The RF power output on the SAR report does not match the EMC report. A tolerance of just 5% is allowed, but in no case can the value reported in the EMC report exceed that shown in the SAR report. Please review and address. 2.) Please identify how the country code is set for this product. Does the user have access to the country code settings or are they set at the factory? If an access point is set for a channel illegal for use in the US, will this product still link? 3.) Kindly provide a Block Diagram which will identify the frequencies used and their signal path within this device. You may wish to consider adding Figure 2 from the Operational Description to this Exhibit. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

External Photos

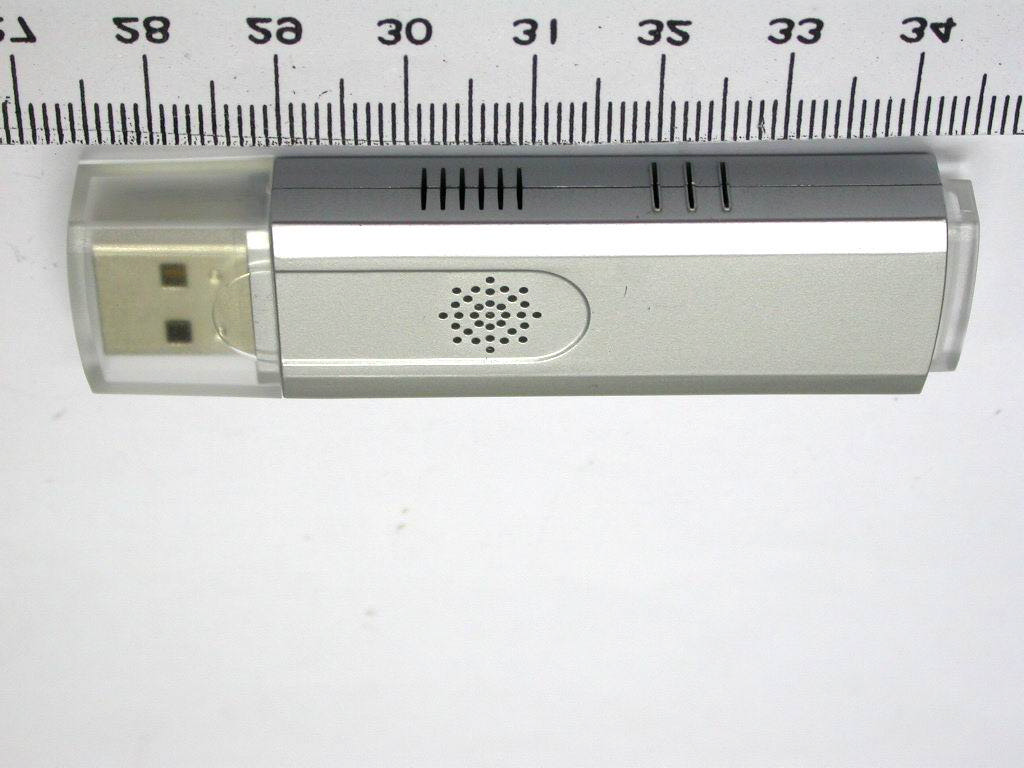

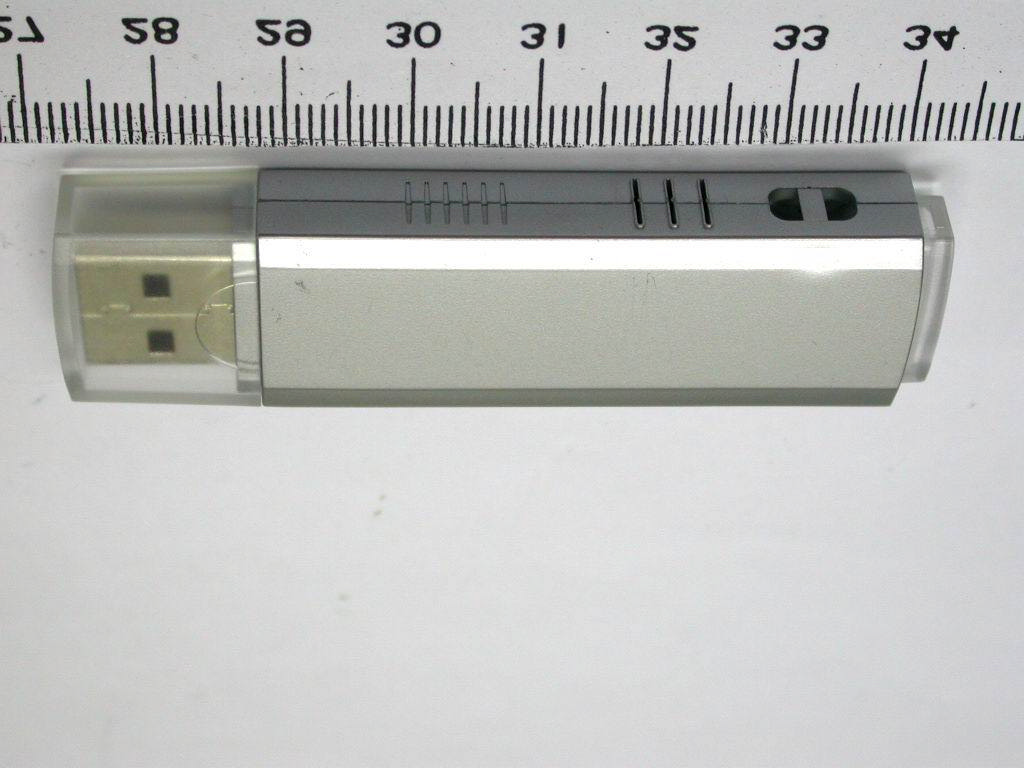

FCC ID: MQ4WUG2670 AboCom 802.11b/g Mini Wireless LAN USB2.0 Adapter WUG2670 size: 12*51 mm Location:

Internal Photos

AboCom Systems, Inc. Head Office: 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Factory: No. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsian 350, Taiwan, R.O.C. Mobile Interconnected Products: 8F, No. 123, Lane 235, Bao-Chiao Rd, Hsin-Tien City, Taipei 231, Taiwan, R.O.C. 1 Function Theorem WUG2670 is an USB 2.0 interface to Wireless Adapter. The frequency range is from 2400 ~2500 MHz. It combines 802.11 b/g mode—11b mode of CCK modulation technology to producing 11Mbps data rate, and 11g mode of OFDM modulation technology to producing 54 Mbps date. The transceiver is super heterodyne architecture. At TX mode: all of digital signals will be modulated on MAC+B.B (U1), delivering I/Q signals to Transceiver(U9) to up convert its frequency to RF frequency (ISM Band). The Transceiver is embedded Power Amplifier—to amplify its power—delivering through antenna. At RX mode :The antenna receives RF signals then send to transceiver that down converted to IF signal to deliver I/Q signals to MAC_B.B to demodulate. Figure 1 System Diagram ZD1211: BBP+MAC+USB 2.0 I/F Controller ZyDAS ZD1211 is a highly integrated, triple mode Wireless LAN (WLAN) MAC and base-band processor that is compatible with IEEE’s 802.11g, and 802.11g standards. The ZD1211 includes two different modems; an Orthogonal Frequency Division Multiplexing (OFDM) modem, and a Direct AboCom Systems, Inc. Head Office: 1F, No. 21, R&D Rd. II, SBIP, Hsin-Chu 300, Taiwan, R.O.C. Factory: No. 77, Yu-Yih Rd., Chu-Nan Chen, Miao-Lih Hsian 350, Taiwan, R.O.C. Mobile Interconnected Products: 8F, No. 123, Lane 235, Bao-Chiao Rd, Hsin-Tien City, Taipei 231, Taiwan, R.O.C. 2 Sequence Spread Spectrum / Complementary Code Keying (DSSS/CCK) modem. The OFDM modem is compatible with the IEEE 802.11gstandards that supports multiple data rates of up to 54 Mbps. The DSSS/CCK modem is compatible with the IEEE 802.11b standard that supports multiple data rates of up to 11 Mbps. These two modems share numerous hardware blocks in order to implement a low cost design. This allows the ZD1211to operate as either an OFDM modem, or as a DSSS/CCK modem. Furthermore, the ZD1211 includes an processor core that controls the dedicated dual-protocol modem hardware. Figure 2 BBP+ MAC+USB 2.0 I/F Block Diagram

Report No. : ES/2004/C0002 Page : 1 of 47 TEST REPORT Equipment Under Test : 802.11b/g Mini Wireless LAN USB2.0 Adapter Model No. : WUG2670 FCC ID : MQ4WUG2670 Applicant : AboCom Systems, Inc. Address of Applicant : No.77, Youyi Rd., Jhunan Township, Miaoli County 350, Taiwan (R.O.C). Date of Receipt : 2004.12.17 Date of Test(s) : 2004.12.22 Date of Issue : 2005.01.18 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1, C95.3, IEEE 1528-2003 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Taiwan E&E Services or testing done by SGS Taiwan E&E Services in connection with distribution or use of the product described in this report must be approved by SGS Taiwan E&E Services in writing. Tested by : Dikin Yang Date : 2005.01.18 Approved by : Robert Chang Date : 2005.01.18 Report No. : ES/2004/C0002 Page : 2 of 47 Contents 1. General Information 1.1 Testing Laboratory 4 1.2 Details of Applicant 4 1.3 Description of EUT(s) 4 1.4 Test Environment 5 1.5 Operation description 5 1.6 Evaluation procedures 6 1.7 The SAR Measurement System 7 1.8 System Components 8 1.9 SAR System Verification 9 1.10 Tissue Simulant Fluid for the Frequency Band 2.4 to 2.5 GHz 10 1.11 Test Standards and Limits 11 2. Instruments List 13 3. Summary of Results 14 4. Measurements 16 802.11b Configuration 1 4.1.1 Vertical position, lowest channel 16 4.1.2 Vertical position, middle channel 17 4.1.3 Vertical position, highest channel 18 Configuration 2 4.1.4 Horizontal position, lowest channel 19 4.1.5 Horizontal position, middle channel 20 4.1.6 Horizontal position, highest channel 21 802.11g Configuration 1 4.2.1 Vertical position, lowest channel 22 4.2.2 Vertical position, middle channel 23 4.3.3 Vertical position, highest channel 24 Configuration 2 4.2.4 Horizontal position, lowest channel 25 4.2.5 Horizontal position, middle channel 26 4.2.6 Horizontal position, highest channel 27 System Verification 4.3.1 S ystem Performance Validation 28 APPENDIX 1. Photographs of Test Setup 29 2. Photographs of EUT 33 3. Probe Calibration certificate 35 Report No. : ES/2004/C0002 Page : 3 of 47 4. Uncertainty Analysis 39 5. Phantom description 40 6. System Validation from Original equipment supplier 41 7. Z-axis Plot 42 Report No. : ES/2004/C0002 Page : 4 of 47 1. General Information 1.1 Testing Laboratory SGS Taiwan Ltd. 1F, No. 134, Wukung Road, Wuku industrial zone Taipei county , Taiwan , R.O.C. Telephone : +886-2-2299-3279 Fax : +886-2-2298-0488 Internet : http://www.sgs.com.tw 1.2 Details of Applicant Applicant : AboCom Systems, Inc. Address : No.77, Youyi Rd., Jhunan Township, Miaoli County 350, Taiwan (R.O.C). 1.3 Description of EUT(s) Equipment Type 802.11b/g Mini Wireless LAN USB2.0 Adapter Test Procedure FCC OET Bulletin 65, Supplement C TX Frequency range 2412-2462 MHz Model No. WUG2670 FCC ID MQ4WUG2670 Number Of Channel 11 Modulation Direct Sequence Spread Spectrum (DSSS) 802.11b 802.11g Transfer Rate 11 Mbps 54 Mbps Antenna Gain 2 dBi Antenna Type Multilayer Ceramic antenna Power Supply 5 V for notebook 802.11b 802.11g Max. SAR Measured (10 g) 0.815 W/kg 0.29 W/kg Host Laptop PC(s) Tested IBM ThinkPad T30 (S/N: 99AMZM5) Report No. : ES/2004/C0002 Page : 5 of 47 1.4 Test Environment Ambient temperature : 22.2° C Tissue Simulating Liquid : 21.6° C Relative Humidity : 51 % 1.5 Operation Configuration 802.11b Mode 802.11g Mode Channel Frequency Under Test And Its Conducted Output Power (Peak) 15.21 dBm (2412MHz) 15.23 dBm (2437MHz) 15.45 dBm (2462MHz) 13.51 dBm (2412MHz) 13.56 dBm (2437MHz) 13.67 dBm (2462MHz) Antenna Configuration Multilayer Ceramic antenna Antenna Position EUT Power Source From notebook USB Host Slot 5V The EUT is USB Adapter, which is installed inside a Notebook. Since the Notebook is placed on the top of the leg, when it operates, it is to be defined as a portable device. SAR measurement is mandatory. In order to measure SAR value, we used continuous transmission mode. The test set up mode was prepared by manufacturer. Value of Crest Factor = 1 was used for SAR testing according to the nature of the EUT. The test configuration tested at the low, middle and high frequency channels (2412MHz, 2437MHz and 2462MHz).By using the program subordinated in the computer, and change into the written channel, and then set in highest power. Finally, we will test it by dividing into 2 ways. Conf iguration 1: Vertical of the PC at 90° and at a distance of 1.5 cm from the base of the phantom, and the antenna tip upward. (Fig.3 & Fig.4 & Fig.5) Configuration 2: Bottom of the PC is paralleled and at a distance of 0.0 cm from the base of the phantom, but 0.5cm Spacing between EUT & Planar Phantom. (Fig.6 & Fig.7 & Fig.8) 1.6 EVALUATION PROCEDURES The evaluation was performed with the following procedure: Report No. : ES/2004/C0002 Page : 6 of 47 (1). Measurement of the SAR value at a fixed location above the ear point or central position of flat phantom was used as a reference value for assessing the power drop. (2). The SAR distribution at the exposed side of head or body position was measured at a distance of each device from the inner surface of the shell. The area covered the entire dimension of the head or EUT and the horizontal grid spacing was 15 mm x 15 mm. Based on these data, the area of the maximum absorption was determined by splint interpolation. (3). Around this point, a volume of 30 mm x 30 mm x 30 mm wa…

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 1 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C † The test result refers exclusively to the test presented test model / sample., † Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. † The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant AboCom Systems, Inc Address 1F, No.21, Yanfa 2nd Rd., SBIP, HsinChu City 300, Taiwan (R.O.C) Manufacturer AboCom Systems, Inc. Address No.77, Youyi Rd., Jhunan Township, Miaoli County 350, Taiwan (R.O.C) Equipment 802.11b/g Mini Wireless LAN USB2.0 Adapter Model No. WUG2670 FCC ID MQ4WUG2670 Trade Name AboCom Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 2 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A Contents 1. Report of Measurements and Examinations..................................................................................4 1.1. List of Measurements and Examinations............................................................................4 1.2. Antenna Requirements......................................................................................................5 1.3. Test of Conducted Emission..............................................................................................6 1.4. Test of Radiated Emission.................................................................................................8 1.5. 6dB Bandwidth.................................................................................................................9 1.6. Maximum Peak Output Power...........................................................................................9 1.7. Band Edges Measurement..............................................................................................10 1.8. Power Spectral Density...................................................................................................10 1.9. Restricted Bands of Operation..........................................................................................11 1.10. Labeling Requirement......................................................................................................11 1.11. RF Exposure..................................................................................................................12 2. Test Configuration of Equipment under Test................................................................................14 2.1. Test Mode and Test Software...........................................................................................14 2.2. Description of Test System..............................................................................................14 2.3. Connection Diagram of Test System................................................................................14 2.4. RF Module Specifications................................................................................................15 2.5. History of this test report.................................................................................................15 3. General Information of Test.......................................................................................................16 4. Test Result and Data.................................................................................................................17 4.1. Antenna Requirement.....................................................................................................17 4.2. Test Result of Conducted Emission..................................................................................18 4.3. RF Portion......................................................................................................................31 4.4. 6dB Bandwidth Measurement Data..................................................................................38 4.5. Peak Output Power Measurement Data...........................................................................38 4.6. Band Edges Measurement Data......................................................................................38 4.7. Restrict band emission Measurement Data.......................................................................38 4.8. Power Spectral Density Measurement Data......................................................................38 5. List of Measuring Equipment Used.............................................................................................38 Appendix A. Photographs of EUT......................................................................................A1 ~ A4 Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 3 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A CERTIFICATE OF COMPLIANCE according to FCC Rules and Regulations Part 15 Subpart C Applicant AboCom Systems, Inc Address 1F, No.21, Yanfa 2nd Rd., SBIP, HsinChu City 300, Taiwan (R.O.C) Manufacturer AboCom Systems, Inc. Address No.77, Youyi Rd., Jhunan Township, Miaoli County 350, Taiwan (R.O.C) Equipment 802.11b/g Mini Wireless LAN USB2.0 Adapter Model No. WUG2670 FCC ID MQ4WUG2670 I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Rules and Regulations Part 15 Subpart C (2003). The test was carried out on Nov. 30, 2004 at Exclusive Certification Corp. Signature Anson Chou / Manager Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 4 of 63 FCC ID: MQ4WUG2670 FCC Test …

Text truncated - open the document above for the full version.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 18 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A 4.2. Test Result of Conducted Emission (Worst case) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 19 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A (Worst case) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 20 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A (Worst case) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 21 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A (Worst case) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 22 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A (Worst case) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 23 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A (Worst case) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 24 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A (Worst case) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 25 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A (Worst case) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 26 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A (Worst case) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 27 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A (Worst case) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 28 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A (Worst case) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 29 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A (Worst case) Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 30 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A 4.2.1. Photographs of Conducted Emission Test FRONT VIEW REAR VIEW

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 31 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A 4.3. RF Portion 4.3.1. Test Result of Conducted Emission Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 32 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 33 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 34 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A 4.3.2. Test Result of Radiated Emission Modulation Standard: IEEE 802.11b (11Mbps) a) Emission frequencies below 1 GHz Channel LO Test Date: Nov. 30, 2004 Temperature: 24 Humidity: 64% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 940.83 H 33.30 4.01 37.31 46.00 -8.69 Peak 230 1 958.29 H 33.52 4.03 37.55 46.00 -8.45 Peak 225 1 434.49 V 45.45 -8.24 37.22 46.00 -8.78 Peak 140 1 858.38 V 36.41 1.89 38.31 46.00 -7.69 Peak 190 1 902.03 V 37.12 2.64 39.76 46.00 -6.24 Peak 220 1 935.98 V 36.13 3.96 40.09 46.00 -5.91 Peak 215 1 b) Emission frequencies above 1 GHz Channel LO Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1597.80 H 54.31 -2.43 51.88 74.00 -22.12 Peak 120 1 2185.80 H 50.37 0.54 50.91 74.00 -23.09 Peak 290 1 4824.40 H 53.17 8.14 61.31 74.00 -12.69 Peak 195 1 4824.40 H 41.62 8.14 49.76 54.00 -4.24 Ave 195 1 4824.40 V 53.99 7.38 61.37 74.00 -12.63 Peak 190 1 4824.40 V 42.41 7.38 49.79 54.00 -4.21 Ave 190 1 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier 3. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120KHz for Peak detection at frequency below 1GHz. 4. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 1MHz for Peak detection and Quasi-peak detection at frequency above 1GHz. 5. The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 10Hz for Average detection at frequency above 1GHz. 6. The other emissions is too below to be measured. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 35 of 63 FCC ID: MQ4WUG2670 FCC Test Report: FI04111002-A Modulation Standard: IEEE 802.11b (11Mbps) a) Emission frequencies below 1 GHz Channel MID Test Date: Nov. 30, 2004 Temperature: 24 Humidity: 64% Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 934.04 H 32.61 3.94 36.55 46.00 -9.45 Peak 245 1 940.83 H 33.21 4.01 37.22 46.00 -8.78 Peak 235 1 948.59 H 33.18 4.15 37.34 46.00 -8.66 Peak 220 1 955.38 H 33.49 4.08 37.57 46.00 -8.43 Peak 215 1 434.49 V 45.36 -8.24 37.13 46.00 -8.87 Peak 150 1 858.38 V 36.08 1.89 37.98 46.00 -8.02 Peak 190 1 911.73 V 35.29 3.32 38.62 46.00 -7.38 Peak 225 1 935.98 V 35.49 3.96 39.45 46.00 -6.55 Peak 230 1 b) Emission frequencies above 1 GHz Channel MID Frequency (MHz) Ant-Pol H/V Meter Reading (dBuV) Corrected Factor (dB) Result@3m (dBuV/m) Limit@3m (dBuV/m) Margin (dB) Remark Table Deg. Ant High (m) 1596.40 H 56.43 -2.44 53.99 74.00 -20.01 Peak 125 1 1596.40 H 44.39 -2.44 41.95 54.00 -12.05 Ave 125 1 2191.40 H 50.10 0.56 50.67 74.00 -23.33 Peak 300 1 3219.00 H 54.56 4.10 58.65 74.00 -15.35 Peak 160 1 3219.00 H 43.69 4.10 47.79 54.00 -6.21 Ave 160 1 4872.60 H 52.73 8.31 61.04 74.00 -12.96 Peak 185 1 4872.60 H 41.99 8.31 50.30 54.00 -3.70 Ave 185 1 4872.60 V 53.11 7.54 60.65 74.00 -13.35 Peak 195 1 4872.60 V 41.87 7.54 49.41 54.00 -4.59 Ave 195 1 Notes: 1. Result = Meter Reading + Corrected Factor 2. Corrected Factor = Antenna Factor + Cable Loss – Amplifier 3. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120KHz for Peak detection at frequency below 1GHz. 4. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 1MHz for Peak detection and Quasi-peak detection at frequency above 1GHz. 5. The resolution bandwidth of test receiver/spectrum analyzer is 1MHz and video bandwidth is 10Hz for Average detection at frequency above 1GHz. 6. The other emissions is too below to be measured. Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Dec. 14, 2004 36 of 63 FCC ID: MQ4WUG2670 FCC Test Report: F…
