802.11a/b/g/n Dual-band Wireless USB Dongle User’s Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Country Code Statement For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. IMPORTANT NOTE: Federal Communication Commission (FCC) Radiation Exposure Statement This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. This equipment should be installed and operated with minimum distance 0.5 cm between the radiator & your body. CE Statement: Hereby, AboCom, declares that this device is in compliance with the essential requirement and other relevant provisions of the R&TTE Driective 1999/5/EC. Table of Contents CHAPTER 1: INTRODUCTION .......................................................... 1 FEATURES ................................................................................................ 1 PHYSICAL DETAILS ..................................................................................... 2 CHAPTER 2: INSTALLATION............................................................. 3 Install Software ................................................................................................................. 3 Install Hardware ................................................................................................................ 4 Verification ......................................................................................................................... 5 CHAPTER 3: NETWORK CONNECTION ......................................... 6 H OW TO MAKE A CONNECTION .................................................................... 6 HOW TO ADD A PROFILE ............................................................................. 8 CHAPTER 4: UTILITY CONFIGURATION ...................................... 9 Station Mode ..................................................................................................................... 9 Switch to AP Mode .......................................................................................................... 18 Soft AP mode ................................................................................................................... 19 CHAPTER 5: REMOVE ........................................................................ 24 - 1 - Chapter 1: Introduction The Dual-band Wireless USB Dongle can access two different networks which could act in any WiFi station or AP combinations. Operating either in the 2.4GHz and 5GHz frequency bands, the Dual-band Wireless USB Dongle effectively increases the available wireless bandwidth and reduces wireless interference. The Dual-band Wireless USB Dongle also supports WiFi Direct feature that can easily build a WiFi P2P PAN network. The Dual-band Wireless USB Dongle supports 802.11e for multimedia applications, 802.11i and WAPI(Wireless Authentication Privacy Infrastructure) for security, and 802.11n for enhanced MAC protocol efficiency. The Dual-band Wireless USB Dongle is the most versatile wireless tool on the market. Just plug it into your computer’s USB port and enjoy incredible high-speed wireless network access. Features  2T2R Mode with 300Mbps PHY Rate  Complies with 802.11a/b/g/n standards  Supports WEP 64/128, WPA, WPA2  Supports USB 2.0 interface  Compatible with Microsoft Windows Vista, XP/WIN7  WiFi Direct supports wireless peer to peer applications - 2 - Physical Details WPS button To press the physical WPS button on the Wireless USB Dongle once, then the LED will start to flash. Please make a connection with another WPS supported device within 2 minutes. LED Off – Power off Solid Green – When associate with the Access Point or Ad-Hoc wireless workstation the LED will show solid green. Blinking Green – Indicate the device is transmitting data through the Access Point or Ad-Hoc wireless workstation. Also when the PBC button is pressed, the LED will blink to indicate WPS status that the LED will blink 2 seconds and off 2 seconds. - 3 - Chapter 2: Installation Install Software Note: Do not insert the Wireless USB Adapter i…

Text truncated - open the document above for the full version.

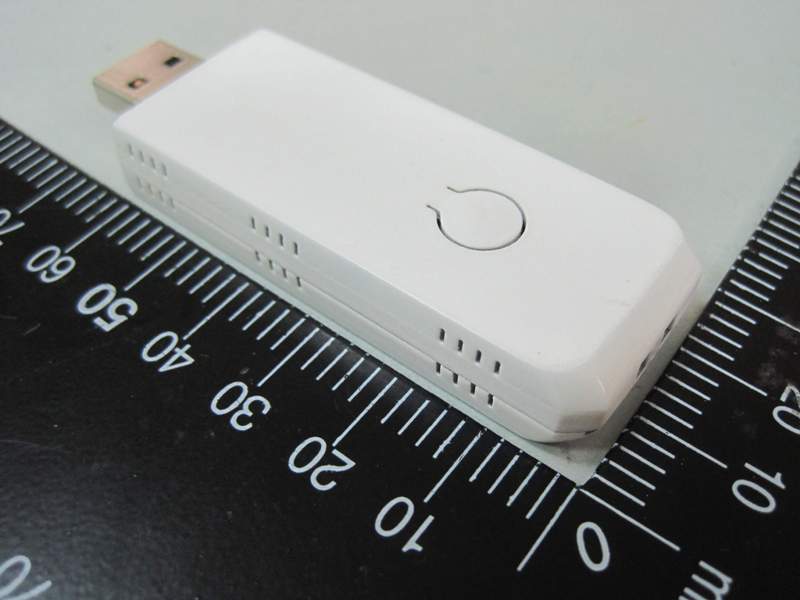

SPORTON International Inc. PAGE NUMBER : A1 OF A1 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 06, 2011 FAX : 886-2-2696-2255 Photographs of EUT

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 06, 2011 FAX : 886-2-2696-2255 Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 06, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 06, 2011 FAX : 886-2-2696-2255

Report No.: FR142012 FCC ID: MQ4WUN500 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR142012 FCC ID: MQ4WUN500 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR142012 FCC ID: MQ4WUN500 Page No. : B3 of B3 1.3. Calculated Result and Limit For 5GHz UNII Band: (15.407) Antenna Type : printed antenna Max Average Output for IEEE 802.11n MCS8 20MHz Ant. A+ Ant. B : 16.84dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.20 2.0893 16.8366 48.2677 0.020073 1 Complies Note: Directional Antenna Gain = Test Antenna Gain + 10 log (Antenna quantity) For 5GHz ISM Band: (15.247) Antenna Type : printed antenna Max Average Output for IEEE 802.11n MCS8 40MHz Ant.A +Ant. B : 16.94dBm Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.20 2.0893 16.9359 49.3850 0.020537 1 Complies Note: Directional Antenna Gain = Test Antenna Gain + 10 log (Antenna quantity) For 2.4GHz Band: Antenna Type : printed antenna Max Average Output for IEEE 802.11b Ant. A : 14.82 dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.60 2.2909 14.8200 30.3389 0.013834 1 Complies Note: Directional Antenna Gain = Test Antenna Gain + 10 log (Antenna quantity) CONCULSION: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.020073 / 1 + 0.013834 / 1 = 0.033907, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

SPORTON INTERNATIONAL INC. Page Number : 1 of 31 TEL : 886-3-327-3456 Report Issued Date : Jul. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MQ4WUN500 FCC SAR Test Report Report No. : FA142012 FCC SAR Test Report APPLICANT : Abocom Systems, Inc. EQUIPMENT : 802.11a/b/g/n USB Dongle BRAND NAME : Abocom MODEL NAME : WUN500 FCC ID : MQ4WUN500 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1991 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Apr. 20, 2011 and completely tested on Jun. 13, 2011. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 31 TEL : 886-3-327-3456 Report Issued Date : Jul. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MQ4WUN500 FCC SAR Test Report Report No. : FA142012 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage ........................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Page Number : D1 of D2 TEL : 886-3-327-3456 Report Issued Date : Jul. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MQ4WUN500 FCC SAR Test Report Report No. : FA142012 Appendix D. Product Photos SPORTON INTERNATIONAL INC. Page Number : D2 of D2 TEL : 886-3-327-3456 Report Issued Date : Jul. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MQ4WUN500 FCC SAR Test Report Report No. : FA142012 Antenna Location : WLAN Antenna 2 WLAN Antenna 1 8 cm SPORTON INTERNATIONAL INC. Page Number : E1 of E1 TEL : 886-3-327-3456 Report Issued Date : Jul. 27, 2011 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MQ4WUN500 FCC SAR Test Report Report No. : FA142012 Appendix E. Test Setup Photos Direct Laptop Plug-in for USB Configuration 1 (Horizontal Up with Phantom 5 mm Gap) USB Cable Plug-in for USB Configuration 2 (Horizontal Down with Phantom 5 mm Gap) USB Cable Plug-in for USB Configuration 3 (Vertical Front with Phantom 5 mm Gap) Direct Laptop Plug-in USB Configuration 4 (Vertical Back with Phantom 5 mm Gap) Direct Laptop Plug-in for USB Configuration 5 (Tip Mode with Phantom 5 mm Gap)

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Abocom Systems, Inc Applicant Address No.77, Yu-Yih Rd., Chu-Nan, Miao-Lih County 35059, Taiwan R.O.C. FCC ID MQ4WUN500 Manufacturer’s company Abocom Systems, Inc Manufacturer Address No.77, Yu-Yih Rd., Chu-Nan, Miao-Lih County 35059, Taiwan R.O.C. Product Name 802.11a/b/g/n USB Dongle Brand Name Abocom Model Name WUN500 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Apr. 20, 2011 Final Test Date Jul. 04, 2011 Submission Type Original Equipment Operating Mode Slave Statement Test result included is for the IEEE 802.11n and IEEE 802.11a (5150 ~ 5250MHz ) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR142012AA Report Format Version: 01 Page No. : i of ii FCC ID: MQ4WUN500 Issued Date :Jul. 08, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details .................................................................................................................................................................................... 3 3.2. Accessories ......................................................................................................................................................................................... 5 3.3. Table for Filed Antenna....................................................................................................................................................................... 5 3.4. Table for Carrier Frequencies ............................................................................................................................................................. 6 3.5. Table for Test Modes ........................................................................................................................................................................... 6 3.6. Table for Testing Locations .................................................................................................................................................................. 7 3.7. Table for Supporting Units ................................................................................................................................................................... 7 3.8. Table for Parameters of Test Software Setting ..................................................................................................................................... 7 3.9. Test Configurations ............................................................................................................................................................................. 8 4. TEST RESULT ................................................................................................................................................... 10 4.1. AC Power Line Conducted Emissions Measurement ......................................................................................................................... 10 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................ 14 4.3. Maximum Conducted Output Power Measurement ......................................................................................................................... 21 4.4. Power Spectral Density Measurement .............................................................................................................................................. 25 4.5. Peak Excursion Measurement ........................................................................................................................................................... 35 4.6. Radiated Emissions Measurement .................................................................................................................................................... 42 4.7. Band Edge Emissions Measurement ................................................................................................................................................. 56 4.8. Frequency Stability Measurement .................................................................................................................................................... 61 4.9. Antenna Requirements ..................................................................................................................................................................... 63 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 64 6. TEST LOCATION.............................................................................................................................................. 66 7. TAF CERTIFICATE OF ACCREDITATION .............................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR142012 FCC ID: MQ4WUN500 Page No. : 1 of 8 Appendix A. Test Photos Report No.: FR142012 FCC ID: MQ4WUN500 Page No. : 2 of 8 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR142012 FCC ID: MQ4WUN500 Page No. : 3 of 8 SIDE VIEW Report No.: FR142012 FCC ID: MQ4WUN500 Page No. : 4 of 8 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR142012 FCC ID: MQ4WUN500 Page No. : 5 of 8 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR142012 FCC ID: MQ4WUN500 Page No. : 6 of 8 SIDE VIEW Report No.: FR142012 FCC ID: MQ4WUN500 Page No. : 7 of 8 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR142012 FCC ID: MQ4WUN500 Page No. : 8 of 8 SIDE VIEW
