http://www.tpmseuroshop.com/documents/declaration_conformities Schrader Electronics Ltd Unit 11 Technology Park Belfast Road Antrim, Northern Ireland, BT41 1QS User Manual Statement FCC ID: MRXAHMPD4 IC: 2546A-AHMPD4 This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

http://www.tpmseuroshop.com/documents/declaration_conformities Schrader Electronics Ltd Unit 11 Technology Park Belfast Road Antrim, Northern Ireland, BT41 1QS TPMS (Tire Pressure Monitoring Sensor) Model: AHMPD4 User Manual Schrader Sensor Overview The Schrader Electronics TPMS (Tire Pressure Monitoring) Sensor is designed to be used in a direct measurement TPM System. The TPM Sensor is intended to interface to a receiver/decoder that has been designed to accept the TPM sensor protocol. The TPM Sensor is designed to monitor a vehicle's tyre pressure whilst driving or stationary. An electronic unit inside each tyre (referred to as the TPM Sensor or TPM transmitter) mounted to the valve stem, periodically measures actual tyre pressure/temperature. This pressure information is transmitted to a receiver/decoder by means of an RF link. The incoming radio frequency signals are decoded, and the data used to inform the driver of the tyre pressure information via the vehicles TPM interface. TPM Sensor main functions are: • Regularly measure the tyre pressure. • Monitor if the wheel is moving. • Periodically transmit tyre pressure using an RF link and a specific protocol. • Notify the system if there are abnormal pressure variations (leak) in the tyre. • Monitor the transponder input for valid LF field

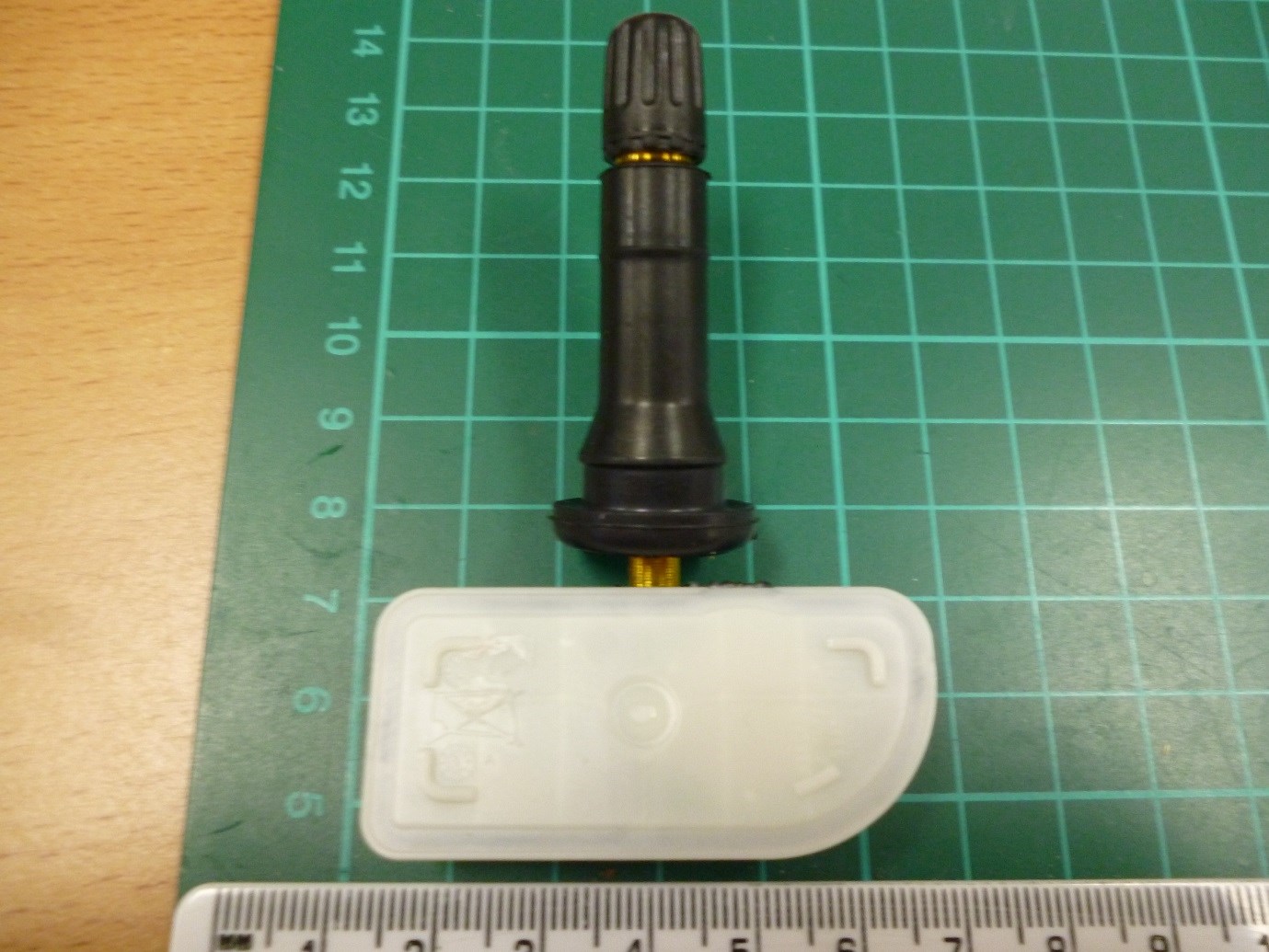

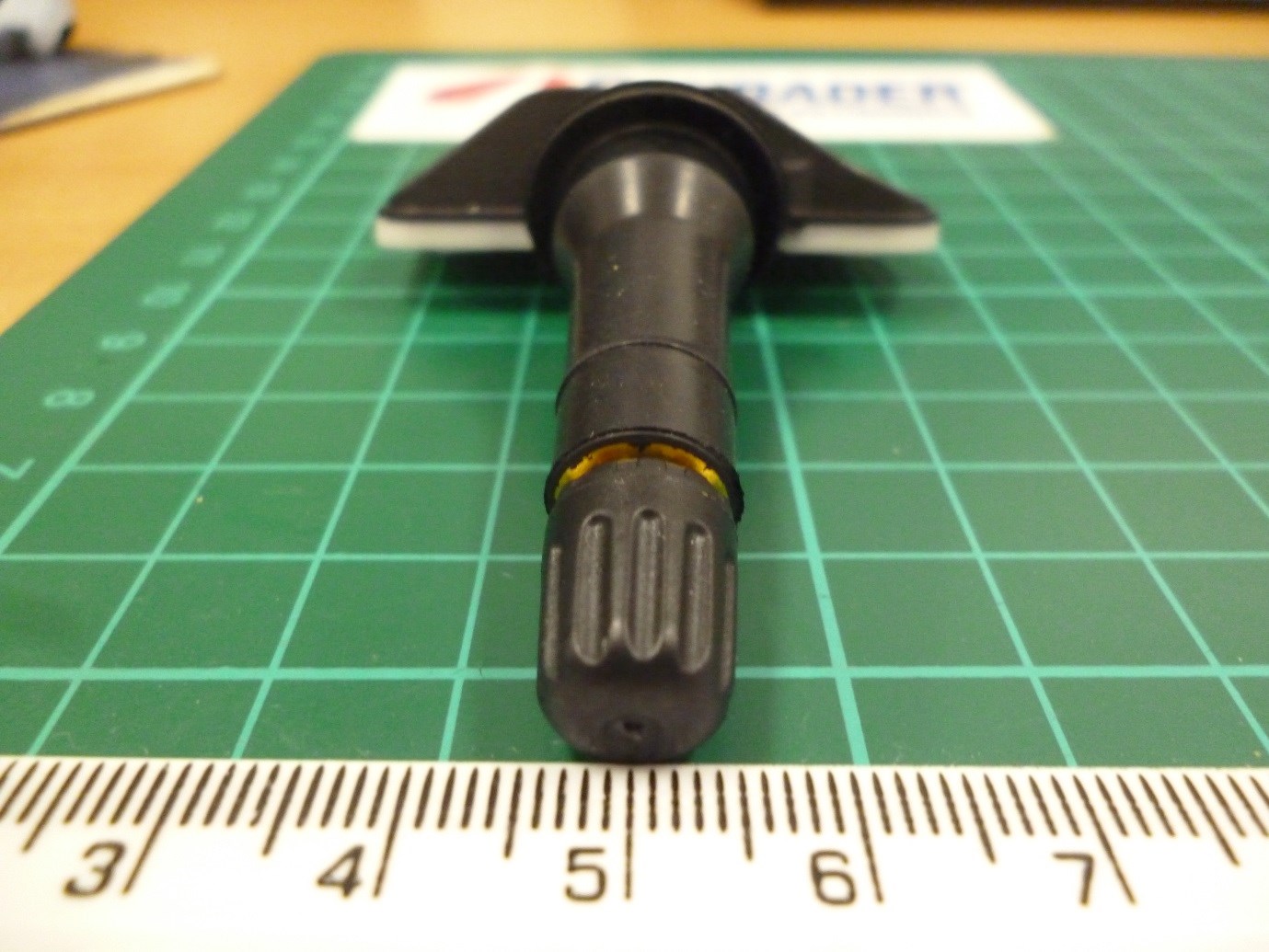

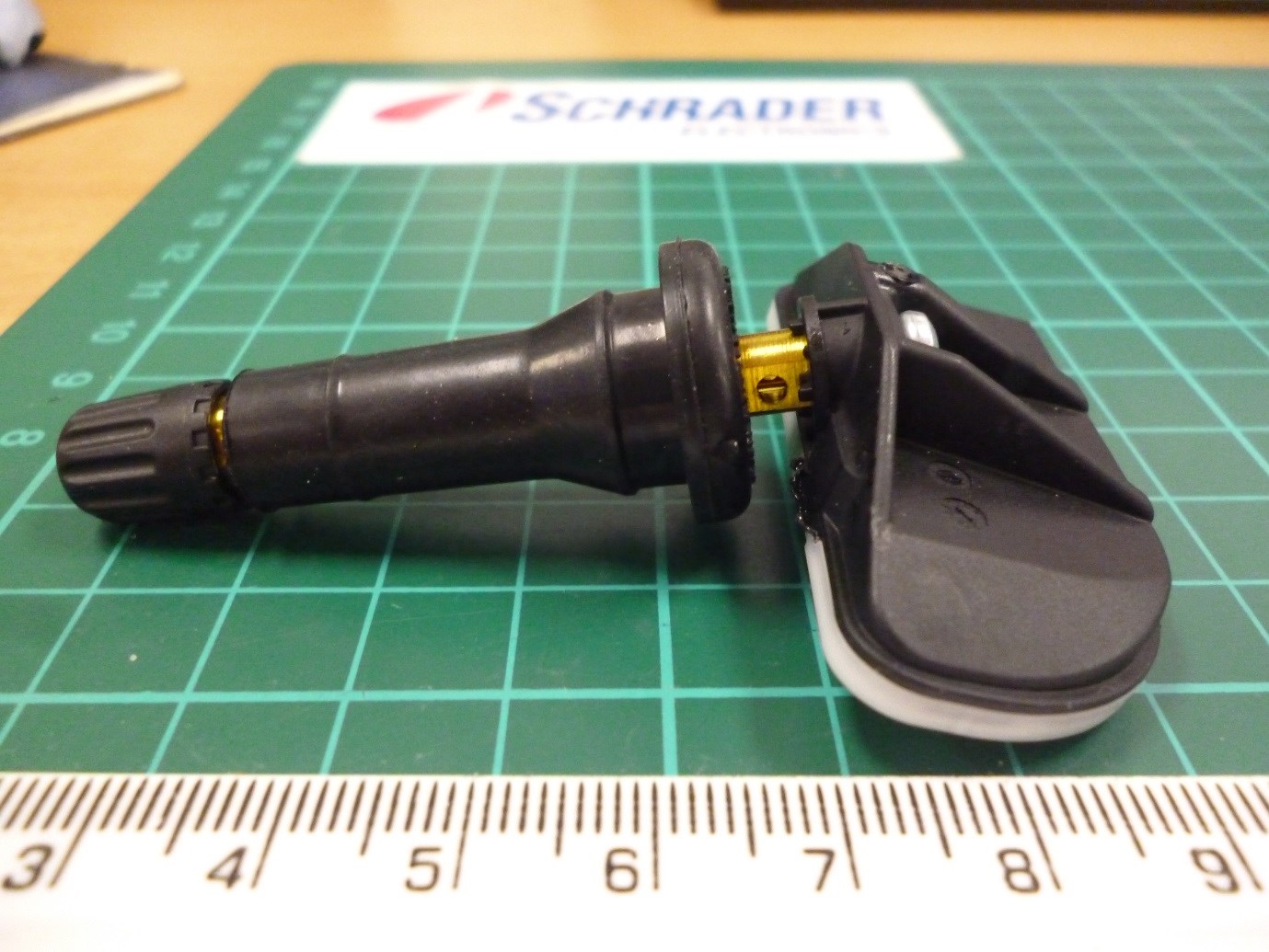

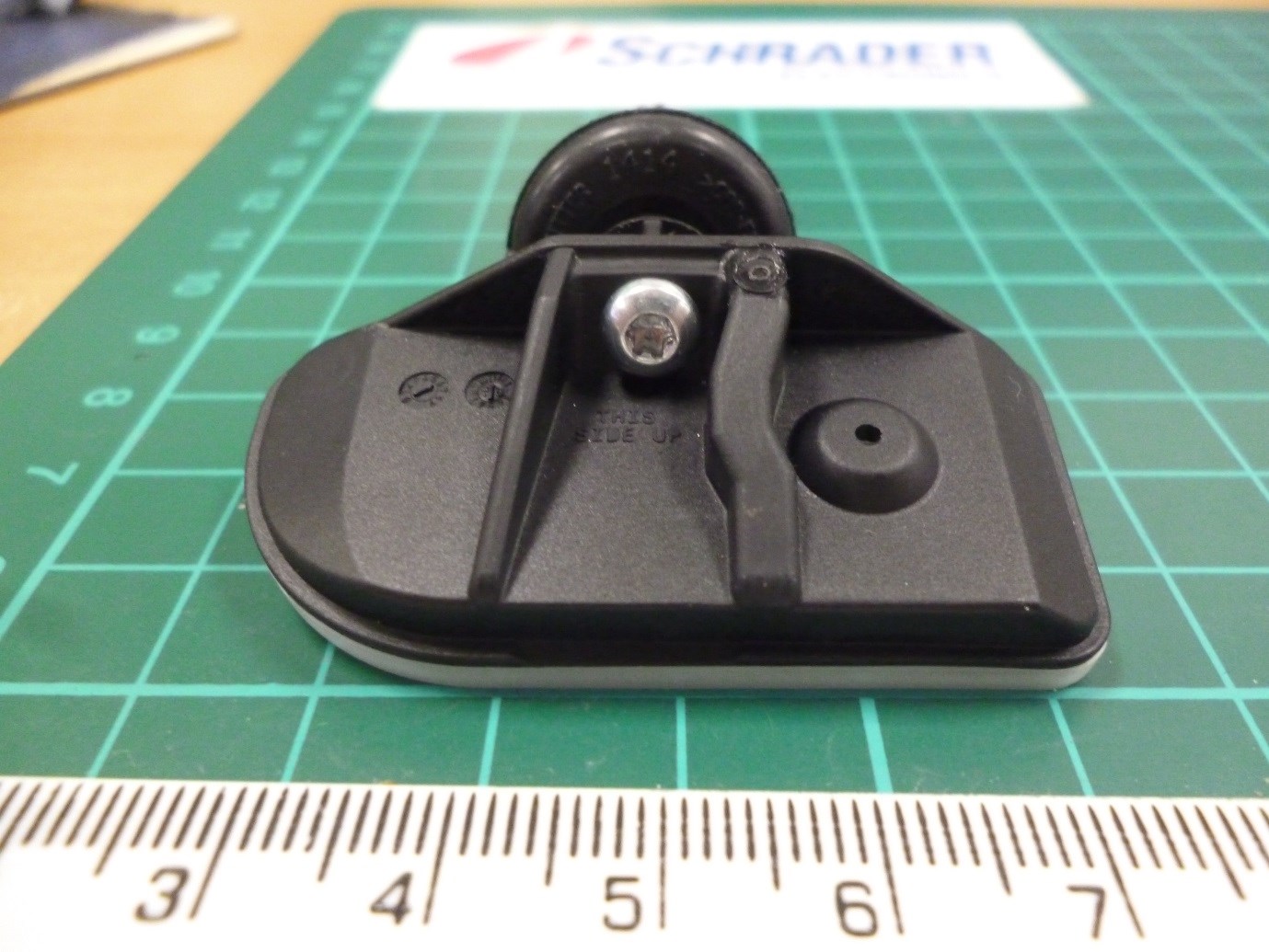

AHMPD4 PICTURES EXTERNAL . Date:22/1/2020.

Table 4 SCHRADER PART NO. CUSTOMER PART NUMBER FINAL TEXT MATRIX READOUT 7050310667513533166abc Table 2 FONT TYPE DIN 1451 TEXT HEIGHT 0.65mm ASIC CODE FORMAT HEXADECIMAL Table 3 PRODUCTION LOCATION COUNTRY OF MANUFACTURE AGUASCALIENTESMEXICO F D C B A E 12345678 FOR REFERENCE ONLY, CHECK LATEST REVISION BEFORE USE. REFER TO PLM FOR CONTROLLED DATA, CHANGE HISTORY AND APPROVALS TECHNOLOGY PARK, ANTRIM, UK, BT41 1QS MATERIAL THIS DRAWING IS CONFIDENTIAL AND PROPRIETARY OF SCHRADER ELECTRONICS LIMITED. THE INFORMATION CONTAINED WITHIN IT MAY NOT BE USED, DISCLOSED OR REPRODUCED IN WHOLE OR PART, WITHOUT THE EXPRESSED WRITTEN CONSENT OF SCHRADER ELECTRONICS LIMITED. NO RIGHT IS GRANTED TO DISCLOSE OR USE ANY INFORMATION CONTAINED WITHIN THIS DRAWING. SCHRADER ELECTRONICS LIMITED IS PART OF THE SENSATA TECHNOLOGIES GROUP. PART NUMBER N/A 70503106675 MASS (g)TITLE N/A GM GEN6 GB EDISON II SAL TFA MINI LSSI TX 433 LASER MARKING DRAWING PROJECT NO. PRJ0007412 REVISION SYMBOL INTERPRET DRAWING PER ASME Y14.5-2009 SEE NOTES FOR GENERAL TOLERANCES UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETRES DO NOT SCALE DRAWING THIRD ANGLE PROJECTION SIZEDRAWING NO.DRAWING REV. A30001199501 SCALE 2:1CATIA V5R28SHEET 1 OF 1 GRID REFREVREVISION DESCRIPTIONBYECODATE 1A01INITIAL RELEASEJJECO-XXXXXXXX XX A B C D E F 12345678 ENG-F-044 ISS 04 1 DRAFT - FOR TECHNICAL FEEDBACK OR QUOTATION PURPOSES ONLY PART NO DRAWING VERSION 3D CAD VERSION SUPPLIERS - PLEASE NOTE WHEN IN COMMUNICATION WITH SENSATA ABOUT DRAFT ITEMS, PLEASE USE PART NUMBER TOGETHER WITH 3D CAD VERSION AS UNIQUE IDENTIFIER OF REFERENCED 3D CAD MODEL XX 433 MHz YYMMDD MADE IN XXXXX M:AHMPD4 13533166 >PA66-GF13< XXXXXXXX FCC ID:MRXAHMPD4 IC:2546A-AHMPD4 IFT:XXXXXXX-XXXXX R-C-SRD-AHMPD4 4S Table 5 MECH CODEXXXXX Table 1 ITEMDESCRIPTIONIDENTIFICATIONSIZE REQUIRED 1PRODUCTION DATEYYMMDDLEGIBLE 2FREQUENCY433 MHzLEGIBLE 3COUNTRY OF MANUFACTUREMADE IN MEXICOLEGIBLE 4MODEL NUMBERM:AHMPD4LEGIBLE 5CUSTOMER PART NUMBER13533166LEGIBLE 6MATERIAL CODE>PA66-GF13<LEGIBLE 7ASIC IDXXXXXXXXXLEGIBLE 8FINAL TEST DATA MATRIX2D MATRIX4mm x 4mm 9EU APPROVALCE MARK5mm x 5mm 10PRODUCT DIFFERENTIATION MARKING4S5mm x 5mm 11SCHRADER ELECTRONICS LOGOSCHRADER ELECTRONICS LOGOLEGIBLE 12SOUTH KOREA APPROVAL LOGOKCC LOGO5mm x 5mm 13RUSSIA APPROVAL LOGOEAC LOGO5mm x 5mm 14SOUTH KOREA APPROVALR-C-SRD-AHMPD4LEGIBLE 15MEXICO APPROVALIFT:XXXXXXX-XXXXXLEGIBLE 16CANADA APPROVALIC:2546A-AHMPD4LEGIBLE 17USA APPROVALFCC ID:MRXAHMPD4LEGIBLE 18VALVE BODY ID MATRIX2D MATRIXLEGIBLE 1 2 5 6 7 8 9 10 12 13 14 15 16 17 18 11 3 4

Schrader Electronics Ltd Unit 11 Technology Park Belfast Road Antrim, Northern Ireland, BT41 1QS Dear sir/madam, Model names: AHMPD4 and ATAPC4 Please be aware that the Antenna in both the above Models is named as being an Integral Antenna, in fact these are trace Antenna’s. The photographs are listed as being confidential in the application as the circuit board or internal components are not accessible to users. These parts are Tyre Pressure Monitoring sensors and are mounted on the inside of a tyre rim. They are also coated in epoxy and would be damaged if the epoxy was removed. I hope that these clarifications are sufficient. Regard and thanks Zoe Gourley Product Compliance Administrator http://www.tpmseuroshop.com/documents/declaration_conformities

Compliance Engineering Ireland Ltd Clonross Lane, Derrockstown, Dunshaughlin Co. Meath, Ireland A85 XN59 Ph +353 1 8017000 , 8256722 Confidential Report Project Num 19E8413-1b Quotation Q19-1110-1 Prepared For Schrader Electronics Ltd Company Address 11 Technology Park, Belfast Road, Antrim, Northern Ireland BT41 1QS Contact James Kyle Contact Email [email protected] Contact Phone +44 28 9448 3067 Prepared By Compliance Engineering Ireland Test Lab Address Clonross Lane, Derrockstown, Dunshaughlin, Co. Meath, Ireland Tested By Michael Kirby Test Report By Michael Kirby FCC Test Firm Registration 409640 IC Site Registration IE0001 Date 6 th Apr 2020 EUT Description Tyre Pressure and Temperature Monitor FCC ID MRXAHMPD4 IC ID 2546A-AHMPD4 Authorised by Paul Reilly Authorised Signature: Report Ref: 19E8413-1b Page 2 of 21 TEST SUMMARY The equipment complies with the requirements according to the following standards. FCC Part Section(s) Industry Canada TEST PARAMETERS Test Result 15.231(e) 15.35 RSS-210 A1.4 RSS-Gen 6.10 Duty Cycle PASS 15.231(e) 15.209 RSS-210 A.1.4 RSS-210 8.9 RADIATED EMISSIONS PASS 15.231(c) RSS-210 A1.3 20dB BANDWIDTH 99% Bandwidth PASS RSS 210 Issue 10 Dec 2019 RSS-Gen Issue 5 Mar 2019 THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF COMPLIANCE ENGINEERING IRELAND LTD Report Ref: 19E8413-1b Page 3 of 21 Exhibit A – Technical Report Table of Contents 1.0 EUT DESCRIPTION .......................................................................................................................... 4 1.1 EUT OPERATION ............................................................................................................................... 4 1.2 MODIFICATIONS ............................................................................................................................... 5 1.3 DATE OF TEST .................................................................................................................................. 5 1.4.1 MEASUREMENT UNCERTAINTY .................................................................................................... 5 1.5 SPECIAL SOFTWARE ...................................................................................................................... 5 2.0 EMISSIONS MEASUREMENTS ......................................................................................................... 6 2.3 OCCUPIED BANDWIDTH ................................................................................................................. 8 3.0 MAXIMUM MODULATION PERCENTAGE (M%) ........................................................................... 10 4.0 FIELD STRENGTH OF SPURIOUS RADIATED EMISSIONS ........................................................ 12 5.0 LIST OF TEST EQUIPMENT ............................................................................................................ 15 Appendix A Radiated Emissions Scans Appendix B EUT Orientations Report Ref: 19E8413-1b Page 4 of 21 1.0 EUT Description The EUT was monitor using a short range 433.914 MHz band transmitter for reporting of tyre pressure and temperature in cars/trucks. Model: AHMPD4 Type: Tyre Pressure and Temperature Monitor Type of radio: Stand-alone Transmitter Type: FSK Operating Frequency Range(s): 433.914 MHz Number of Channels: One Antenna: Integral Transmitter power configuration: 3 VDC Internal Battery. Operating. Temp Range: -40° C to +85° C Classification: DSC Test Methodology: Measurements performed according to the procedures in ANSI C63.10-2013 Report Ref: 19E8413-1b Page 5 of 21 1.1 EUT Operation Operating Conditions during Test: The equipment under test was operated during the measurement under the following conditions: A sample of EUT which was programmed to operate in test mode (CW mode) was used for all tests except duty cycle and bandwidth. The duty cycle test was performed on a sample of EUT programmed to operate at the highest duty cycle possible. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: +15 to +35 ° C Humidity: 20-75 % 1.2 Modifications No modifications were required in order to pass the test specifications. 1.3 Date of Test The tests were carried out on one sample of the EUT on 26 th and 27 th of Nov 2019 and 23 rd Jan 2020. 1.4 Electromagnetic Emissions Testing The guidelines of CISPR 16-4 were used for all uncertainty calculations, estimates and expressions thereof for EMC testing. A copy of Compliance Engineering Ireland Ltd.’s policy for EMC Measurement Uncertainty is available on request. RF Requirements: Spurious emissions in accordance with FCC CFR 15.107, 15.109 and 15.209. Tests were carried out to the requirements of CISPR 16-4 and ANSI C63.4-2014 and C63.10-2013. 1.4.1 Measurement Uncertainty The measurement uncertainty (with a 95% confidence level) for the conducted emissions test was ±3.5 dB. The measurement uncertainty (with a 95% confidence level) for the radiated emissions test was ±5.3 dB (from 30 to 100 MHz), ±4.7 dB (from 100 to 300 MHz), ±3.9 dB (from 300 to 1000 MHz) and ±3.8 dB (from 1 GHz to 40 GHz). 1.5 Special Test Software Tests were performed manually and no special test software was used Report Ref: 19E8413-1b Page 6 of 21 2.0 Emissions Measurements 2.1 Conducted Emissions Measurements Test not performed as EUT is powered from battery. 2.2 Radiated Emissions Measurements Radiated Power measurements were made at the Compliance Engineering Ireland Ltd anechoic chamber located in Dunshaughlin, Co. Meath, Ireland to determine the radio noise radiated from the EUT. A "Description of Measurement Facilities" has been submitted to the FCC and approved pursuant to Section 2.948 of CFR 47 of the FCC rules. 2.2.1 General Emissions below 1GHz were measured using resolution bandwidth 100kHz at a measurement distance of 3 metres with EUT on a motorised turntable which allowed 360 degrees rotation. Emission…
