MRXC53MA4STPM System

The device under test is manufactured by the grantee (Schrader Electronics) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end- user. Schrader Electronics will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: MRXC53MA4S IC: 2546A-C53MA4S This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ******************************************************************************

Re: Certification for Schrader Transmitter Model/PN(s): 20925924, 20964159 FCC ID: MRXC53MA4S IC: 2546A-C53MA4S POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. December 17, 2010 Re: Certification for Schrader Transmitter Model/PN(s): 20925924, 20964159 FCC ID: MRXC53MA4S IC: 2546A-C53MA4S STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Schrader Transmitter Model/PN(s): 20925924, 20964159 FCC ID: MRXC53MA4S IC: 2546A-C53MA4S GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Schrader Electronics Limited 11 Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Adrian Condon, [email protected] Tel: +44 (0) 28 9448 3073 Fax: +44 (0) 28 9446 8440 It will be manufactured by: Schrader Electronics Limited 11 Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Adrian Condon, [email protected] Tel: +44 (0) 28 9448 3073 Fax: +44 (0) 28 9446 8440 Canadian Contact: Tomkins AMG 10 Stymie Blvd Brantford, ON N3T 5K3 Contact: Susan Hitchon [email protected] Tel: (519) 732-4353 Fax:(519) 732-4353

December 17, 2010 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Schrader Transmitter Model/PN(s): 20925924, 20964159 FCC ID: MRXC53MA4S IC: 2546A-C53MA4S Please find enclosed application materials for certification of Schrader Transmitter. We tested the device and found it to comply with RSS-GEN/102/210. The product is identified by: IC: 2546A-C53MA4S If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist December 17, 2010 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Schrader Transmitter Model/PN(s): 20925924, 20964159 FCC ID: MRXC53MA4S IC: 2546A-C53MA4S Please find enclosed application materials for certification of Schrader Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

December 17, 2010 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: MRXC53MA4S IC: 2546A-C53MA4S Model/PN(s): 20925924, 20964159 Please find enclosed application materials for certification of Schrader Transmitter Note: 1) Portions of this submittal are filed Confidential. 2) A list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

Re: Certification for Schrader Transmitter FCC ID: MRXC53MA4S IC: 2546A-C53MA4S REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Schrader requests that a part of the subject application be held confidential. Schrader has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent 2 (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. 2. DUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. Photograph exhibits outline the half-clam-shell device before and after potting. Permanent Confidentiality: Schrader requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Schrader requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

Below is the response from IC regarding ATCB006873 (IC: 7032A-PMBR) application. Basically they are stating that the changes described in your cover letter constitute a Class II permissive change. Basically, I will need a new test report showing the levels that you reported in the cover letter. When that information it provided, I can proceed with listing of this modified equipment on the REL for Canada. Please contact me if you have any questions. Rich Fabina Examining Engineer American TCB email: [email protected] USA direct phone: 703-635-2881 USA Corporate: 703-847-4700 USA Corporate fax: 703-847-6888 From: [email protected] [mailto:[email protected]] Sent: Tuesday, October 21, 2008 2:37 PM To: Rich Fabina Subject: RE: Acceptablity of Crystal Change as Class I Change He llo Mr. F a b ina , To a ns we r yo ur q ue s tio ns , if the fre q ue nc y o f the o s c illa to r is c ha nge d this is c o ns id e re d C la s s II permissive change (RSP-100, section 6.3) which requires a reassessment or re-certification of the previously certified equipment. The requirements for Class II permissive change are found section 5.4 of RSP-100, and a new test report and notification to Industry Canada is require. O nc e the o rigina l e q uip me nt is re a s s e s s e d , the n the re q ue s t o f fa mily c e rtific a tio n to a p re vio us ly c e rtifie d model can be requested. If you require additional info, please let us know. 1/6/2009Gmail - FW: Acceptablity of Crystal C... http://mail.google.com/mail/?ui=2&i...2/3 Regards, From: Rich Fabina [mailto:[email protected] ] Sent: Saturday, October 18, 2008 8:35 PM To: Certification - Homologation - DEB Lab Subject: Acceptablity of Crystal Change as Class I Change Gentlemen, I am Reviewing Engineer for American TCB. Currently I am reviewing an application for Schrader Electronics Limited in Antrim, Northern Ireland (IC: 2546A-G43MAS - an existing family to a previously certified model). The cover letter attached explains the minor changes being made to this tire pressure monitor transmitter. They are changing the frequency of the crystal oscillator from 9.840625 MHz to 9.837875 MHz in the design. The schematic diagrams, block diagrams and internal photos of the devices are identical to the original one. ATCB approved the original device so I have access to these files. The only differences are the size of the caps on the valve stems. My questions are as follows: 1) Is the change acceptable to IC without requiring a new application for Certification under a different IC number? 2) Is a test report required even though this appears to be a Class I change even though they are adding new model number as an existing family application? 3) If a test report is required, can I use the original test report even though it is older than 1 year? Rich Fabina Examining Engineer American TCB email: [email protected] USA direct phone: 703-635-2881 USA Corporate: 703-847-4700 USA Corporate fax: 703-847-6888 1/6/2009Gmail - FW: Acceptablity of Crystal C... http://mail.google.com/mail/?ui=2&i...3/3 FCC Home | Search | Updates | E-Filing | Initiat ives | For Consumers | Find People Joseph Brunett <[email protected]> Response to Inquiry to FCC (Tracking Number 259468) oetech@fccsun27w .fcc.gov <oetech@fccsun27w .fcc.gov>Wed, Dec 31, 2008 at 10:05 AM To: [email protected] Office of Engineering and Technology Inquiry: Would the FCC permit a II change of a 15.231 intentional radiator due to a change of reference crystal frequency due to sourcing requirements? This change causes the fundamental transmitter frequency to be altered by no more than 100 kHz (remaining within the manufacturers original operating band of 315MHz +/- 100 kHz). Re sp o n se : Yes, we can allow a Class II Permissive Change for this modification Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. 1/6/2009Gmail - Response to Inquiry to FCC (... http://mail.google.com/mail/?ui=2&i...1/1 FCC Home | Search | Updates | E-Filing | Initiat ives | For Consumers | Find People Joseph Brunett <[email protected]> Response to Inquiry to FCC (Tracking Number 280186) oetech@fccsun27w .fcc.gov <oetech@fccsun27w .fcc.gov>Mon, Nov 17, 2008 at 3:48 PM To: [email protected] Office of Engineering and Technology Inquiry: --- Reply from Customer on 11/08/2008 --- I have just been informed by my TCB that their PBA request for the same devices does not match with this response. They are asking that, per Inquiry 751504, I provide a detailed explanation of how the devices are potted, what the potting material is, how its removal destroys the pcb, and leave me with the impression that a PBA may be needed for every application. Please note that the chemical makeup of the potting material may in itself need to remain confidential as it is proprietary in this industry (not may materials can handle 30g's). Please correspond with the reviewer of KDB Inquiry 751504, relay that internal photographs provided without potting are not obtained by "removing" the potting material, but are "pre-potted" photos, and provide both inquiries with a single, consistent, request for more information if needed. Please indicate if additional PBA requests will be required for every like application. I apologize if the tone of this response seems harsh, I do not mean it to be. However, every delay caused by inconsistent responses requires that I call my clients, outline the problem, request additional information, and request their patience. The current climate in the auto industry makes the final request more challenging as of late. ;) JDB Re sp o n se : You should not need a PBA request for every filing since you may reference this KDB in each subsequent filing for similar device. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional …

Text truncated - open the document above for the full version.

American TCB 6731 Whittier Ave. McLean, VA 22101 Acknowledgement of IC Listing Requirements By signing this document, we acknowledge that any information specified on the ATCB Application and Agreement Form for Industry Canada Certification Services provided with this application may be provided to Industry Canada. We acknowledge that this information may be posted in the Radio Equipment List (REL) on the Department's Web Site. Additionally, we understand that we must inform ATCB of any changes to the information submitted. We further acknowledge that the Certified product shall not be distributed, leased, or offered for sale in Canada prior to its listing on the Industry Canada Radio Equipment List (REL). We are aware that we may verify the status of this listing at the following web address: http://strategis.ic.gc.ca/cgi-bin/sc_mrksv/spectrum/reltelSearch/search.pl?lang=e&db=rel Dated this 15 day of March, 2007 By: ___________ _____________ __Adrian Condon (Signature) (Print name) Title: _EMC & Approvals Team Leader_ _____________ _ email: [email protected]_ On behalf of: ___ Schrader Electronics _______ (Company Name) Telephone: __ 0044 2894483073 ___ Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Letter of Agency for FCC Compliance Testing Please be advised that Schrader Electronics authorizes Professor Valdis V. Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated this 15 day of March, 2007 By: ___________ _____________ __Adrian Condon (Signature) (Print name) Title: _EMC & Approvals Team Leader_ _____________ _ email: [email protected]_ On behalf of: ___ Schrader Electronics _______ (Company Name) Telephone: __ 0044 2894483073 ___ American TCB 6731 Whittier Ave. McLean, VA 22101 Attn: Director of Certification Authority to Act as Agent I appoint Valdis V. Liepato act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with Schrader Electronics Ltd, 11 technology Park, Belfast Road, Antrim, N. Ireland BT41 1QS. Agency Agreement Expiration Date: (optional) Dated this 15 day of March, 2007 By: ___________ _____________ __Adrian Condon (Signature) (Print name) Title: _EMC & Approvals Team Leader_ _____________ _ email: [email protected]_ On behalf of: ___ Schrader Electronics _______ (Company Name) Telephone: __ 0044 2894483073 ___

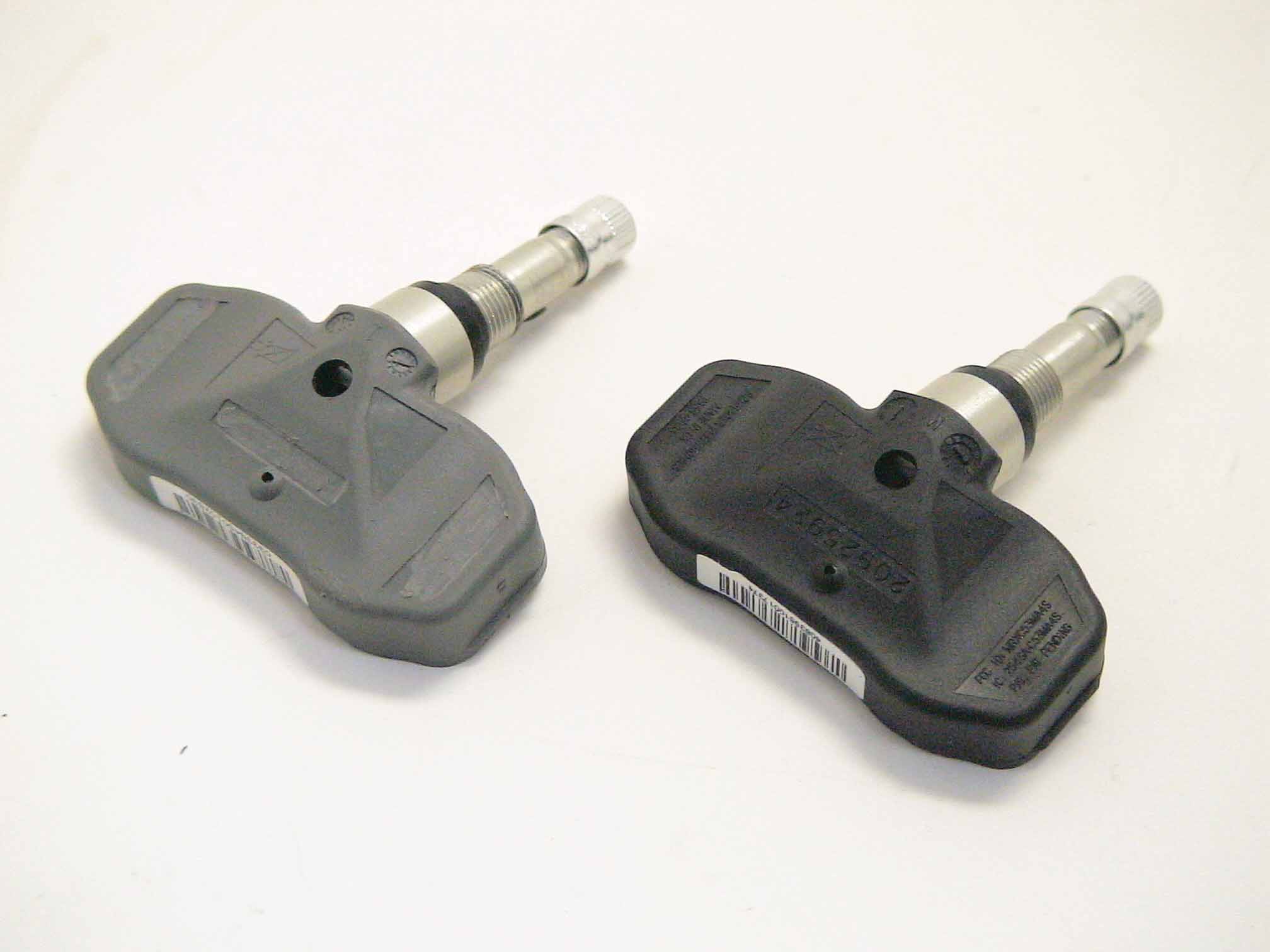

The Schrader Electronics GM C lamp In Sensor is designed to be used in a direct measurement TPM (Tire Pressure Monitoring) System. The TPM Sensor is intended to interface to a receiver/decoder that has been designed to accept the TPM sensor protocol. The TPM Sensor is designed to monitor a vehicle's tyre pressure whilst driving or stationary. An electronic unit inside each tyre (referred to as the TPM Sensor or TPM transmitter) mounted to the valve stem, periodically measures actual tyre pressure/temperature. By means of an RF link, this pressure information is transmitted to a receiver/decoder. The incoming radio frequency signals are decoded, and the data used to inform the driver of the tyre pressure information via the vehicles TPM interface. TPM Sensor main functions are: • Regularly measure the tyre pressure. • Monitor if the wheel is moving. • Periodically transmit tyre pressure using an RF link and a specific protocol. • Monitor condition of the battery and not ify the system during an RF transmission if the battery performance degrades. • Notify the system if there are abnormal pressure variations (leak) in the tyre. Consumer Use Modes Manufacturing & Service Modes Mode of OperationExplanationFrequency of Transmission X Forced Transmission "Learn Mode" (dealer / plant) On receipt of a particular LF sequence this Forced transmission allows the interro gation of the sensor in the vehicle factory or dealership Forced Transmission as required X Low battery Transmitter in normal operation when a low battery flag has been set - wheel is rotatin g Transmission rate depending on Drive mode X Off ModePart is in an off state, No transmissions, Exit b y LF or∆PNo transmissions X Stationar y Mode X Wake Mode First transmittion in normal operation - when wheel is rotating then moves into drive mode At the start of wheel rtation X Fartor y Drive ModeTransmitter in normal operation - wheel is rotatingTransmission rate every 10secs X Drive ModeTransmitter in normal operation - wheel is rotatingTransmission rate every 60secs Pressure Re-Measure Mode Transmitter in normal operation and meassuresment sample which is less then 5 counts than the pervious sample Alarm transmission as required

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-597 Page 1 of 13 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From Schrader Electronics Limited Transmitter FCC ID: MRXC53MA4S IC: 2546A-C53MA4S Test Report No. 417124-597 December 16, 2010 Copyright © 2010 For: Schrader Electronics Limited 11 Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Adrian Condon, [email protected] Phone: +44 (0) 28 9448 3073 Fax: +44 (0) 28 9446 8440 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a Schrader, FCC ID: MRXC53MA4S, IC: 2546A-C53MA4S. This device under test (DUT) is subject to the rules and regulations as a Transmitter. In testing completed on December 15, 2010, the DUT tested met the allowed specifications for radiated emissions by 4.5 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-597 Page 2 of 13 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants & Samples .............................................................................................................. 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 5. Measurement Procedures ................................................................................................................. 6 5.1 Semi-Anechoic Chamber Radiated Emissions ...................................................................... 6 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 7 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Conducted Emissions ............................................................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-597 Page 3 of 13 1. Introduction This Schrader Transmitter was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 7, June 2007. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Instrument Used Manufacturer/Model Q Number Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8593E, SN: 3412A01131 HP8593E…
