MRXCRETXRXTire Pressure Monitoring Transceiver Repeater

The device under test is manufactured by the grantee (Schrader Electronics) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end- user. Schrader Electronics will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: MRXCRETxRx IC: 2546A-CRETxRx This device complies with Part 15 of the FCC Rules and with Licence exempt RSS standards of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ******************************************************************************

022311 – 6 Authority to Act as Agent Date: __19.Jun.2015______ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: COMPLIANCE ENGINEERING IRELAND is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _(Optional)____ By: _____James Kyle_______________ (Signature 1 ) (Print name) Title: RF Approvals Co-ordinator On behalf of: ____Schrader Electronics______________________ (Company Name) Telephone: __02894483067________________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. 022311 – 6 Request for Confidentiality Date: ____19.Jun.2015____ Subject: Confidentiality Request for: MRXCRETxRx IC:2546A-CRETxRx Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent*1 Block Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual *Note: 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. *Note: 2. DUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. Photograph exhibits outline the half-clam-shell device before and after potting. Schrader Electronics has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(45 ) 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 022311 – 6 avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: _____James Kyle_______________ (Signature/Title 4 ) (Print name) Title: RF Approvals Co-ordinator 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

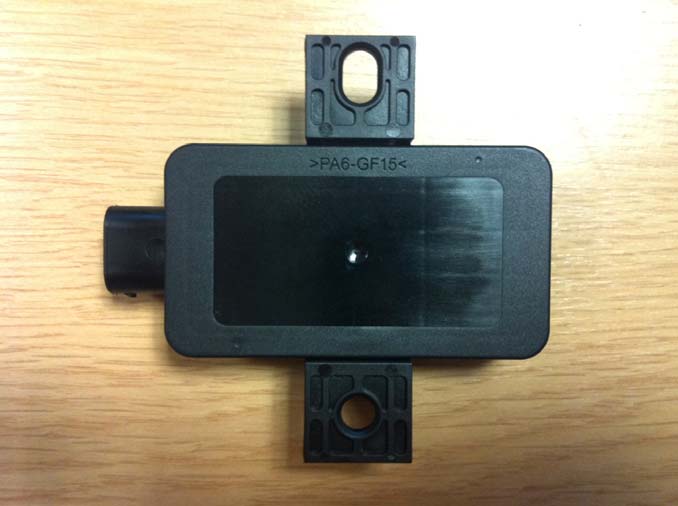

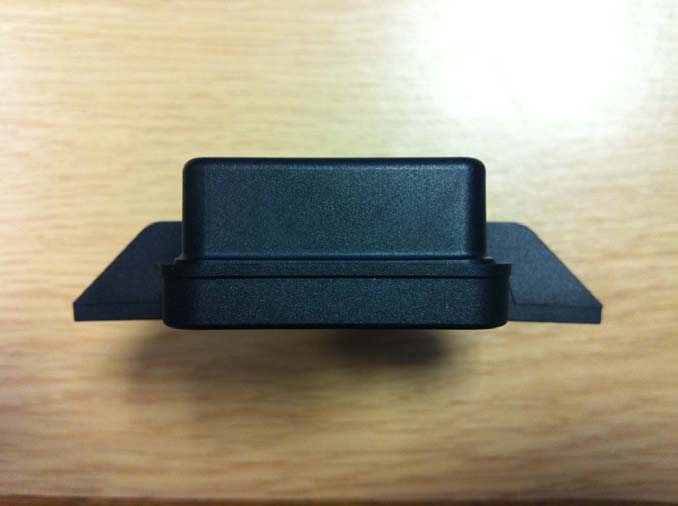

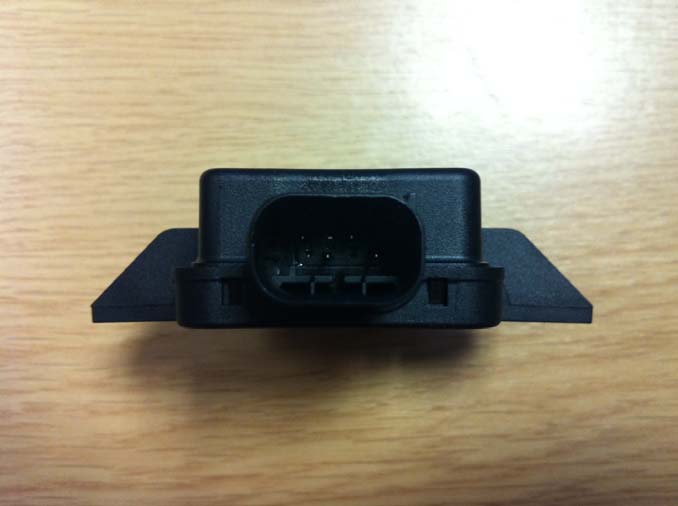

External Views External view 1 External view 2 External view 3 External view 4

Internal Views Internal View 1 Internal View 2

Report Ref: 15E5407-1b Page 1 of 29 Project Number: 15E5407-1b Prepared for: Schrader Electronics By Compliance Engineering Ireland Ltd Clonross Lane Derrockstown Dunshaughlin Co. Meath FCC Site Registration: 92592 Industry Canada Assigned Site Code: 8517A-2 FCC ID: MRXCRETxRx IC: 2546A-CRETxRx Date 24 th Sept 2015 FCC EQUIPMENT AUTHORISATION Test Report EUT Description Repeater for Tyre Pressure and Temperature Measurement System Authorised : John McAuley Compliance Engineering Ireland Ltd Clonross Lane, Derrockstown, Dunshaughlin, Co. Meath Tel: +353 1 8256722 Fax: +353 1 8256733 Report Ref: 15E5407-1b Page 2 of 29 TEST SUMMARY The equipment complies with the requirements according to the following standards. FCC Part Section(s) Industry Canada TEST PARAMETERS Test Result 15.231(e) 15.35 RSS-210 A1.1.5 RSS-Gen 6.10 Duty Cycle PASS 15.231(e) 15.209 RSS-210 A.1.1.5 RSS-210 8.9 RADIATED EMISSIONS PASS 15.231(c) RSS-210 A1.1.3 20dB BANDWIDTH / 99% Bandwidth PASS 15.209 RSS-210 2.3 RSS Gen 7.1 Receive Spurious Emissions PASS RSS 210 Issue 8 RSS-Gen Issue 4 THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF COMPLIANCE ENGINEERING IRELAND LTD Report Ref: 15E5407-1b Page 3 of 29 Exhibit A – Technical Report Table of Contents 1.0 EUT DESCRIPTION..............................................................................................................................4 1.1 EUT OPERATION..................................................................................................................................4 1.2 MODIFICATIONS...................................................................................................................................5 1.3 DATE OF TEST......................................................................................................................................5 1.4.1 MEASUREMENT UNCERTAINTY.......................................................................................................5 2.0 EMISSIONS MEASUREMENTS............................................................................................................6 2.1 CONDUCTED EMISSIONS MEASUREMENTS...................................................................................6 2.2 RADIATED EMISSIONS MEASUREMENTS.......................................................................................6 2.3 TEST CRITERIA.....................................................................................................................................9 3.0 MAXIMUM MODULATION PERCENTAGE (M%)..............................................................................11 4.0 FIELD STRENGTH OF SPURIOUS RADIATED EMISSIONS..........................................................15 5.0 LIST OF TEST EQUIPMENT...............................................................................................................20 Appendix A Transmitter Scans Appendix B Receiver Scans Appendix C EUT Orientations Report Ref: 15E5407-1b Page 4 of 29 1.0 EUT Description The EUT was repeater using a short range 433.909 MHz band transceiver for reporting of tyre pressure and temperature in cars/trucks. Model: CRETxRx Type: Repeater for Tyre Pressure and Temperature Measurement System FCC ID: MRXCRETxRx Company: Schrader Electronics Contact Mr James Kyle Address: 11 Technology Park, Belfast Road, Antrim, Northern Ireland BT41 1QS Phone: +44 28 9448 3067 e-mail: [email protected] Test Standards: 47 CFR, Part 15.231(e) Type of radio: Stand-alone Transmitter Type: FSK Operating Frequency Range(s): 433.909 MHz Number of Channels: One Antenna: Integral Transmitter power configuration: 24 VDC Battery. Operating. Temp Range: -40° C to +85° C Classification: DSR Test Methodology: Measurements performed according to the procedures in ANSI C63.4-2014 ANSI C63.10-2013 Report Ref: 15E5407-1b Page 5 of 29 1.1 EUT Operation Operating Conditions during Test: The equipment under test was operated during the measurement under the following conditions: A sample of EUT which was programmed to operate in test mode (CW mode) was used for all tests except duty cycle and bandwidth. The duty cycle test was performed on a sample of EUT programmed to operate at the highest duty cycle possible. Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: +15 to +35 ° C Humidity: 20-75 % 1.2 Modifications No modifications were required in order to pass the test specifications. 1.3 Date of Test The tests were carried out on one sample of the EUT on 15 th and 19 th of January 2015. 1.4 Electromagnetic Emissions Testing The guidelines of CISPR 16-4 were used for all uncertainty calculations, estimates and expressions thereof for EMC testing. A copy of Compliance Engineering Ireland Ltd.’s policy for EMC Measurement Uncertainty is available on request. RF Requirements: Spurious emissions in accordance with FCC CFR 15.107, 15.109 and 15.209. Tests were carried out to the requirements of CISPR 16-4 and ANSI C63.4-2014 and C63.10-2013. 1.4.1 Measurement Uncertainty The measurement uncertainty (with a 95% confidence level) for the conducted emissions test was ±3.5 dB. The measurement uncertainty (with a 95% confidence level) for the radiated emissions test was ±5.3 dB (from 30 to 100 MHz), ±4.7 dB (from 100 to 300 MHz), ±3.9 dB (from 300 to 1000 MHz) and ±3.8 dB (from 1 GHz to 40 GHz). Report Ref: 15E5407-1b Page 6 of 29 2.0 Emissions Measurements 2.1 Conducted Emissions Measurements Test not performed as EUT is powered from battery. 2.2 Radiated Emissions Measurements Radiated Power measurements were made at the Compliance Engineering Ireland Ltd anechoic chamber located in Dunshaughlin, Co. Meath, Ireland to determine the radio noise radiated from the EUT. A "Description of Measurement Facilities" has been submitted to the FCC and approved pursuant to Section 2.948 of CFR 47 of the FCC rules. 2.2.1 General Emissions below 1GHz were me…

Text truncated - open the document above for the full version.

Test Set up Fig 1 Test setup 30MHz -1GHz Rad Emission Fig 2 Test setup 1GHz -4.5 GHz Rad Emissions Transmit mode Fig 3 Test setup Rad Emission Fig 4 Test setup Rad Emissions Receive mode >1GHz
