MRXCRMJ1939Tire Pressure Monitoriing Receiver

The device under test is manufactured by the grantee (Schrader Electronics) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end- user. Schrader Electronics will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: MRXCRMJ1939 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. . WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. ******************************************************************************

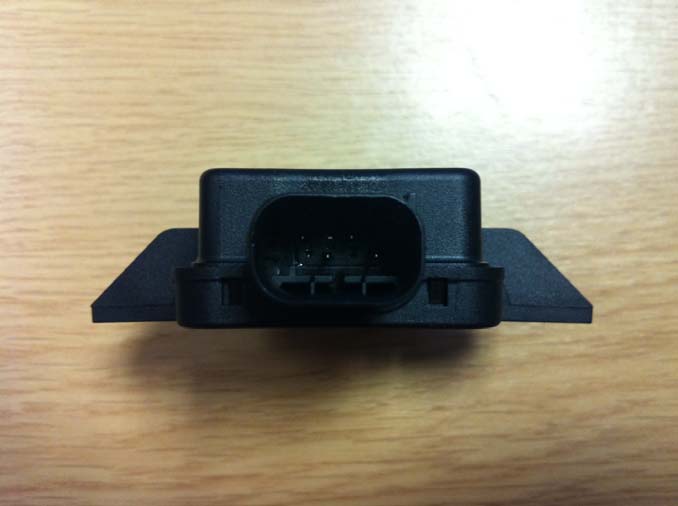

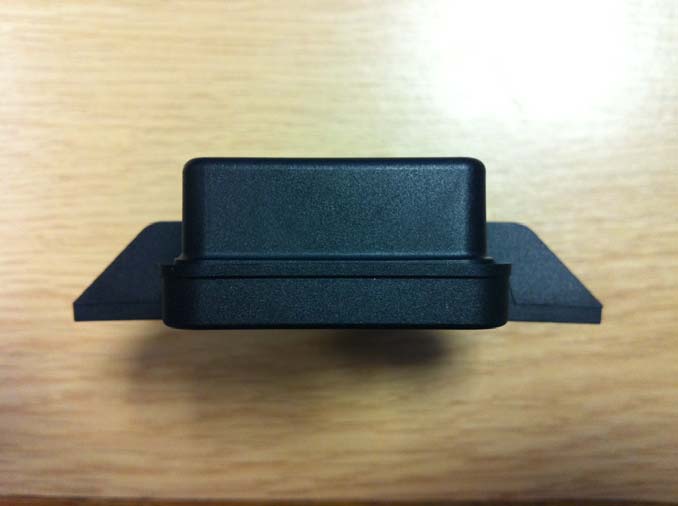

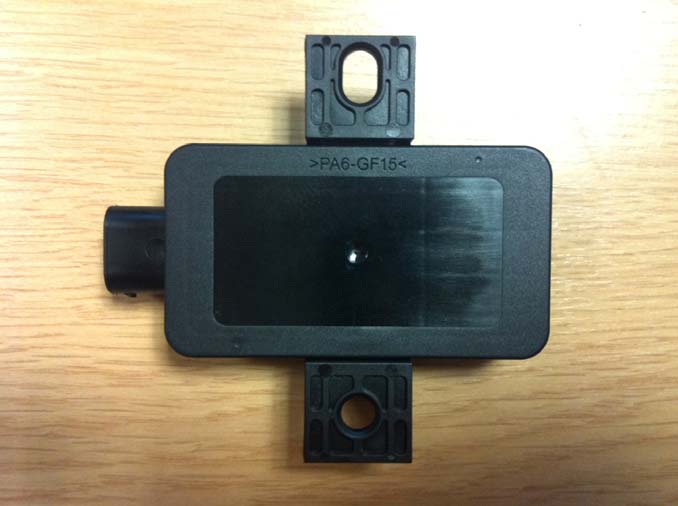

External Views External view 1 External view 2 External view 3 External view 4

Test Set up Fig 1 Test setup 30MHz -1GHz Rad Emission Fig 2 Test setup 1GHz -4.5 GHz Rad Emissions Fig 3 Test setup Rad Emission
