MRXDCA315TX1Tire Pressure Transmitter

Re: Certification for Schrader Transmitter Model(s): MRXDCA315TX1 FCC ID: MRXDCA315TX1 IC: 2546A-DCATX1 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: MRXDCA315TX1 IC: 2546A-DCATX1 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

InternalAntenna RF Circuit 315MHz SP30615.2kHz PressureSensor MotionSensor LFTransponder LithiumBattery

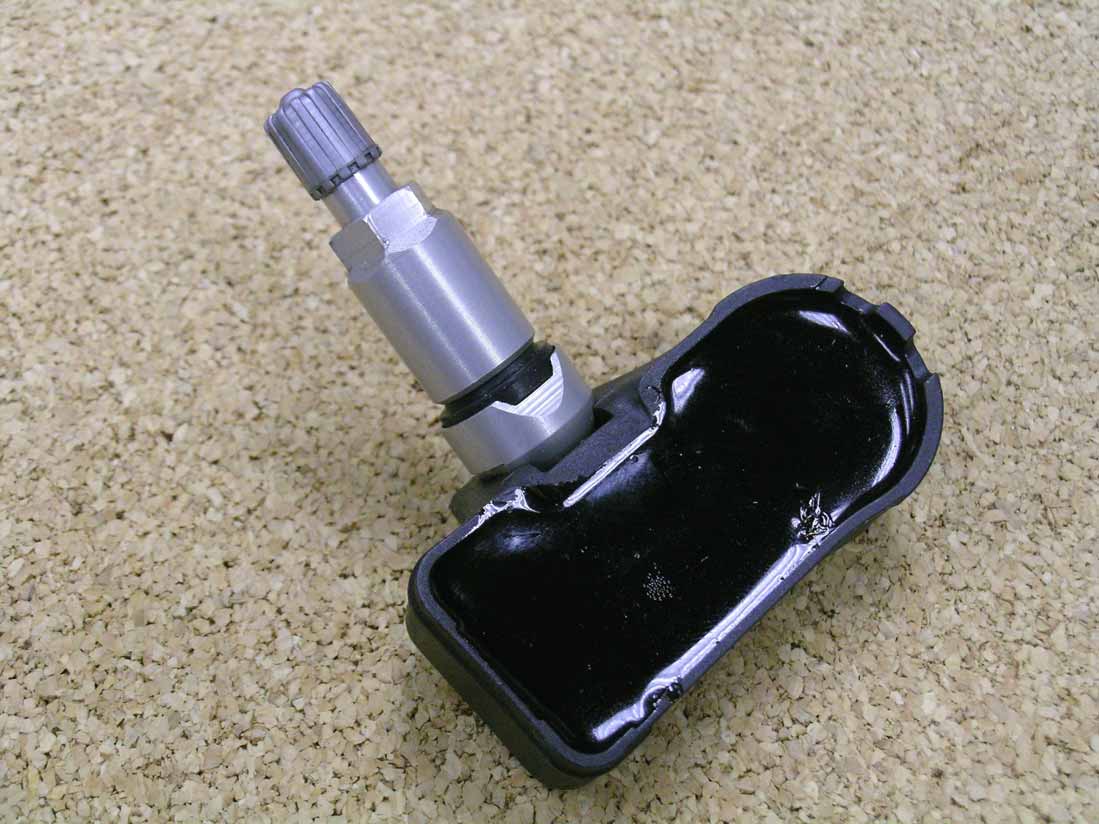

Re: Certification for Schrader Transmitter Model(s): MRXDCA315TX1 FCC ID: MRXDCA315TX1 IC: 2546A-DCATX1 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Schrader requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (9) Internal Photos (device is potted) (10) Parts List (Part of Exhibit only) Schrader has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan October 2, 2006 Re: Certification for Schrader Transmitter Model(s): MRXDCA315TX1 FCC ID: MRXDCA315TX1 IC: 2546A-DCATX1 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Schrader Transmitter Model(s): MRXDCA315TX1 FCC ID: MRXDCA315TX1 IC: 2546A-DCATX1 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Schrader Electronics Limited 11 Technology Park, Belfast Road Antrim BT41 1QS, Northern Ireland Emmanuel Marguet [email protected] Tel: +33 (0)3 81 38 56 56 Fax: +33 (0)3 81 46 41 42 It will be manufactured by: Schrader Electronics Limited 11 Technology Park, Belfast Road Antrim BT41 1QS, Northern Ireland Jim Newport Tel: 011-44-2894-48-2066 Fax: 011-44-1849-46-8440 Canadian Contact: Gates Rubber Company, 3303 St. Etienne Boulevard, Windsor, Ontario. N8W 5B1 Canada Rick Gatti 313 962 1711 Re: Certification for Schrader Transmitter Model(s): MRXDCA315TX1 FCC ID: MRXDCA315TX1 IC: 2546A-DCATX1 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. THIS MUST BE SIGNED BY THE APPLICANT AND SHOULD BE PLACED ON APPLICANTS LETTERHEAD ONLY IF AGENT IS SUBMITTING APPLICATION American TCB 6731 Whittier Ave McLean, VA 22101 Acknowledgement of IC Listing Requirements By signing this document, we acknowledge that any information specified on the ATCB Application and Agreement Form for Industry Canada Certification Services provided with this application may be provided to Industry Canada. We acknowledge that this information may be posted in the Radio Equipment List (REL) on the Department's Web Site. Additionally, we understand that we must inform ATCB of any changes to the information submitted. We further acknowledge that the Certified product shall not be distributed, leased, or offered for sale in Canada prior to its listing on the Industry Canada Radio Equipment List (REL). We are aware that we may verify the status of this listing at the following web address: http://strategis.ic.gc.ca/cgi-bin/sc_mrksv/spectrum/reltelSearch/search.pl?lang=e&db=rel Dated this 05 th day of September 2006 By: Emmanuel Marguet Title: RF Team Leader email: [email protected] On behalf of: Schrader Electronics Telephone: +33 3 81 38 56 56 Attn: Director of Certification Authority to Act as Agent I appoint Valdis V. Liepa to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with Emmanuel Marguet, Schrader Electronics, 11 Technolgy Park, BT41 1QS Antrim, Northern Ireland Dated this 05 th day of September 2006 Agency Agreement Expiration Date: (Typically 8-12 months) By: Emmanuel Marguet Title: RF Team Leader email: [email protected] On behalf of: Schrader Electronics Telephone: +33 3 81 38 56 56

MRXDCA315TX1 Consumer Use Modes Manufacturing & Service Modes Mode of Operation Explanation Frequency of Transmission X Roll Mode (Drive mode) Transmitter in normal operation - wheel is rotating. 3 frames every 60 seconds X Learn Mode Transmits after LF transponder activation. 3 frames for 1 transmission X Factory Mode. Transmitter is in Factory mode for the first 30 block. The Wheel has to be rotating. 3 frames every 15 seconds. X X Stationary Mode Transmitter enters mode after Factory Mode or Drive Mode - Wheel is not rotating - Vehicle is stopped. 3 frames every 13 hours X X Sleep Mode All of the time between the other modes no transmission Notes:1) The manufacturing and service modes fall under FCC Part 2.803(d),2.803(e)(1)(iv),(v), and 2.803(e)(2). These modes are used to setup and program the tire pressure monitoring system on the vehicle and will be used in factory and service environments (i.e.vehicle/tire dealers) only. Since these procedures require special equipment and training, they will not be evoked by the consu mer. 2) Power levels of all transmissions are the same 3) 3 frames packet is < 0.5sec in duration

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-332 Page 1 of 11 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Schrader Electronics TPM Transmitter Model(s): MRXDCA315TX1 Report No. 415031-332 September 26, 2006 Copyright © 2006 For: Schrader Electronics Limited 11, Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Emmanuel Marguet [email protected] Tel: +33 (0)3 81 38 56 56 Fax: +33 (0)3 81 46 41 42 PO: Verbal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/GEN, were performed on Schrader Electronics Limited model(s) MRXDCA315TX1. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on May 17, 2006, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 6.0 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-332 Page 2 of 11 1. Introduction Schrader Electronics Limited model MRXDCA315TX1 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Area Tes Site are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-332 Page 3 of 11 3. Configuration and Identification of Device Under Test (DUT) 3.1 Design and Identification of the Device The DUT is a 2 x 0.75 x 2.5 inches in size (including valve stem), potted tire pressure transmitter. The 315 MHz carrier is generated by an RFIC stabilized using a 9.84375MHz crystal. The device transmits FSK data with 82 kHz modulation. The DUT was designed and manufactured by Schrader Electronics Limited, 11, Technology Park, Belfast Road,, Antrim BT41 1QS, Northern Ireland. It is identified as: Schrader Electronics TPMS Transmitter Model(s): MRXDCA315TX1 FCC ID: MRXDCA315TX1 IC: 2546A-DCATX1 3.2 Models There is only one model of the DUT. Two versions were provided; one capable of CW transmission and one standard module that could be LF actuated. The CW version was used to measure harmonic emissions, all other tests were performed on the pulsed module. 3.3 Modes of Operation The DUT periodically transmits tire pressure data. The device is also capable of being automatically actuated (via LF interrogation) either by in-vehicle LF initiators or by trained personnel during servicing. Per FCC correspondence, service modes fall under FCC part 15.231(a)(5). Figure 6.1 demonstrates compliance with both 15.231(a)(2) and (5). A list of all operating modes is included in the Description of Operation exhibit. 3.4 EMI/EMC Relevant Modifications There were no modifications made to the DUT by this laboratory. 4. Regulatory Limits The DUT tested falls under the …
