MRXFLF1MA4Tire Pressure Monitoring System

Re: Certification for Schrader Transmitter Model(s): 8C2T-1A203-AB FCC ID: MRXFLF1MA4 IC: 2546A-FLF1MA4 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: MRXFLF1MA4 IC: 2546A-FLF1MA4 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Schrader Transmitter Model(s): 8C2T-1A203-AB FCC ID: MRXFLF1MA4 IC: 2546A-FLF1MA4 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Schrader Transmitter Model(s): 8C2T-1A203-AB FCC ID: MRXFLF1MA4 IC: 2546A-FLF1MA4 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Schrader requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Schrader has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan February 20, 2007 Re: Certification for Schrader Transmitter Model(s): 8C2T-1A203-AB FCC ID: MRXFLF1MA4 IC: 2546A-FLF1MA4 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Schrader Transmitter Model(s): 8C2T-1A203-AB FCC ID: MRXFLF1MA4 IC: 2546A-FLF1MA4 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Schrader Electronics Limited 11 Technology Park, Belfast Road Antrim BT41 1QS, Northern Ireland Bill Lusa [email protected] Tel: (734) 484-1387 Fax: (734) 484-1389 It will be manufactured by: Schrader Electronics Limited 11 Technology Park, Belfast Road Antrim BT41 1QS, Northern Ireland Jim Newport Tel: 011-44-2894-48-2066 Fax: 011-44-1849-46-8440 Canadian Contact: Gates Rubber Company, 3303 St. Etienne Boulevard, Windsor, Ontario. N8W 5B1 Canada Rick Gatti 313 962 1711

Electrical Block Diagram Activate 2045 Battery Coil Drive Circuit 3V Red LED OR PIC VCC Keep Awake 3.9KHz Manchester Data Modulated at 125Khz 4Mhz Resonator Series Resonant Circuit (Coil) PIC 4Mhz Int RC Osc

Attn: Director of Certification Authority to Act as Agent I appoint Valdis V. Liepa to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with Emmanuel Marguet, Schrader Electronics, 11 Technolgy Park, BT41 1QS Antrim, Northern Ireland Dated this 05 th day of September 2006 Agency Agreement Expiration Date: (Typically 8-12 months) By:Emmanuel Marguet Title:RF Team Leader email:[email protected] On behalf of: Schrader Electronics Telephone:+33 3 81 38 56 56

February 20, 2007 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: MRXFLF1MA4 IC: 2546A-FLF1MA4 Model(s): 8C2T-1A203-AB Please find enclosed application materials for certification of Schrader 8C2T-1A203-AB Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

February 20, 2007 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Schrader Transmitter Model(s): 8C2T-1A203-AB FCC ID: MRXFLF1MA4 IC: 2546A-FLF1MA4 Please find enclosed application materials for certification of Schrader 8C2T-1A203-AB Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist February 20, 2007 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Schrader Transmitter Model(s): 8C2T-1A203-AB FCC ID: MRXFLF1MA4 IC: 2546A-FLF1MA4 Please find enclosed application materials for certification of Schrader 8C2T-1A203-AB Transmitter. We tested the device and found it to comply with RSS-GEN/102/210. The product is identified by: IC: 2546A-FLF1MA4 If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

NOTE: FCC and IC LABEL WILL BE CORRECTED AS DETAILED IN ATTACED DRAWING.

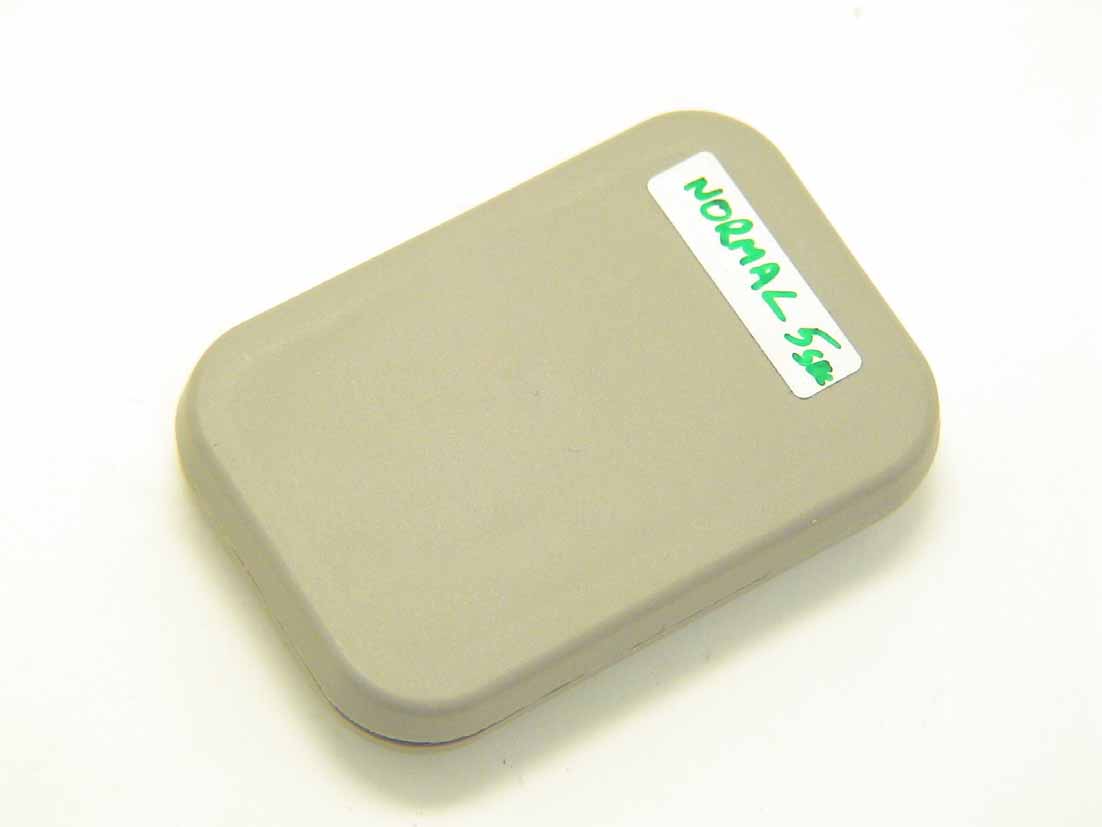

A Keyfob will be developed for use in a Ford TPMS application to enable the end user/customer to manually re-learn the wheel locations on their vehicle. This will be achieved by activating a small keyfob type LF tool to put the sensors inside the wheels into learn mode. The key fob will use a low frequency modulated protocol to activate the sensors by pressing a push button when the keyfob is located within a specified range of the sensor/wheel. This will initiate a series of learn blocks/frames to be transmitted from the sensor to the receiver located inside the vehicle to allow the TPMS ECU to re- learn the locations of each wheel when required. The LF Tool will incorporate a single activation button with a visible indicator to show the user that the tool is operating correctly. The rear of the tool will have Velcro strips attached to enable the user to attach the LF tool to the inside the glove compartment in the vehicle when the tool is not being used. Internal to the case, the LF tool will include a coil for transmitting the data, a PCB with additional circuitry, a rubber membrane and a coin type battery.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-353 Page 1 of 11 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Schrader Electronics Limited LF Transmitter Model(s): 8C2T-1A203-AB Report No. 415031-353 February 20, 2007 Copyright © 2007 For: Schrader 11, Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Bill Lusa Tel: (734) 484-1387 Fax: (734) 484-1389 Tests supervised by: Measurements made by: Joseph D. Brunett Report approved by: _____________________ Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, Part 15, Subpart C, and for compliance with Industry Canada RSS-210/Gen, were performed on Schrader transmitter, model 8C2T-1A203-AB. This device is subject to Rules and Regulations as a transmitter. In testing completed February 19, 2007, the device tested in the worst case met the allowed specifications for transmitter radiated emissions by 35.0 dB (see p. 7); digital emissions, Class B, were met by more than 20 dB. The conducted emissions tests do not apply, since the device is powered from a 3 VDC system. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-353 Page 2 of 11 1. Introduction Schrader Electronics Limited model 8C2T-1A203-AB was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedures and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) X EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantek, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantek Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-353 Page 3 of 11 3. Device Under Test 3.1 Identification The DUT is a 125 kHz LF transmitter designed for actuating Tire Pressure Monitoring Sensors. It is powered from an 3 VDC LiIon battery and is housed in a plastic case approximately 1.75 by 2.5 by 0.5 inches. LF Coil is mounted on the PCB. The DUT was designed and manufactured by Schrader,11, Technology Park, Belfast Road,,Antrim BT41 1QS, Northern Ireland. It is identified as: Schrader LF Tool Model: 8C2T-1A203-AB FCC ID: MRX FLF1MA4 IC: 2546A-FLF1MA4 3.2 Models There is only a single model of the device. Both a normal operating device and a software modified device capable of 30 seconds of transmission were provided by the manufacturer. 3.3 Modes of Operation There is only a single mode of operation for this transmitter. The device is manually actuated and ceases to transmit within 5.5 seconds after activation. 3.4 EMI Relevant Modifications No EMI Relevant Modifications were performed by this test laboratory. 4. Emission Limits 4.1 Radiated Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices, subject to Subpart C, Section 15.209; and Subpart B, Section 15.109 (transmitter generated signals excluded); and Subpart A, Section 15.33. The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. As a digital device, it is exempt. Table 4.1. Radiated Emission Limits (FCC: 15.205, 15.35; IC: RSS-210, 2.6 Tab. 1 & 3) (Transmitter) Frequency (MHz) Fundamental and Spurious* (μV/m) 0.009-0.490 0.490-1.705 2400/F(kHz), 300m 24,000/F(kHz), 30m 0.090-0.110 0.49-0.51 2.1735-2.190 3.020-3.…
