MRXFS5MAF4Tire Pressure Monitoring Transmitter

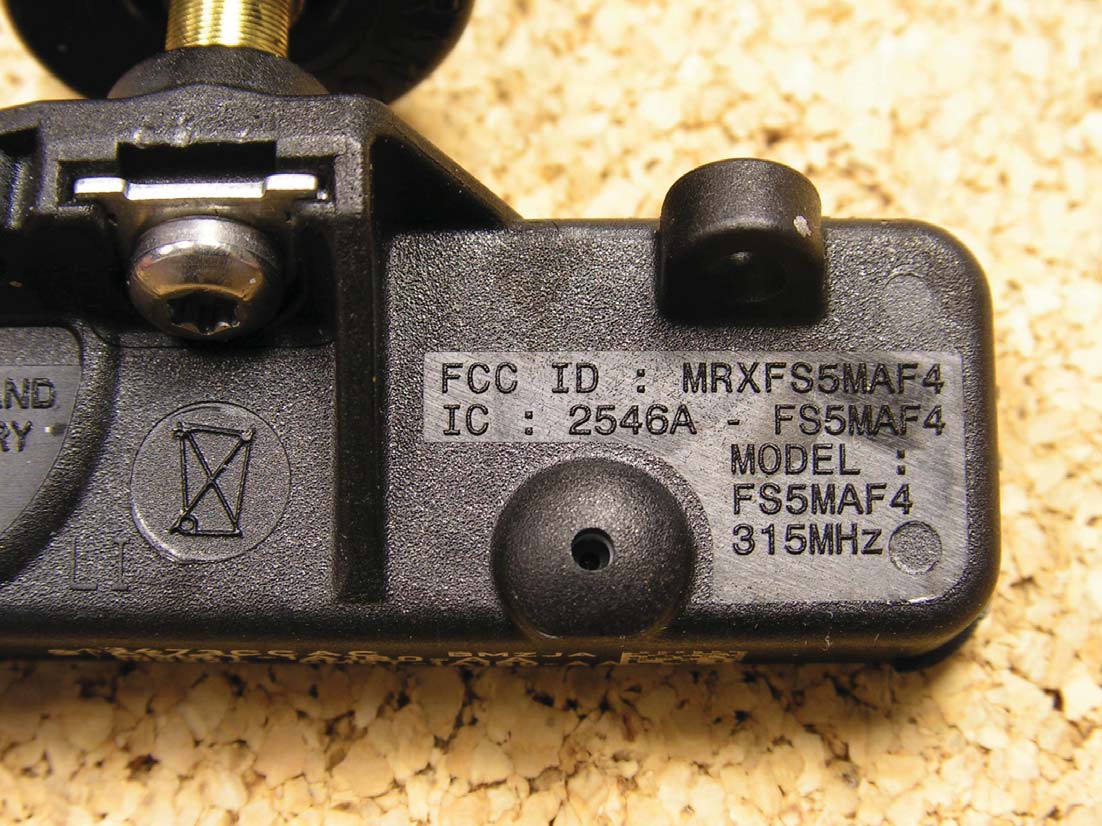

The device under test is manufactured by the grantee (Schrader Electronics) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end- user. Schrader Electronics will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: MRXFS5MAF4 IC: 2546A-FS5MAF4 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ******************************************************************************

April 15, 2010 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Schrader Transmitter Model/PN(s): FS5MAF4 FCC ID: MRXFS5MAF4 IC: 2546A-FS5MAF4 Please find enclosed application materials for certification of Schrader Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Letter of Agency for FCC Compliance Testing Please be advised that Schrader Electronics authorizes Professor Valdis V. Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated this 15 day of March, 2007 By: ___________ _____________ __Adrian Condon (Signature) (Print name) Title: _EMC & Approvals Team Leader_ _____________ _ email: [email protected]_ On behalf of: ___ Schrader Electronics _______ (Company Name) Telephone: __ 0044 2894483073 ___

Re: Certification for Schrader Transmitter FCC ID: MRXFS5MAF4 IC: 2546A-FS5MAF4 REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Schrader requests that a part of the subject application be held confidential. Schrader has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent 1 (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent 2 (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation 1. Block Diagram includes internal oscillator frequency information that the manufacturer considers to be proprietary. 2. DUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. Photograph exhibits outline the half-clam-shell device before and after potting. Permanent Confidentiality: Schrader requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Schrader requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

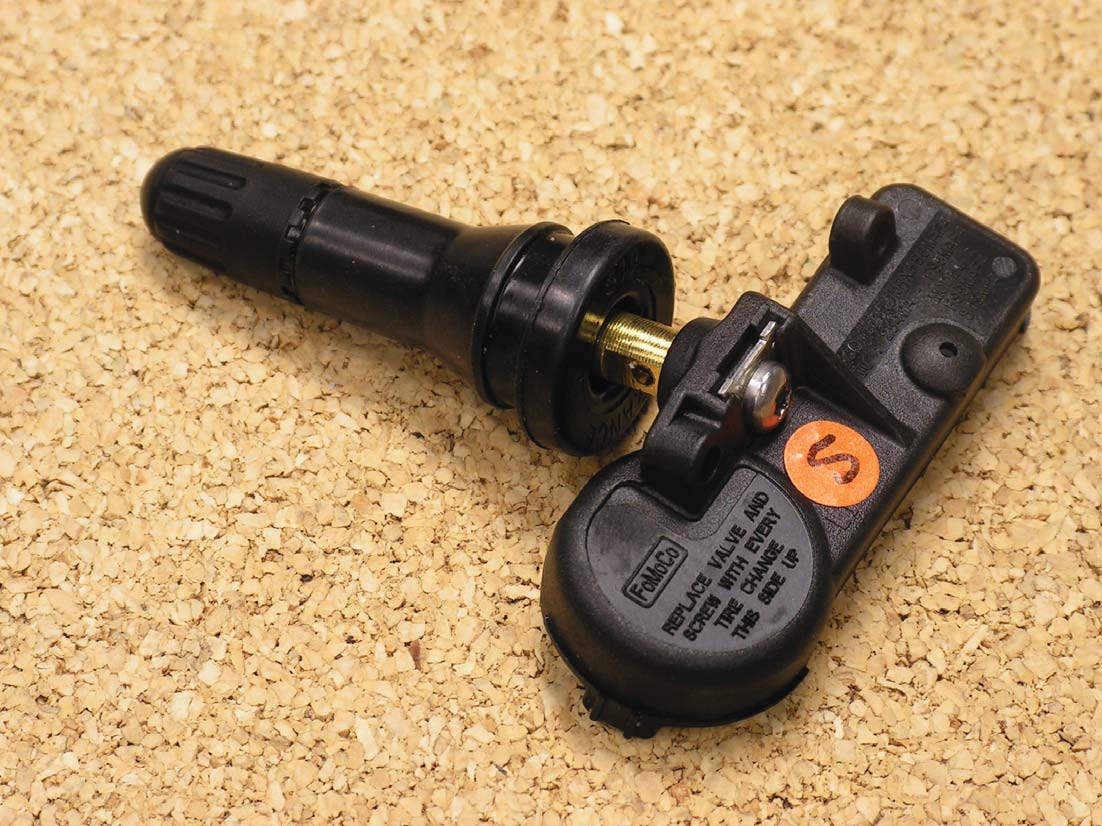

Description of operation: The TPM sensor / transmitter is a self-contained unit in which there are no electrical connections into or out of the device. The unit monitors and transmits tire cavity pressure and Temperature using an RF signal to a receiver unit. Each TPM sensor contains a unique ID code in its transmission data that a receiver can use to identify tire position or illuminate a warning lamp that identifies that one or more tires has a pressure out of range event.

1.1.1 TIMINGS FOR VARIOUS MODE S OF OPERATION The following table is implemented within the ASIC software of the Transmitter. State Pressure Sample Interval (sec) Roll Sampl e Interva l (sec) LF Sampl e Interva l (sec) Stimulus Next Mode or Transmit Function Transmit Interval (sec) Transmi t Number Frames Off 60 NA 1 P >20 psi Exit Off Single event 13 LF Activation Exit Off 13 Stationary * Factory Stationary 60 15 10* 3.75 1* P >+/-2 psi RPC plus 2x PIC or PDC Single event 13 x 3 Tool-LF Tool-LF Single event 13 De-energize- LF Enter Off Single event 13 Factory-LF Exit-Fact-LF* Factory- LF Exit- fact-LF* Single event 13 Time, No motion detected Normal Norm- fact* 6 hours 13 Motion detected Wake into Rolling Single event 4 Rolling * Factory Rolling & BMT 15 60 15* 3.75 1* P > -2 psi RPC plus 2x PDC Single event 4 x 3 Time Motion detected Normal Norm- fact* 60 15* 4 No motion detected Interim None 0 LF-Initiate LF-Initiate Single event 4 Interim * Factory Interim 15 15 3.75 1* P > +1 psi P > -2 psi RPC plus 2x PIC or PDC Single event 13 x 3 Tool-LF Tool-LF Single event 13 De-energize- LF Enter Off Single event 13 Factory-LF Exit-Fact-LF* Factory- LF Exit- fact-LF* Single event 13 Motion detected Rolling None 0 State Pressure Sample Interval (sec) Roll Sampl e Interva l (sec) LF Sampl e Interva l (sec) Stimulus Next Mode or Transmit Function Transmit Interval (sec) Transmi t Number Frames Time, No motion detected Normal Norm- fact* Stationary after 15 min 6 hours 60* 13

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-566 Page 1 of 13 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Fax: (734) 647-2106 Measured Radio Frequency Emissions From Schrader Electronics Limited Transmitter FCC ID: MRXFS5MAF4 IC: 2546A-FS5MAF4 Test Report No. 417124-566 April 15, 2010 Copyright © 2010 For: Schrader Electronics Limited 11 Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Adrian Condon, [email protected] Phone: +44 (0) 28 9448 3073 Fax: +44 (0) 28 9446 8440 Testing supervised by: Measurements made by: Valdis V. Liepa Report Approved by:__________________________ Valdis V. Liepa Test report written by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations, CFR 47, Part 15 and with Industry Canada RSS-210/Gen, were performed on a Schrader, FCC ID: MRXFS5MAF4, IC: 2546A-FS5MAF4. This device under test (DUT) is subject to the rules and regulations as a Transmitter. In testing completed on March 31, 2010, the DUT tested met the allowed specifications for radiated emissions by 4.7 dB. Conducted emissions are not subject to regulation as the DUT is powered by a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-566 Page 2 of 13 Table of Contents 1. Introduction ...................................................................................................................................... 3 2. Equipment Used ............................................................................................................................... 3 3. Device Under Test ........................................................................................................................... 4 3.1 Description & Block Diagram .............................................................................................. 4 3.2 Variants & Samples .............................................................................................................. 4 3.3 Modes of Operation .............................................................................................................. 4 3.4 Exemptions ........................................................................................................................... 4 3.5 EMC Relevant Modifications ............................................................................................... 4 4. Emissions Limits .............................................................................................................................. 5 4.1 Radiated Emissions Limits .................................................................................................... 5 4.2 Power Line Conducted Emissions Limits ............................................................................. 5 5. Measurement Procedures ................................................................................................................. 6 5.1 Semi-Anechoic Chamber Radiated Emissions ...................................................................... 6 5.2 Outdoor Radiated Emissions ................................................................................................. 6 5.3 Radiated Field Computations ................................................................................................ 6 5.4 Indoor Power Line Conducted Emissions ............................................................................. 6 5.5 Supply Voltage Variation ...................................................................................................... 7 6. Test Results ...................................................................................................................................... 7 6.1 Radiated Emissions ............................................................................................................... 7 6.1.1 Correction for Pulse Operation ......................................................................................... 7 6.1.2 Emission Spectrum ........................................................................................................... 7 6.1.3 Emission Bandwidth ......................................................................................................... 7 6.1.4 Supply Voltage and Supply Voltage Variation ................................................................. 7 6.2 Conducted Emissions ............................................................................................................ 7 University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 417124-566 Page 3 of 13 1. Introduction This Schrader transmitter was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 7, June 2007. Tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057A-1). 2. Equipment Used The test equipment commonly used in our facility is listed in Table 2.1. Except where indicated as a pre- test, monitoring, or support device; all equipment listed below is a part of the University of Michigan Radiation Laboratory (UMRL) quality system. This quality system has been established to ensure all equipment has a clearly identifiable classification, calibration expiry date, and that all calibrations are traceable to national standards. Table 2.1 Test Equipment. Test Inst…
