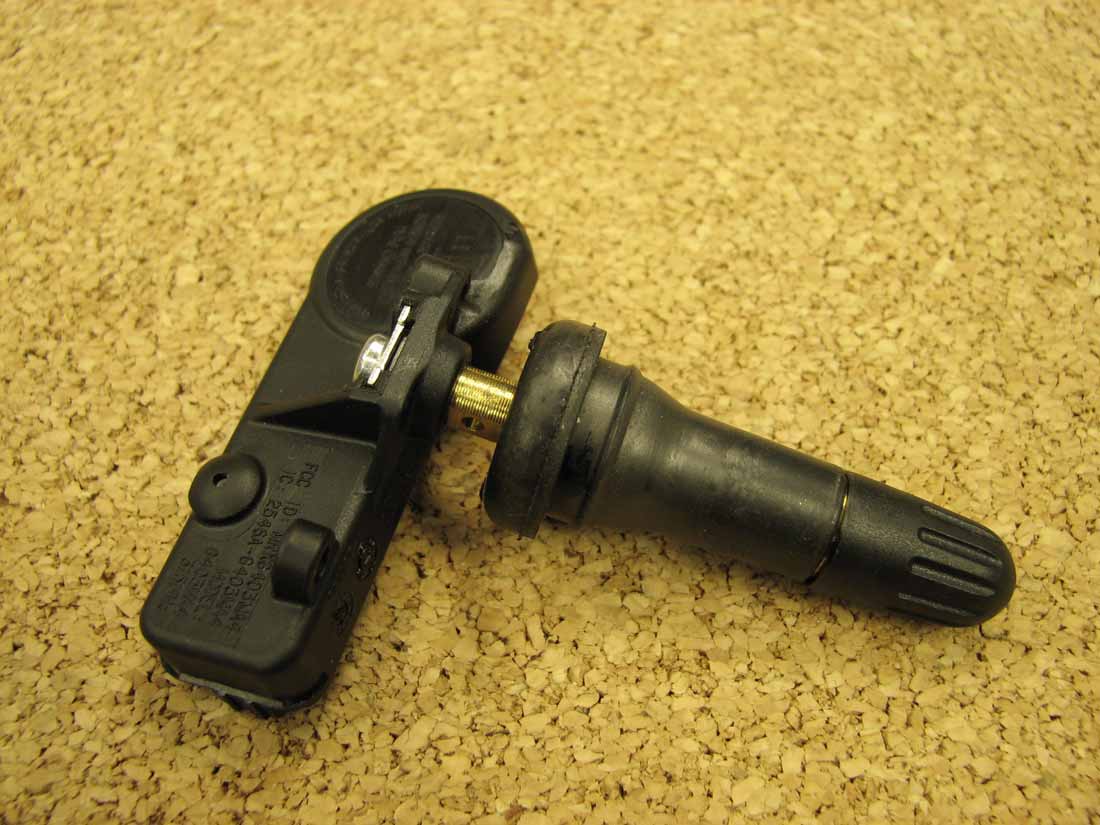

MRXG403MA4Tire Pressure Transmitter

Re: Certification for Schrader Transmitter Model(s): G403MA4 FCC ID: MRXG403MA4 IC: 2546A-G403MA4 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: MRXG403MA4 IC: 2546A-G403MA4 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Pressure Sensor ASIC Oscillator 32.768 kHz Motion Detector LF Transponder RF Circuit 315MHz CR2045HT Battery Antenna Crystal : 9.840625MHz

Re: Certification for Schrader Transmitter Model(s): G403MA4 FCC ID: MRXG403MA4 IC: 2546A-G403MA4 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Schrader requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (9) Internal Photos (DUT is potted) (10) Parts List (Part of Exhibit only) Schrader has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan March 24, 2007 Re: Certification for Schrader Transmitter Model(s): G403MA4 FCC ID: MRXG403MA4 IC: 2546A-G403MA4 STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Schrader Transmitter Model(s): G403MA4 FCC ID: MRXG403MA4 IC: 2546A-G403MA4 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Schrader Electronics Limited 11 Technology Park, Belfast Road Antrim BT41 1QS, Northern Ireland Bill Lusa [email protected] Tel: (734) 484-1387 Fax: (734) 484-1389 It will be manufactured by: Schrader Electronics Limited 11 Technology Park, Belfast Road Antrim BT41 1QS, Northern Ireland Jim Newport Tel: 011-44-2894-48-2066 Fax: 011-44-1849-46-8440 Canadian Contact: Gates Rubber Company 3303 St. Etienne Boulevard Windsor, Ontario. N8W 5B1 Canada Rick Gatti 313 962 1711 Re: Certification for Schrader Transmitter Model(s): G403MA4 FCC ID: MRXG403MA4 IC: 2546A-G403MA4 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 25, 2007 RE: Schrader Electronics Limited FCC: MRXG403MA4 After a review of the submitted information, I have a few comments on the above referenced Application. Depending on your responses, kindly understand there may be additional comments. 1) Most of the emissions must meet with 15.231(e) timing. However plot 6.1(a) – top plot does not adequately show that all 8 word transmissions occur < 1 sec. In fact it appears that the time is just over 1 second in the plot provided. Note that you can not simply mix 15.231(e) and 15.231(a) (i.e. show that 8 words meets 5 second transmission time). 2) Regarding the 40 word transmission for Learn Mode, please provide information to explain or show that this transmission is < 10 seconds as required by 15.231(a)(5) and 5 seconds as required by RSS-210 A1.1.5. Note that IC does not currently have a 10 second requirement in their standard similar to 15.231(a)(5). Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender. z Page 2 March 26, 2007

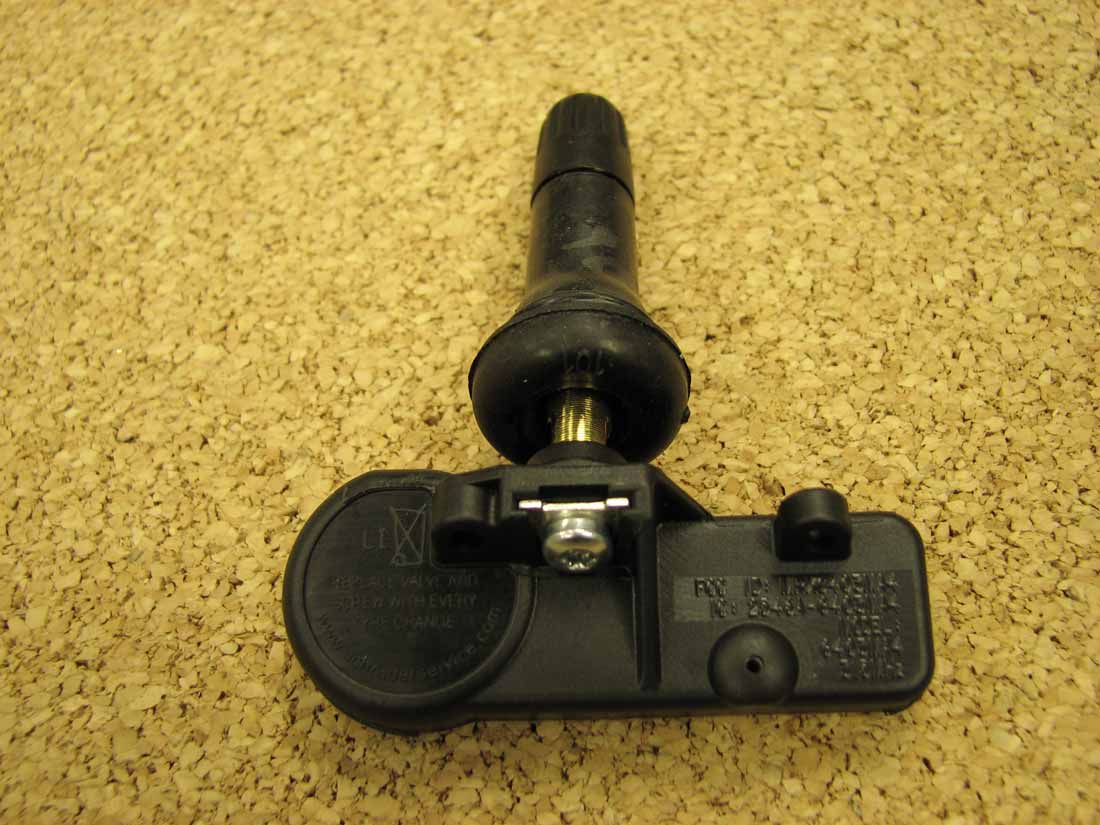

REPLACE VALVE AND SCREW WITH EVERY TYRE CHANGE LI 2 4 9 10 1 6 7 8

Description of Operations FCC ID: MRXG403MA4 IC: 2546A-G403MA4 Consumer Use Modes Manufacturing & Service Modes Mode of Operation Explanation Frequency of Transmission X Roll Mode (Drive Mode) Transmitter in normal operation – wheel is rotating and shock sensor detects motion 8words every 60 seconds X Learn Mode Transmits after LF t ransponder activation or when sensor exits Off Mode due to pressure delta 40 words whenever LF activation occurs X Factory Mode Transmitter is in Factory Mode for the next 15 or fewer shock sensor motion detects after a learn activation. The wheel has to be rotating 8 words every 30 seconds X X Stationary Mode Transmitter enters mode after Factory Mode or Drive Mode – wheel is not rotating – vehicle is stopped 8 words every 60min X X Off Mode Transmits when sensor transitions to Off Mode 8 words on mode change X Low Battery Mode Transmits as normal with low battery bit set 8 words when low battery occurs in Roll Mode X Re-measure Mode Transmits when a pressure delta is detected 8 words when pressure delta occurs X X Sleep Mode All of the time between other modes No transmission X Wake Transmitter in normal operation – wheel has started to rotate and shock sensor detects motion- only on the first motion signal, the data block will contain the function code for “Wake” then return to “Roll” 8 words on mode change into Roll. Per FCC correspondence, service modes fall under FCC part 15.231(a)(5). Response to Inquiry to FCC (Tracking Number 378112) Joseph Brunett <[email protected]> Generic Office of Engineering Technology <[email protected]> Thu, Jun 22, 2006 at 11:48 AM To: [email protected] Inquiry: Tire Pressure Monitor Transmitters (15.231 devices) contain special modulation modes that are used to setup and program the tire pressure monitoring system on the vehicle. They are used in factory and service environments (i.e. vehicle/tire dealers) only. Since these procedures require special equipment and training, they will not be evoked by the consumer. Would operation in these modes fall under FCC section 15.231 (a) (5), or under FCC Part 2.803(d),2.803(e)(1)(iv),(v), and 2.803(e)(2), or both? Sincerely, JDB Response: The special modulation modes, used for setup of the tire gauge device, will fall under Section 15.231(a)(5) only in this case. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. Page 1 of 1Gmail - Response to Inquiry to FCC (Tracking Number 378112) 3/23/2007http://mail.google.com/mail/?ik=4cddaab9f2&view=pt&search=query&q=OET%20servic ...

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-358 Page 1 of 11 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Schrader Electronics Limited TPM Transmitter Model(s): G403MA4 Report No. 415031-358 March 28, 2007 Copyright © 2007 For: Schrader Electronics Limited 11, Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Adrian Condon [email protected] Tel: +44 (0) 28 9448 3073 Fax: +44 (0) 28 9446 8440 PO: Verbal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/GEN, were performed on Schrader Electronics Limited model(s) G403MA4. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on March 20, 2007, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 4.4 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply since the device is powered from a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-358 Page 2 of 11 1. Introduction Schrader Electronics Limited model G403MA4 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS- 210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Area Tes Site are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-358 Page 3 of 11 3. Configuration and Identification of Device Under Test (DUT) 3.1 Design and Identification of the Device The DUT was designed and manufactured by Schrader Electronics Limited, 11, Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland. It is identified as: Schrader Electronics Limited TPM Transmitter Model(s): G403MA4 FCC ID: MRXG403MA4 IC: 2546A- G403MA4 3.2 Models There is only a single model of this device. 3.3 Modes of Operation The DUT periodically transmits tire pressure data. The device is also capable of being automatically actuated (via LF interrogation) either by in-vehicle LF initiators or by trained personnel during servicing. Per FCC correspondence, service modes fall under FCC part 15.231(a)(5). Figure 6.1 demonstrates compliance with both 15.231(a)(2) and (5). Worst case factory mode and learn modes are exhibited. A list of all operating modes is included in the Description of Operation exhibit. 3.4 EMI/EMC Relevant Modifications There were no modifications made to the DUT by this laboratory. 4. Regulatory Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C (Section 15.231(a),(c), & (e),15.209) and Subpart A (Section 15.33). For Industry Canada it is subject to RSS-210 (2.6, 2.7). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. General Radiated Emission L…
