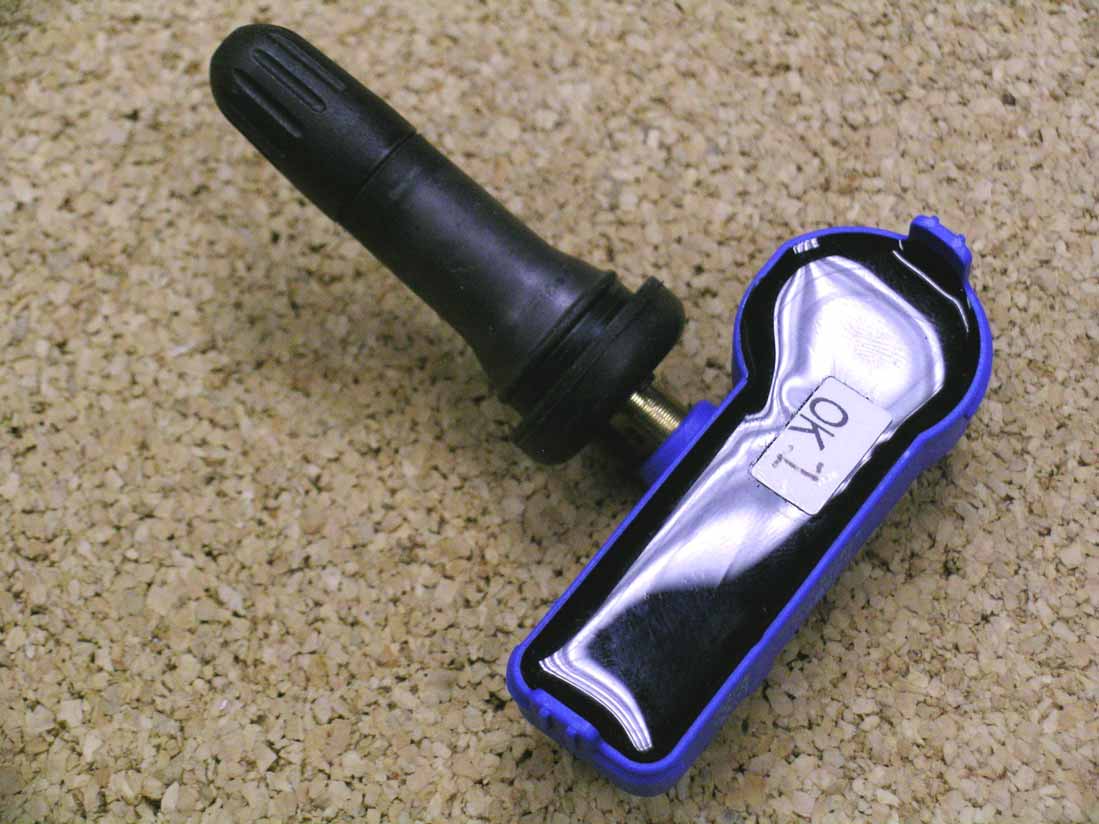

MRXGM07433ATPM Transmitter

Re: Certification for Schrader Transmitter Model(s): MRXGM07433A FCC ID: MRXGM07433A IC: 2546A-GM07433A USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: MRXGM07433A IC: 2546A-GM07433A This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Schrader Transmitter Model(s): MRXGM07433A FCC ID: MRXGM07433A IC: 2546A-GM07433A REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Schrader requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (9) Internal Photos (10) Parts List (Part of Exhibit only) Schrader has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan October 2, 2006 Re: Certification for Schrader Transmitter Model(s): MRXGM07433A FCC ID: MRXGM07433A IC: 2546A-GM07433A STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Schrader Transmitter Model(s): MRXGM07433A FCC ID: MRXGM07433A IC: 2546A-GM07433A GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Schrader Electronics Limited 11 Technology Park, Belfast Road Antrim BT41 1QS, Northern Ireland Emmanuel Marguet [email protected] Tel: +33 (0)3 81 38 56 56 Fax: +33 (0)3 81 46 41 42 It will be manufactured by: Schrader Electronics Limited 11 Technology Park, Belfast Road Antrim BT41 1QS, Northern Ireland Jim Newport Tel: 011-44-2894-48-2066 Fax: 011-44-1849-46-8440 Canadian Contact: Gates Rubber Company, 3303 St. Etienne Boulevard, Windsor, Ontario. N8W 5B1 Canada Rick Gatti 313 962 1711 Re: Certification for Schrader Transmitter Model(s): MRXGM07433A FCC ID: MRXGM07433A IC: 2546A-GM07433A POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. THIS MUST BE SIGNED BY THE APPLICANT AND SHOULD BE PLACED ON APPLICANTS LETTERHEAD ONLY IF AGENT IS SUBMITTING APPLICATION American TCB 6731 Whittier Ave McLean, VA 22101 Acknowledgement of IC Listing Requirements By signing this document, we acknowledge that any information specified on the ATCB Application and Agreement Form for Industry Canada Certification Servicesprovided with this application may be provided to Industry Canada. We acknowledge that this information may be posted in the Radio Equipment List (REL) on the Department's Web Site. Additionally, we understand that we must inform ATCB of any changes to the information submitted. We further acknowledge that the Certified product shall not be distributed, leased, or offered for sale in Canada prior to its listing on the Industry Canada Radio Equipment List (REL). We are aware that we may verify the status of this listing at the following web address: http://strategis.ic.gc.ca/cgi-bin/sc_mrksv/spectrum/reltelSearch/search.pl?lang=e&db=rel Dated this 05 th day of September 2006 By:Emmanuel Marguet Title: RF Team Leader email:[email protected] On behalf of: Schrader Electronics Telephone:+33 3 81 38 56 56 Attn: Director of Certification Authority to Act as Agent I appoint Valdis V. Liepa to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with Emmanuel Marguet, Schrader Electronics, 11 Technolgy Park, BT41 1QS Antrim, Northern Ireland Dated this 05 th day of September 2006 Agency Agreement Expiration Date: (Typically 8-12 months) By: Emmanuel Marguet Title: RF Team Leader email:[email protected] On behalf of: Schrader Electronics Telephone: +33 3 81 38 56 56

433.92 MHz

October 2, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: MRXGM07433A IC: 2546A-GM07433A Model(s): GM07433A Please find enclosed application materials for certification of Schrader MRXGM07433A Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

RE: Schrader Electronics Limited FCC ID: MRXGM07433A (ATCB4016) The following is in response to the comments made on the above referenced application. 1 The block diagram provided does not contain any operating frequencies. Block diagrams should contain the frequencies of any crystals or oscillators. The 13.56 MHz crystal oscillator frequency is included in the Block Diagram. However, the operating frequency was mistakenly not included. An updated version of the diagram has been provided that includes the operating frequency of the device. 2 Typically, Industrie Canada requires that the company name and the model number of the device appear on the “label” in addition to the Industrie Canada ID. While the URL for the company does appear on the device, there does not appear to b a model number. Deviations from the labeling requirements for Indsutrie Canada can ONLY occur with the approval of Industrie Canada, thus not having a model number on the device will require approval from IC. ATCB can approach IC, or the lab or the client. Please confirm who should contact IC regarding this matter -or - add the model number to the device. (additionally it f it is possible, it is preferable that the company name appear on the device rather than just the URL. The model number is included in the FCC Identification number. In the past, we have not had a problem certifying devices where the FCC ID number is used as the model number. 3 The operating description of the device mentions a “Learn mode” .Please provide additional information on this mode. What parameters are “learned” by this transmitter. How is the learning accomplished, and any additional information that describes the learning process in detail. Depending on the reply and the parameters learned, this device MAY have to be certified by by the FCC rather than a TCB I will continue my review of this application, sdo there may be additional comments / questions, but I want to resolve the learning TX question aASAP so if the device does have to go to the FCC we can make that change ASAP. The “Learn” mode referenced in the Description of Operation (DoP) relates to the process of training the automobile's RF receiver to recognize a particular TMP sensor. (For example, when the tires are changed or rotated, the car must “learn” the new tire placement in order to properly indicate which tire has a low pressure.) So far as the transmitter is concerned, this “Learn” mode only consists of a slightly modified modulation scheme (as indicated in the DoP) to ensure the automobile recognizes the tire in a timely manner upon LF actuation.) As detailed in the test report, this service mode falls under FCC part 15.231(a)(5).

Description of Operations FCC ID: MRXGM07433A IC: 2546A-GM07433A Consumer Use Modes Manufacturing & Service Modes Mode of Operation Explanation Frequency of Transmission X Roll Mode (Drive Mode) Transmitter in normal operation – wheel is rotating and shock sensor detects motion 6 words every 60 seconds X Learn Mode Transmits after LF transponder activation or when sensor exits Off Mode due to pressure delta 16 words whenever LF activation occurs X Factory Mode Transmitter is in Factory Mode for the next 15 or fewer shock sensor motion detects after a learn activation. The wheel has to be rotating 6 words every 30 seconds X X Stationary Mode Transmitter enters mode after Factory Mode or Drive Mode – wheel is not rotating – vehicle is stopped No transmission X X Off Mode Transmits when sensor transitions to Off Mode 6 words on mode change X Low Battery Mode Transmits as normal with low battery bit set 6 words when low battery occurs in Roll Mode X Re-measure Mode Transmits when a pressure delta is detected 6 words when pressure delta occurs X X Sleep Mode All of the time between other modes No transmission

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-330 Page 1 of 11 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Schrader Electronics Limited TPM Transmitter Model(s): MRXGM07433A Report No. 415031-330 September 15, 2006 Copyright © 2006 For: Schrader Electronics Limited 11, Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Emmanuel Marguet [email protected] Tel: +33 (0)3 81 38 56 56 Fax: +33 (0)3 81 46 41 42 PO: Verbal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/GEN, were performed on Schrader Electronics Limited model(s) MRXGM07433A. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on June 26, 2006, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 8.1 dB (see p. 6). The conducted emission tests do not apply, since the device is powered from a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-330 Page 2 of 11 1. Introduction Schrader Electronics Limited model MRXGM07433A was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Area Tes Site are on file with FCC Laboratory, Columbia, Maryland and (FCC Reg. No: 91050) with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) X Hewlett-Packard, ESA-L1500A SN: 37230527 Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-330 Page 3 of 11 3. Configuration and Identification of Device Under Test (DUT) 3.1 Design and Identification of the Device The DUT was designed and manufactured by Schrader Electronics Limited, 11, Technology Park, Belfast Road,, Antrim BT41 1QS, Northern Ireland. It is identified as: Schrader Electronics Limited TPMS Transmitter Model(s): MRXGM07433A FCC ID: MRX GM07433A IC: 2546A-GM07433A 3.2 Models There is only one version of the DUT. One device in standard operating mode and one device modified for continuous CW operation were provided. 3.3 Modes of Operation The DUT periodically transmits tire pressure data. The device is also capable of being automatically actuated (via LF interrogation) either by in-vehicle LF initiators or by trained personnel during servicing. Per FCC correspondence, service modes fall under FCC part 15.231(a)(5). Figure 6.1 demonstrates compliance with both 15.231(a)(2) and (5). A list of all operating modes is included in the Description of Operation exhibit. 3.4 EMI/EMC Relevant Modifications There were no modifications made to the DUT by this laboratory. 4. Regulatory Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C (Section 15.231(a),(c), & (e),15.209) and Subpart A (Section 15.33). For Industry Canada it is subject to RSS-210 (2.6, 2.7). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. 4.1 Radiated Emission Limits Table 4.1. General Radiated Emission Limits (FCC: 15.33, 15.35, 15.209; IC:…

Text truncated - open the document above for the full version.
