MRXGM07AMSSTire Pressure Monitor Sensor Transmitter

Schrader Electronics

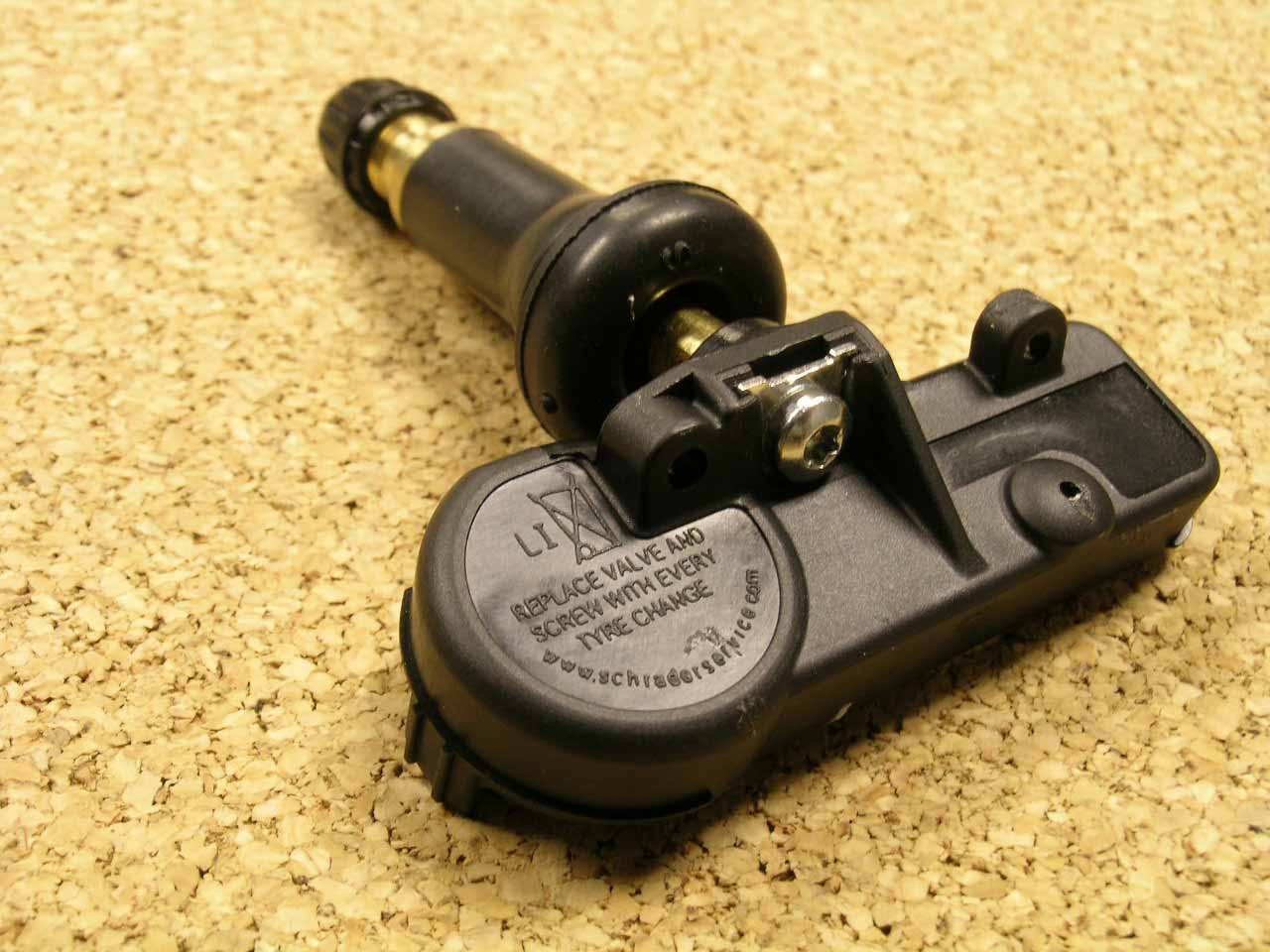

Tire Pressure Monitor Sensor Transmitter - FCC ID MRXGM07AMSS - Schrader Electronics
Click to zoom

Application Details

Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
Date of Grant
Apr 10, 2006
Application Purpose
Original Equipment
Date of Application
Apr 09, 2006
Equipment Note
Tire Pressure Monitor Sensor Transmitter
Frequency Range
315.00000000 - 315.00000000
Company
Schrader Electronics
Country
Ireland

Documents & Files

Select a file to view

Users Manual

β†—

Attestation Statements

β†—

Block Diagram

β†—

Cover Letter(s)

β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

Operational Description

β†—

Test Report

β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Re: Certification for Schrader Transmitter Model(s): 15254101 FCC ID: MRXGM07AMSS IC: 2546A-GM07AMSS USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: MRXGM07AMSS IC: 2546A-GM07AMSS This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term β€œIC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Attestation Statements

Re: Certification for Schrader Transmitter Model(s): 15254101 FCC ID: MRXGM07AMSS IC: 2546A-GM07AMSS POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Schrader Transmitter Model(s): 15254101 FCC ID: MRXGM07AMSS IC: 2546A-GM07AMSS REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Schrader requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Schrader has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan April 7, 2006 Re: Certification for Schrader Transmitter Model(s): 15254101 FCC ID: MRXGM07AMSS IC: 2546A-GM07AMSS STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Schrader Transmitter Model(s): 15254101 FCC ID: MRXGM07AMSS IC: 2546A-GM07AMSS GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Schrader Electronics Limited 11 Technology Park, Belfast Road Antrim BT41 1QS, Northern Ireland Adrian Condon Tel: +44 (0) 28 9448 3073 Fax: +44 (0) 28 9446 8440 It will be manufactured by: Schrader Electronics Limited 11 Technology Park, Belfast Road Antrim BT41 1QS, Northern Ireland Jim Newport Tel: 011-44-2894-48-2066 Fax: 011-44-1849-46-8440 Canadian Contact: Gates Rubber Company, 3303 St. Etienne Boulevard, Windsor, Ontario. N8W 5B1 Rick Gatti - 313 962 1711

Block Diagram

G M N A C A R G R O U P GM07 System Overview Gen4 ASIC Pressure Sensor Shock Sensor Controller Temperature Sensor Battery Management Battery (CR2045) Antenna Shock Sensor Interface Oscillator 9.84375MHz Phase Lock Loop Power Amplifier

Cover Letter(s)

April 7, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Schrader Transmitter Model(s): 15254101 FCC ID: MRXGM07AMSS IC: 2546A-GM07AMSS Please find enclosed application materials for certification of Schrader 15254101 Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist April 7, 2006 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Schrader Transmitter Model(s): 15254101 FCC ID: MRXGM07AMSS IC: 2546A-GM07AMSS Please find enclosed application materials for certification of Schrader 15254101 Transmitter. We tested the device and found it to comply with RSS-GEN/102/210. The product is identified by: IC: 2546A-GM07AMSS If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

Cover Letter(s)

April 7, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: MRXGM07AMSS IC: 2546A-GM07AMSS Model(s): 15254101 Please find enclosed application materials for certification of Schrader 15254101 Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

Operational Description

Page 2 of 2 The GM07 transmitter will be used on the GMX222, GMX265, GMX272 and GMT900 vehicles. 1. Frequency The carrier centre frequency is 315MHz. The frequency tolerance is +/-75kHz. 2. Protocol The modulation is Amplitude Shift Keying (ASK). It is Manchester encoding with a 50% duty cycle. 3. Temperature There must be full transmitter operation between -40Β°C and +85Β°C. The temperature range must not cause frequency, power and bit width to exceed the limits. The transmitter must be able to withstand an excursion to 125Β°C for up to 1 hour. Full operation must be restored on return to normal operation temperature range. 4. Operation There are three states for the transmitter – off mode, factory mode and normal mode. The transmitter goes into factory mode from off mode with a LF activation or a pressure delta. The transmitter transmits every 30 seconds in factory mode when motion is detected. After 15 transmissions the transmitter goes into normal mode. Motion is detected using a shock sensor. In normal mode there is a pressure transmission every minute during motion. Description of Operations FCC ID: MRXGM07AMSS IC: 2546A-GM07AMSS Consumer Use Modes Manufacturing & Service Modes Mode of Operation Explanation Frequency of Transmission X Roll Mode (Drive Mode) Transmitter in normal operation – wheel is rotating and shock sensor detects motion 6 words every 60 seconds X Learn Mode Transmits after LF transponder activation or when sensor exits Off Mode due to pressure delta 16 words whenever LF activation occurs X Factory Mode Transmitter is in Factory Mode for the next 15 or fewer shock sensor motion detects after a learn activation. The wheel has to be rotating 6 words every 30 seconds X X Stationary Mode Transmitter enters mode after Factory Mode or Drive Mode – wheel is not rotating – vehicle is stopped No transmission X X Off Mode Transmits when sensor transitions to Off Mode 6 words on mode change X Low Battery Mode Transmits as normal with low battery bit set 6 words when low battery occurs in Roll Mode X Re-measure Mode Transmits when a pressure delta is detected 6 words when pressure delta occurs X X Sleep Mode All of the time between other modes No transmission

Test Report

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-285 Page 1 of 10 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Schrader Electronics Limited Transmitter Model(s): 15254101 Report No. 415031-285 April 7, 2006 Copyright Β© 2006 For: Schrader Electronics Limited 11, Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Adrian Condon Tel: +44 (0) 28 9448 3073 Fax: +44 (0) 28 9446 8440 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Valdis V. Liepa Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210, were performed on Schrader Electronics Limited model(s) 15254101. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on March 21, 2006, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 10.7 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from a 12 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-285 Page 2 of 10 1. Introduction Schrader Electronics Limited model 15254101 was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS- 210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Procedure and Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/Gen - Test Report No. 415031-285 Page 3 of 10 3. Configuration and Identification of Device Under Test The DUT is a 315 MHz Tire Pressure Monitor Sensor (transmitter), 1 x 0.25 x 3 inches in size. It operates at 315 MHz and the carrier and is ASK modulated. The transmitter consists of an RF MMIC that is x-tal stabilized. The antenna is the tire pressure stem, and is integral to the device. The DUT was designed and manufactured by Schrader Electronics Limited, 11, Technology Park, Belfast Road,, Antrim BT41 1QS, Northern Ireland. It is identified as: Schrader Electronics TPMS Transmitter Model(s): 15254101 FCC ID: MRXGM07AMSS IC: 2546A- GM07AMSS Both a pulsed and CW mode device were provided. The CW mode device was used for testing because of the slow pulse repetition rate of the pulse device; the fundamental emission for the pulsed device was also measured. Note: The DUT transmits periodically, and can also be activated via LF. It ceases to transmit within 5 seconds of activation. See Figure 6.5. 3.1 Modifications Made There were no modifications made to the DUT by this laboratory. 4. Emission Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C, (Section 15.231), Subpart B, (Section 15.109), and Subpart A, (Section 15.33). For Industry Canada it is subject to RSS-210, (Sections 6.1 and 6.3). The applicable testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2 below. As a digital device, the DUT is considered as a Class B device. 4.1 Radiated …

Text truncated - open the document above for the full version.

Contact Information

Applicant

James Kyle
[email protected]+44 (0) 28 9448 3073Fax: +44 (0) 28 9446 8440

Technical Contact

University of MichiganValdis Liepa
[email protected]734-483-4211

1301 Beal Ave. Β· Ann Arbor, Michigan Β· United States

Test Firm

University of MichiganValdis Liepa
[email protected]734-647-1792Fax: 734-647-2106

Technical Specifications

#Rule PartsFrequency RangePower Output
115.231315 MHz - 315 MHz-
