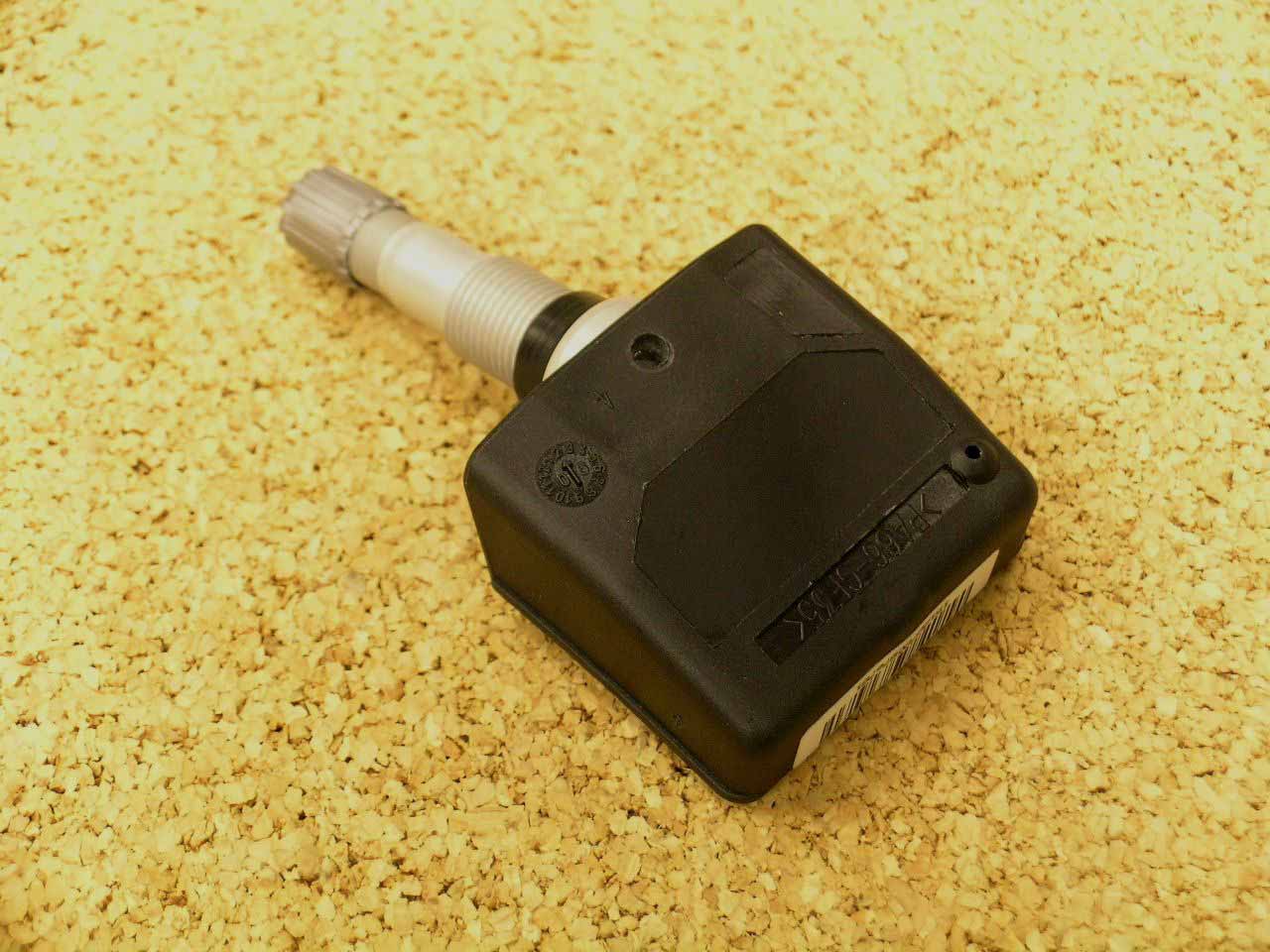

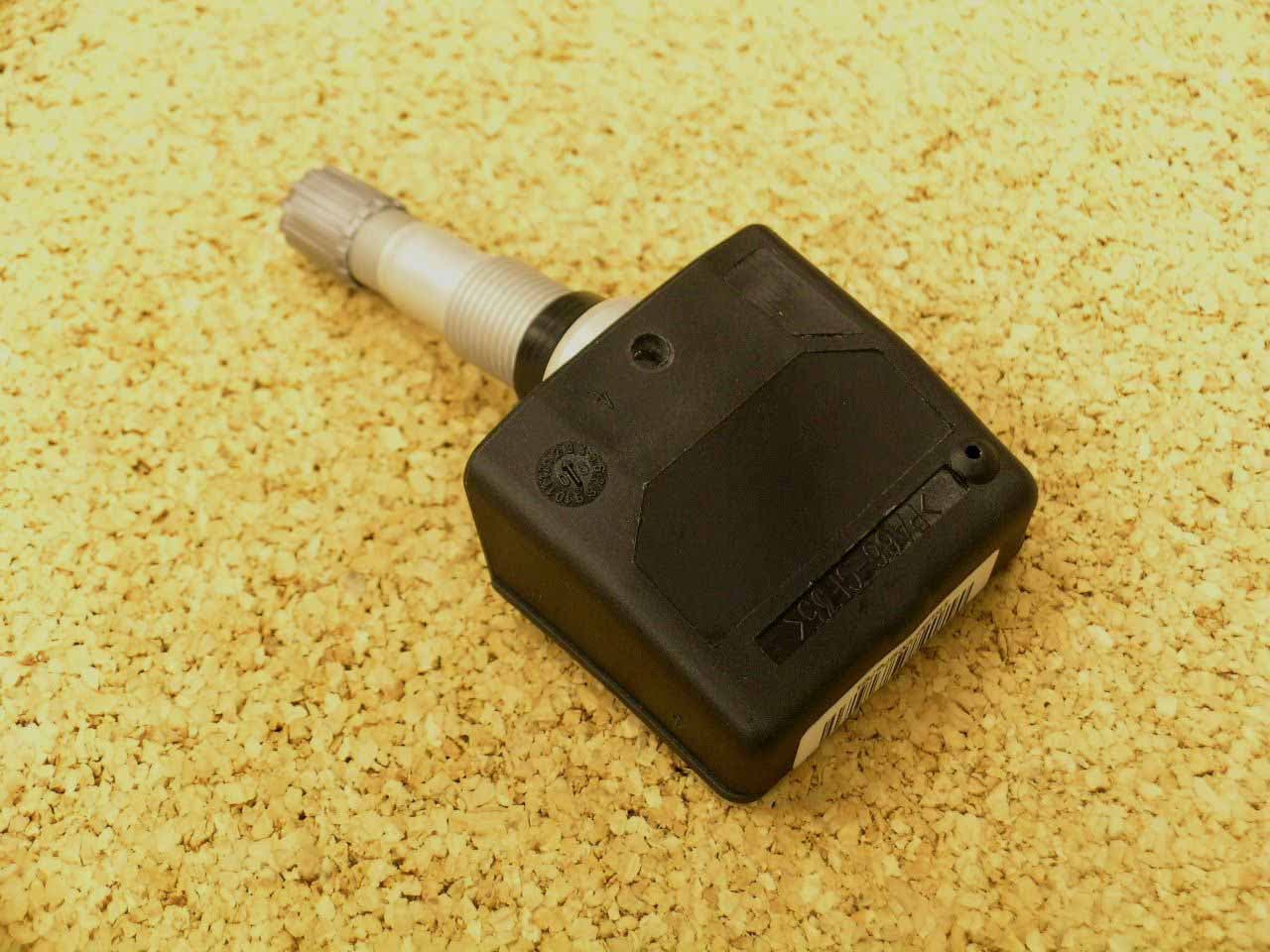

MRXGME433WALTPMS Transmitter

Re: Certification for Schrader Transmitter Model(s): GMEWAL FCC ID: MRXGME433WAL IC: 2546A-GMEWAL USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: MRXGME433WAL IC: 2546A-GMEWAL This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Schrader Transmitter Model(s): GMEWAL FCC ID: MRXGME433WAL IC: 2546A-GMEWAL POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Schrader Transmitter Model(s): GMEWAL FCC ID: MRXGME433WAL IC: 2546A-GMEWAL REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Schrader requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (9) Internal Photos (device is potted) (10) Parts List (Part of Exhibit only) Schrader has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan July 4, 2006 Re: Certification for Schrader Transmitter Model(s): GMEWAL FCC ID: MRXGME433WAL IC: 2546A-GMEWAL STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Schrader Transmitter Model(s): GMEWAL FCC ID: MRXGME433WAL IC: 2546A-GMEWAL GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Schrader Electronics Limited 11 Technology Park, Belfast Road Antrim BT41 1QS, Northern Ireland Emmanuel Marguet [email protected] Tel: +33 (0)3 81 38 56 56 Fax: +33 (0)3 81 46 41 42 It will be manufactured by: Schrader Electronics Limited 11 Technology Park, Belfast Road Antrim BT41 1QS, Northern Ireland Jim Newport Tel: 011-44-2894-48-2066 Fax: 011-44-1849-46-8440 Canadian Contact: Gates Rubber Company, 3303 St. Etienne Boulevard, Windsor, Ontario. N8W 5B1 Canada Rick Gatti - 313 962 1711

RF Circuit Max1472 433.92MHz ASIC Oscillator 32.768 kHz Pressure / Temperature Sensors Valve stem Antenna Crystal : 13.56MHz Lithium Battery Motion Detector LF Transponder

July 4, 2006 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Schrader Transmitter Model(s): GMEWAL FCC ID: MRXGME433WAL IC: 2546A-GMEWAL Please find enclosed application materials for certification of Schrader GMEWAL Transmitter. We tested it and found it to comply with FCC Part 15. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist July 4, 2006 Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Schrader Transmitter Model(s): GMEWAL FCC ID: MRXGME433WAL IC: 2546A-GMEWAL Please find enclosed application materials for certification of Schrader GMEWAL Transmitter. We tested the device and found it to comply with RSS-GEN/102/210. The product is identified by: IC: 2546A-GMEWAL If there are any questions, suggestions, etc., regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647- 2106; e-mail: [email protected]. Sincerely, Valdis V. Liepa Research Scientist

July 4, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: MRXGME433WAL IC: 2546A-GMEWAL Model(s): GMEWAL Please find enclosed application materials for certification of Schrader GMEWAL Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

MRXGME433WAL Consumer Use Modes Manufacturing & Service Modes Mode of Operation Explanation Frequency of Transmission X Drive mode: WAL Mode Transmitter in WAL operation – wheel is rotating and motion detected, duration 9min accumulated drive time after Waking from Stationary Mode 8 words every 33 seconds (duration 9 minutes) X Drive mode: Normal Mode Transmitter in normal operation - wheel is rotating and motion detected 6 words every 60 seconds X Learn Mode Transmits 36 words after LF transponder activation or when sensor exits Off mode due to delta pressure increase 36 words for 1 transmission, < 5secs X Factory WAL Mode. Transmitter is in Factory mode for the next 20 or less motion detects after a Learn activation. The Wheel has to be rotating and motion detected 8 words every 10.8 seconds for 3mins followed by every 33 seconds for 6 minutes (duration 9 minutes). X X Stationary Mode Transmitter enters mode after Factory Mode or Drive Mode - Wheel is not rotating - Vehicle is stopped. no transmission X Wake Mode Transmit 6 words when sensor transitions from Stationary mode to Drive mode due to Motion detection 6 words for 1 transmission X X Off Mode Transmit 6 words wh en sensor transitions to Off mode 6 words for 1 transmission X Low Battery Mode X Re-measure Mode Pursuant to Section 15.231(a)(4), alarm conditions apply for these two modes as they occur only during sudden change in tire pressure or at the time of low battery, per conversations with FCC. X X Sleep Mode All of the time between the other modes no transmission Notes:1) The manufacturing and service modes fall under FCC Part 15.231(a)(5). These modes are used to setup and program the tire pressure monitoring system on the vehicle and will be used in factory and service environments (i.e. vehicle/tire dealers) only.Since these proced ures require special equipment and training, they will not be evoked by the consumer. 2) Power levels of all transmissions are the same 3) 8 word packet is < 1sec in duration

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-317 Page 1 of 10 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Schrader Electronics Limited TPM Transmitter Model(s): GMEWAL Report No. 415031-317 July 4, 2006 Copyright © 2006 For: Schrader Electronics Limited 11, Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Emmanuel Marguet [email protected] Tel: +33 (0)3 81 38 56 56 Fax: +33 (0)3 81 46 41 42 PO: Verbal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/GEN, were performed on Schrader Electronics Limited model(s) GMEWAL. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on June 6, 2006, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 7.9 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-317 Page 2 of 10 1. Introduction Schrader Electronics Limited model GMEWAL was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Area Tes Site are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-317 Page 3 of 10 3. Configuration and Identification of Device Under Test (DUT) 3.1 Design and Identification of the Device The DUT was designed and manufactured by Schrader Electronics Limited, 11, Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland. It is identified as: Schrader Electronics Limited TPMS Transmitter Model(s):GMEWAL FCC ID: MRXGME433WAL IC: 2546A- GMEWAL 3.2 Models There is only one model of this device. Two versions were provided; one capable of CW transmission and one standard module that could be LF actuated. The CW version was used to measure harmonic emissions, all other tests were performed on the pulsed module. 3.3 Modes of Operation The DUT periodically transmits tire pressure data. The device is also capable of being automatically actuated (via LF interrogation) either by in-vehicle LF initiators or by trained personnel during servicing. Per FCC correspondence, service modes fall under FCC part 15.231(a)(5). Figure 6.1 demonstrates compliance with both 15.231(a)(2) and (5). A list of all operating modes is included in the Description of Operation exhibit. 3.4 EMI/EMC Relevant Modifications There were no modifications made to the DUT by this laboratory. 4. Regulatory Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C (Section 15.231(a),(c), & (e),15.209) and Subpart A (Section 15.33). For Industry Canada it is subject to RSS-210 (2.6, 2.7). The applicable t…
