MRXNG33MA4STire Pressure Transmitter

Re: Certification for Schrader Transmitter Model/PN(s): 40700 1AA0A FCC ID: MRXNG33MA4S IC: 2546A-NG33MA4S The device under test is manufactured by the grantee (Schrader) and sold as an OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end-user. Schrader will supply the following information to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ************************************************************************ FCC ID:MRXNG33MA4S IC: 2546A-NG33MA4S This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ************************************************************************

Nissan 1AA0A Block Diagram 32kHz oscillator - micro 1MHz oscillator - sigma delta External crystal - 9.8435MHz. RF Transmitter - 315 MHz PRESSURE SENSOR ASIC RF Power Amplifier MOTION INPUT LF INPUT BATTERY 3V VALVE

Re: Certification for Schrader Transmitter Model/PN(s): 40700 1AA0A FCC ID: MRXNG33MA4S IC: 2546A-NG33MA4S POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. February 28, 2008 Re: Certification for Schrader Transmitter Model/PN(s): 40700 1AA0A FCC ID: MRXNG33MA4S IC: 2546A-NG33MA4S STATEMENT OF MODIFICATIONS There were no modifications made to the DUT by this test laboratory. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Schrader Transmitter Model/PN(s): 40700 1AA0A FCC ID: MRXNG33MA4S IC: 2546A-NG33MA4S GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Schrader Electronics Limited 11 Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Adrian Condon, [email protected] Tel: +44 (0) 28 9448 3073 Fax: +44 (0) 28 9446 8440 It will be manufactured by: Schrader Electronics Limited 11 Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Adrian Condon, [email protected] Tel: +44 (0) 28 9448 3073 Fax: +44 (0) 28 9446 8440 Canadian Contact: Gates Rubber Company, 3303 St. Etienne Boulevard, Windsor, Ontario. N8W 5B1 Canada Contact: Rick Gatti [email protected] Tel: 1 (313) 962 1711 Fax:1 (313) 962 1711

American TCB 6731 Whittier Ave. McLean, VA 22101 Acknowledgement of IC Listing Requirements By signing this document, we acknowledge that any information specified on the ATCB Application and Agreement Form for Industry Canada Certification Services provided with this application may be provided to Industry Canada. We acknowledge that this information may be posted in the Radio Equipment List (REL) on the Department's Web Site. Additionally, we understand that we must inform ATCB of any changes to the information submitted. We further acknowledge that the Certified product shall not be distributed, leased, or offered for sale in Canada prior to its listing on the Industry Canada Radio Equipment List (REL). We are aware that we may verify the status of this listing at the following web address: http://strategis.ic.gc.ca/cgi-bin/sc_mrksv/spectrum/reltelSearch/search.pl?lang=e&db=rel Dated this 15 day of March, 2007 By: ___________ _____________ __Adrian Condon (Signature) (Print name) Title: _EMC & Approvals Team Leader_ _____________ _ email: [email protected]_ On behalf of: ___ Schrader Electronics _______ (Company Name) Telephone: __ 0044 2894483073 ___ Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 Re: Letter of Agency for FCC Compliance Testing Please be advised that Schrader Electronics authorizes Professor Valdis V. Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, Ann Arbor, Michigan, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 of CFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988, 21 U.S.C. 853(a). Dated this 15 day of March, 2007 By: ___________ _____________ __Adrian Condon (Signature) (Print name) Title: _EMC & Approvals Team Leader_ _____________ _ email: [email protected]_ On behalf of: ___ Schrader Electronics _______ (Company Name) Telephone: __ 0044 2894483073 ___ American TCB 6731 Whittier Ave. McLean, VA 22101 Attn: Director of Certification Authority to Act as Agent I appoint Valdis V. Liepato act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by American TCB, still resides with Schrader Electronics Ltd, 11 technology Park, Belfast Road, Antrim, N. Ireland BT41 1QS. Agency Agreement Expiration Date: (optional) Dated this 15 day of March, 2007 By: ___________ _____________ __Adrian Condon (Signature) (Print name) Title: _EMC & Approvals Team Leader_ _____________ _ email: [email protected]_ On behalf of: ___ Schrader Electronics _______ (Company Name) Telephone: __ 0044 2894483073 ___

Re: Certification for Schrader Transmitter FCC ID: MRXNG33MA4S IC: 2546A-NG33MA4S REQUEST FOR CONFIDENTIALITY Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, Schrader requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent (1) ID Label & Location Short Term Permanent (3) External Photos Short Term Permanent (4) Block Diagram Short Term Permanent (5) Schematics Short Term Permanent (7) Test Setup Photos Short Term Permanent (8) User’s Manual Short Term Permanent (DUT is potted) (9) Internal Photos Short Term Permanent (10) Parts List & Placement Short Term Permanent (11) RF Exposure Short Term Permanent (12) Description of Operation Schrader has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: Schrader requests the exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only): Schrader requests the exhibits selected above as short term confidential be withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa, Research Scientist University of Michigan

PDF created with FinePrint pdfFactory Pro trial version www.pdffactory.com One-time Exemption request on behalf of Schrader Corporation Joseph Brunett <[email protected]> Desmarais, Nicolas: DEB Lab <[email protected]> Tue, Feb 26, 2008 at 4:55 PM To: [email protected] Dear Mr. Brunett, We will allow Schrader Electronics to keep their current labelling until their labelling process can be revised. Best regards, Nicolas DesMarais Acting Manager, Certification and Market Surveillance Industry Canada Certification & Engineering Bureau Spectrum Engineering 3701 Carling Avenue, Bldg.94, P.O. Box 11490, Station H Ottawa, Ontario K2H 8S2 (613) 990-5329 Fax: (613) 990-4752 E-mail: [email protected] Web: http://strategis.ic.gc.ca /certification From: Joseph Brunett [mailto:[email protected] ] Sent: Monday, February 25, 2008 11:45 AM To: Desmarais, Nicolas: DEB Lab Subject: One-time Exemption request on behalf of Schrader Corporation Mr. Desmarais, Attached is a one-time exemption request from Schrader Electronics with regard to a minor error in labeling. They have provided us with samples for a new application. However, we need to resolve this labeling issue before we can forward the application to the TCB. Please let us know if you have any further questions or concerns. thank you, Joe Brunett -- Joseph D. Brunett Univ. of Michigan NCE# EMC-002790-NE 351 E. Sherwood Rd. Williamston, MI 48895 Phone: (517) 214-4192 Fax: (630) 214-4193 Page 1 of 1Gmail - One-time Exemption request on behalf of Schrader Corporation 2/27/2008http://mail.google.com/mail/?ui=2&ik=4cddaab9f2&view=pt&search=inbox&msg=11857 ... Manufacturer: Schrader Electronics IC: 2546A-NG33MA4S Apparatus: 40700 1AA0A Dear Sir/Madam It has come to our attention that Schrader has made a mistake in the Canadian RF approval labelling of the products outlined above. We have used “CAN:” from the old requirement instead of “IC” as outlined by the latest RSS specifications. We currently have our Canadian approval number moulded into the enclosure and to change the tooling but be a very significant cost to Schrader. Schrader will make the proper modification to the design when the tooling is next revised. I would appreciate if you could consider our mistake and allow us to continue sale with the products as outlined above. Regards ___________________________ Adrian Condon Schrader Electronics

Emergency Modes Consumer Use Modes Manufacturing & Service Modes Mode of Operation Explanation Frequency of Transmission X Drive mode Transmitter in normal operation - wheel is rotating and roll switch is closed 8 words every 60 seconds X Learn Mode Transmits 40 words after LF transponder activation or when sensor exits Off mode due to Roll switch closure 40 words for 1 transmission, < 5secs X Factory Mode Transmitter is in Factory mode for the next 16 or fewer Roll Switch closures after a Learn activation The Wheel has to be rotating (roll switch closed) Meets 15 231(e) 8 words every 30 seconds X Factory Mode Learn activation . The Wheel has to be rotating (roll switch closed) . Meets 15 . 231(e) requirements. 8 words every 30 seconds . XX Stationary Mode Transmitter enters mode after Factory Mode or Drive Mode - Wheel is not rotating - Vehicle is stopped. Pursuant to Section 15.231(a)(4), alarm conditions apply DP transmissions only (see Fast Measure Mode) X Wake Mode Transmit 8 words when sensor transitions from Stationary mode to Drive mode due to Roll switch closure 8 words for 1 transmission X Off Mode Transmit 8 words when sensor transitions to Off mode 8 words for 1 transmission X Nissan Special Mode Factory/Service use only 8 words every 30 seconds X Fast Measure Mode Pursuant to Section 15.231(a)(4), alarm conditions apply 8 words every DP could be every 1 second X ID Response Mode When LF interrogated by the Dealer. 15.231(a) applies. 40 words for 1 transmission, < 5secs Motion Detected Tolerance No Motion 30 sec Sampling 5-Second Sampling (normally) 30 sec Sampling Pressure Sample Rate ∆ P Tx’s 1-Minute Transmission ∆ P Tx’s RF Transmission Rate Stationary Mode Drive Mode Stationary Mode Wake Transmission Service Period Driving: Stationary: Wake: Delta Pressure: Service Period: V ehicle Speed Service period is set to 30s See Note Below Sample pressure every 5 seconds and transmit every 60 seconds normally. However if a pressure change of more than 1psi detected then tranmitter will sample and transmit every second until pressure stabilises for 10 secs.(assumes 0-63.75psi range sensor). See flowchartIf a change of pressure of more than 1.25 psi is measured since last RF transmission then a Delta Pressure (Re-measure) is trans mitted and the unit then transmits ever 1 sec till a steady pressure is reached.Refer to section 3.2. A dditional transmission when motion is detected. 3. Modes of Operation 3.1 TPM Sensor Top Level State Diagram STATIONARY MODE OFF MODE NISSAN SPECIAL MODE >200mS 1ON / 1OFF / 1ON / 1OFF 2ON / 2OFF / 2ON / 2OFF TRANSPONDER INPUT ACTIVE ∆P >1.25 PSI in ∆T=30Sec MOTION DETECTED INVALID LF INVALID LF FACTORY RESPONSE MODE LEARN MODE SCHRADER TEST MODE 0.2ON / 0.2OFF 0.2ON / 0.2OFF NORMAL DRIVE MODE FACTORY DRIVE MODE Wake Counter NO MOTION FOR SERVICE PERIOD <15 WAKES >=15 WAKES FAST MEASURE ∆P <1.5 PSI FOR 10 SAMPLES ∆P >1.25 PSI ∆P >1.25 PSI ∆P <1.5 PSI FOR 10 SAMPLES MOTION DETECTED ANY TRANSPONDER ACTIVITY INVALID LF (FROM ANY MODE UNLESS OTHERWISE STATED) NORMAL PROGRAM FLOW VALID LF CODE INVALID LF INVALID LF (ANY MODE) ANY LF STATE DIAGRAM LEGEND Reset Wake Counter Figure 1: Top Level State Diagram The diagram in Figure 3 shows a high level state diagram of the Nissan Gen3 TPM Sensor and how the different states or modes interact. The rest of this section is brief explanation of the function of the individual modes. NB: In all modes an LF signal will cause a move a transition to “TRANSPONDER INPUT ACTIVE”. 3.2 STATIONARY Mode In normal operation and while the vehicle is not moving the TPMS Sensor will be in STATIONARY mode. In this mode sample and transmission rates are described below. Nissan Part Pressure Sample Rate (seconds) Roll Sample Rate (seconds) Normal Tx Rate (minutes) Re-measure Tx’s (enabled) 40700-1AA0A 30 10 - Yes Table 1: Stationary Mode STATIONARY mode is exited when the vehicle begins to move and roll switch input is verified by the ASIC. 3.3 DRIVE Mode DRIVE mode is the mode the TPM sensor goes to when the vehicle starts moving and motion is detected by the sensor. The activation point of the sensor is dependent on the rotational speed of the wheel and therefore varies depending on wheel and tyre configuration used. As a guideline, the wake-up speed of sensor equates to a road speed of approximately between 3 and 25KPH (2 and 16MPH). DRIVE mode is designed to increase the sample and transmission rate while the vehicle is moving. On entry to DRIVE mode the TPM sensor will sample pressure and do a normal RF transmission with a WAKE function code (see Error! Reference source not found.). After the WAKE transmission the TPM sensor will transmit NORMAL function code data frames with the following sample and transmission rates: Nissan Part Pressure Sample Rate (seconds) Roll Sample Rate (seconds) Normal Tx Rate (seconds) Re-measure Tx’s (enabled) 40700-1AA0A 5 5 60 Yes Table 2: Drive Mode When vehicle speed has dropped below minimum vehicle speed threshold, the transmitter will remain in DRIVE mode for a period of approximately 30 seconds, known as the ‘Service Period’. After the Service Period time has elapsed the TPM sensor will exit to STATIONARY Mode. 3.4 FACTORY Mode (A special case of DRIVE Mode) A special case of DRIVE mode called FACTORY mode is available on the Nissan Gen3 sensor. The difference is an increase in the frequency of transmissions from about 60 seconds, to about 30 seconds. Nissan Part Pressure Sample Rate (seconds) Roll Sample Rate (seconds) Normal Tx Rate (seconds) Re-measure Tx’s (enabled) 40700-1AA0A 5 5 30 Yes Table 3: Factory Mode It is the intention of FACTORY mode to shorten the LEARN time of the TPM system in the factory assembly. FACTORY mode is exited after 15 WAKE transmissions, were one journey is defined as the sensor entering DRIVE mode via motion switch activation, then exiting DRIVE mode after the motion switch is deactivated and the service period has timed out. NB: - The FACTORY mode journey counte…

Text truncated - open the document above for the full version.

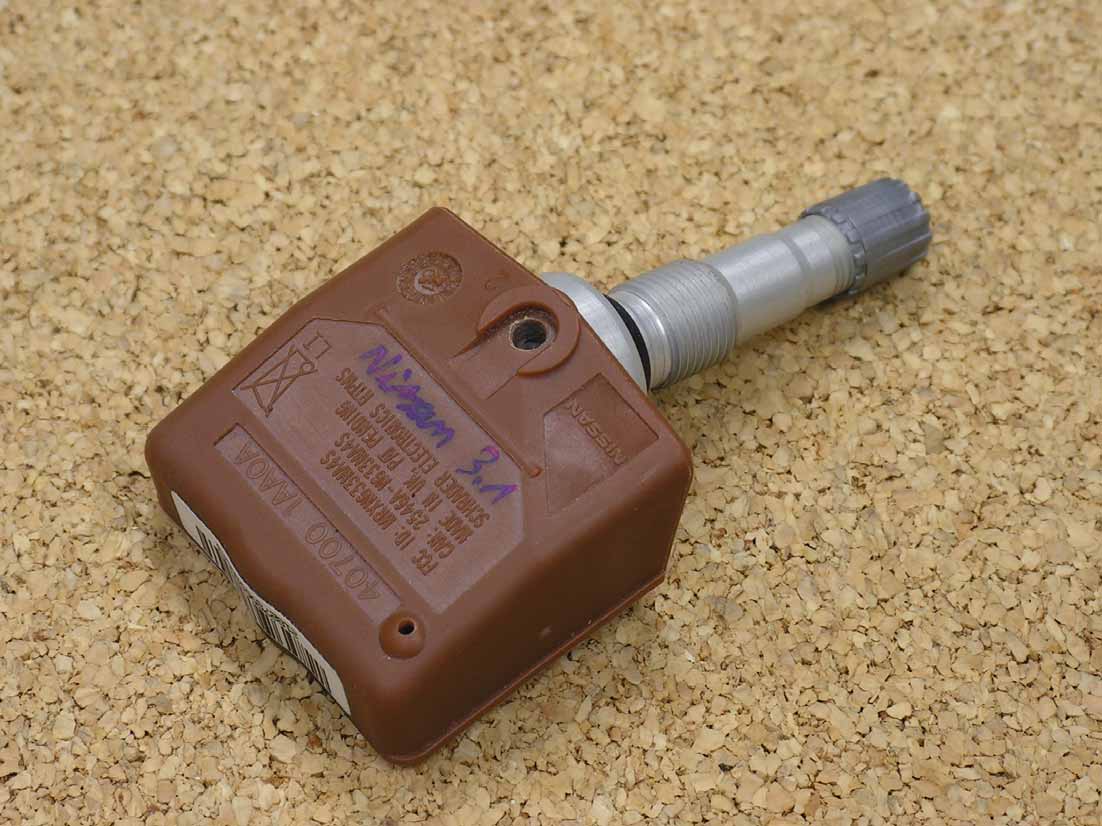

Description of operation: The TPM sensor / transmitter is a self-contained unit in which there are no electrical connections into or out of the device. The unit monitors and transmits tire cavity pressure and Temperature using an RF signal to a receiver unit. Each TPM sensor contains a unique ID code in its transmission data that a receiver can use to identify tire position or illuminate a warning lamp that identifies that one or more tires has a pressure out of range event.

University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-412 Page 1 of 12 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Schrader TPM Transmitter FCC ID: MRXNG33MA4S IC: 2546A-NG33MA4S Report No. 415031-412 February 27, 2008 Copyright © 2008 For: Schrader Electronics Limited 11 Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland Contact: Adrian Condon, [email protected] Tel: +44 (0) 28 9448 3073 Fax: +44 (0) 28 9446 8440 PO: Verbal Tests supervised by: Measurements made by: Valdis V. Liepa Report approved by: _____________________ Valdis V. Liepa Test Report Prepared by: Joseph D. Brunett Research Scientist Summary Tests for compliance with FCC Regulations Part 15, Subpart C, and Industry Canada RSS-210/GEN, were performed on Schrader model/PN(s) 40700 1AA0A. This device is subject to the Rules and Regulations as a Transmitter. In testing completed on February 26, 2008, the device tested in the worst case met the allowed FCC specifications for radiated emissions by 5.5 dB (see p. 6). Besides harmonics, there were no other significant spurious emissions found; emissions from digital circuitry were negligible. The conducted emission tests do not apply, since the device is powered from a 3 VDC battery. University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-412 Page 2 of 12 1. Introduction Schrader model/PN(s) 40700 1AA0A was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989 as subsequently amended, and with Industry Canada RSS-210/Gen, Issue 6, September 2005. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz". The Site description and attenuation characteristics of the Open Area Tes Site are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1 Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) X Hewlett-Packard 8593A SN: 3107A01358 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (26-40 GHz) Hewlett-Packard 11970A, SN: 3003A08327 Harmonic Mixer (40-60 GHz) Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (75-110 GHz) Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 S-Band Std. Gain Horn S/A, Model SGH-2.6 C-Band Std. Gain Horn University of Michigan, NRL design XN-Band Std. Gain Horn University of Michigan, NRL design X-Band Std. Gain Horn S/A, Model 12-8.2 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) FXR, Inc., U638A U-band horn (40-60 GHz) Custom Microwave, HO19 W-band horn(75-110 GHz) Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) X University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) X Avantak, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantak Amplifier (4.5-13 GHz) Avantek, AFT-12665 Amplifier (6-16 GHz) Trek Amplifier (16-26 GHz) Avantek LISN Box University of Michigan Signal Generator Hewlett-Packard 8657B University of Michigan Radiation Laboratory FCC Part 15, IC RSS-210/GEN - Test Report No. 415031-412 Page 3 of 12 3. Configuration and Identification of Device Under Test (DUT) 3.1 Design and Identification of the Device The DUT was designed and manufactured by Schrader Electronics Limited, 11 Technology Park, Belfast Road, Antrim BT41 1QS, Northern Ireland. It is identified as: Schrader TPMS Transmitter Model/PN(s): 40700 1AA0A FCC ID: MRXNG33MA4S IC: 2546A-NG33MA4S 3.2 Variants There is only a single variant of this device. 3.3 Modes of Operation The DUT periodically transmits tire pressure data. The device is also capable of being automatically actuated (via LF interrogation) either by in-vehicle LF initiators or by trained personnel during servicing. Per FCC correspondence, service modes fall under FCC part 15.231(a)(5). Figure 6.1 demonstrates compliance with both 15.231(a)(2) and (5). A list of all operating modes is included in the Description of Operation exhibit. Worst case modes of operation are reported herein to demonstrate compliance. All modes transmit the same data packet (word) but in different groupings or at different rates. 3.4 EMI/EMC Relevant Modifications There were no modifications made to the DUT by this laboratory. 4. Regulatory Limits The DUT tested falls under the category of an Intentional Radiators and the Digital Devices. For FCC, it is subject to Part 15, Subpart C (Section 15.231(a),(c), & (e),15.209) and Subpart A (Section 15.33). For Industry Canada it is subject to RSS-210 (2.6, 2.7). The applicable testing frequencies with corresponding emission limits are given i…
