„ „ User’s Guide H750 D (B17 D F) TFT-LCD Monitor Regulatory Information .......................................................................................................................... 2 Introduction Package ...................... ................................................................................................. ............................. 3 The range of control Angle ......... .............................................................................................................. 3 Connection to Signal Source ........ ............................................................................................................ 4 Controls Front panel .................. .............................................................................................................................. 5 Functions .................... .............................................................................................................................. 5 Adjusting OSD ................. ..................................................... ....................... ............................................. 6 HOT KEY ....................... .................................................... ......................... ............................................ 11 Power Management Feature ............................................................................................................... 12 Standard Signal Table .......................................................................................................................... 12 Specifications ............................................................................................................................... ......... 13 Pin assignment table D-Sub Mini 15pin connector ...................................................................... 14 Troubleshooting ............................................................................................................................... ..... 15 „ Table of Contents TFT-LCD Monitor 2 „ Regulatory Information - FCC Information Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Canadian Notice This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. - Avis Canadien Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. - Energy Star As an ENERGY STAR partner, Hansol Electronics Inc. has determined that this product meets energy Star guidelines for energy efficiency. Notice The information contained in this docum ent is subject to change without notice. This equipment has been tested and found to comp ly with limits for a class B digital device, pursuant to Part 15 of the FCC Rules. T hese limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment can generates, uses, and radiate r adio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not oc cur in a particular installation. If this equipment does cause unacceptabl e interference to radio and television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. „ Reorient or relocate the receiving antenna. „ Increase the separation between the equipment and receiver. „ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. „ Consult the dealer or an experienc ed Radio/TV technician for help. TFT-LCD Monitor 3 „ Introduction - Package - The range of control Angle LCD Monitor UKU.S.A/CanadaEuropeAustraliaKorea AC Power Cable Signal Cable C D(User’s Guide & etc) Warranty Card Congratulations on your purchase of this top quality color monitor!The items illustrated below are contained in the carton.First, be sure that your carton includes all of them.If any items are missing or damaged, please contact your local dealer or supplier. ▲ Forward 3° ▲ Default ▲ Backward 30° How to Adjust the Stand Stereo Cable(Option) Signal Cable(DVI) (Analog) TFT-LCD Monitor 4 „ . Introduction - Connection to Signal Source <Power Source Connection> <Signal Cable Connection> ① ① Port for AC power cable . ② Port for Audio cable from audio source. ③ Port for Head Phone or External Speaker. ④ Port for signal cable from DVI signal source. ⑤ Kensington Lock . ⑥ Port for signal cable from analog signal source. ②③④ ⑤ ⑥ „ General „ For Macintosh Adapter for Macintosh(Optional) Refer to the table on the rear side of the optional Macintosh adapter and adjust DIP switch by the resolution. 1. Use 220V or 110 V.(Free Voltage)2. Connect monitor and Signal Source via Signal cable. 3. Power on the monitor and computer.4. Connection is finished. Basic Connection TFT-LCD Monitor 5 „ Controls - Front panel - Functions Power button „ Power button is located in the lower center of the Front Bezel. „ You can push the button to trun on/off the power. Power Indicating LED „ Dark : Power off „ Green : Normal mode „ Green blinking : DPMS mode or Check Signal Cable mode. On Screen Display(OSD) Function Button OSD buttons on the front of bez el perform the following functions. „ SOURCE : Press this button to change Analog/DVI display. „ MENU/EXIT : Press this button to display menus. if you press this button when OSD is displayed, you can switch display to the previ ous menu and exit menu. „ SELECT/AUTO : Press this button, when OSD is not displayed, to perform automatic setting. When OSD is displaye d, You can select icons. „ POWER : Power button. „ + / , – / : By pressing these button when OSD is displa yed, You can move cursor into the menus wh…

Text truncated - open the document above for the full version.

Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 38 of 55 APPENDIX D – EUT PHOTOGRAPHS

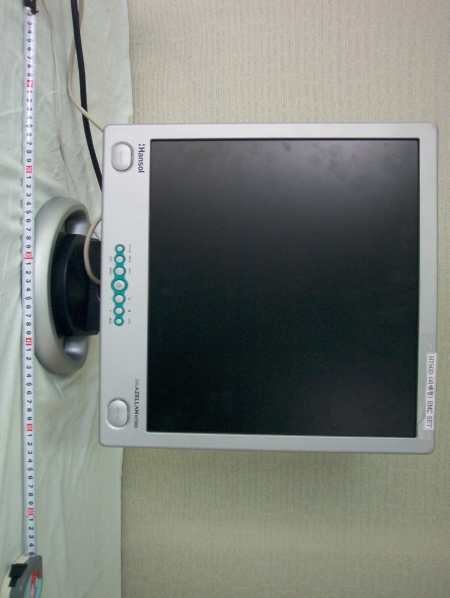

Front View of EUT Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 39 of 55
Rear View of EUT

Made in Thailand HT HS Manufactured: ELECTRICAL RATING AC 100 -240V 50/60 Hz, 0.6A CAUTION TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE COVER, NO USER-SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ATTENTION AFIN D’EVITER TOUT RISQUE D’ELECTROCUTION, NE PAS ENLEVER L’ARRIERE. AUCUNE PIECE REPARABLE PAR L’USAGER A L’INTERIEUR. POUR REPARATIONS, APPELER UN TECHNICIEN QUALIFIE. FCC ID : MSA B17DF-1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference and 2) This device must accept any interference received, including interference that may cause undesired operation. Hansol LCD Inc. 27-29 Hanchon-Ri Duksan-Myun Jinchon-Kun Choongbuk, KOREA MODEL Name : H750D VI MODEL No. : B 17DF

Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 34 of 55 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.
FCC ID Location of EUT Labelling Requirements

Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 40 of 55
Inside View of EUT1 Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 41 of 55
Inside View of EUT2 Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 42 of 55
Front View of Main Board Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 43 of 55
Rear View of Main Board Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 44 of 55
Front View of OSD Board Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 45 of 55
Rear View of OSD Board Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 46 of 55
Front View of Combo Board1 (IPHS4L-S) Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 47 of 55
Rear View of Combo Board1 (IPHS4L-S) Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 48 of 55
Front View of Combo Board2 (AI-0017) Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 49 of 55
Rear View of Combo Board2 (AI-0017) Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 50 of 55
Front View of Combo Board3 (IPHS4L) Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 51 of 55
Rear View of Combo Board3 (IPHS4L) Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 52 of 55
Front View of LCD Panel (LTM170EU-***) Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 53 of 55
Rear View of LCD Panel (LTM170EU-***)

55 44 33 22 11 D D C C B B A A R16 !! <Doc> <RevCode> D_SUB A3 16 Saturday, July 05, 2003 TitleSize Document Number Rev Date: Sheet of VSYNC0 CLK_DDC DDC_CLK ST_DET1HSYNC0 GIN0 BIN0 RIN0 SOGIN0BIN0MRIN0M DAT_DDC GIN0M DDC_DAT VSI VCC5V D85.6V R5 0 OHM R3 0 OHM R1 0 OHM CN1 DSUB-15 162738495 1112131415 10 D25.6V D15.6V C11 20P C12 220P R14 100 C1 0.047u C6open C5open C7 open R7 75 R8 75 R9 75 R13 0 C2 0.047u C3 0.047u R4 100 R2 100 D75.6V R6 100 R19 100 D3 BAV99 1 2 3 R21 100 R17 100 R15 2.2K R18 10K D65.6V R20 100 C4 OPEN D4 BAV99 1 2 3 D5 BAV99 1 2 3 R11 100 R10 100 R12 100 C8 0.047u C9 0.047u C10 0.047u RIN0GIN0BIN0 VSYNC0 RIN0MGIN0MBIN0M DDC_DAT DDC_CLKST_DET1 HSYNC0 SOGIN0 DDC_PWR1 55 44 33 22 11 D D C C B B A A 1. ST_DET2 DVI PIN 1. 24LC21 VCLK PATT. !! #16 PAT T. !! <Doc> <RevCode> DVI A3 26 Saturday, July 05, 2003 TitleSize Document Number Rev Date: Sheet of CLK_DDC2DAT_DDC2 5VS VCC5V 3.3V_DVI VCC5V R33OPEN R32OPEN R24 100 R31OPEN R30OPEN R85 22 R26OPEN R86 22 R88 22 R9010K 12 R87 22 R3510K 12 D105.6V D115.6V R3410K 12 D125.6V R37 100R 1 2 R89 10K R36 100R 1 2 R23 100 R22 100 U1 24LC21 1234 567 8 NC1NC2NC3GND SDA SCL WP VCC R25 100 D20 BAV99 1 2 3 D19 BAV99 1 2 3 D18 BAV99 1 2 3 C130.1uF 12 D17 BAV99 1 2 3 D16 BAV99 1 2 3 D15 BAV99 1 2 3 D14 BAV99 1 2 3 R82 22 D13 BAV99 1 2 3 D95.6V CON1 DVI CON 1234567825289101112131415162629171819202122232427 DAT2- DAT2+ 2/4shield DAT4- DAT4+ DDC SCL DDC SDA VSYNC R HSYNC DAT1- DAT1+ 1/3shield DAT3- DAT3+ +5V SYNC GND HPD G RGB GND DAT0- DAT0+ 0/5shield DAT5- DAT5+ clk shield clk+ clk- B R29OPEN R81 22 R83 22 R28OPEN R84 22 R27OPEN CLK-G+G- ST_DET2 CLK+B+B-R+R- DDC_PWR2 55 44 33 22 11 D D C C B B A A GND GND GND GND GND GND GND GND to KEY PAD 1. R43 !! 1.KEY PAD PULL UP 2EA 1 MCU 36 TitleDocument Number Rev Sheet of DESIGN CHECK APPROVAL WooYoung Telecom Co., Ltd. Model LEDKEY2KEY1 BACKLITn VCC5V VCC5V 5VS VCC5V VCC5V 5VS 5VS VCC5V VCC5V 5VS 5VS 5VS VCC5V 5VS R62 200 R4710K R58OPEN R57OPEN C22 22pF Y1 12MHZ R414.7k D22BAT54C 1 2 R6510K C24 OPEN R96 470 D23BAT54C 1 2 R70 10K R68 100 R53 100 R71330 R69 100 Q2 MMBT3904 1 23 C161uF R934.7K R95 100 R944.7K C23 22pF C25OPEN D21BAT54C 1 2 R674.7K R664.7K R92 100 C15 33uF/16V R44100 C17 0.1uF R604.7K C18 47uF/16V R594.7K C19 0.1uF R434.7K R54 100 C280.1uF R55 100 C210.1uF R56 100 R52 100 R4510K + C2047uF/16V R4610K R4210k R61 200 U3 24C16 1234 5678 A0A1A2GND SDA SCL WP VCC R40 OPEN R51 100 C14 33uF/16V CON2 1234 R39 33 U2 WT61P4L44 9 10 5 162627282930313233 34353637383940431112131415181920212224 87 2325 2341 4142 44 6 17 OSCOOSCINRESETPB1/NIRQ2PA0/DDCSDA1/TXDPA1/DDCSCL1/RXDPA2/PWM8PA3/PWM9PA4/PWM10PA5/PWM11PA6/PWM12PA7/PWN13/CLAMP PD0/VOUT PD1/HOUT PD2/PWM7/P13 PD3/PWM6PD4/PWM5PD5/PWM4PD6/PWM3PD7/PWM2 PB6/IICSDA2 PB5/IICSCL2 PB4/PAT PB3/FDO PB2/FDI PC7/SOGIN PC6/RIN PC5/GIN PC4/BIN PC3/AD3PC1/AD1 GNDVDD5V PC2/AD2PC0/AD0 PE2/PWM14PE1/PWM1PE0/PWM0PE3/PWM15HIN1VIN1 NC VDD3.3V PB0/NIRQ1 R4847K R38 33 R50 100 R4947K HCLKHWRESET INT onPANELHFSHDATA AdjBACKLITE ST_DET1 HSYNC0VSYNC0DDC_CLKDDC_DAT ST_DET2 DDC_PWR1DDC_PWR2 VOLUMEVOL_MUTESTBY onBACKLITE 55 44 33 22 11 D D C C B B A A GND GND GND GND GND GND GND GND GND PANEL W AFER U5 1 PIN MARK !! 97E0D0220Y 1 MST9111 & PANEL 46 TitleDocument Number Rev Sheet of DESIGN CHECK APPROVAL WooYoung Telecom Co., Ltd. Model G+CLK+G-CLK- RXE0+RXO2+RXE3+RXE2-RXOCLK+RXE1-RXE3-RXE0-RXO3+RXO0+RXO2-RXO1+RXE2+RXO1-RXE1+RXOCLK-RXECLK+RXECLK-RXO3-RXO0- R+R-B+B- 3.3VD_PL 3.3V_AV 3.3VD 3.3V_PL 2.5VD 3.3V_PL3.3VD_PL 2.5VD 3.3V_DVI 3.3V_DVI 3.3V_AV3.3V_DVI3.3VD VCC5V C32 NC C31 NC C29 NC R72 OPEN C46 0.1uF C43 0.001uF R74 4.7K + C42 47uF/16V R7547K C410.1uF U5SI3863DV 456 321 S2ONC1 D2D1R2 C48 0.1uF C300.1uF C49 0.1uF C50 0.1uF C52 0.1uF C51 0.1uF U4 MST9131 1 2 34 5 67 8 9 10 11 1213 14 15 16 17 18 19 2021222324252627282930313233 34 35 36373839404142 43 4445 464748495051525354 55 56 57 58 5960 61 62 63 64 6566676869 7071 72 73 7475767778798081 82 83 84 85 8687888990919293 94 95 9697 9899 100101 102 103 104105 106 107 108109110 111 112 113 114 115116117118119120121122123 124 125 126127128 NC AVSS R+R- AVSS G+G- AVDD B+B- AVSS CLK+CLK- AVDD REXT AVDD_PLL AVDD_PLL AVDD AVSS NCNCNCNCNCNCNCBIN0MBIN0GIN0MGIN0SOGIN0RIN0MRIN0 AVSS AVDD RMIDREFPREFMAVSSCSZSDASCL INT PWM0PWM1 VCLK VD0VD1VD2VD3VD4VD5VD6VD7 VDDP GNDP GNDC VDDC NCNC VDDP GNDP GNDC VDDC NCNCNCNCNC LVA3P LVA3M VDDP GNDP LVACKP LVACKM LVA2P LVA2M LVA1P LVA1M LVA0P LVA0M VDDP GNDP GNDC VDDC LVB3P LVB3M LVBCKP LVBCKM LVB2P LVB2M LVB1P LVB1M VDDP GNDP LVB0P LVB0M NCNCNCNC AVSS_PLL BYPASS NCNC GNDP VDDP NCNCNC VDDC GNDC GNDP VDDP NCNCDDC1_DATDDC1_CLKDDCROM_CLKDDCROM_DATHWRESETZXINXOUT AVDD_PLL AVSS_PLL HSYNC0VSYNC0NC Y2 14.318MHz C53 0.1uF J1 12507HS-30(LVDS) 302928272426252322212017191816151413121110 987654321 RXO0-RXO0+RXO1-RXO1+GNDRXO2-RXO2+RXOCLK-RXOCLK+RXO3-RXO3+GNDRXE0-RXE0+RXE1-RXE1+GNDRXE2-RXE2+RXECLK-RXECLK+RXE3-RXE3+GNDNCNCNCVDDVDDVDD C44 0.1uF C34 22pF C54 0.1uF C33 22pF C40 0.1uF C35 0.1uF C39 0.1uF R73 390 1% C45 0.1uF C47 0.1uF C36 0.1uF C37 0.1uF C38 0.1uF RIN0RIN0MGIN0GIN0MBIN0BIN0MVSYNC0HSYNC0 INT HFS HWRESET HCLKHDATA VCC_2.5VD VCC3.3V_PLVCC3.3VD_PL SOGIN0 AdjBACKLITE R-G+G-B+B- CLK+CLK- VCC3.3V_AV VCC_3.3V_DVI VCC3.3VD onPANEL R+ 55 44 33 22 11 D D C C B B A A GND GND GNDGNDGNDGNDGND 1 INVERTER & POWER 56 TitleDocument Number Rev Sheet of DESIGN CHECK APPROVAL WooYoung Telecom Co., Ltd. Model AdjBACKLITEonBACKLITE VCC3.3V VCC12V VCC5V VCC5V VCC5V U6 LT1117V33 13 24 GNDIN VOVO FB7 BEAD_300ohm_2012 C700.1uF + C69 22uF/16V FB8 BEAD_300ohm_2012 + C57 100uF/16V C590.1uF FB10 BEAD_300ohm_2012 FB11 BEAD_300ohm_2012 + C64 100uF/16V U7 LT1117V25 13 24 GNDIN VOVO C750.1uF FB2 BEAD_300ohm_2012 C610.1uF + C60 22uF/16V + C58 47uF/16V C630.1uF + C62 22uF/16V J2 COMBO(Board in type-2mm) 12345678 C660.1uF FB1 BEAD_300ohm_2012 + C65 47uF/16V + C55 22uF/16V C560.1uF FB6 BEAD_300ohm_2012 C680.1uF + C71 100uF/16V C730.1uF FB9 BEAD_300ohm_2012 + C72 100uF/16V FB3 BEAD_300ohm_2012 C740.1uF + C67 22uF/16V FB5 BEAD_300ohm_2012 FB4 BEAD_300o…

Text truncated - open the document above for the full version.

Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 1 of 55 Nemko Korea Co., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Hansol LCD Inc. Dates of Issue :August 18, 2003 #27-29, Hancheon-Ri, Ducksan-Myun, Test Report No. : NK2DE505 Jincheon-Gun, Choongbuk, Korea Test Site : Nemko Korea Co., Ltd. Attn : Mr. W. S. Lee EMC site, Korea FCC ID Brand Name Contact Person FCC Rule Part(s): Part 15 & 2 Classification : FCC Class B Device EUT Type: 17” LCD Monitor The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S. H. Baek Reviewed By : H.H. Kim Engineer Manager & Chief Engineer MSAB17DF-1 Hansol Hansol LCD Inc. #27-29, Hancheon-Ri, Ducksan-Myun, Jincheon-Gun, Choongbuk, Korea Mr. W. S. Lee Telephone No. : +82 +43 530 8554 Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 2 of 55 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) TEST CONDITION & EUT INFORMATION DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOTS OF EMISSIONS Conducted Emissions Diagram SAMPLE CALCULATIONS ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT RECOMMENDATION/CONCLUSION APPENDIX A – SAMPLE LABEL APPENDIX B - CIRCUIT DIAGRAM APPENDIX C - PHOTOGRAPHS OF TEST SET-UP APPENDIX D - EUT PHOTOGRAPHS APPENDIX E - USER’S MANUAL APPENDIX F - SCHEMATIC DIAGRAM 3 4 5 7 8 9 12 18 30 31 32 33 34 35 36 38 54 55 Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 3 of 55 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party* : Contact Person : Manufacturer : Factory : Hansol LCD Inc. Mr. W. S. Lee Tel No.: +82 +43 530 8554 Hansol LCD Inc. #27-29, Hancheon-ri, Ducksan-Myun, Jincheon-Gun, Choongbuk, Korea Tel No.: +82 +43 530 8554 1) Hansol Electronics (Thailand) Co., Ltd. 168 Moo 1 Tambon Banbung, Amphoe Banbung, Chonburi Province 20170 Thailand 2) Namsong Industrial Co., Ltd. 2-Da, 509 Sihwa Industrial Complex, Shiheung-Shi, Kyonggi-Do, 429-450(429-849), Korea
FCC ID: MSAB17DF-1
MODEL: B17DF
Brand Name: Hansol
EUT Type: 17” LCD Monitor
Electric Rating: 100-240V AC, 50/60Hz, 0.6A
Port/Connector: D-Sub, DVI, Audio In, Headphone or Speaker Output
Classification:
Rule Part(s):
Test Procedure(s):
Dates of Test:
Place of Tests:
Test Report No.: FCC Class B FCC Part 15 & Part 2 ANSI C63.4 (1992) August 05, 2003 to August 08,2003 Nemko Korea Co., Ltd. EMC Site NK2DE505 Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 4 of 55 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from Hansol LCD Inc. FCC ID : MSAB17DF-1, 17” LCD Monitor. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation LTD. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of
2.948 according to ANSI C63.4 on October 19, 1992. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 5 of 55 TEST CONDITIONS & EUT INFORMATION Operating During Test The EUT was operated by the software. The PC sent “H” pattern to monitor(EUT) and The monitor displayed “H” pattern on screen. It also sent “H” pattern to printer, then the printer printed it out. This software had above all functions conduct in order. And a audio signal from HDD was played continuously. The two video interface ports of EUT(monitor) were applied to the tests. Three kinds of combo board and a LCD panel of EUT (monitor) were applied to the emission tests. Support Equipment Monitor(EUT) Hansol, FCC ID: MSAB17DF-1 1.5m unshielded AC power cable 1.8m shielded D-sub cable 1.8m shielded DVI cable S/N: N/A PC Dell ,Model: Dimension 4550 1.8m unshielded AC power cable S/N: B56481S PS/2 Mouse Logitech, Model: 851028-10000 1.5m unshielded Din cable S/N: HCA11814927 USB Mouse Immanuel, Model: OMS3CE 1.5m shielded USB cable S/N: N/A Serial Mouse IO.Tec., Model: Laser Mouse 1.5m unshielded Dsub cable S/N: N/A Keyboard Silitek Yet Founda…

Text truncated - open the document above for the full version.

Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 36 of 55 APPENDIX C – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement.
Conducted Test Picture(Front)
Conducted Test Picture(Rear) Test Report No.: NK2DE505 FCC Certification Hansol LCD Inc. FCC ID:MSAB17DF-1 Page 37 of 55
Radiated Test Picture(Front)
Radiated Test Picture(Rear)
