MSQ-01000846PDA PHONE

nüvifone ™ 01000846 owner’s manual 01000846 © 2010 Garmin Ltd. or its subsidiaries and ASUSTeK Computer, Inc. Garmin International, Inc. 1200 East 151 st Street, Olathe, Kansas 66062, USA Tel. (913) 397.8200 or (800) 800.1020 Fax (913) 397.8282 Garmin (Europe) Ltd. Liberty House Hounsdown Business Park, Southampton, Hampshire, SO40 9LR UK Tel. +44 (0) 870.8501241 (outside the UK) 0808 2380000 (within the UK) Fax +44 (0) 870.8501251 Garmin Corporation No. 68, Jangshu 2 nd Road, Sijhih, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 ASUSTeK Computer Inc. 15 Li-Te Road, Peitou, Taipei, Taiwan 11259 Tel. 886/2.2894.3447 Fax 886/2.2890.7698 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin and ASUS. Garmin and ASUS hereby grant permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin and ASUS reserve the right to change or improve their products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Go to www.garminasus.com for current updates and supplemental information concerning the use and operation of this and other Garmin-Asus products. The combined Garmin-Asus logo is a trademark of Garmin Ltd. and ASUSTeK Computer, Inc. Garmin ® is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Ciao! ™ , nüMaps Guarantee ™ , and nüvifone ™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. Microsoft, Office, Outlook, PowerPoint, Windows, Windows Live, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Facebook is a registered trademark of Facebook, Inc. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin or ASUS is under license. Wi‑Fi is a registered mark of the Wi‑Fi Alliance. Gmail and Picasa are trademarks of Google Inc. Adobe is a registered trademark of Adobe Systems Incorporated Introduction nüvifone 01000846 Owner’s Manual i DRAFT Introduction The nüvifone ™ 01000846 is a multi- media mobile phone with integrated navigation and services. Getting Support Go to www.garminasus.com for in-country support information. Registering Your Product 1. Go to www.garminasus.com. 2. Follow the on-screen instructions to register your product. 3. Keep the original sales receipt, or a photocopy, in a safe place. Updating the Software 1. Go to www.garminasus. com/01000846. 2. Follow the on-screen instructions to download the latest software update and update your product. nüMaps Guarantee ™ To receive one free map update (if available), register your nüvifone at www.garminasus.com within 60 days of acquiring satellites while driving with your nüvi. You are not eligible for the free map update if you register by phone or wait longer than 60 days after the first time you acquire satellites while driving with your nüvifone. Additional Maps You can purchase additional maps for your nüvifone. To see a list of maps that are compatible with your nüvifone, go to www.garminasus.com/01000846. 0700 Table of Contents ii nüvifone 01000846 Owner’s Manual DRAFT Table of Contents Introduction ...................................i Getting Support ..............................i Registering Your Product ................i Updating the Software ....................i nüMaps Guarantee ™ .......................i Additional Maps ..............................i Getting Started .............................1 nüvifone Device Features ..............1 Setting Up the Device ....................2 Turning On Your nüvifone ..............4 Mounting Your nüvifone .................4 Completing the Setup ....................5 Getting to Know Your nüvifone ..6 Using the Home Screen ................6 Using the Keys ..............................7 Using the Touchscreen ..................7 Rotating the nüvifone.....................8 Viewing Notifications .....................9 Adjusting the Volume ...................10 Using the Widgets .......................10 Using Lists ..................................11 Using the On-screen Keyboard ...11 Getting Help.................................12 Locking Your nüvifone .................13 Status Bar Icons ..........................14 Using the Phone ........................16 Opening the Phone Application ...16 Dialing a Number .........................16 Calling a Contact .........................16 Calling a Found Location ............16 Using In-Call Options...................17 Ending a Call ...............................17 Receiving a Call...........................18 Activating Call Waiting .................18 Using Call Waiting .......................18 Setting Up Voice Mail ..................19 Calling Voice Mail ........................19 Using Call History ........................19 Placing a Conference Call ...........21 Forwarding Calls..........................21 Barring Calls ................................22 Setting the Default Ring Tone ......22 Table of Contents nüvifone 01000846 Owner’s Manual iii DRAFT Checking Your Phone Usage.......22 Turning On Airplane Mode ...........23 About the Headset .......................23 Managing Your Contacts ..........24 Adding a Contact .........................24 Calling a Contact ....…

Text truncated - open the document above for the full version.

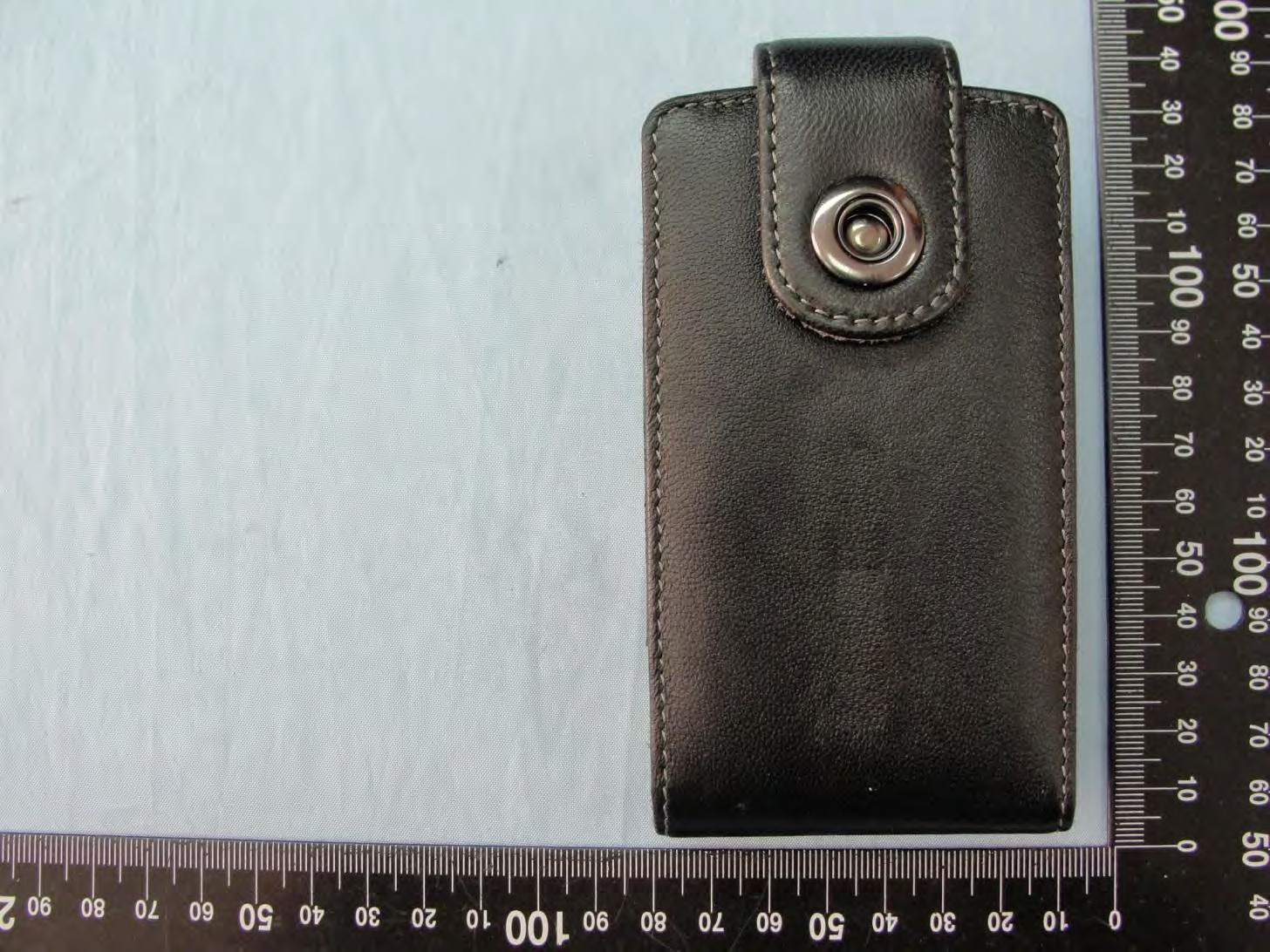

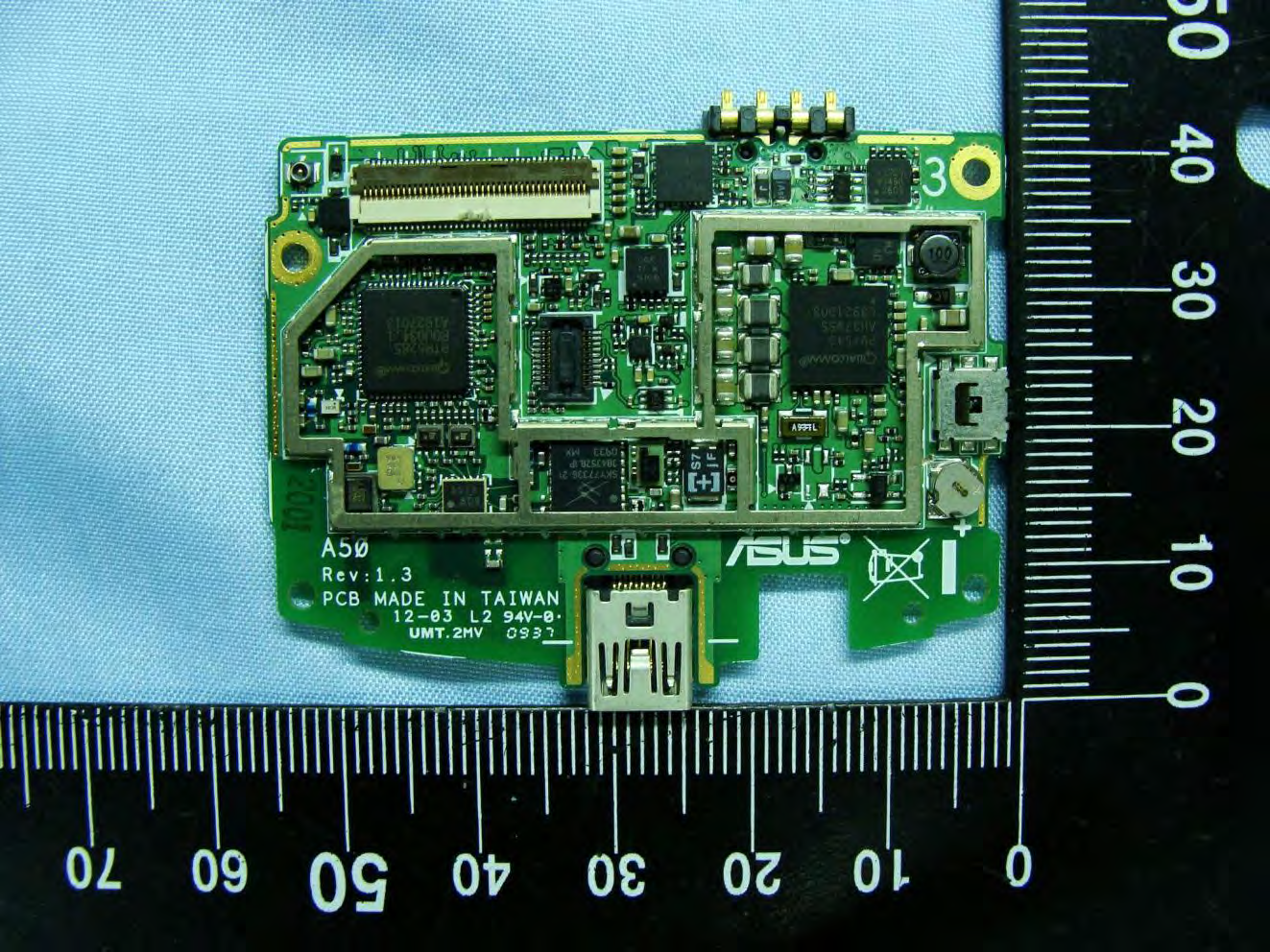

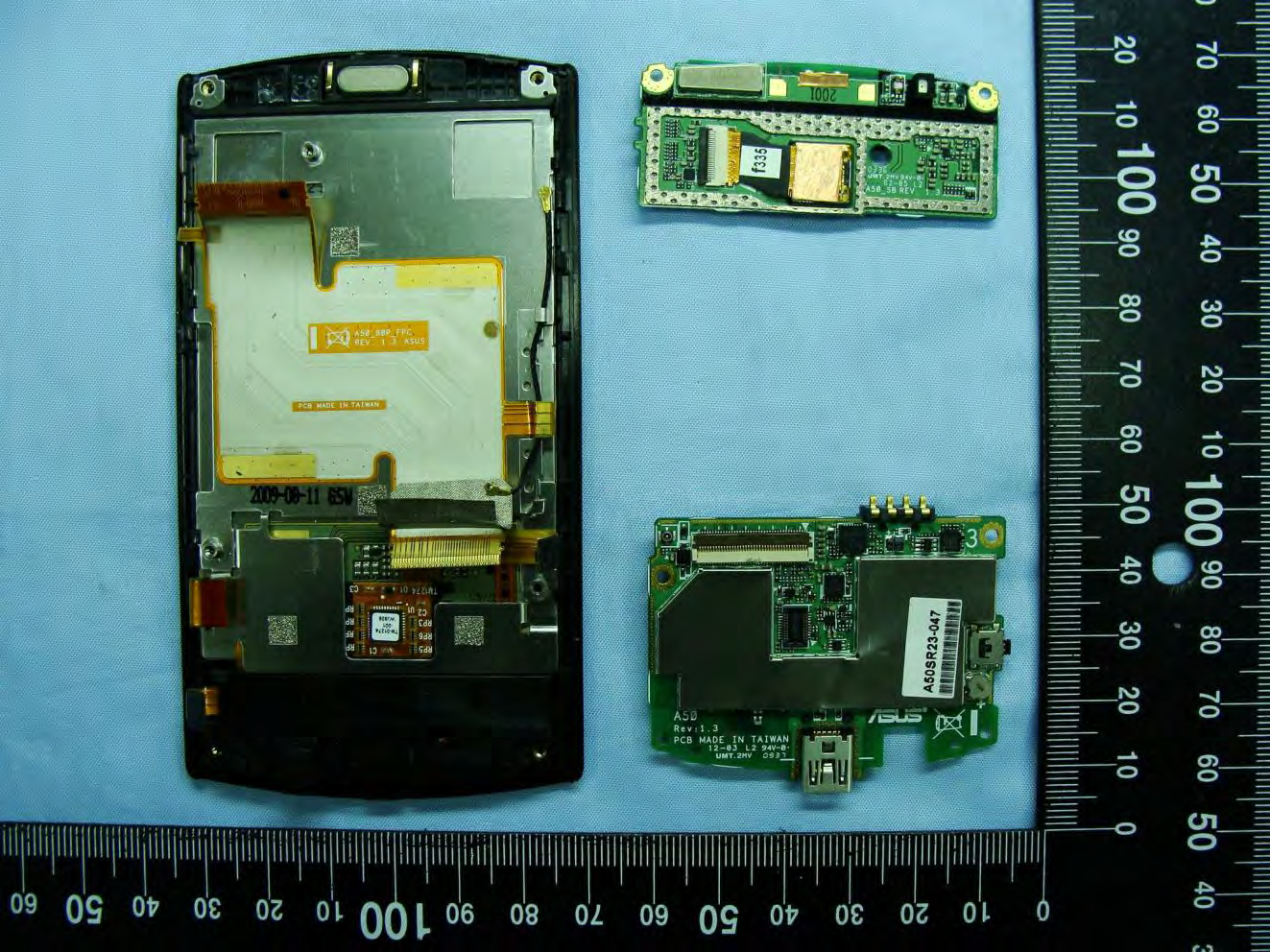

Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 1 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 1. External Photograph of EUT Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 2 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 3 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 4 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 5 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 6 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 720510 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 7 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 2. Photograph of Accessory Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 8 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 9 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 10 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 11 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 12 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 13 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 14 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 15 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 16 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 17 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 18 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 19 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 20 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 21 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 22 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 720510 Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 23 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-01000846 IC : 3568A-01000846 3. Internal Photograph of EUT Photographs of EUT Report No.: EP9O2703 Model Name: 01000846 SPORTON INTERNATIONAL INC. Page Number : 24 of 33 TEL : 886-3-327-3456 Issued Date : Dec. 22, 2009 FAX : 886-3-328-4978 Report Version : Rev. 0…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/6 System Check_835MHz_091106 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_091106 Medium parameters used: f = 835 MHz; σ = 0.922 mho/m; ε r = 41; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.55, 6.55, 6.55); Calibrated: 2008/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.924 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 33.3 V/m; Power Drift = 0.016 dB Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.848 mW/g; SAR(10 g) = 0.558 mW/g Maximum value of SAR (measured) = 0.922 mW/g 0 dB = 0.922mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/6 System Check_835MHz_091106 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_091106 Medium parameters used: f = 835 MHz; σ = 0.983 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.08, 6.08, 6.08); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.07 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.1 V/m; Power Drift = -0.039 dB Peak SAR (extrapolated) = 1.42 W/kg SAR(1 g) = 0.984 mW/g; SAR(10 g) = 0.649 mW/g Maximum value of SAR (measured) = 1.07 mW/g 0 dB = 1.07mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/11 System Check_835MHz_091111 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_091111 Medium parameters used: f = 835 MHz; σ = 0.983 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.6 °C DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.08, 6.08, 6.08); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.11 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.6 V/m; Power Drift = 3.42e-005 dB Peak SAR (extrapolated) = 1.48 W/kg SAR(1 g) = 1.02 mW/g; SAR(10 g) = 0.676 mW/g Maximum value of SAR (measured) = 1.11 mW/g 0 dB = 1.11mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/11 System Check_1800MHz_091111 DUT: Dipole 1800 MHz Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: HSL_1800_091111 Medium parameters used: f = 1800 MHz; σ = 1.46 mho/m; ε r = 39.5; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.34, 5.34, 5.34); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.50 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.5 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 6.29 W/kg SAR(1 g) = 3.84 mW/g; SAR(10 g) = 2.09 mW/g Maximum value of SAR (measured) = 4.33 mW/g 0 dB = 4.33mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/9 System Check_1800MHz_0901109 DUT: Dipole 1800 MHz Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: MSL_1800_091109 Medium parameters used: f = 1800 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.82, 4.82, 4.82); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.32 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.4 V/m; Power Drift = 0.022 dB Peak SAR (extrapolated) = 5.48 W/kg SAR(1 g) = 3.72 mW/g; SAR(10 g) = 2.05 mW/g Maximum value of SAR (measured) = 4.25 mW/g 0 dB = 4.25mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/14 System Check_1800MHz_091114 DUT: Dipole 1800 MHz Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: MSL_1800_09114 Medium parameters used: f = 1800 MHz; σ = 1.56 mho/m; ε r = 53.5; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.82, 4.82, 4.82); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.27 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.4 V/m; Power Drift = 0.022 dB Peak SAR (extrapol…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/6 #10 GSM850_Right Cheek_Ch251 DUT: 9O2703 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_091106 Medium parameters used: f = 849 MHz; σ = 0.934 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.3, 6.3, 6.3); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch251/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.533 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.22 V/m; Power Drift = -0.089 dB Peak SAR (extrapolated) = 0.608 W/kg SAR(1 g) = 0.483 mW/g; SAR(10 g) = 0.351 mW/g Maximum value of SAR (measured) = 0.514 mW/ g 0 dB = 0.514mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/6 #10 GSM850_Right Cheek_Ch251_2D DUT: 9O2703 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_091106 Medium parameters used: f = 849 MHz; σ = 0.934 mho/m; ε r = 40.9; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.3, 6.3, 6.3); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch251/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.533 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.22 V/m; Power Drift = -0.089 dB Peak SAR (extrapolated) = 0.608 W/kg SAR(1 g) = 0.483 mW/g; SAR(10 g) = 0.351 mW/g Maximum value of SAR (measured) = 0.514 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/6 #06 GSM850_Right Tilted_Ch189 DUT: 9O2703 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_091106 Medium parameters used : f = 836.4 MHz; σ = 0.923 mho/m; ε r = 41; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.3, 6.3, 6.3); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.196 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.68 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.222 W/kg SAR(1 g) = 0.184 mW/g; SAR(10 g) = 0.141 mW/g Maximum value of SAR (measured) = 0.193 mW/ g 0 dB = 0.193mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/6 #07 GSM850_Left Cheek_Ch189 DUT: 9O2703 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_091106 Medium parameters used : f = 836.4 MHz; σ = 0.923 mho/m; ε r = 41; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.3, 6.3, 6.3); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.329 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.59 V/m; Power Drift = -0.175 dB Peak SAR (extrapolated) = 0.381 W/kg SAR(1 g) = 0.308 mW/g; SAR(10 g) = 0.226 mW/g Maximum value of SAR (measured) = 0.331 mW/ g 0 dB = 0.331mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/6 #08 GSM850_Left Tilted_Ch189 DUT: 9O2703 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_091106 Medium parameters used : f = 836.4 MHz; σ = 0.923 mho/m; ε r = 41; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.3, 6.3, 6.3); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.178 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.78 V/m; Power Drift = -0.115 dB Peak SAR (extrapolated) = 0.203 W/kg SAR(1 g) = 0.168 mW/g; SAR(10 g) = 0.127 mW/g Maximum value of SAR (measured) = 0.177 mW/ g 0 dB = 0.177mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2009/11/7 #15 GSM1900_Right Cheek_Ch512 DUT: 9O2703 Communication System: PCS; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_091107 Medium parameters used : f = 1850.2 MHz; σ = 1.4 mho/m; ε r = 39.7; ρ = 1000 kg/m 3 DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.12, 5.12, 5.12); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch512/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.504 mW/g Ch512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.97 V/m; Power Drift = -0.101 dB Peak SAR (extrapolated) = 0.683 W/kg SAR(1 g) = 0.466 mW/g; SAR(10 g) = 0.286 mW/g Maximum value of SAR (measured) = 0.514 mW/g 0 dB = 0.514mW/g Test Laboratory: Sporton…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL INC. Page Number : F1 of F4 TEL : 886-3-327-3456 Report Issued Date : Dec. 29, 2009 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : MSQ-01000846 FCC SAR Test Report Report No. : FA9O2703A Appendix F. FCC 3G SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the TS 34.121. The EUT's WCDMA and HSPA function is Release 6 version supporting HSDPA Category 8. A detailed analysis of the output power for all WCDMA and HSDPA modes is provided in the tables below. According to the FCC 3G procedures, handsets with HSDPA should be tested according to Release 6 HSPA test procedures, and the EUT does not support VOIP function over the HSPA function. Device was tested according to procedure KDB941225 - section Release 6 HSPA Data Devices as documented/evaluated in the following table. WCDMA SAR Test mode - Conducted Power Mode Setup AWS Band (1700) 1312 1413 1513 1712.4 (MHz) 1732.6 (MHz) 1752.6 (MHz) WCDMA RMC 12.2Kbps 23.20 23.47 23.04 HSDPA Subtest 1 23.04 23.30 23.05 Subtest 2 23.29 23.66 23.25 Subtest 3 22.34 22.61 22.19 Subtest 4 22.28 22.54 22.17 SPORTON INTERNATIONAL INC. Page Number : F2 of F4 TEL : 886-3-327-3456 Report Issued Date : Dec. 29, 2009 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : MSQ-01000846 FCC SAR Test Report Report No. : FA9O2703A WCDMA Setup Configuration: a. The EUT was connected to Base Station referred to the drawing of Setup Configuration. b. The RF path losses were compensated into the measurements. c. A call was established between EUT and Base Station with following setting i. Data rates: Varied from RMC 12.2Kbps ii. RMC Test Loop = Loop Mode 1 iii. Power Ctrl Mode = All Up bits d. The transmitted maximum output power was recorded. Setup Configuration SPORTON INTERNATIONAL INC. Page Number : F3 of F4 TEL : 886-3-327-3456 Report Issued Date : Dec. 29, 2009 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : MSQ-01000846 FCC SAR Test Report Report No. : FA9O2703A HSDPA Setup Configuration: a. The EUT was connected to Base Station referred to the drawing of Setup Configuration. b. The RF path losses were compensated into the measurements. c. A call was established between EUT and Base Station with following setting: i. Set Gain Factors (β c and β d ) and parameters were set according to each ii. Specific sub-test in the following table, C10.1.4, quoted from the TS 34.121 iii. Set RMC12.2Kbps + HSDPA mode. iv. Set Cell Power = -86 dBm v. Set HS-DSCH Configuration Type to FRC (H-set 1, QPSK) vi. Select HSDPA Uplink Parameters vii. Set DeltaACK, DeltaNACK and DeltaCQI = 8 viii. Set Ack-Nack Repetition Factor to 3 ix. Set CQI Feedback Cycle (k) to 4 ms x. Set CQI Repetition Factor to 2 xi. Power Ctrl Mode = All Up bits d. The transmitted maximum output power was recorded. Setup Configuration SPORTON INTERNATIONAL INC. Page Number : F4 of F4 TEL : 886-3-327-3456 Report Issued Date : Dec. 29, 2009 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : MSQ-01000846 FCC…

Text truncated - open the document above for the full version.
