MSQ-0121180101PDA PHONE

E600 User Manual First Edition April 2010 / E5851 E5851 E600 Manual.indd 16/1/10 1:4:02 PM 2 E600 User Manual Getting to know your device Back key Press to go back to the previous screen or previous application Start key Press to go back to the home screen Search key Press to start a Bing search Using the keys Headphone connector Power key Volume keys Camera key Search keyBack key Start key E5851 E600 Manual.indd 26/1/10 1:4:0 PM E600 User Manual  Getting started WARNING: This device contains a lithium-ion battery. To prevent a serious injury or damage to your device, remove the device from your vehicle when exiting or keep it out of direct sunlight. Installing the SIM card and the battery To install the SIM card and the battery: 1. To remove the battery cover, lift the battery cover from the notch located at the bottom of the device. 2. Install the SIM card into the SIM card holder. . Install the battery in the compartment with its label facing down and the metal contacts properly aligned to the metal conductor on your device. 4. To replace the battery cover, properly align the battery cover on the back of your device and press down until it snaps in place. E5851 E600 Manual.indd 6/1/10 1:4:0 PM 4 E600 User Manual Charging the battery Charge the battery for at least four hours before using the phone for the first time. If you completely discharge the battery, recharge it for at least 20 minutes before turning on your phone. To charge the battery: 1. Connect the AC adapter plug into the mini- USB connector at the bottom of the device. 2. Plug the AC adapter into a power outlet. NOTE: You can also connect a USB cable to your computer’s USB port or connect a car charger to your vehicle’s power point to charge the battery. E5851 E600 Manual.indd 46/1/10 1:4:0 PM E600 User Manual 5 Using your device Turning on your device Press and hold the Power key to turn on your device. The Home screen 2 1 1 Application icon Tap this icon to view the application list. 2 Quick Launch bar Tap an item to quickly launch it. E5851 E600 Manual.indd 56/1/10 1:4:04 PM 6 E600 User Manual Using the phone features Making a call To make a call: 1. From the Quick Launch bar, tap Phone. 2. Tap the keypad icon to open the keypad. 2. Dial the number. As you dial the number, a list of possible matches is displayed for similar numbers or contacts you have previously called. . Tap call . Ending a call To end a call, tap call . Adding a contact To add a contact: 1. From the Quick Launch bar, tap People. 2. Tap to add a new contact. . Enter the information. Tap Done when finished. 4. Tap to save the contact. E5851 E600 Manual.indd 66/1/10 1:4:04 PM E600 User Manual  Calling a contact To call a contact: 1. From the Quick Launch bar, tap People. 2. Tap the contact you want to call. . Tap Call mobile. 4. Tap the number to place the call. Viewing your call history To view your call history: 1. From the Quick Launch bar, tap Phone. 2. Scroll the list to view your call history. Sending a message NOTE: Your regular messaging fees apply when sending and receiving messages. To send a message: 1. From the Home screen, tap Messaging. 2. Tap to create a new message. . Enter the text message. 4. Tap Insert to send multimedia items with the message. 5. Tap to send the message. E5851 E600 Manual.indd 6/1/10 1:4:04 PM 8 E600 User Manual Reading/ Replying/Forwarding Messages To read, reply, and forward messages: 1. From the Home screen, tap Text or E-mail. Unread messages are displayed in bold. 2. Tap a message to read it. . Tap to write your message. 4. Tap to send the message. Setting up an E-mail account Your phone can automatically configure account information for some e-mail accounts. If additional information is required, contact your e-mail account provider. To set up an E-mail account 1. From the Home screen, tap E-mail setup. 2. Enter your e-mail address and password. . Tap Next to obtain your E-mail settings from the Internet. 4. Follow the onscreen instructions to set up your E-mail account on your device. E5851 E600 Manual.indd 86/1/10 1:4:04 PM E600 User Manual  Synchronizing with an Exchange E-mail account To synchronize with your corporate Exchange E-mail server, enter your server and log in information in E-mail setup. You may need to obtain the server information from your network administrator. Sending an E-mail message To send an E-mail message: 1. From the Home screen, tap E-mail. 2. Tap to create new message. . Tap Add Recipient to select from your Contacts list. Separate multiple E-mail addresses with a semicolon (;). 4. Enter your message in the message field. 5. Tap to send the message. Creating a new appointment 1. From the Home screen, tap Calendar. 2. Tap to create a new appointment. . Enter the information about the appointment. 4. To make this a recurring appointment, tap . E5851 E600 Manual.indd 6/1/10 1:4:05 PM 10 E600 User Manual Downloading applications Use the Windows ® Marketplace to download and install applications. To download applications: 1. Tap . 2. Tap Marketplace. . Follow the onscreen instructions. Using Wi-Fi To use Wi-Fi: 1. Tap to go to the application list and select Wi-Fi. 2. Tap and drag to the right of the slider bar to turn on the Wi-Fi function.on the Wi-Fi function.Wi-Fi function. . Wi-Fi automatically searches for available networks. 4. Tap the available network for connection. 5. Tap and drag to the left of the slider bar to turn Wi-Fi off. E5851 E600 Manual.indd 106/1/10 1:4:05 PM E600 User Manual 11 Using Bluetooth To use Bluetooth: 1. Tap to go to the application list and select Bluetooth. 2. Tap and drag to the right of the slider bar to turn on the Bluetooth function. . Bluetooth automatically searches for available devices for pairing. 4. Tap the the device that you want to pair with your device. 5. Enter the password on your device and on the other device for pairing. 6. Tap and drag to the left of the slider bar to turn Bluetooth off. Browsing the…

Text truncated - open the document above for the full version.

Please refer to page 2 of the tune-up procedure. The application expects that the tolerance is ±1 dB of MPR target value. All the measured MPR values are within this range.

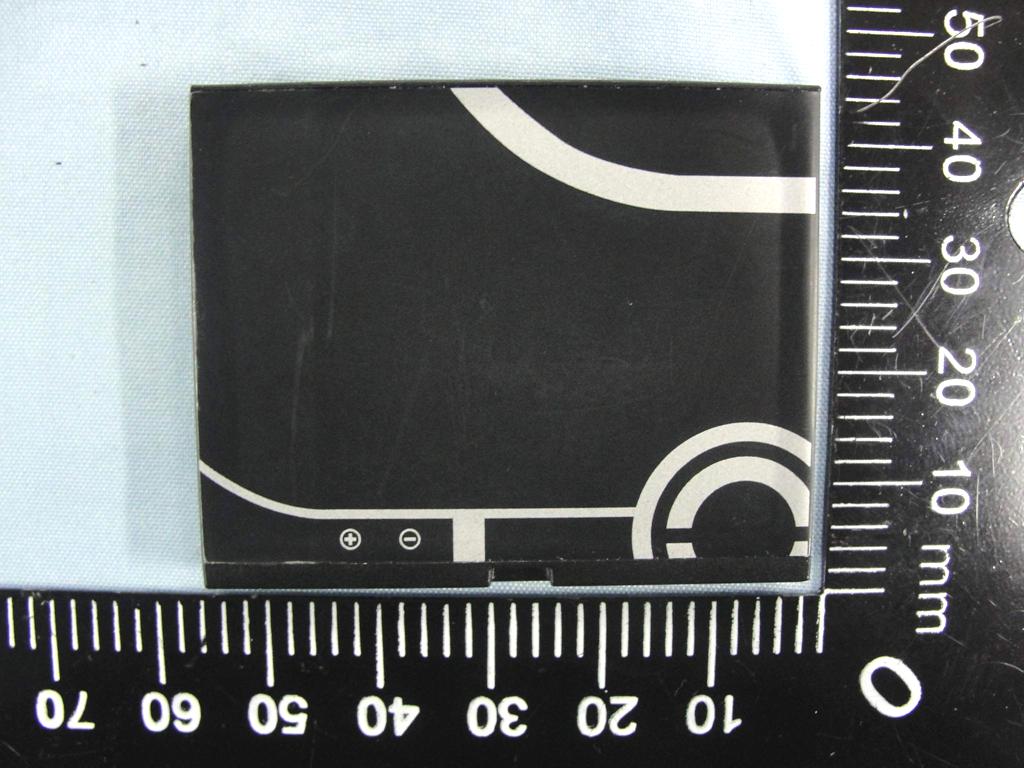

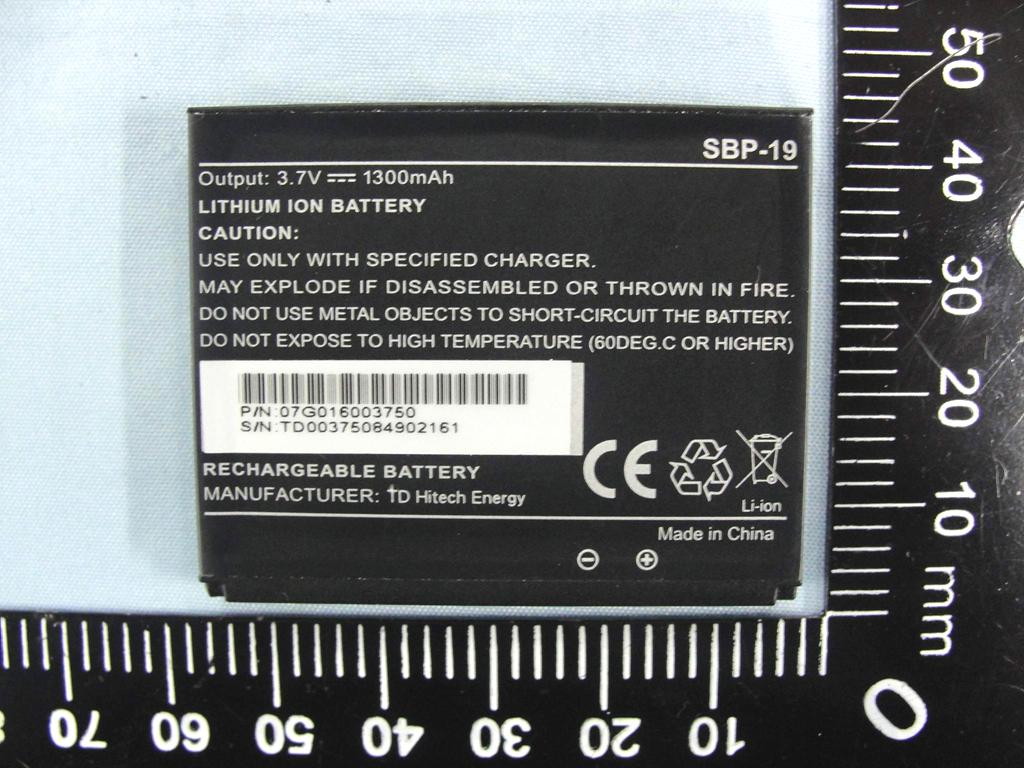

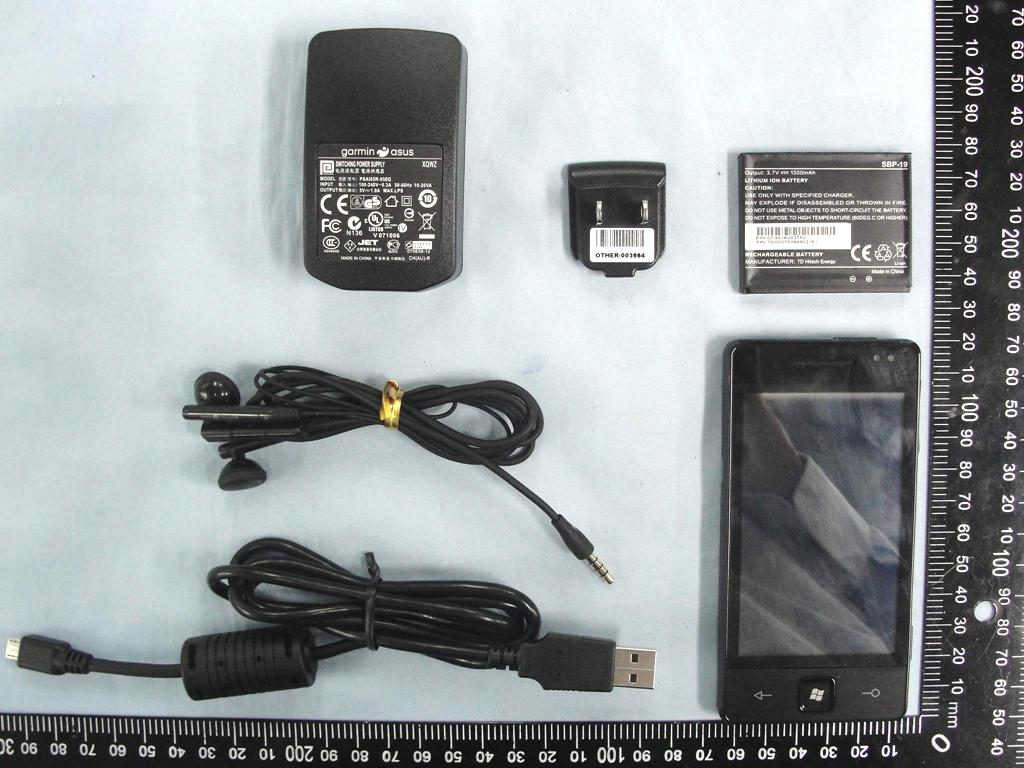

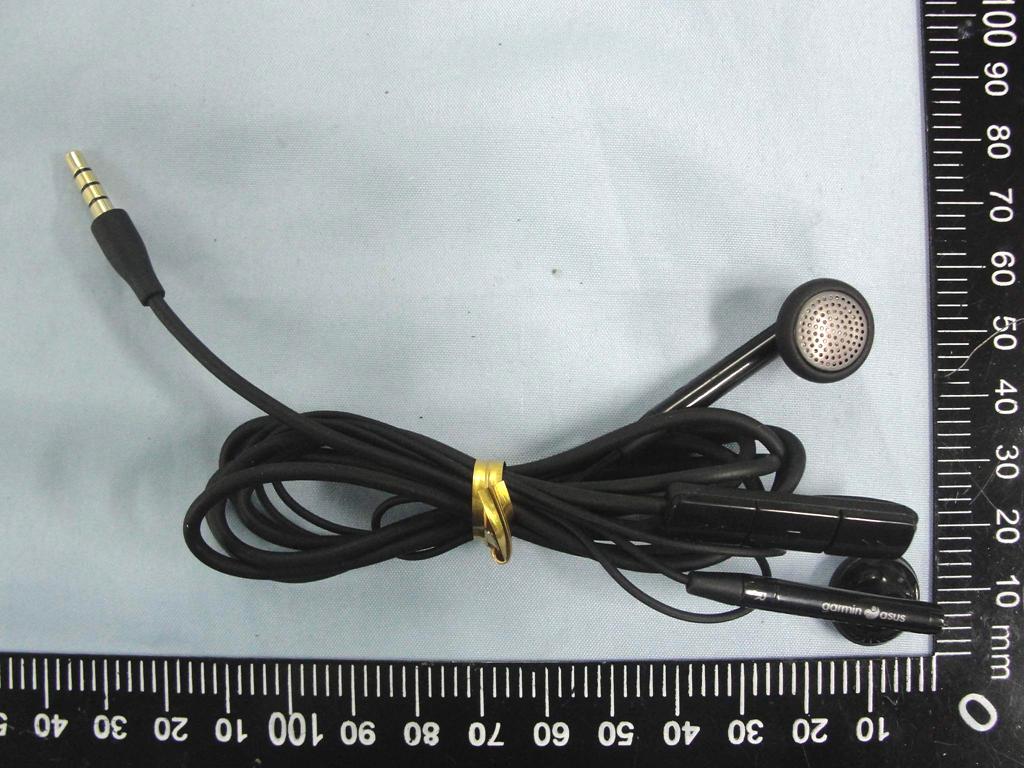

Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 1 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 1. External Photograph of EUT Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 2 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 3 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 4 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 5 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 6 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 720510 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 7 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 List of Accessory: Specification of Accessory AC Adapter Brand Name Philhong (Manuf.) Model Name PSAI05R-050Q Power Rating I/P:100-240Vac, 50-60Hz, 0.3A; O/P: 5V, 1.0A Battery Brand Name TD HiTech Energy Inc. (Manuf.) Model Name SBP-19 Power Rating 3.7Vdc, 1300mAh Type Li-ion Earphone Brand Name Kingstate electronics Model Name KJAH4028AEOBB-1 Signal Line Type 1.5 meter shielded cable without ferrite core USB Cable Brand Name JH (Manuf.) Model Name 14-PHONE-1 Signal Line Type 0.9 meter shielded cable with ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 8 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 9 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 720510 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 10 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 11 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 12 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 13 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 14 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 15 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 16 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101

Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 17 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 3. Internal Photograph of EUT Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 18 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 19 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 20 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 21 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 22 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 23 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 24 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 25 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 26 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 27 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 28 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 29 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 30 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 31 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 32 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 720510 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 33 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 34 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 35 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Bluetooth and WLAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 36 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 GPS Antenna <Rx Only> Photographs of EUT Report No.: EP041702 Brand Name: ASUS / Model Name: E600 SPORTON INTERNATIONAL INC. Page Number : 37 of 37 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 Bluetooth and WLAN Antenna <Tx / Rx> WWAN Antenna <Tx / Rx> 8.2 cm GPS Antenna <RX only>

SPORTON INTERNATIONAL INC. Page Number : 1 of 35 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 FCC SAR Test Report Report No. : FA041702A FCC SAR Test Report APPLICANT : ASUSTek COMPUTER INC. EQUIPMENT : PDA Phone BRAND NAME : ASUS MODEL NAME : E600 FCC ID : MSQ-0121180101 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Apr. 17, 2010 and completely tested on May 12, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 35 TEL : 886-3-327-3456 Report Issued Date : May 28, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-0121180101 FCC SAR Test Report Report No. : FA041702A Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 7 3.3 Applied Standards ............................................................................................................................................ 8 3.4 Device Category and SAR Limits ..................................................................................................................... 8 3.5 Test Conditions ................................................................................................................................................. 8 3.5.1 Ambient Condition .................................................................................................................................. 8 3.5.2 Test Configuration ................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ...............................................................................................................................10 4.1 Introduction ......................................................................................................................................................10 4.2 SAR Definition .................................................................................................................................................10 5. SAR Measurement System .......................................................................................................................................11 5.1 E-Field Probe...................................................................................................................................................12 5.1.1 E-Field Probe Specification ...................................................................................................................12 5.1.2 E-Field Probe Calibration .......................................................................................................................13 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................13 5.3 Robot ...............................................................................................................................................................13 5.4 Measurement Server .......................................................................................................................................14 5.5 Phantom ..........................................................................................................................................................15 5.6 Device Holder ..................................................................................................................................................16 5.7 Data Storage and Evaluation ...........................................................................................................................18 5.7.1 Data Storage .......................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/5/12 System Check_835MHz_100512 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_100512 Medium parameters used: f = 835 MHz; σ = 0.912 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.3, 6.3, 6.3); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.983 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34 V/m; Power Drift = 0.000754 dB Peak SAR (extrapolated) = 1.36 W/kg SAR(1 g) = 0.916 mW/g; SAR(10 g) = 0.599 mW/g Maximum value of SAR (measured) = 0.995 mW/g 0 dB = 0.995mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/5/12 System Check_1900MHz_100512 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_100512 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 38.3; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.11, 5.11, 5.11); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Front; Type: QD 000 P40 C; Serial: TP-1303 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.23 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58 V/m; Power Drift = 0.033 dB Peak SAR (extrapolated) = 6.4 W/kg SAR(1 g) = 3.72 mW/g; SAR(10 g) = 1.95 mW/g Maximum value of SAR (measured) = 4.2 mW/g 0 dB = 4.2mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/5/12 #13 GSM850_Right Cheek_Ch189 DUT: 041702 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100512 Medium parameters used : f = 836.4 MHz; σ = 0.914 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.3, 6.3, 6.3); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch189/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.585 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.41 V/m; Power Drift = -0.094 dB Peak SAR (extrapolated) = 0.677 W/kg SAR(1 g) = 0.546 mW/g; SAR(10 g) = 0.408 mW/g Maximum value of SAR (measured) = 0.569 mW/ g 0 dB = 0.569mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/5/12 #14 GSM850_Right Tilted_Ch189 DUT: 041702 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100512 Medium parameters used : f = 836.4 MHz; σ = 0.914 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.3, 6.3, 6.3); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch189/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.371 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.4 V/m; Power Drift = 0.031 dB Peak SAR (extrapolated) = 0.429 W/kg SAR(1 g) = 0.350 mW/g; SAR(10 g) = 0.263 mW/g Maximum value of SAR (measured) = 0.368 mW/ g 0 dB = 0.368mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/5/12 #18 GSM850_Left Cheek_Ch251 DUT: 041702 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100512 Medium parameters used: f = 849 MHz; σ = 0.925 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.3, 6.3, 6.3); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch251/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.601 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.09 V/m; Power Drift = 0.046 dB Peak SAR (extrapolated) = 0.730 W/kg SAR(1 g) = 0.579 mW/g; SAR(10 g) = 0.424 mW/g Maximum value of SAR (measured) = 0.617 mW/ g 0 dB = 0.617mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/5/12 #18 GSM850_Left Cheek_Ch251_2D DUT: 041702 Communication System: GSM850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100512 Medium parameters used: f = 849 MHz; σ = 0.925 mho/m; ε r = 40.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.3, 6.3, 6.3); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch251/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.601 mW/g Ch251/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.09 V/m; Power Drift = 0.046 dB Peak SAR (extrapolated) = 0.730 W/kg SAR(1 g) = 0.579 mW/g; SAR(10 g) = 0.424 mW/g Maximum value of SAR (measured) = 0.617 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/5/12 #16 GSM850_Left Tilted_Ch189 DUT: 041702 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: HSL_850_100512 Medium parameters used : f = 836.4 MHz; σ = 0.914 mho/m; ε r = 40.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(6.3, 6.3, 6.3); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch189/Area Scan (41x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.334 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.9 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 0.389 W/kg SAR(1 g) = 0.316 mW/g; SAR(10 g) = 0.238 mW/g Maximum value of SAR (measured) = 0.332 mW/ g 0 dB = 0.332mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/5/12 #01 GSM1900_Right Cheek_Ch661 DUT: 041702 Communication System: PCS; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium: HSL_1900_100512 Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 38.4; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.11, 5.11, 5.11); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch661/Area Scan (41x81x1): Measurement grid: dx=20mm, dy…
