ASUSTeK COMPUTER INC. FCC ID.: MSQ-ASGURUS1 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. . Tel : 886-2-28943447 Federal Communications Commission Mar. 06 , 2006 Authorization and Evaluation Division ATTESTATION FCC ID: MSQ-ASGURUS1 Product: Wireless VoIP Phone Model: ASGuru S1 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. Sincerely, ----------------------------------------------- Sean Chou / Deputy Director . ASUSTeK COMPUTER INC.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 15, 2006 RE: ASUSTeK Computer FCC ID: MSQ-ASGURUS1 I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) The radiated band edge plots for this high power WiFi device are of insufficient detail to demonstrate compliance with the band edge – especially on Channel 11. Please provide plots on a 30MHz span centered directly on 2483.5MHz. Kindly show the worst case of all data rates for both 802.11b (DSS) and 802.11g (OFDM) modes. Please do not forget to also show the peak and average radiated values. FYI: My expectation is that with a requested power of over +20dBm, the radiated field strength should be a value in excess of +110dBuV when measured with a peak (1MHz RBW / 1MHz VBW) instrumentation mode. 2.) The SAR report incorrectly identifies one of the applicable standards as RSS-133. Please revise. 3.) Why was body SAR testing was not performed on this device? It appears that this device is small enough to fit in the pocket of the end user – should not logically body SAR testing be accomplished? 4.) FYI: Please remember that the additional of body SAR data will need to be included in the final revisions to the Manual. 5.) Was radiated emissions checked with the earphone cord stretched upwards from the EUT? This would be likely when the device is carried by the end user and potentially would change the radiated emissions significantly. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

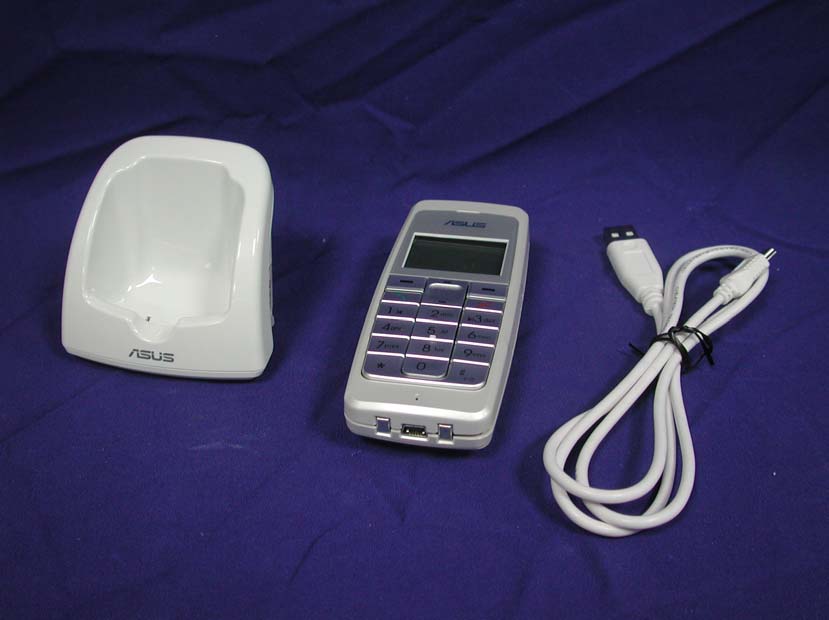

Report No.: 062L109-RF-US-P05V01 Page : 1 of 7 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

Pin 1 Pin 1

Report No.: 062L109-RF-US-P05V01 Page : 2 of 7 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 062L109-RF-US-P05V01 Page : 3 of 7 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 062L109-RF-US-P05V01 Page : 4 of 7 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 062L109-RF-US-P05V01 Page : 5 of 7 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 062L109-RF-US-P05V01 Page : 6 of 7 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 062L109-RF-US-P05V01 Page : 7 of 7 Version:1.0 (13) EUT Photo (14) EUT Photo

Report No. 061L109-RF-US-P05V01 Page: 6 of 64 Version:1.0 1.2. Operational Description The EUT is a WiFi Skype Phone with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps. The device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b) or eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps. The device of RF carrier is OFDM (IEEE 802.11g). The device adapts direct sequence spread spectrum modulation. The antenna was Connector provides diversity function to improve the receiving function. This WiFi Skype Phone , compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the WiFi Skype Phone Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network.

Report No： 062L109-HP-US-P09V01 Page: 1 of 25 Version:1.0 SAR Test Report Product Name：Wireless VoIP Phone Model No. ：ASGuru S1 Applicant ：ASUSTeK COMPUTER INC. Address ：4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt：2006/02/24 Issued Date ：2006/03/06 Report No. ：062L109-HP-US-P09V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. SAR test report is for production unit. Report No： 062L109-HP-US-P09V01 Page: 2 of 25 Version:1.0 Test Report Certification Issued Date: 2006/03/06 Report No. :062L109-HP-US-P09V01 Product Name ： Wireless VoIP Phone Applicant ： ASUSTeK COMPUTER INC. Address ： 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： ASGuru S1 Applicable Standard ： FCC Oet65 Supplement C June 2001 IEEE Std. 1528-2003 47CFR § 2.1093 RSS-102 Issue 2 Test Result ： Max. SAR Measurement (1g) Head 802.11b: 0.815 W/kg Body 802.11b: 0.352 W/kg Head 802.11g: 0.466 W/kg Body 802.11g: 0.225 W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： ( Rita Huang ) Tested By ： (Shine Hsu) Approved By ： (Gene Chang) Report No： 062L109-HP-US-P09V01 Page: 3 of 25 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information........................................................................................... 4 1.1 EUT Description ............................................................................................................4 1.2 Test Environment ...........................................................................................................4 2. SAR Measurement System.............................................................................. 5 2.1 ALSAS-10U System Description .................................................................................. 5 2.1.1 Applications ................................................................................................................ 5 2.1.2 Area Scans................................................................................................................... 5 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 6 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 6 2.2 Isotropic E-Field Probe .................................................................................................. 6 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 8 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 8 2.4 Daq-Paq (Analog to Digital Electronics) ....................................................................... 9 2.5 Axis Articulated Robot .................................................................................................. 9 2.6 ALSAS Universal Workstation.................................................................................... 10 2.7 Universal Device Positioner......................................................................................... 10 2.8 Phantom Types............................................................................................................. 10 2.8.1 APREL SAM Phantoms ........................................................................................... 11 2.8.2 APREL Laboratories Universal Phantom ................................................................. 11 3. Tissue Simulating Liquid............................................................................... 12 3.1 The composition of the tissue simulating liquid .......................................................... 12 3.2 Tissue Calibration Result ............................................................................................. 12 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 13 4. SAR Measurement Procedure...................................................................... 14 4.1 SAR System Validation................................................................................................ 14 4.1.1 Validation Dipoles..................................................................................................... 14 4.1.2 Validation Result ....................................................................................................... 14 4.2 Arrangement Assessment Setup ................................................................................... 14 4.2.1 Test Positions of Device Relative to Head................................................................ 14 4.2.1.1 Definition of the “Cheek” Position ........................................................................ 15 4.2.1.2 Definition of the “Tilted” Position......................................................................... 16 4.2.2 Test Positions for body-worn.................................................................................... 17 4.3 SAR Measurement Procedure ...................................................................................... 17 5. SAR Exposure Limits...................................................................................... 19 6. Test Equipment List......................................................................................... 19 7. Measurement Uncertainty.............................................................................. 21 8. Test Results........................................................................................................ 22 8.1 SAR Test Results Summary ......................................................................................... 22 Appendix A.…

Text truncated - open the document above for the full version.

Report No. 062L109-RF-US-P05V01 Page: 1 of 64 Version:1.0 Test Report Product Name : Wireless VoIP Phone Model No. : ASGuru S1 FCC ID : MSQ-ASGURUS1 Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt : Feb. 24, 2006 Issued Date : Mar. 06, 2006 Report No. : 062L109-RF-US-P05V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 062L109-RF-US-P05V01 Page: 2 of 64 Version:1.0 Test Report Certification Issued Date: Mar. 06, 2006 Report No.: 062L109-RF-US-P05V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Wireless VoIP Phone Applicant : ASUSTeK COMPUTER INC. Address : 4FL., No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer : ASUSTeK COMPUTER INC. Model No. : ASGuru S1 Rated Voltage : AC 120V/60Hz Working Voltage : DC 5V Trade Name : ASUS Applicable Standard : FCC CFR Title 47 Part 15 Subpart C: 2005 CISPR 22 Edition 4.1: 2004 ANSI C63.4: 2003 Test Result : Complied Documented By : ( Rita Huang ) Tested By : ( Tom Hsieh ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 0914 Report No. 062L109-RF-US-P05V01 Page: 3 of 64 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of Test System ........................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................20 3.1. Test Equipment............................................................................................................................20 3.2. Test Setup ....................................................................................................................................20 3.3. Limits ..........................................................................................................................................20 3.4. Uncertainty ..................................................................................................................................20 3.5. Test Result of Peak Power Output...............................................................................................21 4. Radiated Emission .....................................................................................................................23 4.1. Test Equipment............................................................................................................................23 4.2. Test Setup ....................................................................................................................................23 4.3. Limits ..........................................................................................................................................24 4.4. Test Procedure .............................................................................................................................25 4.5. Uncertainty ..................................................................................................................................25 4.6. Test Result of Radiated Emission................................................................................................26 5. Band Edge ..................................................................................................................................38 5.1. Test Equipment............................................................................................................................38 5.2. Test Setup ....................................................................................................................................38 5.3. Li…

Text truncated - open the document above for the full version.

Report No.: 062L109-RF-US-P05V01 Page : 1 of 4 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test - (Mode 1) Back View of Conducted Test - (Mode 1) Report No.: 062L109-RF-US-P05V01 Page : 2 of 4 Version:1.0 Front View of Conducted Test - (Mode 2) Back View of Conducted Test - (Mode 2) Report No.: 062L109-RF-US-P05V01 Page : 3 of 4 Version:1.0 Front View of Radiated Test - (Mode 1) Back View of Radiated Test - (Mode 1) Report No.: 062L109-RF-US-P05V01 Page : 4 of 4 Version:1.0 Front View of Radiated Test (Horn) - (Mode 1) Back View of Radiated Test (Horn) - (Mode 1)
