MSQ-EAN66Dual-band Wireless-N Ethernet Adapter

Ethernet Adapter Dual-band Wireless-N ® Quick Start Guide EA-N66 Ethernet Adapter Dual-band Wireless-N 雙頻無線乙太網卡 E7020 / First Edition / Nov. 2011 English ..............................................................4 4 A quick look 1) Ethernet (RJ45) port 2) Power (DC-In) port 3) LED (Signal strength) indicator OFF: No power or physical connection Solid blue: Excellent connection Blinking fast: Active connection Blinking slow Blinking slow with low light: : Poor connection site survey 1 2 3 English 4 5 6 7 4) Air vent 5) Mounting hole 6) WPS button 7) Reset button NOTE: To get a better signal, move EA-N66 closer to the other devices.  Mounting options Out of the box, the ASUS EA-N66 is designed to sit on a raised flat surface like a file cabinet or book shelf. The unit may also be converted for mounting to a wall or ceiling. 1. Look on the underside for the mounting hook. 2. Mark an upper hole in a flat surface. 3. Tighten one screw until only 1/4’’ is showing. 4. Latch the hook of your EA-N66 onto the screw. Package contents EA-N66 Power adapter Network cable Quick Start Guide NOTE: If any of the items is damaged or missing, contact your retailer. NOTES: • Re-adjust the screw if you cannot latch EA-N66 onto the screw or if it is too loose. • The screw is not included in the EA-N66 package contents. 6 Connecting to a wireless network A. C onnecting using WPS The WPS (Wi-Fi Protected Setup) button allows you to connect to a secured and protected network with a simple click. a. Insert your EA-N66’s power adapter to the DC-In port and plug it to a power outlet. b. Using the bundled network cable, connect your HD media player , Inter net TV, set top box, or other Ethernet-enabled device, to your EA-N66’s LAN port. c. Press the WPS button at the bottom of EA-N66. Wall Power Outlet LED indicator a b  e. Press the WPS button on the router. f. Check if EA-N66’s LED indicator turns a solid blue, which indicates that EA-N66 has successfully connected to the wireless network. NOTE: For details on the LED indicator, refer to page 4. NOTE: Refer to the router’s user manual for the location of its WPS button. d. Ensure that the LED indicator is blinking.  B. Connecting without using WPS Wall Power Outlet a b a. Insert your EA-N66’s power adapter to the DC-In port and plug it to a power outlet. b. Using the bundled network cable, connect your computer to your EA-N66’s LAN port. c. In your web browser, key in www. asusrouter.com. Key in admin as the default username and password. d. Follow the onscreen instructions to complete the wireless connection setup. e. Check if EA-N66’s LED indicator turns a solid blue, which indicates that EA-N66 has successfully connected to the wireless network. NOTE: For details on the LED indicator, refer to page 4. f. Disconnect the network cable from your computer and connect it to your Ethernet-enabled device such as HD media player, Internet TV, set top box, and others.  Operation modes ASUS EA-N66 provides three operation modes: Ethernet Adapter, Access Point (AP), and Repeater. NOTE: Please follow the GUI Setup Wizard for these modes. Ethernet Adapter mode By default, EA-N66 is set to the Ethernet Adapter mode. In this mode, you can con- nect any Ethernet-enabled device to your wireless home network via EA-N66. This mode is perfect for home theater devices such as the Internet TV, TiVo, and Blu-ray player. Internet TV ADSL/Cable modem 10 Frequently Asked Questions Q1: I cannot access the web GUI to configure the EA-N66 settings. • Close all running web browsers and launch again. • Follow the steps below to configure your computer settings based on its operating system. Windows 7 A. Disable the proxy server, if enabled. 1. Click Start > Internet Explorer to launch the web browser. 2. Click Tools > Internet options > Connections tab > LAN settings. 3. From the Local Area Network (LAN) Settings screen, untick Use a proxy server for your LAN. 4. Click OK when done. 11 B. Set the TCP/IP settings to automatically obtain an IP address. 1. Click Start > Control Panel > Net- work and Internet > Network and Sharing Center > Manage network connections. 2. Select Internet Protocol Version 4 (TCP/IPv4), then click Properties. 3. Tick Obtain an IP address automatically. 4. Click OK when done. 12 Mac 10.5.8 A. Disable the proxy server, if enabled. 1. From the menu bar, click Safari > Preferences... > Advanced tab. 2. Click Change Settings... in the Proxies field. 3. From the list of protocols, deselect FTP Proxy and Web Proxy (HTTP). 4. Click OK when done. 13 1. Click the Apple icon > System Preferences > Network. 2. Select Ethernet and select Using DHCP in the Configure field. 3. Click Apply when done. B. Set the TCP/IP settings to automatically obtain an IP address. SUPPORT HOTLINE USA/ CANADA Hotline Number: 1-812-282-2787 Language: English Availability: Mon. to Fri. 8:30-12:00am EST (5:30am-9:00pm PST) Sat. to Sun. 9:00am-6:00pm EST (6:00am-3:00pm PST) BRAZIL Hotline Number: 4003 0988 (Capital) / 0800 880 0988 (demais localidades) Language: Portuguese Availability: Mon. to Fri. 9:00am-18:00 Manufacturer ASUSTeK Computer Inc. Tel: +886-2-2894-3447 Address: No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN Authorised representative in Europe ASUS Computer GmbH Address: HARKORT STR. 21-23, 40880 RATINGEN, GERMANY Authorised distributors in Turkey BOGAZICI BIL GISAYAR SAN. VE TIC. A.S. Tel: +90 212 3311000 Address: AYAZAGA MAH. KEMERBURGAZ CAD. NO.10 AYAZAGA/ISTANBUL CIZGI Elektronik San. Tic. Ltd. Sti. Tel: +90 212 3567070Address: CEMAL SURURI CD. HALIM MERIC IS MERKEZI No: 15/C D:5-6 34394 MECIDIYEKOY/ ISTANBUL EEE Yönetmeliğine Uygundur. ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for pro- tecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as the packaging materials. Please go to http://csr.asus.com/engl…

Text truncated - open the document above for the full version.

ASUSTeK COMPUTER INC. No.150, Li-Te Rd., Peitou, Taipei , Taiwan Attestation for FCC Declaration of Conformity FCC ID: MSQ-EAN66 Date: Dec. 16, 2011 Please be notified that we, the undersigned, ASUSTeK COMPUTER INC. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 11B489R-RFUSP37V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Jackson Yen ASUSTeK COMPUTER INC. Tel: 886-2-2894-3447 ext 3106 Fax:886-2-2898-7364 E-mail: [email protected]

ASUSTeK COMPUTER INC. No.150, Li-Te Rd., Peitou, Taipei , Taiwan Attestation for FCC Declaration of Conformity FCC ID: MSQ-EAN66 Date: Dec. 16, 2011 Please be notified that we, the undersigned, ASUSTeK COMPUTER INC. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 11B489R-RFUSP37V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Jackson Yen ASUSTeK COMPUTER INC. Tel: 886-2-2894-3447 ext 3106 Fax:886-2-2898-7364 E-mail: [email protected]

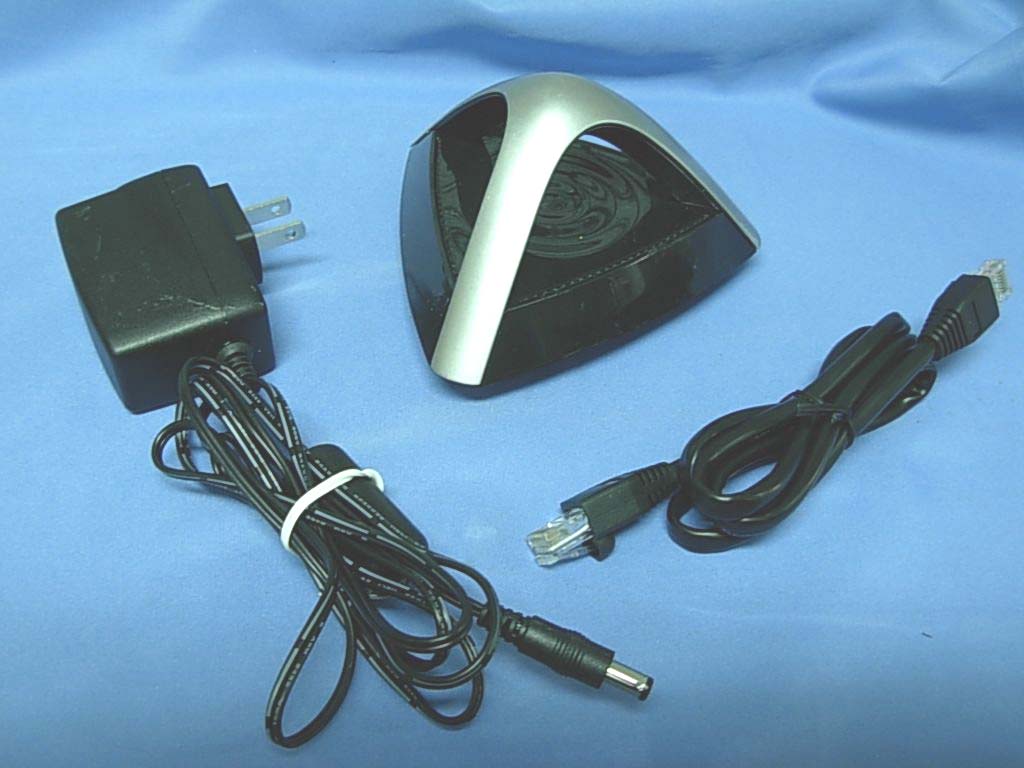

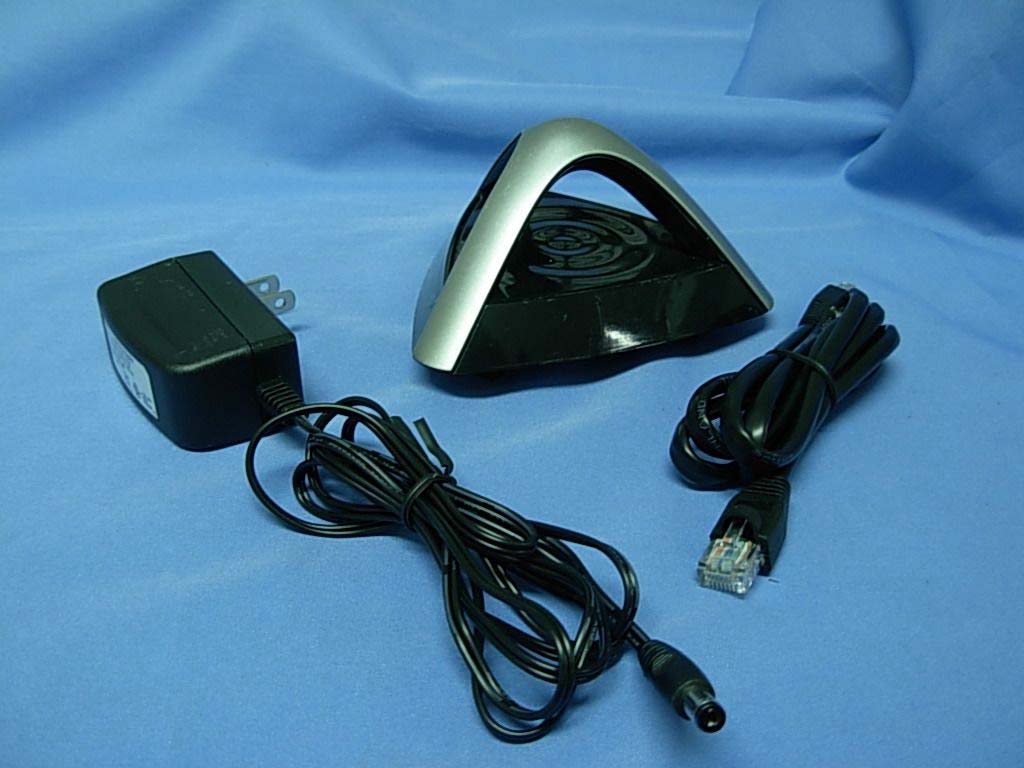

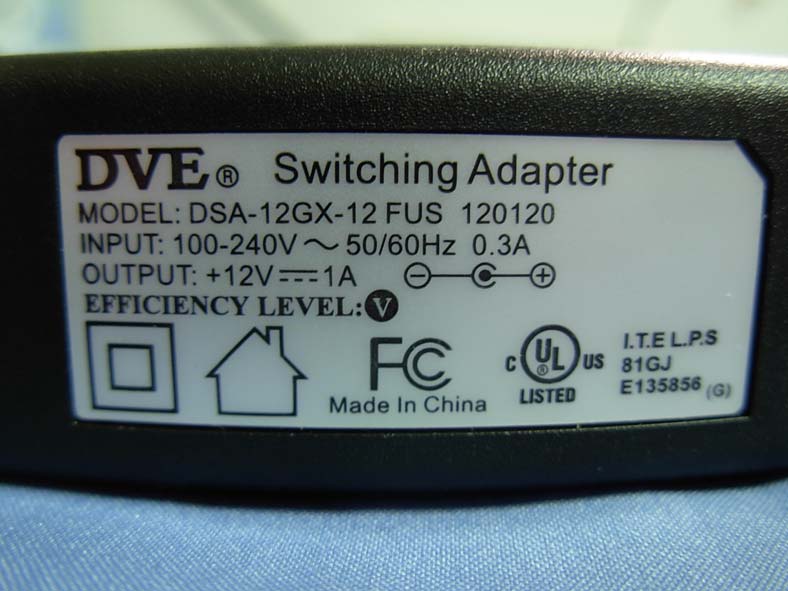

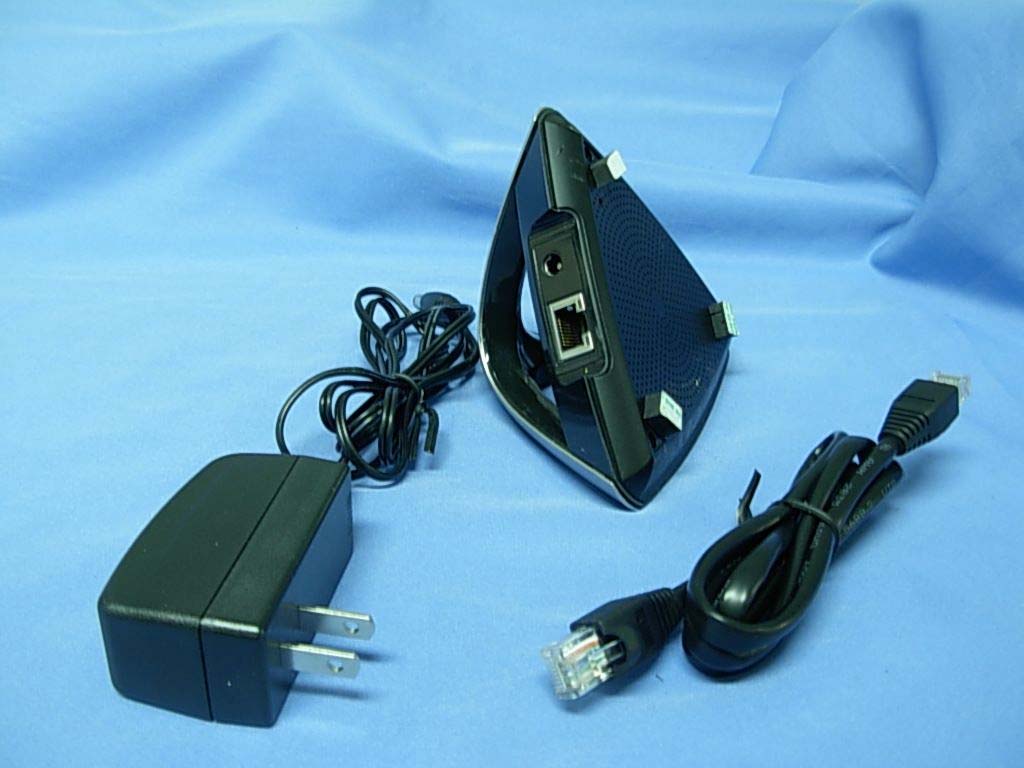

Report No：11B489R-RFUSP32V01 Page: 177 of 187 Attachement EUT Photograph (1) EUT Photo (Power Adatper: DVE, DSA-12GX-12 FUS 120120) (2) EUT Photo Report No：11B489R-RFUSP32V01 Page: 178 of 187 (3) EUT Photo Report No：11B489R-RFUSP32V01 Page: 179 of 187 (4) EUT Photo (Power Adapter: PHIHONG, PSA12A-120) (5) EUT Photo Report No：11B489R-RFUSP32V01 Page: 180 of 187 (6) EUT Photo

ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. FCC ID.: MSQ-EAN66 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Dual-band Wireless-N Ethernet Adapter Model No.: EA-N66 F F C C C C I I D D : : MSQ-EAN66 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ASUS Model number.: EA-N66

ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. FCC ID.: MSQ-EAN66 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Dual-band Wireless-N Ethernet Adapter Model No.: EA-N66 F F C C C C I I D D : : MSQ-EAN66 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ASUS Model number.: EA-N66

Report No：11B489R-RFUSP32V01 Page: 181 of 187 (7) EUT Photo (8) EUT Photo Report No：11B489R-RFUSP32V01 Page: 182 of 187 (9) EUT Photo (10) EUT Photo Report No：11B489R-RFUSP32V01 Page: 183 of 187 (11) EUT Photo (12) EUT Photo_ANT Report No：11B489R-RFUSP32V01 Page: 184 of 187 (13) EUT Photo (14) EUT Photo Report No：11B489R-RFUSP32V01 Page: 185 of 187 (15) EUT Photo (16) EUT Photo Report No：11B489R-RFUSP32V01 Page: 186 of 187 (17) EUT Photo (18) EUT Photo Report No：11B489R-RFUSP32V01 Page: 187 of 187 (19) EUT Photo

Report No. 11B489R-RF-US-Exp Page: 1 of 7 RF Exposure Evaluation declaration Product Name ： Dual-band Wireless-N Ethernet Adapter Model No. ： EA-N66 FCC ID. ： MSQ-RTN66U Applicant : ASUSTeK COMPUTER INC. Address : No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Date of Receipt : 2011/11/23 Date of Declaration : 2011/12/09 Report No. : 11B489R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 11B489R-RF-US-Exp Page: 2 of 7 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 11B489R-RF-US-Exp Page: 3 of 7 1.3. Test Result of RF Exposure Evaluation Product Dual-band Wireless-N Ethernet Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 1 2412 0.4169 1.310 6 2437 0.4365 1.372 11 2462 0.3715 1.168 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 1 2412 0.5012 1.575 6 2437 0.7079 2.225 11 2462 0.8511 2.675 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 10 W/m 2 . Report No. 11B489R-RF-US-Exp Page: 4 of 7 Product Dual-band Wireless-N Ethernet Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 1 2412 0.7656 2.407 6 2437 0.7603 2.390 11 2462 0.7551 2.374 IEEE 802.11n (40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 3 2422 0.6397 2.011 6 2437 0.7362 2.314 9 2452 0.8035 2.526 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 10 W/m 2 . Report No. 11B489R-RF-US-Exp Page: 5 of 7 Product Dual-band Wireless-N Ethernet Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 36 5180 0.0374 0.187 40 5220 0.0475 0.237 44 5240 0.0445 0.222 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 149 5745 0.6026 3.009 153 5785 0.6266 3.129 165 5825 0.6823 3.407 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 10 W/m 2 . Report No. 11B489R-RF-US-Exp Page: 6 of 7 Product Dual-band Wireless-N Ethernet Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 36 5180 0.0478 0.239 40 5220 0.0491 0.245 44 5240 0.0478 0.239 IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 149 5745 0.7998 3.994 153 5785 0.7907 3.948 165 5825 0.7780 3.885 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 10 W/m 2 . Report No. 11B489R-RF-US-Exp Page: 7 of 7 Product Dual-band Wireless-N Ethernet Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 38 5190 0.0455 0.227 46 5230 0.0424 0.212 IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (W) Power Density at R = 20 cm (W/m 2 ) 151 5755 0.8147 4.068 159 5795 0.7638 3.814 The power…

Text truncated - open the document above for the full version.

Report No：11B489R-RFUSP32V01 Page: 1 of 187 Test Report Product Name ： Dual-band Wireless-N Ethernet Adapter Model No. ： EA-N66 FCC ID. ： MSQ-EAN66 Applicant ： ASUSTeK COMPUTER INC. Address ： No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Date of Receipt：2011/11/23 Issued Date ：2011/12/07 Report No. ：11B489R-RFUSP32V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：11B489R-RFUSP32V01 Page: 2 of 187 Test Report Certification Issued Date : 2011/12/07 Report No. : 11B489R-RFUSP32V01 Product Name ： Dual-band Wireless-N Ethernet Adapter Applicant ： ASUSTeK COMPUTER INC. Address ： No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： EA-N66 FCC ID. ： MSQ-EAN66 EUT Voltage : AC 100-240V, 50-60Hz Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.407:2010 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Adm. Specialist) Reviewed By : ( Chris Liu / Engineer ) Approved By : ( Roy Wang / Manager ) Report No：11B489R-RFUSP32V01 Page: 3 of 187 TABLE OF CONTENTS Description Page 1. General Information...................................................................................................................... 5 1.1. EUT Description .......................................................................................................................... 5 1.2. Operational Description............................................................................................................. 10 1.3. Test Mode.................................................................................................................................. 11 1.4. Tested System Details............................................................................................................... 12 1.5. Configuration of tested System ................................................................................................. 12 1.6. EUT Exercise Software ............................................................................................................. 13 1.7. Test Facility ............................................................................................................................... 14 2. Conducted Emission .................................................................................................................. 16 2.1. Test Equipment ......................................................................................................................... 16 2.2. Test Setup ................................................................................................................................. 16 2.3. Limits ......................................................................................................................................... 17 2.4. Test Procedure .......................................................................................................................... 17 2.5. Test Specification ...................................................................................................................... 17 2.6. Uncertainty ................................................................................................................................ 17 2.7. Test Result ................................................................................................................................ 18 2.8. Test Photo ................................................................................................................................. 22 3. 99% & 26dB Bandwidth .............................................................................................................. 24 3.1. Test Equipment ......................................................................................................................... 24 3.2. Test Setup ................................................................................................................................. 24 3.3. Limits ......................................................................................................................................... 24 3.4. Test Procedure .......................................................................................................................... 24 3.5. Uncertainty ................................................................................................................................ 24 3.6. Test Result ................................................................................................................................ 25 4. Peak Transmit Output................................................................................................................. 43 4.1. Test Equipment ......................................................................................................................... 43 4.2. Test Setup ................................................................................................................................. 43 4.3. Limits ......................................................................................................................................... 44 4.4. Test Procedure .......................................................................................................................... 44 4.5. Uncertainty ................................................................................................................................ 44 4.6. Test Result ................................................................................................................................ 45 5. Peak Power Spectrum Density ...........................................…

Text truncated - open the document above for the full version.

Report No：11B489R-RFUSP32V01 Page: 72 of 187 5. Peak Power Spectrum Density 5.1. Test Equipment The following test equipments are used during the radiated emission tests: Peak Power Spectrum Density / SR7 Instrument ManufacturerModel No.Serial NoCal. Date Next Cal. Date Spectrum Analyzer R&S FSP 100561 2011/01/17 2012/01/16 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 5.2. Test Setup 5.3. Limits 1. For the band 5.15-5.25 GHz, the peak power spectral density shall not exceed 4 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, the peak power spectral density shall be reduced by the amount in dB that directional gain of the antenna exceeds 6 dBi. 2. For the band 5.25-5.35 GHz, the peak power spectral density shall not exceed 11 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, the peak power spectral density shall be reduced by the amount in dB that directional gain of the antenna exceeds 6 dBi. 3. For the band 5.725-5.825 GHz, the peak power spectral density shall not exceed 17 dBm in any 1-MHz band. If transmitting antenna of directional gain greater than 6 dBi are used, the peak power spectral density shall be reduced by the amount in dB that directional gain of the antenna exceeds 6 dBi. Report No：11B489R-RFUSP32V01 Page: 73 of 187 5.4. Test Procedure The EUT was setup to ANSI C63.4, 2009; tested to DTS test procedure of Aug 2002 DA 02-2138 for compliance to FCC 47CFR Subpart E requirements. The Method #2 of the Peak power spectral density (PPSD) was used. Set RBW=1MHz, VBW=3MHz with sample detector. The PPSD is the highest level found across the emission in any 1-MHz band after 100 sweeps of averaging. 5.5. Uncertainty The measurement uncertainty is defined as ± 1.27 dB Report No：11B489R-RFUSP32V01 Page: 74 of 187 5.6. Test Result Product Dual-band Wireless-N Ethernet Adapter Test Item Peak Power Spectral Density Test Mode Mode 1: Transmit (Adapter: DVE) Date of Test 2011/11/29 Test Site SR7 IEEE 802.11a Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 36 5180 2.54 ≤ 4 Pass 44 5220 3.43 ≤ 4 Pass 48 5240 3.55 ≤ 4 Pass Peak Power Spectral Density – Channel 36 Report No：11B489R-RFUSP32V01 Page: 75 of 187 Peak Power Spectral Density – Channel 44 Report No：11B489R-RFUSP32V01 Page: 76 of 187 Peak Power Spectral Density – Channel 48 Report No：11B489R-RFUSP32V01 Page: 77 of 187 IEEE 802.11n_20M(ANT 0) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 36 5180 -1.26 ≤ 4 Pass 44 5220 -0.99 ≤ 4 Pass 48 5240 -1.19 ≤ 4 Pass Peak Power Spectral Density – Channel 36 Report No：11B489R-RFUSP32V01 Page: 78 of 187 Peak Power Spectral Density – Channel 44 Report No：11B489R-RFUSP32V01 Page: 79 of 187 Peak Power Spectral Density – Channel 48 Report No：11B489R-RFUSP32V01 Page: 80 of 187 IEEE 802.11n_20M(ANT 1) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 36 5180 -1.52 ≤ 4 Pass 44 5220 -1.41 ≤ 4 Pass 48 5240 -1.89 ≤ 4 Pass Peak Power Spectral Density – Channel 36 Report No：11B489R-RFUSP32V01 Page: 81 of 187 Peak Power Spectral Density – Channel 44 Report No：11B489R-RFUSP32V01 Page: 82 of 187 Peak Power Spectral Density – Channel 48 Report No：11B489R-RFUSP32V01 Page: 83 of 187 IEEE 802.11n_20M(ANT 2) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 36 5180 -1.14 ≤ 4 Pass 44 5220 -1.13 ≤ 4 Pass 48 5240 -1.15 ≤ 4 Pass Peak Power Spectral Density – Channel 36 Report No：11B489R-RFUSP32V01 Page: 84 of 187 Peak Power Spectral Density – Channel 44 Report No：11B489R-RFUSP32V01 Page: 85 of 187 Peak Power Spectral Density – Channel 48 Report No：11B489R-RFUSP32V01 Page: 86 of 187 IEEE 802.11n_20M(ANT 0+1+2) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 36 5180 3.32 ≤ 4 Pass 44 5220 3.60 ≤ 4 Pass 48 5240 3.37 ≤ 4 Pass Report No：11B489R-RFUSP32V01 Page: 87 of 187 IEEE 802.11n_40M(ANT 0) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 38 5190 -4.47 ≤ 4 Pass 46 5230 -5.27 ≤ 4 Pass Peak Power Spectral Density – Channel 38 Report No：11B489R-RFUSP32V01 Page: 88 of 187 Peak Power Spectral Density – Channel 46 Report No：11B489R-RFUSP32V01 Page: 89 of 187 IEEE 802.11n_40M(ANT 1) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 38 5190 -4.62 ≤ 4 Pass 46 5230 -4.89 ≤ 4 Pass Peak Power Spectral Density – Channel 38 Report No：11B489R-RFUSP32V01 Page: 90 of 187 Peak Power Spectral Density – Channel 46 Report No：11B489R-RFUSP32V01 Page: 91 of 187 IEEE 802.11n_40M(ANT 2) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 38 5190 -4.15 ≤ 4 Pass 46 5230 -5.41 ≤ 4 Pass Peak Power Spectral Density – Channel 38 Report No：11B489R-RFUSP32V01 Page: 92 of 187 Peak Power Spectral Density – Channel 46 Report No：11B489R-RFUSP32V01 Page: 93 of 187 IEEE 802.11n_40M(ANT 0+1+2) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 38 5190 0.36 ≤ 4 Pass 46 5230 -0.20 ≤ 4 Pass Report No：11B489R-RFUSP32V01 Page: 94 of 187 6. Peak Excursion 6.1. Test Equipment The following test equipments are used during the radiated emission tests: Peak Power Spectrum Density / SR7 Instrument ManufacturerModel No.Serial NoCal. Date Next Cal. Date Spectrum Analyzer R&S FSP 100561 2011/01/17 2012/01/16 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup 6.3. Limits The ratio of the peak excursion of the modulation envelope (measured suing a peak hold function) to the peak transmit power (measured as specified above) shall not exceed 13 dB across any 1 MHz bandwidth or the emission bandwidth whichever is less. 6.4. Test Procedure The EUT was setup to ANSI C63.4, 2009; tested to DTS test procedure of Aug 2002 DA 02-2138 for compliance to FCC 47CFR Subpart E requirements. 1 st Trace: Set RBW = 1MHz, VBW = 3MHz with peak detector and max-hold settings. 2 nd Tra…

Text truncated - open the document above for the full version.

Report No：11B489R-RFUSP32V01 Page: 22 of 187 2.8. Test Photo Test Mode ： Mode 1: Transmit (Adapter: DVE) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit (Adapter: DVE) Description： Back View of Conducted Emission Test Setup Report No：11B489R-RFUSP32V01 Page: 23 of 187 Test Mode ： Mode 2: Transmit (Adapter: PHIHONG) Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 2: Transmit (Adapter: PHIHONG) Description： Back View of Conducted Emission Test Setup Report No：11B489R-RFUSP32V01 Page: 144 of 187 7.7. Test Photo Test Mode ： Mode 1: Transmit (Adapter: DVE) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit (Adapter: DVE) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：11B489R-RFUSP32V01 Page: 145 of 187 Test Mode ： Mode 2: Transmit (Adapter: PHIHONG) Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 2: Transmit (Adapter: PHIHONG) Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：11B489R-RFUSP32V01 Page: 146 of 187 Test Mode ： Mode 1: Transmit (Adapter: DVE) Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit (Adapter: DVE) Description： Back View of Radiated Emission Test Setup (Horn)
