MSQ-EW2000RXASUS WICAST

WiCast User Manual EW-2000 WiCast Wireless HDMI Kit 15G067613000 2 Copyright © 2010 ASUSTeK Computer Inc. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrievalsystem, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. E5445 First Edition June 2010 ASUS WiCast EW-2000 Table of Contents Safety information ..............................................................................................4 EW-2000 Specifications summary .................................................................5 Getting to know your WiCast Wireless HDMI Kit ......................................6 Package contents ...............................................................................6 WiCast receiver features...................................................................7 WiCast transmitter features ............................................................7 Connecting devices ............................................................................................8 Connecting your notebook with an external display............9 Connecting your desktop PC with an external display ......11 Connecting your audio / video devices with an external display ...........................................................................13 Adjusting the screen resolution ...................................................................15 Adjusting the screen resolutions on both the notebook and the external display ............................................16 Adjusting the screen resolution on the notebook or external display only .............................................17 Using NVIDIA® utility .......................................................................18 Using ATI ® utility ..............................................................................18 Adjusting the audio ..........................................................................................19 Windows® 7 ........................................................................................19 Troubleshooting ................................................................................................20 Notices .................................................................................................................22 ASUS Contact information .............................................................................25  Safety information WiCast SAFE TEMP: The WiCast Wireless HDMI Kit should only be used in environments with ambient temperatures between 5°C (41°F) and 35°C (95°F). WiCast DO NOT expose to dirty or dusty environments. DO NOT operate during a gas leak. WiCast DO NOT expose to or use near liquids, rain, or moisture. WiCast DO NOT place or drop objects on top and do not shove any foreign objects into the WiCast Wireless HDMI Kit. WiCast DO NOT expose to strong magnetic or electrical fields. DO NOT throw the WiCast Wireless HDMI Kit in municipal waste. Check local regulations for disposal of electronic products. ASUS WiCast EW-2000 EW-2000 Specifications summary NOTE: Specifications are subject to change without prior notice. Video Up to 1080p 60Hz, <1 ms latency Audio Up to 8 channels Wireless HDMI technology WHDI Transmission distance Up to 10 meters Operation frequency 5.15 ~ 5.85 GHz Data rate 3G bps Power supply Transmitter: 5V, 2A 10W adapter (if USB power is not available) Receiver: 5V, 2A 10W adapter Power consumption Transmitter: 4.75W (powered by USB) Receiver: 10W I/O ports Transmitter: - HDMI port x 1 - mini-USB x 1 - DC-In port x 1 Receiver: - HDMI port x 1 - DC-In port x 1 Weight Transmitter: 110g Receiver: 160g Dimensions Transmitter: 103 x 68 x 28.65 mm (L x W x H) Receiver: 105 x 25 x 125 mm (L x W x H)  * If any of the above items is damaged or missing, contact your retailer. Getting to know your WiCast Wireless HDMI Kit ASUS WiCast EW2000 allows you to wirelessly extend audio/video sources between high-definition multimedia devices up to a ten-meter radius for a latency-free (<1ms) full HD 1080p video and crsytal-clear audio transmissions. Its WHDI™ (Wireless Home Digital Interface) technology transmissions are not limited by directionality or line of sight. Package contents* WiCast • Short HDMI cable • Pouch bag • ASUS WiCast Wireless HDMI Kit • • HDMI cable • AC adapters • mini-U…

Text truncated - open the document above for the full version.

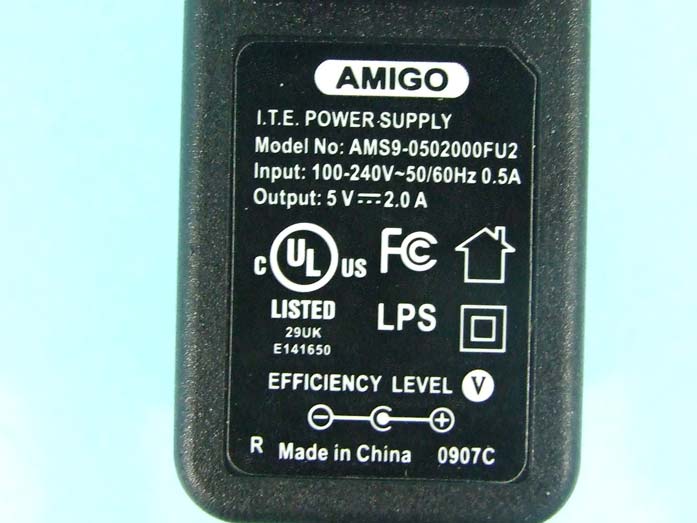

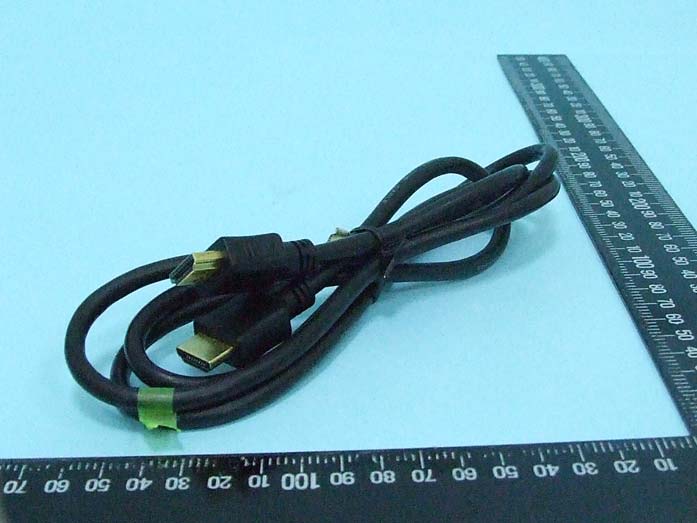

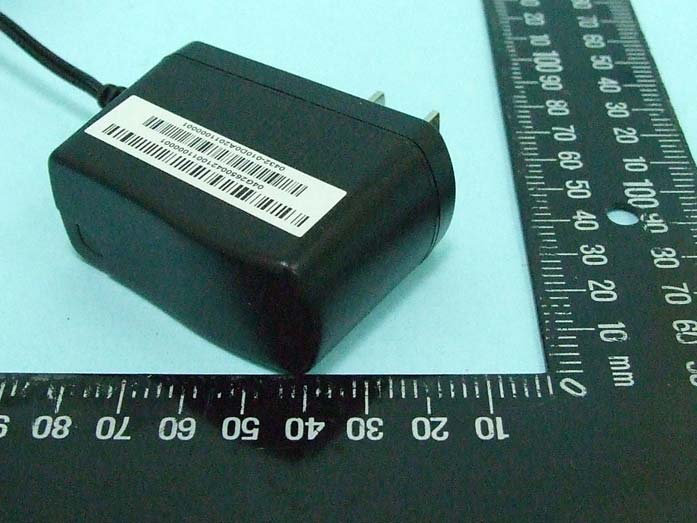

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C14 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C15 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C16 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C17 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C18 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C19 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255

15G10D663900 2010.06.11 RATING LABEL FOR EW2000RX EW2000RX FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C15 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 09, 2010 FAX : 886-2-2696-2255 Label location

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C11 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C12 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C13 OF C19 TEL : 886-2-2696-2468 ISSUED DATE : Jun. 14, 2010 FAX : 886-2-2696-2255

FCC TEST REPORT Report No.: FR032515AB Page No. : A1 of A3 FCC ID : MSQ-EW2000RX Appendix A. Maximum Permissible Exposure FCC TEST REPORT Report No.: FR032515AB Page No. : A2 of A3 FCC ID : MSQ-EW2000RX 1 Maximum Permissible Exposure 1.1 Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. FCC TEST REPORT Report No.: FR032515AB Page No. : A3 of A3 FCC ID : MSQ-EW2000RX 1.3 Calculated Result and Limit Antenna Type : PIFA Antenna Max Conducted Power for OFDM (40MHz): 21.39dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 5G 20 7.7 5.888437 21.39 137.7209 0.1614

FCC TEST REPORT Report No.: FR032515AB SPORTON International Inc. Report Format Version: a FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : ASUS WiCast Model No. : EW2000;EW2000RX Brand Name : ASUS Filin g Type : New Application Applicant : ASUSTek COMPUTER INC. No. 15,Li-Te Rd., Peitou, Taipei 112,Taiwan FCC ID: MSQ-EW2000RX Manufacturer : Quanta Microsystems, Inc. 5F, No.188, Wenhwa 2 nd Rd., Kueishan, Ta oyuan 33383, Taiwan, R.O.C. Received Date : Mar. 10, 2010 Final Test Date : May 31, 2010 Statement Test result included is only for the 5725 ~ 5850MHz of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: FR032515AB SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Jun. 08, 2010 FAX : 886-2-2696-2255 FCC ID : MSQ-EW2000RX Table of Contents 1 SUMMARY OF THE TEST RESULT ...................................................................................................................... 2 2 GENERAL INFORMATION ..................................................................................................................................... 3 2.1 Product Details ........................................................................................................................................................................................ 3 2.2 Accessories ............................................................................................................................................................................................. 3 2.3 Table for Carrier Frequencies ................................................................................................................................................................. 3 2.4 Table for Test Modes .............................................................................................................................................................................. 3 2.5 Table for Testing Locations ..................................................................................................................................................................... 4 2.6 Table for Supporting Units ....................................................................................................................................................................... 4 2.7 Table for Parameters of Test Software Setting ....................................................................................................................................... 4 2.8 EUT Operation during Test ..................................................................................................................................................................... 5 2.9 Test Configuration ................................................................................................................................................................................... 5 3 TEST RESULT ........................................................................................................................................................ 7 3.1 AC Power Line Conducted Emissions Measurement .............................................................................................................................. 7 3.2 Maximum Conducted Output Power Measurement .............................................................................................................................. 11 3.3 Power Spectral Density Measurement .................................................................................................................................................. 13 3.4 6dB Spectrum Bandwidth Measurement ............................................................................................................................................... 16 3.5 Radiated Emissions Measurement ........................................................................................................................................................ 19 3.6 Band Edge and Fundamental Emissions Measurement ....................................................................................................................... 29 3.7 Antenna Requirements .......................................................................................................................................................................... 32 4 LIST OF MEASURING EQUIPMENTS ................................................................................................................. 33 5 TEST LOCATION .................................................................................................................................................. 35 6 TAF CERTIFICATE OF ACCREDITATION .......................................................................................................... 36 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. A1 ~ A3 APPENDIX B. TEST PHOTOS ........................................................................................................................ B1 ~ B7 APPENDIX C. PHOTOGRAPHS OF EUT ..................................................................................................... C1 ~ C19 FCC TEST REPORT Report No.: FR032515AB SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468 Issued…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No.: FR032515AB Page No. : B1 of B7 FCC ID : MSQ-EW2000RX Appendix B. Test Photos FCC TEST REPORT Report No.: FR032515AB Page No. : B2 of B7 FCC ID : MSQ-EW2000RX 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR032515AB Page No. : B3 of B7 FCC ID : MSQ-EW2000RX SIDE VIEW FCC TEST REPORT Report No.: FR032515AB Page No. : B4 of B7 FCC ID : MSQ-EW2000RX 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR032515AB Page No. : B5 of B7 FCC ID : MSQ-EW2000RX For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR032515AB Page No. : B6 of B7 FCC ID : MSQ-EW2000RX For radiated emissions above 1GHz FRONT VIEW REAR VIEW FCC TEST REPORT Report No.: FR032515AB Page No. : B7 of B7 FCC ID : MSQ-EW2000RX Fixture FRONT VIEW REAR VIEW
