MSQ-M10PDA PHONE

nüvifone ™ M10 owner’s manual © 2010 Garmin Ltd. or its subsidiaries and ASUSTeK Computer, Inc. Garmin International, Inc. 1200 East 151 st Street, Olathe, Kansas 66062, USA Tel. (913) 397.8200 or (800) 800.1020 Fax (913) 397.8282 Garmin (Europe) Ltd. Liberty House Hounsdown Business Park, Southampton, Hampshire, SO40 9LR UK Tel. +44 (0) 870.8501241 (outside the UK) 0808 2380000 (within the UK) Fax +44 (0) 870.8501251 Garmin Corporation No. 68, Jangshu 2 nd Road, Sijhih, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 ASUSTeK Computer Inc. 15 Li-Te Road, Peitou, Taipei, Taiwan 11259 Tel. 886/2.2894.3447 Fax 886/2.2890.7698 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin and ASUS. Garmin and ASUS hereby grant permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin and ASUS reserve the right to change or improve their products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit www.garminasus.com for current updates and supplemental information concerning the use and operation of this and other Garmin-Asus products. The combined Garmin-Asus logo is a trademark of Garmin Ltd. and ASUSTeK Computer, Inc. Garmin ® is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Ciao! ™ , nüMaps Guarantee ™ , and nüvifone ™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. Facebook ™ is a trademark of Facebook, Inc. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin or ASUS is under license. Wi-Fi is a registered mark of the Wi-Fi Alliance. Gmail ™ , Google Mail ™ , and Picasa ™ are trademarks of Google Inc. Adobe ® is a registered trademark of Adobe Systems Incorporated. Microsoft ® , Office, Outlook, PowerPoint, Windows, Windows Live, and Windows Vista, and ActiveSync are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Introduction nüvifone M10 Owner’s Manual i Introduction The nüvifone ™ M10 is a multi- media mobile phone with integrated navigation and services. Get Support Go to www.garminasus.com for in-country and regional support information. Register Your Product Register your product at www.garminasus.com to help us better support you. Keep the original sales receipt, or a photocopy, in a safe place. Note: If you have registered for Ciao! (see page 55), you are already registered at http://my.garmin.com. 0700 Update the Software Go to www.garminasus.com/M10 to download the latest software update. tIP: Create a backup file (page 82) before updating the nüvifone software. nüMaps Guarantee ™ To receive one free map update (if available), register your nüvifone at www.garminasus.com within 60 days of acquiring satellites while driving with your nüvifone. You are not eligible for the free map update if you register by phone or wait longer than 60 days after the first time you acquire satellites while driving with your nüvifone. Additional Maps You can purchase additional maps for your nüvifone. To see a list of maps that are compatible with your nüvifone, go to (www.garminasus.com/M10). Table of Contents ii nüvifone M10 Owner’s Manual Table of Contents Introduction ...................................i Get Support ..........................................i Register Your Product...........................i Update the Software .............................i nüMaps Guarantee ™ ............................i Additional Maps ....................................i Get Started ...................................7 nüvifone Device Features ....................7 Setting Up the Device ..........................8 Turn On Your nüvifone .......................11 Mount the nüvifone in Your Vehicle ...11 Get to Know Your nüvifone ......12 Use the Home Screen .......................12 Use the Keys .....................................13 Scroll the Screen ...............................13 Use the On-Screen Buttons...............13 Use the On-screen Keyboard ............14 Use the Stylus ...................................14 Rotate the nüvifone ...........................14 Learn More ........................................14 View the Status ..................................15 Adjust the Volume..............................15 Lock Your nüvifone ............................15 Acquire GPS Satellite Signals ...........16 Close Applications .............................16 Switch Between Applications .............16 Status Bar Icons ................................17 Use the Phone............................20 Open the Phone Application ..............20 Dial a Number....................................20 Use In-Call Options ...........................21 Receive a Call ...................................22 End a Call ..........................................22 Set Up Voice Mail ..............................22 Call Voice Mail ...................................23 Place a Conference Call ....................23 View Call History ...............................24 Turn Off the Phone ............................24 Turn on Flight Mode ..........................24 Manage Your Contacts ..............25 Add a Contact ...................................25 Call a Contact .......…

Text truncated - open the document above for the full version.

nüvifone ™ M10 quick start manual nüvifoneM10QuickStartManual  Warning See the “Important Safety and Product Information” beginning on page 18 for product warnings and other important information. Download the latest owner’s manual at www.garminasus.com/M10. nüvifone ™ Device Features Volume keys Stylus Micro-USB connector forpower and computer connection Cameralens (onback) Endkey Start menu key Send key Headphone connector Powerkey Power connector for navigation cradle nüvifoneM10QuickStartManual Setting Up the Device  Warning This product contains a lithium-ion battery. To prevent personal injury or product damage, remove the device from the vehicle when exiting or store it out of direct sunlight. 1. Remove the battery cover. 2. Install the SIM card. 3. Install the microSD ™ card (optional). See page 4. 4. Install the battery. See page 4. 5. Replace the battery cover. See page 4. 6. Charge the battery. See page 4. remove the Battery Cover Slide the battery cover off the back of the nüvifone. Batterycover install the SiM Card 1. Slide the SIM card holder toward the outside edge of the device and lift up, as directed on the holder. 2. Place the SIM card in the device with the gold contacts facing down and the notched corner near the center of the device. Resetbutton SIMcardholder microSDcardholder 3. Close the card holder. 4. Slide the card holder toward the center of the device to lock it. nüvifoneM10QuickStartManual install the microSD Card You can use an optional microSD card to hold more data. 1. Slide the microSD card holder toward the top edge of the device and lift up. 2. Place the microSD card in the device with the gold contacts facing down. 3. Close the card holder. 4. Slide the card holder toward the center of the device to lock it. install the Battery 1. Locate the battery that came in the product box. 2. Locate the metal contacts on the end of the battery and in the battery compartment. 3. Insert the battery with the large Garmin-Asus logo facing down, and the metal contacts on the battery aligned with the contacts in the battery compartment. Battery replace the Battery Cover Slide the battery cover onto the back of the device until it clicks. Charge the Battery Charge the battery for at least four hours before using the nüvifone for the first time. If you completely discharge the battery, recharge it for at least 20 minutes before turning on your nüvifone. 1. Insert the plug into the AC power adapter, if necessary. 2. Plug the USB cable into the AC adapter. 3. Connect the micro-USB end of the USB cable to the connector on the side of the device. nüvifoneM10QuickStartManual 4. Plug the AC adapter into a power outlet. You can also charge the nüvifone using the USB cable and a computer, and using the vehicle power cable and a vehicle power outlet. Turn On Your nüvifone Press and hold the Power key to turn on the nüvifone. Mount the nüvifone in Your Vehicle The vehicle mount and power cable are available in some nüvifone packages. To purchase accessories, go to www.garminasus.com/M10. 1. Plug the vehicle power cable into the power connector on the side of the cradle. 2. Remove the clear plastic from the suction cup. Clean and dry your windshield and the suction cup with a lint-free cloth. 3. Place the suction cup on the windshield. Cradle Vehiclepower cable Suction cupmount 4. Flip the lever back, toward the windshield. 5. Snap the cradle onto the suction cup arm. 6. Fit the gold contacts on the left side of your nüvifone into the cradle. 7. Tilt the nüvifone back until it snaps into the cradle. 8. Plug the other end of the vehicle power cable into a power outlet in your vehicle. TiP: When you take your nüvifone out of the mounting cradle, your current location is saved, making it easy to find your parking spot. nüvifoneM10QuickStartManual Use the Home Screen ➋ ➍➎➏ ➊ ➌ ➊ Status bar. Tap to view the device status and notifications, and search for locations. ➋ Current date and time (based on your network). Tap to view the alarms and global clocks and set the time. ➌ Application shortcut icons. Tap an icon to open the application. Drag your finger horizontally across the Home screen icons to view more icons. Touch and hold an icon to edit the applications on the Home screen. ➍ Tap to place a phone call and access contacts. ➎ Tap to find and navigate to a location. ➏ Tap to view the map. Scroll the Screen Touch and drag your finger to slowly scroll the screen. Touch, drag, and quickly remove your finger to continue scrolling after removing your finger. Tap the screen to stop scrolling. You can scroll the screen both vertically and horizontally. • • • nüvifoneM10QuickStartManual Use the Keys KeyUse Press to open the phone. Press to send a call. Press to open the Start menu. Press and hold to close or switch applications. Press to end a phone call. When not on a phone call, press to open the Home screen. View the Status 1. Tap the status bar along the top of the screen. 2. From the slider menu at the top of the screen, select Status, Search, or Notification. 3. Tap an item to update it or view more information about it. Dial a number 1. Press the key. 2. Tap to open the keypad. 3. Dial the number. As you dial, a list appears showing similar numbers you have dialed and contacts that have matching numbers or letters. 4. Tap a number in the list to call the number, or press the key. End a Call To end a call, press the key. nüvifoneM10QuickStartManual add a Contact 1. Press the key. 2. Tap > > new Contact. 3. Tap an option. 4. Tap an item to enter the information. Tap Done when finished. 5. Tap to save the contact. Call a Contact 1. Press the key. 2. Tap . 3. Tap a contact. 4. Tap the number to place a call. View Call History 1. Press the key. 2. Tap . 3. Tap a number or a contact in the list to view your call history for that number or contact. Set Up Voice Mail 1. Press the key. 2. Tap Settings > Personal > Phon…

Text truncated - open the document above for the full version.

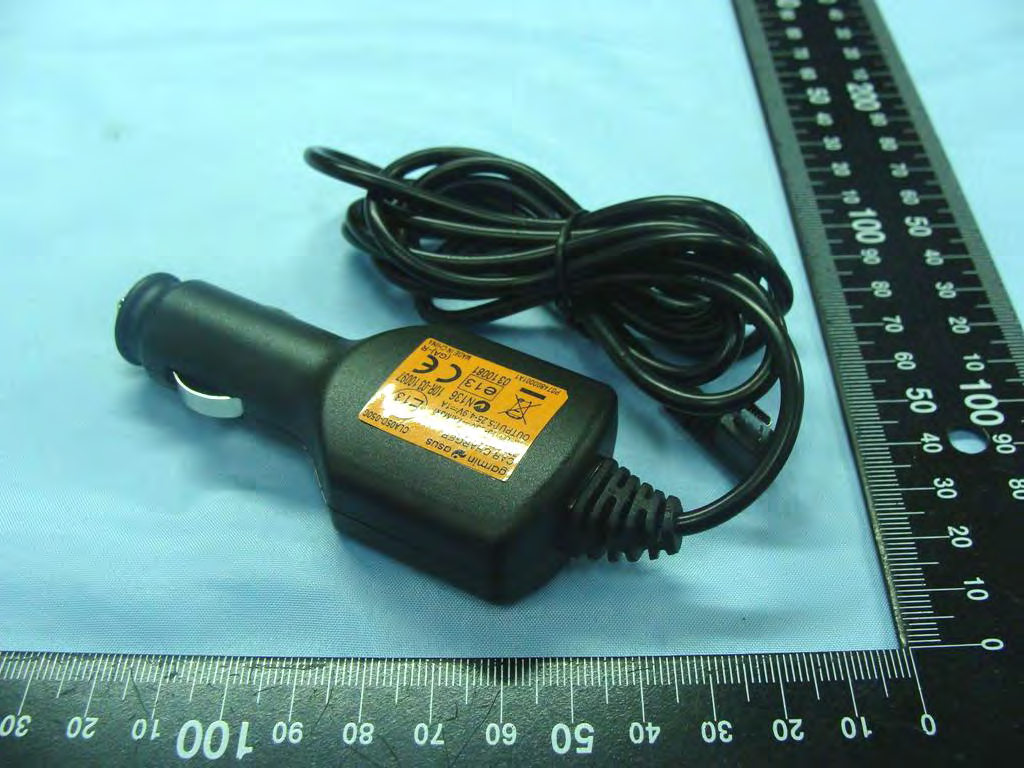

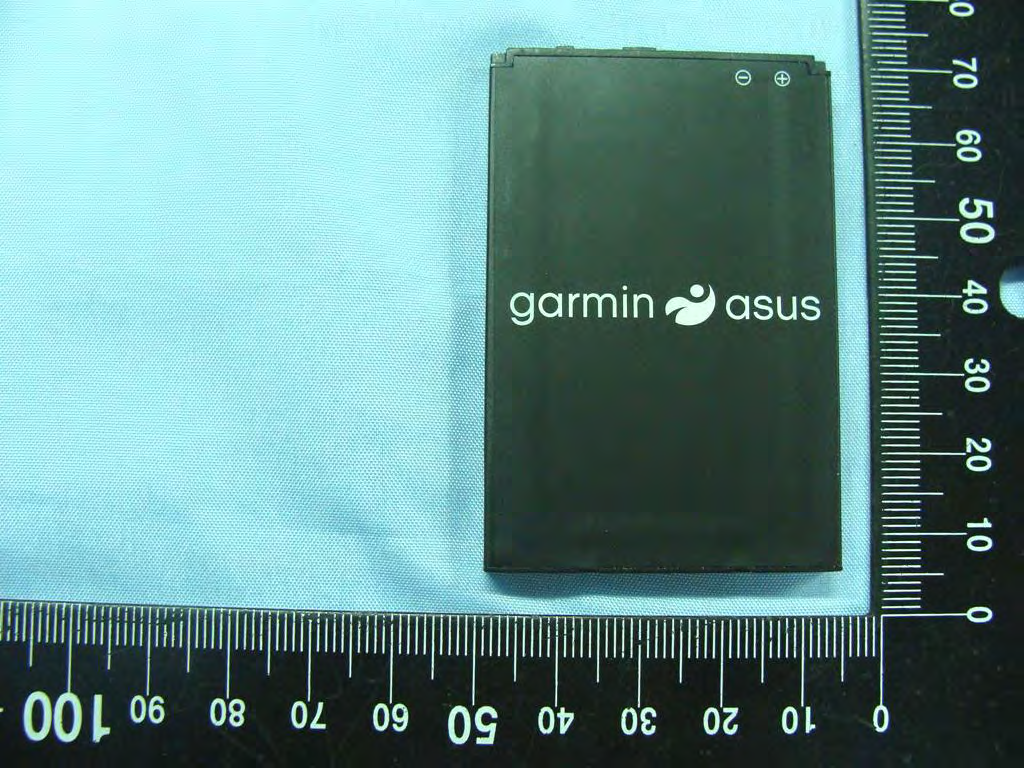

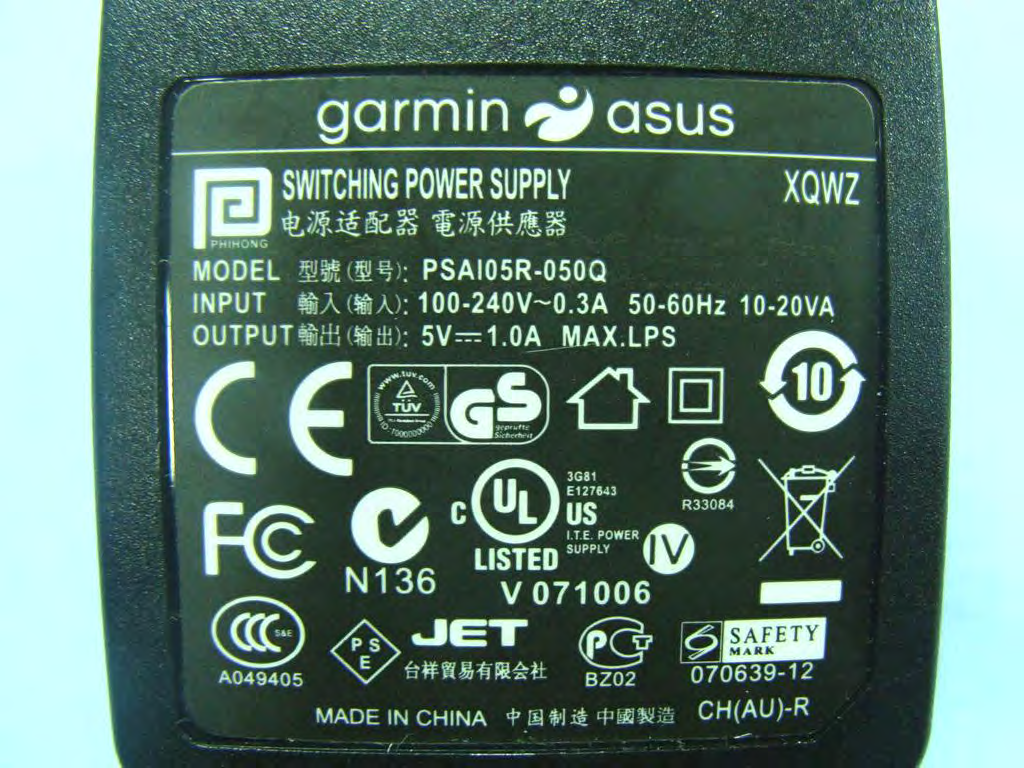

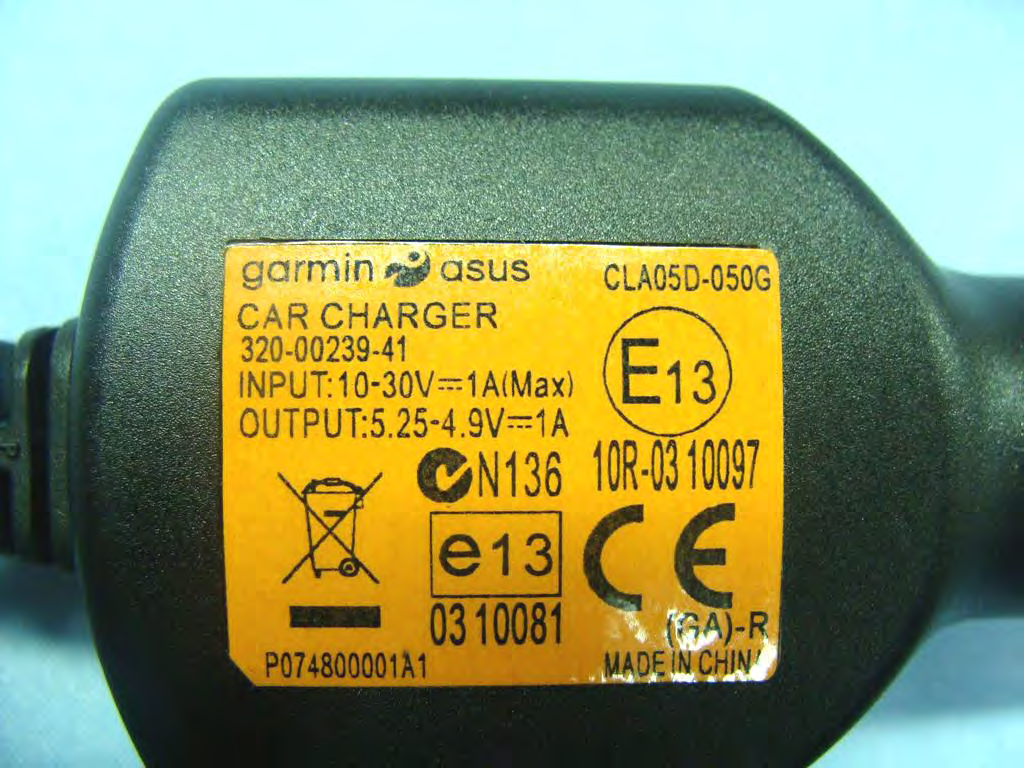

Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 1 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 1. External Photograph of EUT Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 2 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 3 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 4 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 5 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 6 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 720510 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 7 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 List of Accessory: Specification of Accessory AC Adapter Brand Name Garmin-Asus Manufacturer Phihong Model Name PSAI05R-050Q Power Rating I/P:100-240Vac, 50-60Hz, 0.3A; O/P: 5Vdc, 1.0A Car Charger 1 Brand Name Garmin-Asus Manufacturer EWI Model Name 320-00239-41 Power Rating I/P: 10~30V; O/P: 4.75~5.25V, 1.0A Power Cord Type 1.6 meter non-shielded cable without ferrite core Car Charger 2 Brand Name Garmin-Asus Manufacturer Phihong Model Name CLA05D-050G Power Rating I/P: 10~30V; O/P: 5.25~4.90V, 1A Power Cord Type 1.7 meter non-shielded cable without ferrite core Car Kit Brand Name Garmin-Asus Manufacturer GLOBAL LIGHT Model Name 13GAM0410P090-1 Battery 1 Brand Name Garmin-Asus Manufacturer TD HiTech Energy Inc. Model Name SBP-23 Part Number 07G016034261 / 361-00048-00 Power Rating 3.7Vdc, 1500mAh Type Li-ion Battery 2 Brand Name Garmin-Asus Manufacturer MME Model Name SBP-23 Power Rating 3.7Vdc, 1500mAh, 5.6Whr Type Li-ion Earphone Brand Name Garmin-Asus Manufacturer OBO PRO2 Model Name OBO-PT-HS07D-02 Signal Line Type 1.35 meter non-shielded cable without ferrite core USB Cable 1 Brand Name Garmin-Asus Manufacturer CS Model Name 14G000515110 Signal Line Type 1 meter shielded cable with ferrite core USB Cable 2 Brand Name Garmin-Asus Manufacturer JH Model Name 14G000515100 Signal Line Type 1 meter shielded cable with ferrite core LCM Brand Name Wintek Model Name WD-F4880V5-6FLWC Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 8 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 9 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 10 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 11 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 12 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Car Charger 1 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 13 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Car Charger 1 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 14 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Car Charger 1 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 15 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 720510 Car Charger 2 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 16 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Car Charger 2 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 17 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Car Charger 2 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 18 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID :…

Text truncated - open the document above for the full version.

Label Location FCC Label

Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 27 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 3. Internal Photograph of EUT Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 28 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 29 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 30 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 31 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 32 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 33 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 34 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 720510 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 35 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 GPS Antenna Bluetooth & WLAN Antenna<Tx/Rx> 6.5 cm WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 36 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 37 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 38 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 39 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 GPS Antenna Photographs of EUT Report No.: EP041539 Brand Name: Garmin-Asus / Model Name: M10 SPORTON INTERNATIONAL INC. Page Number : 40 of 40 TEL : 886-3-327-3456 Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 Bluetooth and WLAN Antenna <Tx/Rx>

SPORTON INTERNATIONAL INC. Page Number : 1 of 34 TEL : 886-3-327-3456 Report Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 FCC SAR Test Report Report No. : FA041539B FCC SAR Test Report APPLICANT : ASUSTek COMPUTER INC. EQUIPMENT : PDA Phone BRAND NAME : Garmin-Asus MODEL NAME : M10 FCC ID : MSQ-M10 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Apr. 15, 2010 and completely tested on Apr. 27, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 34 TEL : 886-3-327-3456 Report Issued Date : May 05, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : MSQ-M10 FCC SAR Test Report Report No. : FA041539B Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 7 3.3 Applied Standards ............................................................................................................................................ 8 3.4 Device Category and SAR Limits ..................................................................................................................... 8 3.5 Test Conditions ................................................................................................................................................. 8 3.5.1 Ambient Condition .................................................................................................................................. 8 3.5.2 Test Configuration ................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ...............................................................................................................................10 4.1 Introduction ......................................................................................................................................................10 4.2 SAR Definition .................................................................................................................................................10 5. SAR Measurement System .......................................................................................................................................11 5.1 E-Field Probe...................................................................................................................................................12 5.1.1 E-Field Probe Specification ...................................................................................................................12 5.1.2 E-Field Probe Calibration .......................................................................................................................13 5.2 Data Acquisition Electronics (DAE) ..................................................................................................................13 5.3 Robot ...............................................................................................................................................................13 5.4 Measurement Server .......................................................................................................................................14 5.5 Phantom ..........................................................................................................................................................15 5.6 Device Holder ..................................................................................................................................................16 5.7 Data Storage and Evaluation ...........................................................................................................................18 5.7.1 Data Storage .....................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/4/27 System Check_2450MHz_100427 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_100427 Medium parameters used: f = 2450 MHz; σ = 1.85 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(4.51, 4.51, 4.51); Calibrated: 2009/5/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2009/8/24 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1477 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 5.88 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.3 V/m; Power Drift = 0.002 dB Peak SAR (extrapolated) = 10.5 W/kg SAR(1 g) = 5.08 mW/g; SAR(10 g) = 2.4 mW/g Maximum value of SAR (measured) = 5.72 mW/g 0 dB = 5.72mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/4/27 System Check_2450MHz_100427 DUT: Dipole 2450 MHz Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_100427 Medium parameters used: f = 2450 MHz; σ = 2.02 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.19, 4.19, 4.19); Calibrated: 2009/9/23 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 6.24 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.5 V/m; Power Drift = 0.013 dB Peak SAR (extrapolated) = 11.9 W/kg SAR(1 g) = 5.37 mW/g; SAR(10 g) = 2.52 mW/g Maximum value of SAR (measured) = 6.01 mW/g 0 dB = 6.01mW/g

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Cal…
