MSQ-MS-CW100-MWireless Keyboard and Mouse Set CW100 (Mouse)

Wir eless Keyboard and Mouse Set CW100 A DeutschItaliano Q18681 / First Edition / July 2021 Keyboard hotkeys D Hotkeys <Fn+F1>: My Music <Fn+F2>: Volume - <Fn+F3>: Volume + <Fn+F4>: Mute <Fn+F5>: Previous Track <Fn+F6>: Pla y/Pause <Fn+F7>: Next Track <Fn+F8>: Open Project settings <Fn+F9>: Scr eenshot <Fn+F10>: Open Task View <Fn+F11>: My PC <Fn+F12>: Calculator • All above hotkeys can work with Windows ® 10. • CW100 is compatible with Windows ® 10 and older versions. Some hotkeys only work with Windows ® 10. User experience may var y depending on the OS. ASUSTekComputer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of The Radio Equipment Regulations 2017 (S.I. 2017/1206). Full text of UKCA declaration of conformity is available at https://www.asus.c om/support/ English ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www.asus.c om/support/. Français ASUSTek Computer Inc. déclare par la présente que cet appareil est conforme aux crit èr es essentiels et autres clauses pertinentes de la directive 2014/53/EU. La déclaration de conformité de l’UE peut être téléchargée à partir du site inter net suivant : https://www.asus.c om/ support/. Deutsch Vereinfachte EU-Konformitätserklärung ASUSTeK Computer Inc. erklärt hiermit, dass dieses Ger ät mit den wesentlichen Anforderungen und anderen relevanten Bestimmungen der Richtlinie 2014/53/EU übereinstimmt. Der gesamte Text der EU- Konformitätserklärung ist verfügbar unter : https://www.asus.c om/ support/. Italiano ASUSTek Computer Inc. con la presente dichiara che questo dispositivo è conforme ai requisiti essenziali e alle altre disposizioni pertinenti con la direttiva 2014/53/EU. I l t esto completo della dichiarazione di conformità UE è disponibile all’indirizzo: https:// www.asus.c om/support/. Čeština Zjednodušené prohlášení o shodě EU Společnost ASUSTek Computer Inc. tímto prohlašuje, ž e toto zaříz ení splňuje základní požadavky a další příslušná ustanovení směrnice 2014/53/ EU. Plné znění prohlášení o shodě EU je k dispozici na adrese https://www.asus.c om/support/. Model:Mouse: CW100-M Keyboard: CW100Wir eless Receiver : CW100-D Hardware Version:Mouse: 0.6Keyboard: 1.0Wir eless Receiver : VER01 Software Version:Mouse: V3.4.9Keyboard: 1.0.3Wir eless Receiver : 1.96E UKCA RF Output table (The Radio Equipment Regulations 2017) Max Output Power (EIRP):Mouse: 0 dBmKeyboard: 0 dBmWir eless Receiver : 0 dBm Operating Frequency Range: Mouse: 2402 MHz - 2480 MHz Keyboard: 2404 MHz - 2478 MHz Wir eless Receiver : 2402-2480 MHz CE RED RF Output table (Dir ective 2014/53/EU) Max Output Power (EIRP):Mouse: 0 dBmKeyboard: 0 dBmWir eless Receiver : 0 dBm Operating Frequency Range: Mouse: 2402 MHz - 2480 MHz Keyboard: 2404 MHz - 2478 MHz Wir eless Receiver : 2402-2480 MHz Frequency Deviation:+/- 50KHz+/- 50KHz+/- 50KHz Modulation Type:GFSK Mouse Resolution:800 / 1000 / 1200 DPI Batt ery:Mouse - AA batt ery x1; Keyboard - AAA batt ery x1 Power Rated:1.5V (Keyboard) / 1.5V (Mouse) / 5V (Dongle) Operation Distance: Keyboard - 10M without signal disturbance and no direction limit Mouse - 10M without signal disturbance and no direction limit Keyboard Dimension:445.11mm x 133.21mm x 26.82mm; Weight: 489.5g (without batt ery) Mouse Dimension:112.55mm x 60.01mm x 36.77mm; Weight: 58.8g (without bat tery) Dongle Dimension:19.52mm x 15.70mm x 6.5mm; Weight: 1.9g Operating Temperature:+5 ̊C ~ +40 ̊CStorage Temperature:-20 ̊C ~ +55 ̊C 簡體中文 English Adjusting DPI C To change the DPI, press the middle and the right buttons on the mouse simultaneously for 3 seconds to toggle between 800dpi, 1000 dpi (default) and 1600 dpi. Installing the batt eries B 1. Insert the batt er ies (one AAA batt ery for keyboard and one AA batt ery for mouse) into the batt ery slots of your keyboard and mouse. 2. Insert the bundled USB dongle into your computer’s USB port. I t takes about ten seconds for the syst em to automatically connect to your wireless keyboard and mouse. Your keyboard and mouse is set at the factory to automatically connect to the syst em. You do not need to press the Connect button on your keyboard and mouse to manually connect to the syst em. • The low batt ery indicator of the mouse is beneath the scroll wheel and that of the keyboard is above the numeric keypad. • Please replace the batt ery when the low batt ery indicator ashes red. Magyar Egyszerűsített EU megfelelőségi nyilatkozat Az ASUSTek Computer Inc. ezennel kijelenti, hogy ez az eszköz megfelel az 2014/53/EU sz. irányelv alapvet ő követ elményeinek és egyéb vonatkozó rendelkezéseinek. Az EU megfelelőségi nyilatkozat teljes szövegét a következő weboldalon tekin theti meg: https://www.asus.c om/support/. Polski Uproszczona deklaracja zgodności UE Firma ASUSTek Computer Inc. niniejszym oświadcza, że urządzenie to jest zgodne z zasadniczymi wymogami i innymi właściwymi postanowieniami dyrektywy 2014/53/EU. Pełny tekst deklaracji zgodności UE jest dostępny pod adresem https://www.asus.c om/ support/. Português A ASUSTek Computer Inc. declara que este dispositivo está em conformidade com os requisitos essenciais e outras disposições relevantes da Diretiva 2014/53/UE. O texto integral da declaração de conf ormidade da UE está d is poní vel em h ttps://www.asus.c om/ support/. Romană Declarație de conformitate UE, versiune Prin prezenta, ASUSTek Computer Inc. declară că acest dispozitiv este în conformitate cu reglementările esențiale și cu celelalte prevederi r elevante ale Directivei 2014/53/UE. Textul complet al declarației de conformitate UE este disponibil la adresa https://www. asus.c om/support/. Русский Упрощенное заявление о соответствии европейской директиве ASUSTek Computer Inc. заявляет, что устройство соответствует основным требованиям и другим соответствующ…

Text truncated - open the document above for the full version.

DM-1112R Wireless Mouse Block Diagram 2.4G SOC Mouse U1， The HTS9206A6 is a member of the low-cost, high-performance family of intelli- gent 2.4 GHz RF transceivers, U4 The QX2340 L22Tis DC/DC 2.2V power IC U3 The FCT3065-XY(D) ULTRA LOW POWER WIRELESS MOUSE SENSOR Y1 16MHZ crystal for U1 Work clock; SENSOR U2 RF IC U1 PCB Antenna power IC SPI AA Dry cell USB Dongl e PC PCB Anten na U4 Y1 crystal 16MHZ I²C LB,RB,MBButtons& 3D rollers 利用 pdfFactory Pro 测试版本创建的PDF文档 www.pdffactory.com

ASUSTeK Computer Inc 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan Date: August 13, 2021 Declaration of Authorization We Name: ASUSTeK Computer Inc Address: 1F, No. 15, Lide Rd. City: Beitou, Taipei State: N/A Country: Taiwan Declare that Agent Company name: A Test Lab Techno Corp. Address: No. 140-1, Changan Street, Bade District, City: Taipei Country: Taiwan Is authorized to apply for Certification of the following product(s) Product Name: Wireless Keyboard and Mouse Set CW100 Model: CW100-M FCC ID: MSQ-MS-CW100-M Trademark: ASUS on our behalf This is valid until December 31, 2021, or until FCC certification are completed, whichever comes sooner. City: Beitou, Taipei Name: Jackson Yen Function: Associate Vice President Signature:

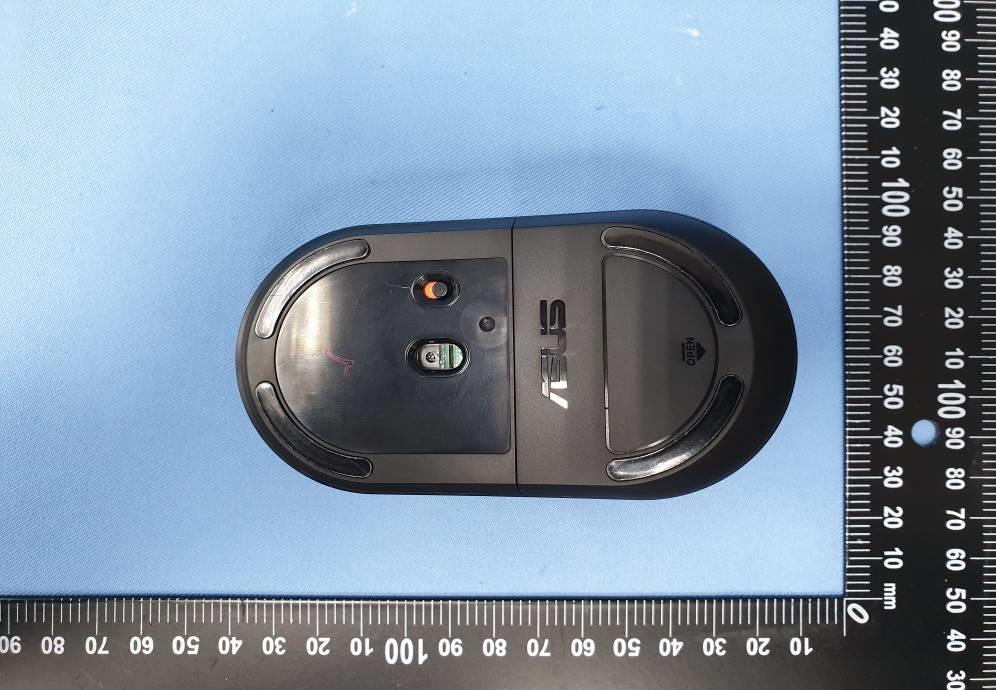

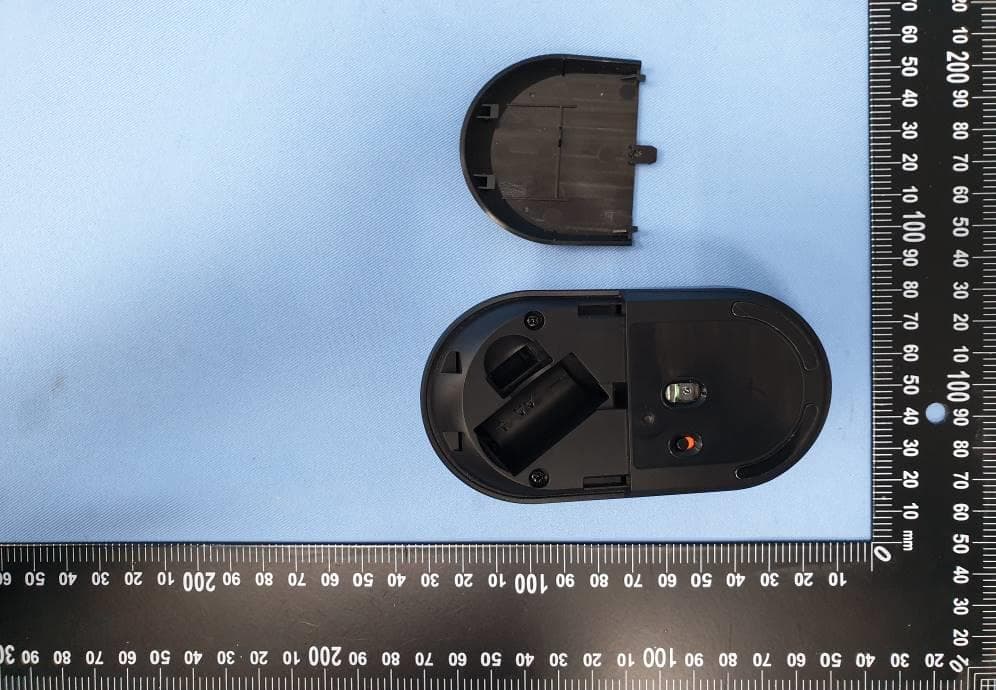

Page 1 of 5 External Photos Model Number: CW100-M Page 2 of 5 EUT Photo (1) EUT Photo (2) Page 3 of 5 EUT Photo (3) EUT Photo (4) Page 4 of 5 EUT Photo (5) EUT Photo (6) Page 5 of 5 EUT Photo (7) EUT Photo (8)

Page 1 of 4 Internal Photos Model Number: CW100-M Page 2 of 4 EUT Photo (1) EUT Photo (2) Page 3 of 4 EUT Photo (3) EUT Photo (4) SRD ANT. Page 4 of 4 EUT Photo (5)

Operational Description This device is a mouse which includes 2.4G GFSK function and FCC ID is MSQ-MS-CW100-M. It uses the related information as below. Description： Frequency Range 2.4GHz (2402-2480 MHz) Modulation GFSK Number of Channel 40CH Antenna Specification Manufacturer Dongguan Xinshenchuang Electronic Technology Co Ltd /DongGuan Qiaohe Electronics CO.,LTD Model DM-1112R/DM-1102R Type PCB Antenna ANT Gain (dBi) 0.9dBi

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2021/2/4 Sheet of File: E:\1 电子资料库 \..\DM1102R HTS9206A6+PAW3205 sch.SchDoc Drawn By: P1.1/TEST 1 P0.1 2 P0.7 3 P0.6 4 P0.5 5 P2.1 6 VSS 7 VDD 8 P0.4 9 P0.3 10 P1.0 11 P1.6 12 P1.7/LDET 13 XTALN 14 XTALN 15 RFP 16 U1 HTS9206A6 ZADDZDECSCAN_IN0SCAN_IN1SCAN_IN2GND VDD SCLKSDIOMOTIONLED- LOWBAT-DET ANT Y1 16MHZ OSCI 1 OSCO 2 SDIO 3 SCLK 4 LED 5 VSS 6 VDD 7 VDDA 8 U2 PAW3205 R2 NC MotionSDIOSCLK C41UF C310UF VDD R1 220R LED SW1SW3SW5 SCAN_IN0SCAN_IN1SCAN_IN2 R4 0R R3 1K LED2 VDD LED- EN1 ZADDZDEC BAT+ BAT- S2 L2 10UH VIN 2 GND 1 VOUT 3 U4 QX2340 L22T C710UF C847UF VDD C610UF L10.5PF C1 NC C2 NC ANT LOWBAT-DET 1.5V VDD V0.1 2021.02.04 DM1102R HTS9206A6+PAW3205 Siliten Electronics Co., Ltd C16 NC C17 NC

Note: 1.The test results are valid only for samples provided by customers and under the test conditions described in this report. 2.This report shall not be reproduced except in full, without the written approval of A Test Lab Technology Corporation. 3.The relevant information is provided by customers in this test report. According to the correctness, appropriateness or completeness of the information provided by the customer, if there is any doubt or error in the information which affects the validity of the test results, the laboratory does not take the responsibility. RF Test Report Applicant ： ASUSTeK COMPUTER INC. Product Type ： Wireless Keyboard and Mouse Set CW100 Trade Name ： ASUS Model Number ： CW100-M Applicable Standard ： FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2009 Received Date ： Jul. 08, 2021 Test Period ： Jul. 12 ~ Jul. 29, 2021 Issued Date ： Aug. 19, 2021 Issued by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 Frequency Range : 9 kHz to 40 GHz Test Firm MRA designation number: TW0010 Report Number2107FR44 Rev.01 Page 1 of 35 Revision History Rev. Issued Date Revisions Revised By 00 Aug. 05, 2021 Initial Issue Yu Chiang 01 Aug. 19, 2021 Revised 2 chapter(P.6) Yu Chiang Report Number2107FR44 Rev.01 Page 2 of 35 Ve r i f i c a t i o n o f C o m p l i a n c e Applicant : ASUSTeK COMPUTER INC. Product Type : Wireless Keyboard and Mouse Set CW100 Trade Name : ASUS Model Number : CW100-M FCC ID : MSQ-MS-CW100-M EUT Rated Voltage : DC 1.5 V, 10 mA Test Voltage : DC 1.5 V Applicable Standard : FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2009 Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade District, Taoyuan City 33465, Taiwan (R.O.C.) Tel：+886-3-2710188 / Fax：+886-3-2710190 Taiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm A Test Lab Techno Corp. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by A Test Lab Techno Corp. based on interpretations and/or observations of test results. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved By ： (Manager) (Ken Yang) Report Number2107FR44 Rev.01 Page 3 of 35 TABLE OF CONTENTS 1 General Information ......................................................................................................... 5 1.1. Summary of Test Result ........................................................................................... 5 1.2. Measurement Uncertainty ........................................................................................ 5 2 EUT Description................................................................................................................ 6 3 Test Methodology ............................................................................................................. 7 3.1. Mode of Operation ................................................................................................... 7 3.2. EUT Test Step .......................................................................................................... 7 3.3. Configuration of Test System Details ....................................................................... 7 3.4. Test Instruments ...................................................................................................... 8 3.5. Test Site Environment .............................................................................................. 8 4 Measurement Procedure .................................................................................................. 9 4.1. Radiated Emission Measurement ............................................................................ 9 4.2. Band Edges Measurement .................................................................................... 13 4.3. 20 dB Bandwidth Measurement ............................................................................. 14 4.4. Antenna Measurement .......................................................................................... 15 5 Test Results .................................................................................................................... 16 Annex A. Conducted Test Results .................................................................................... 16 Annex B. Radiated Emission Measurement ..................................................................... 18 Radiated Emission Measurement ..................................................................................... 18 Report Number2107FR44 Rev.01 Page 4 of 35 1 General Information 1.1. Summary of Test Result Standard Item Result Remark 15.207 AC Power Conducted Emission N/A This device use DC power source. 15.249(a) Transmitter Radiated Emissions PASS ----- 15.249(d) Band Edge Measurement PASS ----- 15.215(c) 20 dB RF Bandwidth PASS ----- - Occupied Bandwidth Measurement Reference ----- 15.203 Antenna Requirement PASS ----- Standard Description CFR47, Part 15, Subpart C Intentional Radiators ANSI C63. 10: 2013 American National Standard of Procedures for Compliance Testing of Unlicensed Wireless Devices Decision Rule ■ Uncertainty is not included. □ Uncertainty is included. 1.2. Measurement Uncertainty Test Item Frequency Range Uncertainty (dB) Radiated Emission 9 kHz ~ 30 MHz 2.2 dB 30 MHz ~ 1000 MHz 5.1 dB 1000 MHz ~ 18000 MHz 5.1 dB 18000 MHz ~ 26500 MHz 4.4 dB 26500 MHz ~ 40000 MHz 4.6 dB RF Bandwidth 4.79 % Report Number2107FR44 Rev.01 Page 5 of 35 2 EUT Description Applicant ASUSTeK COMPUTER INC. 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan Manufacturer ASUSTeK COMPUTER INC. 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112…

Text truncated - open the document above for the full version.

Test Setup Photographs Radiated Emissions Test Configuration: Description: Below 1 GHz _ Front View Description: Below 1 GHz _ Rear View Report Number2107FR44 Rev.00 Page 1 of 2 Description: Above 1 GHz _ Front View Description: Above 1 GHz _ Rear View Report Number2107FR44 Rev.00 Page 2 of 2
