MSQ-PCEAC66Dual Band 3x3 802.11ac PCI-E Adapter

Quick Start Guide PCE-AC66 Wireless Local Area Network Card (For 802.11 a/g/b/n/ac Wireless Networks) ® ! Setting up a Home Network 1. Insert the support CD into the optical drive and follow the onscreen instructions to complete the installation. 2. When the setup is complete, connect your desktop PC to the Internet wirelessly via PCE-AC66. 3. Adjust the magnetic antenna base to get the best signal with your router. English 1. Insert the support CD into the optical drive and follow the onscreen instructions to complete the installation. 2. When the setup is complete, connect your desktop PC to the Internet wirelessly via PCE-AC66. 3. Adjust the magnetic antenna base to get the best signal with your router. Français 1. Insérez le CD de support dans le lecteur optique de votre ordinateur puis suivez les instructions apparaissant à l’écran. 2. Une fois la configuration terminée, connectez votre ordinateur au réseau sans fil par le biais du PCE-AC66. 3. Ajustez la base de l’antenne magnétique pour améliorer la qualité du signal sans fil du routeur. Deutsch 1. Legen Sie die Support-CD in das optische Laufwerk und folgen Sie den Bildschirmanweisungen, um die Installation fertig zu stellen. 2. Nach der Einrichtung verbinden Sie Ihren Desktop-PC per PCE-AC66 kabellos mit dem Internet. 3. Stellen Sie die magnetische Antennenbasis so ein, dass Ihr Router ein möglichst kräftiges Signal empfängt. Italian 1. I nserire il CD di supporto nell’unità ottica e completare l’installazione seguendo le istruzioni sullo schermo. 2. Quando la configurazione è stata completata, collegare il desktop a Internet mediante connessione wireless tramite PCE-AC66. 3. Regolare l'antenna magnetica per captare il segnale migliore con il router. Lietuvių 1. Įdėkite pagalbos kompaktinį (CD) diską į optinę tvarkyklę ir vadovaukitės nuorodomis ekrane, norėdami baigti įdiegimą. 2. Kai sąranka užbaigta, prijunkite darbalaukio kompiuterį prie belaidžio interneto naudodamiesi PCE-AC66. 3. Sureguliuokite magnetinį antenos pagrindą, kad maršrutizatorius gautų geriausią signalą. Latviski 1. Ielieciet atbalsta CD optiskajā diskdzinī un izpildiet ekrānā redzamos norādījumus instalācijas veikšanai. 2. Kad pabeigta iestatīšana, pieslēdziet galddatoru internetam ar bezvadu savienojumu, izmantojot PCE-AC66. 3. Noregulējiet magnētisko antenas pamatni, lai saņemtu labāko maršrutētāja signālu. Português 1. Insira o CD de suporte na unidade óptica e siga as instruções no ecrã para concluir a instalação. 2. Quando a instalação estiver concluída, ligue o seu PC à Internet sem fios através da placa PCE-AC66. 3. Ajuste a antena magnética para captar o melhor sinal do seu router. Română 1. Introduceţi CD de instalare în drive-ul optic şi urmaţi instrucţiunile de pe ecran pentru a finaliza instalarea. 2. După finalizarea configurării, conectaţi PC-ul la internet fără fir, prin intermediul unităţii PCE-AC66. 3. Reglaţi antena pentru a obţine cel mai bun semnal cu routerul dvs. Polski 1. Włóż płytę CD z oprogramowaniem do napędu optycznego i postępuj zgodnie z instrukcjami 2. Po zakończeniu ustawień, połącz komputer desktop PC z internetem bezprzewodowo, przez PCE-AC66. 3. Wyreguluj podstawę magnetyczną anteny, aby uzyskać najlepszy sygnał połączenia z routerem. Español 1. Inserte el CD de soporte en la unidad óptica y siga las instrucciones que aparecerán en la pantalla para llevar a cabo la instalación. 2. Cuando el programa de instalación se complete, conecte su equipo de escritorio a Internet de forma inalámbrica a través de PCE-AC66. 3. Ajuste la base de antena magnética para obtener la mejor señal con su enrutador. Українська 1. Вставте компакт-диск підтримки до оптичного дисководу і виконуйте інструкції на екрані, щоб завершити інсталяцію. 2. Коли настроювання завершене, встановіть бездротове підключення стаціонарного ПК до Інтернет до PCE-AC66. 3. Відрегулюйте основу магнітної антени, щоб отримати найкращий прийом сигналу маршрутизатором. Nederlands 1. Stop de ondersteunings-cd in het optische station en volg de instructies op het scherm om de installatie te voltooien. 2. Wanneer de installatie is voltooid, kunt u met uw desktopcomputer een draadloze internetverbinding maken via PCE-AC66. 3. Stel de magnetische antennevoet af om het beste signaal te ontvangen met uw router. Ελληνικά 1. Εισάγετε το CD υποστήριξης στη μονάδα οπτικού δίσκου και ακολουθήστε τις οδηγίες που εμφανίζονται στην οθόνη για να ολοκληρώσετε την εγκατάσταση. 2. Όταν ολοκληρωθεί η εγκατάσταση, συνδέστε τον επιτραπέζιο Η/Υ ασύρματα στο internet μέσω του PCE- AC66. 3. Προσαρμόστε τη μαγνητική κεραία για να λαμβάνετε το καλύτερο δυνατό σήμα με το δρομολογητή σας. 한국어 1. 지원 CD를 옵티컬 드라이브에 삽입하시고 설치를 완료하기 위해 화면 상의 지시를 따르십시오. 2. 설치가 완료되면 PCE-AC66를 통해 원격으로 데스크톱 PC를 인터넷에 연결하십시오. 3. 마그네틱 안테나 받침대를 조정하여 라우터가 최고의 신호를 수신하도록 하십시오. Русский 1. Вставьте диск в оптический привод и следуйте инструкциям на экране для завершения установки. 2. После завершения настройки подключите Ваш ПК к сети Интернет через PCE-AC66. 3. Расположите антенну для обеспечения наилучшего сигнала. Eesti 1. Sisestage tugi-CD optilisse kettaseadmesse ja järgige ekraanijuhiseid, et installimine lõpule viia. 2. Kui häälestus on lõpule viidud, siis ühendage lauaarvuti traadita Internetiga, kasutades ruuterit PCE- AC66. 3. Reguleerige magnetantenni alust, et ruuter leiaks tugevaima signaali. Magyar 1. Helyezze a támogató CD-t az optikai meghajtóba és kövesse a képernyőn megjelenő utasításokat a telepítés elvégzéséhez. 2. A telepítés végén csatlakoztassa az asztali PC-t vezeték nélküli az internethez a PCE-AC66 eszközön keresztül. 3. Állítsa más irányba a mágneses antennatalpat a router lehető legjobb vétele érdekében. Slovensky 1 Do optickej mechaniky vložte CD s podporou a inštaláciu vykonajte podľa pokynov na obrazovke. 2. Po dokončení inštalácie pripojte svoj stolový PC k internetu bezdrôtovým spôsobom pomocou PCE- AC66. 3. Nastavte magnetickú základňu antény na dosiahnutie najlepšieho signálu z vášho smerovača. Čeština …

Text truncated - open the document above for the full version.

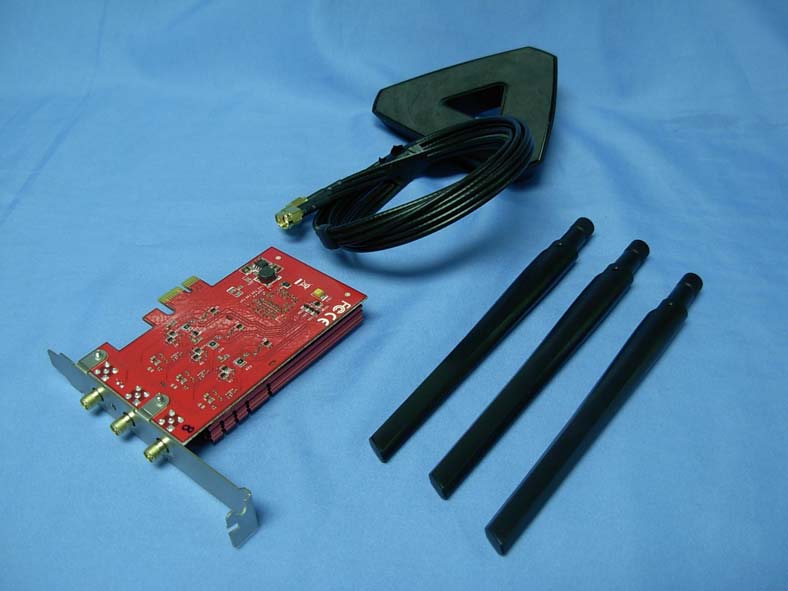

Report No： 12A126R-RFUSP42V01 Page: 352 of 356 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

Comment email for FCC assessment of project 12A126R , PCE-AC66 : The triangle is connected to the module through the cable.

Model : PCE-AC66 IC: 3568A-PCEAC66 FCC ID:MSQ-PCEAC66 CMIIT ID: ASUS PCE-AC66 D33005

ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. FCC ID.: MSQ-PCEAC66 FCC ID AND DoC Label

Report No： 12A126R-RFUSP42V01 Page: 353 of 356 (3) EUT Photo (4) EUT Photo Report No： 12A126R-RFUSP42V01 Page: 354 of 356 (5) EUT Photo (6) EUT Photo Report No： 12A126R-RFUSP42V01 Page: 355 of 356 (7) EUT Photo (MB) Report No： 12A126R-RFUSP42V01 Page: 356 of 356 (8) EUT Photo (Ant.) (9) EUT Photo (Ant.)

Report No. 12A126R-RF-US-Exp Page: 1 of 8 RF Exposure Evaluation declaration Product Name ： Dual Band 3x3 802.11ac PCI-E Adapter Model No. ： PCE-AC66 FCC ID. ： MSQ-PCEAC66 Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, LI-TE RD., PEITOU, TAIPEI, TAIWAN R.O.C. Date of Receipt : 2012/10/04 Date of Declaration : 2012/11/19 Report No. : 12A126R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 12A126R-RF-US-Exp Page: 2 of 8 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12A126R-RF-US-Exp Page: 3 of 8 1.3. Test Result of RF Exposure Evaluation Product Dual Band 3x3 802.11ac PCI-E Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 642.6877 0.20264 6 2437 743.0191 0.23428 11 2462 647.1426 0.20405 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 570.1643 0.17978 6 2437 826.0379 0.26045 11 2462 347.5362 0.10958 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 12A126R-RF-US-Exp Page: 4 of 8 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 826.0379 0.26045 6 2437 756.8329 0.23863 11 2462 712.8530 0.22477 IEEE 802.11n (40MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 683.9116 0.21564 6 2437 687.0684 0.21664 9 2452 677.6415 0.21366 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 12A126R-RF-US-Exp Page: 5 of 8 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 29.58 0.0093 40 5220 28.77 0.0090 44 5240 30.48 0.0096 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 805.38 0.2531 157 5785 826.04 0.2596 165 5825 845.28 0.2657 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 12A126R-RF-US-Exp Page: 6 of 8 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 28.18 0.0089 40 5220 30.48 0.0096 44 5240 27.99 0.0088 IEEE 802.11 n(20MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 769.13 0.2418 157 5785 774.46 0.2434 165 5825 772.68 0.2429 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 12A126R-RF-US-Exp Page: 7 of 8 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 38 5190 48.75 0.0153 46 5230 48.08 0.0151 IEEE 802.11 n(40MHz) (ANT 0+1+2) WLAN Fun…

Text truncated - open the document above for the full version.

Report No： 12A126R-RFUSP42V01 Page: 1 of 356 Test Report Product Name ： Dual Band 3x3 802.11ac PCI-E Adapter Model No. ： PCE-AC66 FCC ID. ： MSQ-PCEAC66 Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt： 2012/10/04 Issued Date ：2012/11/19 Report No. ：12A126R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 12A126R-RFUSP42V01 Page: 2 of 356 Test Report Certification Issued Date : 2012/11/19 Report No. : 12A126R-RFUSP42V01 Product Name ： Dual Band 3x3 802.11ac PCI-E Adapter Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer : Arcadyan Technology Corporation Model No. ： PCE-AC66 FCC ID. ： MSQ-PCEAC66 EUT Voltage : DC 3.3V (Power by PC) Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247:2011 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Adm. Specialist) Tested By : ( Ben Huang / Assistant Engineer) Approved By : ( Roy Wang / Manager ) Report No： 12A126R-RFUSP42V01 Page: 3 of 356 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 NCC, Certificate No : NCC-RCB-07 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 12A126R-RFUSP42V01 Page: 4 of 356 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 6 1.1. EUT Description ............................................................................................................. 6 1.2. Test Mode ..................................................................................................................... 12 1.3. Operational Description ................................................................................................ 13 1.4. Tested System Details .................................................................................................. 14 1.5. Configuration of tested System .................................................................................... 15 1.6. EUT Exercise Software ................................................................................................ 16 1.7. Test Facility...................................................................................................................17 2. Conducted Emission .......................................................................................................... 18 2.1. Test Equipment............................................................................................................. 18 2.2. Test Setup .................................................................................................................... 18 2.3. Limits ............................................................................................................................ 19 2.4. Test Procedure ............................................................................................................. 19 2.5. Test Specification.......................................................................................................... 19 2.6. Uncertainty ................................................................................................................... 19 2.7. Test Result....................................................................................................................20 2.8. Test Photo .................................................................................................................... 24 3. Peak Power Output ............................................................................................................ 25 3.1. Test Equipment............................................................................................................. 25 3.2. Test Setup .................................................................................................................... 25 3.3. Test procedures ............................................................................................................ 25 3.4. Limits ............................................................................................................................ 25 3.5. Test Specification.......................................................................................................... 25 3.6. Uncertainty ................................................................................................................... 25 3.7. Test Result................................................................…

Text truncated - open the document above for the full version.

Report No： 12A126R-RFUSP42V01 Page: 24 of 356 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 12A126R-RFUSP42V01 Page: 151 of 356 4.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No： 12A126R-RFUSP42V01 Page: 152 of 356 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
