MSQ-PCEAC68Dual Band 3x3 802.11ac PCI-E Adapter

Quick Start Guide PCE-AC68 Wireless Local Area Network Card (For 802.11 a/g/b/n/ac Wireless Networks) ® ! Setting up a Home Network 3. Launch the ASUS Utility to configure PCE-AC68. 1. Insert the support CD into the optical drive and follow the onscreen instructions to complete the installation. 2. When the setup is complete, connect your desktop PC to the Internet wirelessly via PCE-AC68. 4. Adjust the magnetic antenna base to get the best signal with your router. English 1. Insert the support CD into the optical drive and follow the onscreen instructions to complete the installation. 2. When the setup is complete, connect your desktop PC to the Internet wirelessly via PCE-AC68. 3. Launch the ASUS Utility to configure PCE-AC68. 4. Adjust the magnetic antenna base to get the best signal with your router. Français 1. Insérez le CD de support dans le lecteur optique de votre ordinateur puis suivez les instructions apparaissant à l’écran. 2. Une fois la configuration terminée, connectez votre ordinateur au réseau sans fil par le biais du PCE-AC68. 3. Exécutez l’utilitaire sans fil ASUS pour configurer le PCE-AC68. 4. Ajustez la base de l’antenne magnétique pour améliorer la qualité du signal sans fil du routeur. Deutsch 1. Legen Sie die Support-CD in das optische Laufwerk und folgen Sie den Bildschirmanweisungen, um die Installation fertig zu stellen. 2. Nach der Einrichtung verbinden Sie Ihren Desktop-PC per PCE-AC68 kabellos mit dem Internet. 3. Starten Sie das ASUS Utility zur PCE-AC68-Konfiguration. 4. Stellen Sie die magnetische Antennenbasis so ein, dass Ihr Router ein möglichst kräftiges Signal empfängt. Italian 1. Inserire il CD di supporto nell’unità ottica e completare l’installazione seguendo le istruzioni sullo schermo. 2. Quando la configurazione è stata completata, collegare il desktop a Internet mediante connessione wireless tramite PCE- AC68. 3. Lanciare l'utility ASUS per configurare PCE-AC68. 4. Regolare l'antenna magnetica per captare il segnale migliore con il router. Lietuvių 1. Įdėkite pagalbos kompaktinį (CD) diską į optinę tvarkyklę ir vadovaukitės nuorodomis ekrane, norėdami baigti įdiegimą. 2. Kai sąranka užbaigta, prijunkite darbalaukio kompiuterį prie belaidžio interneto naudodamiesi PCE-AC68. 3. Paleiskite ASUS paslaugų programą, kad konfigūruotumėte PCE-AC68. 4. Sureguliuokite magnetinį antenos pagrindą, kad maršrutizatorius gautų geriausią signalą. Latviski 1. Ielieciet atbalsta CD optiskajā diskdzinī un izpildiet ekrānā redzamos norādījumus instalācijas veikšanai. 2. Kad pabeigta iestatīšana, pieslēdziet galddatoru internetam ar bezvadu savienojumu, izmantojot PCE-AC68. 3. Palaidiet ASUS utilītprogrammu, lai konfigurētu PCE-AC68. 4. Noregulējiet magnētisko antenas pamatni, lai saņemtu labāko maršrutētāja signālu. Português 1. Insira o CD de suporte na unidade óptica e siga as instruções no ecrã para concluir a instalação. 2. Quando a instalação estiver concluída, ligue o seu PC à Internet sem fios através da placa PCE-AC68. 3. Execute o Utilitário ASUS para configurar a placa PCE-AC68. 4. Ajuste a antena magnética para captar o melhor sinal do seu router. Română 1. Introduceţi CD de instalare în drive-ul optic şi urmaţi instrucţiunile de pe ecran pentru a finaliza instalarea. 2. După finalizarea configurării, conectaţi PC-ul la internet fără fir, prin intermediul unităţii PCE-AC68. 3. Lansaţi utilitarul ASUS pentru a configura unitatea PCE-AC68. 4. Reglaţi antena pentru a obţine cel mai bun semnal cu routerul dvs. Polski 1. Włóż płytę CD z oprogramowaniem do napędu optycznego i postępuj zgodnie z instrukcjami 2. Po zakończeniu ustawień, połącz komputer desktop PC z internetem bezprzewodowo, przez PCE-AC68. 3. Uruchom ASUS Utility w celu konfiguracji PCE-AC68. 4. Wyreguluj podstawę magnetyczną anteny, aby uzyskać najlepszy sygnał połączenia z routerem. Español 1. Inserte el CD de soporte en la unidad óptica y siga las instrucciones que aparecerán en la pantalla para llevar a cabo la instalación. 2. Use la utilidad ASUS para configurar la tarjeta PCE-AC68. 3. Cuando el programa de instalación se complete, conecte su equipo de escritorio a Internet de forma inalámbrica a través de PCE-AC68. 4. Inicie la utilidad de ASUS para configurar PCE-AC68. 5. Ajuste la base de antena magnética para obtener la mejor señal con su enrutador. Українська 1. Вставте компакт-диск підтримки до оптичного дисководу і виконуйте інструкції на екрані, щоб завершити інсталяцію. 2. Коли настроювання завершене, встановіть бездротове підключення стаціонарного ПК до Інтернет до PCE-AC68. 3. Запустіть утиліту ASUS, щоб конфігурувати PCE-AC68. 4. Відрегулюйте основу магнітної антени, щоб отримати найкращий прийом сигналу маршрутизатором. Nederlands 1. Stop de ondersteunings-cd in het optische station en volg de instructies op het scherm om de installatie te voltooien. 2. Wanneer de installatie is voltooid, kunt u met uw desktopcomputer een draadloze internetverbinding maken via PCE-AC68. 3. Start het ASUS-hulpprogramma om PCE-AC68 te configureren. 4. Stel de magnetische antennevoet af om het beste signaal te ontvangen met uw router. Ελληνικά 1. Εισάγετε το CD υποστήριξης στη μονάδα οπτικού δίσκου και ακολουθήστε τις οδηγίες που εμφανίζονται στην οθόνη για να ολοκληρώσετε την εγκατάσταση. 2. Όταν ολοκληρωθεί η εγκατάσταση, συνδέστε τον επιτραπέζιο Η/Υ ασύρματα στο internet μέσω του PCE-AC68. 3. Εκκινήστε το Βοηθητικό πρόγραμμα για να διαμορφώσετε το PCE-AC68. 4. Προσαρμόστε τη μαγνητική κεραία για να λαμβάνετε το καλύτερο δυνατό σήμα με το δρομολογητή σας. 한국어 1. 지원 CD를 옵티컬 드라이브에 삽입하시고 설치를 완료하기 위해 화면 상의 지시를 따르십시오. 2. 설치가 완료되면 PCE-AC68를 통해 원격으로 데스크톱 PC를 인터넷에 연결하십시오. 3. ASUS 유틸리티를 시작하여 PCE-AC68 을 구성하십시오. 4. 마그네틱 안테나 받침대를 조정하여 라우터가 최고의 신호를 수신하도록 하십시오. Srpski 1. Ubacite CD za podršku u optički drajv i pratite uputstva na ekranu da završite instalaciju. 2. Kada je instaliranje završeno, bežično povežite svoj desktop PC na internet preko PCE-AC68. 3. Pokrenite ASUS Utility (ASUS pomoćni program) da …

Text truncated - open the document above for the full version.

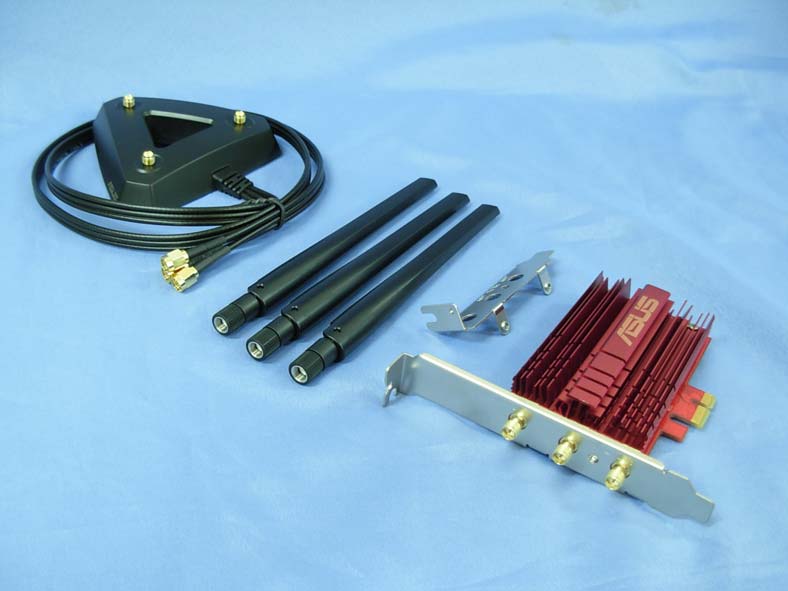

Report No： 137132R-RFUSP42V01 Page: 504 of 510 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. FCC ID.: MSQ- PCEAC68 FCC ID AND DoC Label

Report No： 137132R-RFUSP42V01 Page: 505 of 510 (3) EUT Photo (4) EUT Photo Report No： 137132R-RFUSP42V01 Page: 506 of 510 (5) EUT Photo (6) EUT Photo Report No： 137132R-RFUSP42V01 Page: 507 of 510 (7) EUT Photo (8) EUT Photo Report No： 137132R-RFUSP42V01 Page: 508 of 510 (9) EUT Photo Report No： 137132R-RFUSP42V01 Page: 509 of 510 (10) EUT Photo (MB) Report No： 137132R-RFUSP42V01 Page: 510 of 510 (11) EUT Photo (12) EUT Photo (Dipole Antenna)

Report No. 137132R-RF-US-Exp Page: 1 of 12 RF Exposure Evaluation Declaration Product Name ： Dual Band 3x3 802.11ac PCI-E Adapter Model No. ： PCE-AC68 FCC ID. ： MSQ-PCEAC68 Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt : 2013/07/02 Date of Declaration : 2013/08/29 Report No. : 137132R-RF-US-Exp Report Version : V4.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 137132R-RF-US-Exp Page: 2 of 12 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 137132R-RF-US-Exp Page: 3 of 12 1.3. Test Result of RF Exposure Evaluation Product Dual Band 3x3 802.11ac PCI-E Adapter Test Mode Mode 1: Transmit (CDD mode) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3dBi or 2 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b(ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 639.7348 0.25454 6 2437 623.7348 0.24818 11 2462 260.6154 0.10370 IEEE 802.11g(ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 283.1392 0.11266 6 2437 615.1769 0.24477 11 2462 154.5254 0.06148 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 137132R-RF-US-Exp Page: 4 of 12 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Mode Mode 1: Transmit (CDD mode) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3dBi or 2 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 224.3882 0.08928 6 2437 561.0480 0.22323 11 2462 140.9289 0.05607 IEEE 802.11n (40MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 112.2018 0.04464 6 2437 210.3778 0.08371 9 2452 71.9449 0.02863 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 137132R-RF-US-Exp Page: 5 of 12 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Mode Mode 1: Transmit (CDD mode) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3dBi or 2 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a(ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 16.5196 0.00657 40 5220 16.8655 0.00671 44 5240 16.9044 0.00673 IEEE 802.11a(ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 626.6139 0.24932 157 5785 653.1306 0.25987 165 5825 620.8690 0.24704 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 137132R-RF-US-Exp Page: 6 of 12 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Mode Mode 1: Transmit (CDD mode) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3dBi or 2 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 19.2309 0.00765 40 5220 18.8365 0.00749 44 5240 19.3642 0.00770 IEEE 802.11 n(20MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 533.3349 0.21221 157 5785 612.3504 0.24365 165 5825 588.8437 0.23429 Report No. 137132R-RF-US-Exp Page: 7 of 12 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Mode Mode 1: Transmit (CDD mode) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3dBi or 2 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 38 5190 36.5595 0.01455 46 5230 39.8107 0.01584 IEEE 802.11 n(40MHz) (ANT 0+1+2) WLAN Function Channel Cha…

Text truncated - open the document above for the full version.

Report No：137132R-RFUSP46V01 Page: 1 of 277 FCC Test Report Product Name ： Dual Band 3x3 802.11ac PCI-E Adapter Model No. ： PCE-AC68 FCC ID. ： MSQ- PCEAC68 Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt：2013/07/02 Issued Date ：2013/08/29 Report No. ：137132R-RFUSP46V01 Report Version ：V4.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：137132R-RFUSP46V01 Page: 2 of 277 Test Report Certification Issued Date : 2013/08/29 Report No. : 137132R-RFUSP46V01 Product Name ： Dual Band 3x3 802.11ac PCI-E Adapter Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ： Arcadyan Technology Corporation Model No. ： PCE-AC68 FCC ID. ： MSQ- PCEAC68 EUT Voltage : DC 3.3V (Power by PC) Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.407:2012 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Adm. Specialist) Tested By : ( Sabrina Tsai / Assistant Engineer) Approved By : ( Roy Wang / Manager ) Report No：137132R-RFUSP46V01 Page: 3 of 277 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No：137132R-RFUSP46V01 Page: 4 of 277 TABLE OF CONTENTS Description Page 1. General Information...................................................................................................................... 6 1.1. EUT Description .......................................................................................................................... 6 1.2. Operational Description............................................................................................................. 12 1.3. Test Mode.................................................................................................................................. 13 1.4. Tested System Details............................................................................................................... 14 1.5. Configuration of tested System ................................................................................................. 15 1.6. EUT Exercise Software ............................................................................................................. 16 1.7. Test Facility ............................................................................................................................... 17 2. Conducted Emission .................................................................................................................. 18 2.1. Test Equipment ......................................................................................................................... 18 2.2. Test Setup ................................................................................................................................. 18 2.3. Limits ......................................................................................................................................... 19 2.4. Test Procedure .......................................................................................................................... 19 2.5. Test Specification ...................................................................................................................... 19 2.6. Uncertainty ................................................................................................................................ 19 2.7. Test Result ................................................................................................................................ 20 2.8. Test Photo ................................................................................................................................. 22 3. 99% & 26dB Bandwidth .............................................................................................................. 23 3.1. Test Equipment ......................................................................................................................... 23 3.2. Test Setup ................................................................................................................................. 23 3.3. Limits ......................................................................................................................................... 23 3.4. Test Procedure .......................................................................................................................... 23 3.5. Uncertainty ..............................................................................................................…

Text truncated - open the document above for the full version.

Report No：137132R-RFUSP46V01 Page: 79 of 277 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Item Peak Transmit Output Test Mode Mode 1: Transmit (CDD mode) Date of Test 2013/08/24 Test Site SR7 IEEE 802.11n(40MHz)_ANT 0 Required Limit Channel No. Frequency (MHz) 26dB Bandwidth (MHz) Output Power (dBm) Fixed Limit (dBm) 4+10logB Limit (dBm) Result 38 5190 39.20 10.96 ≤17 ≤19.93 Pass 46 5230 39.22 11.26 ≤ 17 ≤19.93 Pass The worst emission of data rate is 40.5 Mbps Peak Power Output (dBm) MCS Index 16 17 18 19 20 21 22 23 Data Rate Channel No Frequency (MHz) 40.5 81.0 121.5 162.0 243.0 324.0 364.5 405.0 Required Limit 38 5190 10.96 10.95 10.94 10.93 10.92 10.91 10.90 10.89 46 5230 11.26 -- -- -- -- -- -- -- 17dBm or 4dBm+10logB Report No：137132R-RFUSP46V01 Page: 80 of 277 Peak transmit Power - Channel 38 Report No：137132R-RFUSP46V01 Page: 81 of 277 Peak transmit Power - Channel 46 Report No：137132R-RFUSP46V01 Page: 82 of 277 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Item Peak Transmit Output Test Mode Mode 1: Transmit (CDD mode) Date of Test 2013/08/24 Test Site SR7 IEEE 802.11n(40MHz)_ANT 1 Required Limit Channel No. Frequency (MHz) 26dB Bandwidth (MHz) Output Power (dBm) Fixed Limit (dBm) 4+10logB Limit (dBm) Result 38 5190 38.93 10.70 ≤17 ≤19.90 Pass 46 5230 39.09 11.26 ≤ 17 ≤19.92 Pass The worst emission of data rate is 40.5 Mbps Peak Power Output (dBm) MCS Index 16 17 18 19 20 21 22 23 Data Rate Channel No Frequency (MHz) 40.5 81.0 121.5 162.0 243.0 324.0 364.5 405.0 Required Limit 38 5190 10.70 10.69 10.6810.6510.6410.6310.61 10.60 46 5230 11.26 -- -- -- -- -- -- -- 17dBm or 4dBm+10logB Report No：137132R-RFUSP46V01 Page: 83 of 277 Peak transmit Power - Channel 38 Report No：137132R-RFUSP46V01 Page: 84 of 277 Peak transmit Power - Channel 46 Report No：137132R-RFUSP46V01 Page: 85 of 277 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Item Peak Transmit Output Test Mode Mode 1: Transmit (CDD mode) Date of Test 2013/08/24 Test Site SR7 IEEE 802.11n(40MHz)_ANT 2 Required Limit Channel No. Frequency (MHz) 26dB Bandwidth (MHz) Output Power (dBm) Fixed Limit (dBm) 4+10logB Limit (dBm) Result 38 5190 39.11 10.90 ≤17 ≤19.92 Pass 46 5230 38.97 11.16 ≤ 17 ≤19.90 Pass The worst emission of data rate is 40.5 Mbps Peak Power Output (dBm) MCS Index 16 17 18 19 20 21 22 23 Data Rate Channel No Frequency (MHz) 40.5 81.0 121.5 162.0 243.0 324.0 364.5 405.0 Required Limit 38 5190 10.90 10.89 10.8810.8710.8610.8510.84 10.82 46 5230 11.16 -- -- -- -- -- -- -- 17dBm or 4dBm+10logB Report No：137132R-RFUSP46V01 Page: 86 of 277 Peak transmit Power - Channel 38 Report No：137132R-RFUSP46V01 Page: 87 of 277 Peak transmit Power - Channel 46 Report No：137132R-RFUSP46V01 Page: 88 of 277 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Item Peak Transmit Output Test Mode Mode 1: Transmit (CDD mode) Date of Test 2013/08/24 Test Site SR7 IEEE 802.11n(40MHz)_ANT 0+1+2 Total Output Power Channel No. Frequency (MHz) (mW) (dBm) Required Limit (dBm) Result 38 5190 48.75 15.63 ≤17 Pass 46 5230 48.08 16.00 ≤ 17 Pass Report No：137132R-RFUSP46V01 Page: 89 of 277 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Item Peak Transmit Output Test Mode Mode 1: Transmit (CDD mode) Date of Test 2013/08/24 Test Site SR7 IEEE 802.11ac(80MHz)_ANT 0 Required Limit Channel No. Frequency (MHz) 26dB Bandwidth (MHz) Output Power (dBm) Fixed Limit (dBm) 4+10logB Limit (dBm) Result 42 5210 80.57 11.92 ≤17 ≤ 23.06 Pass The worst emission of data rate is 87.9 Mbps. Peak Power Output (dBm) MCS Index 0 1 2 3 4 5 6 7 8 9 Data Rate Channel No Frequency (MHz) 87.9 175.5 263.4 351 526.5 702 789.9 877.5 1053 1170 Required Limit 42 5210 11.92 11.91 11.90 11.89 11.88 11.87 11.86 11.85 11.84 118.317 Peak transmit Power - Channel 42 Report No：137132R-RFUSP46V01 Page: 90 of 277 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Item Peak Transmit Output Test Mode Mode 1: Transmit (CDD mode) Date of Test 2013/08/24 Test Site SR7 IEEE 802.11ac(80MHz)_ANT 1 Required Limit Channel No. Frequency (MHz) 26dB Bandwidth (MHz) Output Power (dBm) Fixed Limit (dBm) 4+10logB Limit (dBm) Result 42 5210 79.72 11.97 ≤17 ≤ 23.01 Pass The worst emission of data rate is 87.9 Mbps. Peak Power Output (dBm) MCS Index 0 1 2 3 4 5 6 7 8 9 Data Rate Channel No Frequency (MHz) 87.9 175.5 263.4 351 526.5 702 789.9 877.5 1053 1170 Required Limit 42 5210 11.97 11.96 11.95 11.94 11.93 11.92 11.91 11.90 11.89 11.8817 Peak transmit Power - Channel 42 Report No：137132R-RFUSP46V01 Page: 91 of 277 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Item Peak Transmit Output Test Mode Mode 1: Transmit (CDD mode) Date of Test 2013/08/24 Test Site SR7 IEEE 802.11ac(80MHz)_ANT 2 Required Limit Channel No. Frequency (MHz) 26dB Bandwidth (MHz) Output Power (dBm) Fixed Limit (dBm) 4+10logB Limit (dBm) Result 42 5210 80.25 11.89 ≤17 ≤ 23.04 Pass The worst emission of data rate is 87.9 Mbps. Peak Power Output (dBm) MCS Index 0 1 2 3 4 5 6 7 8 9 Data Rate Channel No Frequency (MHz) 87.9 175.5 263.4 351 526.5 702 789.9 877.5 1053 1170 Required Limit 42 5210 11.89 11.88 11.87 11.86 11.85 11.84 11.83 11.82 11.81 11.8017 Peak transmit Power - Channel 42 Report No：137132R-RFUSP46V01 Page: 92 of 277 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Item Peak Transmit Output Test Mode Mode 1: Transmit (CDD mode) Date of Test 2013/08/24 Test Site SR7 IEEE 802.11ac(80MHz)_ANT 0+1+2 Total Output Power Channel No. Frequency (MHz) (mW) (dBm) Required Limit (dBm) Result 42 5210 47.20 16.70 ≤17 Pass Report No：137132R-RFUSP46V01 Page: 93 of 277 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Item Peak Transmit Output Test Mode Mode 2: Transmit (Beamforming mode) Date of Test 2013/08/26 Test Site SR7 802.11a Required Limit Channel No. Frequency (MHz) 26dB Bandwidth (MHz) Output Power (dBm) Fixed Limit (dBm) 4+10logB Limit (dBm) Result 36 5180 20.42 12.57 ≤15.23 ≤17.10 Pass 44 5220 20.11 12.69 ≤ 15.23 ≤17.03 Pass 48 5240 20.19 12.74 ≤15.23 ≤17.05 Pass The worst emission of data rate is 6 Mbps. Peak Power Out…

Text truncated - open the document above for the full version.

Report No：137132R-RFUSP46V01 Page: 146 of 277 IEEE 802.11n_40M(ANT 0) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 38 5190 -2.637 ≦2.23 Pass 46 5230 -2.713 ≦2.23 Pass Note: Measure Level =Reading value + cable loss Total Gain: 10log(Ant N) + max Gain = 7.77dBi Limit = 4dBm - ( 7.77dBi - 6dBi ) = 4 – 1.77 = 2.23 dBm Peak Power Spectral Density – Channel 38 Report No：137132R-RFUSP46V01 Page: 147 of 277 Peak Power Spectral Density – Channel 46 Report No：137132R-RFUSP46V01 Page: 148 of 277 IEEE 802.11n_40M(ANT 1) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 38 5190 -2.981 ≦2.23 Pass 46 5230 -2.617 ≦2.23 Pass Note: Measure Level =Reading value + cable loss Total Gain: 10log(Ant N) + max Gain = 7.77dBi Limit = 4dBm - ( 7.77dBi - 6dBi ) = 4 – 1.77 = 2.23 dBm Peak Power Spectral Density – Channel 38 Report No：137132R-RFUSP46V01 Page: 149 of 277 Peak Power Spectral Density – Channel 46 Report No：137132R-RFUSP46V01 Page: 150 of 277 IEEE 802.11n_40M(ANT 2) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 38 5190 -2.683 ≦2.23 Pass 46 5230 -2.656 ≦2.23 Pass Note: Measure Level =Reading value + cable loss Total Gain: 10log(Ant N) + max Gain = 7.77dBi Limit = 4dBm - ( 7.77dBi - 6dBi ) = 4 – 1.77 = 2.23 dBm Peak Power Spectral Density – Channel 38 Report No：137132R-RFUSP46V01 Page: 151 of 277 Peak Power Spectral Density – Channel 46 Report No：137132R-RFUSP46V01 Page: 152 of 277 IEEE 802.11n_40M(ANT 0+1+2) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 38 5190 2.01 ≦2.23 Pass 46 5230 2.11 ≦2.23 Pass Note: Measure Level =Reading value + cable loss Total Gain: 10log(Ant N) + max Gain = 7.77dBi Limit = 4dBm - ( 7.77dBi - 6dBi ) = 4 – 1.77 = 2.23 dBm Report No：137132R-RFUSP46V01 Page: 153 of 277 IEEE 802.11ac_80M(ANT 0) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 42 5210 -2.698 ≤ 2.23 Pass Note: Measure Level =Reading value + cable loss Total Gain: 10log(Ant N) + max Gain = 7.77dBi Limit = 4dBm - ( 7.77dBi - 6dBi ) = 4 – 1.77 = 2.23 dBm Peak Power Spectral Density – Channel 42 Report No：137132R-RFUSP46V01 Page: 154 of 277 IEEE 802.11ac_80M(ANT 1) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 42 5210 -2.954 ≤ 2.23 Pass Note: Measure Level =Reading value + cable loss Total Gain: 10log(Ant N) + max Gain = 7.77dBi Limit = 4dBm - ( 7.77dBi - 6dBi ) = 4 – 1.77 = 2.23 dBm Peak Power Spectral Density – Channel 42 Report No：137132R-RFUSP46V01 Page: 155 of 277 IEEE 802.11ac_80M(ANT 2) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 42 5210 -2.855 ≤ 2.23 Pass Note: Measure Level =Reading value + cable loss Total Gain: 10log(Ant N) + max Gain = 7.77dBi Limit = 4dBm - ( 7.77dBi - 6dBi ) = 4 – 1.77 = 2.23 dBm Peak Power Spectral Density – Channel 42 Report No：137132R-RFUSP46V01 Page: 156 of 277 IEEE 802.11ac_80M(ANT 0+1+2) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 42 5210 1.940 ≤ 2.23 Pass Note: Measure Level =Reading value + cable loss Total Gain: 10log(Ant N) + max Gain = 7.77dBi Limit = 4dBm - ( 7.77dBi - 6dBi ) = 4 – 1.77 = 2.23 dBm Report No：137132R-RFUSP46V01 Page: 157 of 277 Product Dual Band 3x3 802.11ac PCI-E Adapter Test Item Peak Power Spectral Density Test Mode Mode 2: Transmit (Beamforming mode) Date of Test 2013/08/26 Test Site SR7 IEEE 802.11a Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 36 5180 2.042 ≦2.23 Pass 44 5220 2.050 ≦2.23 Pass 48 5240 2.101 ≦2.23 Pass Note: Measure Level =Reading value + cable loss Total Gain: Beamforming Gain + max Gain = 7.77dBi Limit = 4dBm - ( 7.77dBi - 6dBi ) = 4 – 1.77 = 2.23 dBm Peak Power Spectral Density – Channel 36 Report No：137132R-RFUSP46V01 Page: 158 of 277 Peak Power Spectral Density – Channel 44 Report No：137132R-RFUSP46V01 Page: 159 of 277 Peak Power Spectral Density – Channel 48 Report No：137132R-RFUSP46V01 Page: 160 of 277 IEEE 802.11n_20M(ANT 0) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 36 5180 -2.561 ≦2.23 Pass 44 5220 -2.714 ≦2.23 Pass 48 5240 -2.580 ≦2.23 Pass Note: Measure Level =Reading value + cable loss Total Gain: 10log(Ant N) + max Gain = 7.77dBi Limit = 4dBm - ( 7.77dBi - 6dBi ) = 4 – 1.77 = 2.23 dBm Peak Power Spectral Density – Channel 36 Report No：137132R-RFUSP46V01 Page: 161 of 277 Peak Power Spectral Density – Channel 44 Report No：137132R-RFUSP46V01 Page: 162 of 277 Peak Power Spectral Density – Channel 48 Report No：137132R-RFUSP46V01 Page: 163 of 277 IEEE 802.11n_20M(ANT 1) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 36 5180 -2.767 ≦2.23 Pass 44 5220 -2.669 ≦2.23 Pass 48 5240 -2.671 ≦2.23 Pass Note: Measure Level =Reading value + cable loss Total Gain: 10log(Ant N) + max Gain = 7.77dBi Limit = 4dBm - ( 7.77dBi - 6dBi ) = 4 – 1.77 = 2.23 dBm Peak Power Spectral Density – Channel 36 Report No：137132R-RFUSP46V01 Page: 164 of 277 Peak Power Spectral Density – Channel 44 Report No：137132R-RFUSP46V01 Page: 165 of 277 Peak Power Spectral Density – Channel 48 Report No：137132R-RFUSP46V01 Page: 166 of 277 IEEE 802.11n_20M(ANT 2) Channel No. Frequency (MHz) Measure Level (dBm) Required Limit (dBm) Result 36 5180 -2.732 ≦2.23 Pass 44 5220 -2.867 ≦2.23 Pass 48 5240 -2.821…

Text truncated - open the document above for the full version.
