MSQ-PCEN15ASUS 300Mbps 802.11 b/g/n Wireless PCI-E card

ASUSTeK Computer Inc

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Apr 26, 2011
Application Purpose: Original Equipment
Date of Application: Apr 26, 2011
Equipment Note: ASUS 300Mbps 802.11 b/g/n Wireless PCI-E card
Frequency Range: 2422.00000000 - 2452.00000000
Company: ASUSTeK Computer Inc
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual E6557 / April 2011 PCE-N15 Wireless Local Area Network Card (For 802.11 g/b/n Wireless Networks) ® E6557_PCE-N15_Manual.indd 14/8/11 2:56:29 PM Copyright © 2011 ASUSTeK Computer Inc. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. E6557_PCE-N15_Manual.indd 24/8/11 2:56:29 PM Manufacturer contact information ASUSTeK Computer Inc. (Asia-Pacific) Company address: 15 Li-Te Road, Beitou, Taipei 11259 Telephone: +886-2-2894-3447 Fax: +886-2-2890-7798 E-mail: [email protected] Web site: http://www.asus.com.tw ASUS Computer International (America) Company address: 800 Corporate Way, Fremont, CA 94539, USA General (tel): +1-510-739-3777 General (fax): +1-510-608-4555 Web site address: http://usa.asus.com Technical support General support: +1-502-995-0883 Support (fax): +1-502-933-8713 Online support: http://vip.asus.com/eservice/techserv.aspx ASUS Computer GmbH (Germany & Austria) Company address: Harkortstr. 21-23, D-40880 Ratingen, Deutschland General (tel): +49-1805-010-923 General (fax): +49-02102-959911 Web site address: http://www.asus.de Online contact: http://www.asus.de/sales Technical support Components: +49-02102-95990 Fax: +49-02102-959911 Online support: http://vip.asus.com/eservice/techserv.aspx?SLanguage=de-de E6557_PCE-N15_Manual.indd 34/8/11 2:56:29 PM PCE-N15 WLAN Card User Manual 1 ASUS WLAN Card Table of contents Notices.......................................................................................................2 Federal Communications Commission ..................................................2 Prohibition of Co-location .......................................................................2 FCC Radiation Exposure Statement ......................................................2 CE Mark Warning ...................................................................................3 DGT Warning Statement .......................................................................3 IC Warning Statement ............................................................................3 IC Radiation Exposure Statement: .........................................................4 ASUS Recycling/Takeback Services ......................................................4 REACH ..................................................................................................4 1. Introduction ..........................................................................................8 1.1 Package contents .............................................................................8 1.2 System requirements ........................................................................8 1.3 Hardware ..........................................................................................8 2. Installing the PCE-N15 driver and utilities .........................................9 3. Configuring PCE-N15 using ASUS utility ........................................10 3.1 Connecting to a wireless network manually ....................................10 3.2 Connecting to a wireless network using WPS ................................11 3.3 Soft AP mode (Windows ® XP/Vista/7) .............................................13 4. Software information .........................................................................15 4.1 ASUS WLAN Control Center ..........................................................15 4.2 ASUS WLAN Card Setting Utility ....................................................15 5. Configuring PCE-N15 using Windows ® WZC service .....................20 6. Troubleshooting .................................................................................21 7. Glossary ..............................................................................................23 E6557_PCE-N15_Manual.indd 14/8/11 2:56:30 PM PCE-N15 WLAN Card User Manual 2 ASUS WLAN Card Federal Communications Commission This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital dev…

Text truncated - open the document above for the full version.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 2.0 SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw 4/20/2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SPORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: ASUS 300Mbps 802.11 b/g/n Wireless PCI-E card Model Number: PCE-N15 We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature: Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. / Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw

External Photos

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C11 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C12 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255

ID Label/Location Info

FCC ID: MSQ-PCEN15 Model:PCE-N15 35 * 20 mm r :1mm ABN45102398158ME06 IC ID: 3568A-PCEN15 Complies with IDA Standards DB101867 Made in China ASUSTeK Computer Inc. FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C12 OF C12 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 18, 2011 FAX : 886-2-2696-2255 Label location

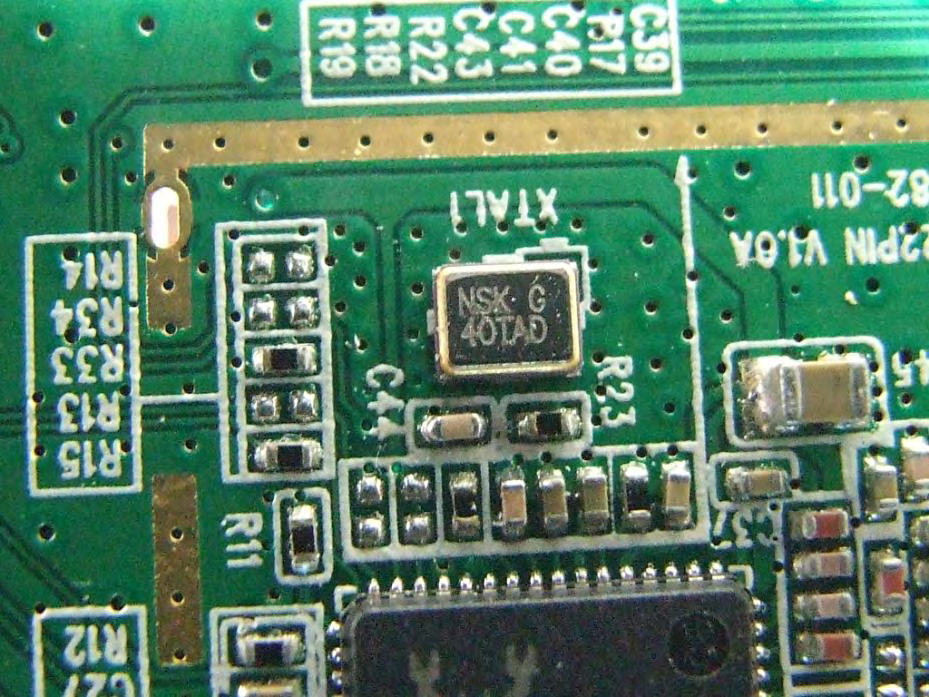

Internal Photos

RF Exposure Info

Page No. : A1 of A2 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AC Appendix A. Maximum Permissible Exposure Page No. : A2 of A2 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AC 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b/g: 20.16dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 5 3.162278 14.81 30.2691 0.0191

RF Exposure Info

Page No. : A1 of A3 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AI Appendix A. Maximum Permissible Exposure Page No. : A2 of A3 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AI 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Page No. : A3 of A3 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AI 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11n (20MHz) port A: 14.78 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 5 3.162278 14.78 30.0608 0.0189 Max Conducted Power for IEEE 802.11n (20MHz) port B: 14.98 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 5 3.162278 14.98 31.4775 0.0198 IEEE 802.11n port A + port B Power Density = 0.0189 + 0.0198 = 0.0387 (mW/cm2) Max Conducted Power for IEEE 802.11n (40MHz) port A: 14.57 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 5 3.162278 14.57 28.6418 0.0180 Max Conducted Power for IEEE 802.11n (40MHz) port B: 14.95 dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 5 3.162278 14.95 31.2608 0.0197 IEEE 802.11n port A + port B Power Density = 0.0180 + 0.0197 = 0.0377 (mW/cm2)

Test Report

SPORTON International Inc. Report Format Version: a F FCC TEST REPORT Report No. : FR133115-01AC FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : ASUS 300Mbps 802.11 b/g/n Wireless PCI-E card Model No. : PCE-N15 Brand Name : ASUS Filing Type : New Application Applicant Manufacturer : ASUSTek Computer INC. No. 150, Li-Te Rd., Peitou, Taipei, 11259 Taiwan FCC ID : MSQ-PCEN15 Received Date : Jan. 31, 2011 Final Test Date : Apr. 12, 2011 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AC Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details ................................................................................................................................................................................... 3 2.2 Table for Filed Antenna ....................................................................................................................................................................... 3 2.3 Table for Carrier Frequencies ............................................................................................................................................................. 3 2.4 Table for Test Modes .......................................................................................................................................................................... 4 2.5 Table for Testing Locations ................................................................................................................................................................. 4 2.6 Table for Supporting Units .................................................................................................................................................................. 4 2.7 Table for Parameters of Test Software Setting .................................................................................................................................... 5 2.8 EUT Operation during Test ................................................................................................................................................................. 5 2.9 Test Configuration ............................................................................................................................................................................... 6 3 TEST RESULT ......................................................................................................................................................... 7 3.1 AC Power Line Conducted Emissions Measurement .......................................................................................................................... 7 3.2 Maximum Peak Output Power Measurement .................................................................................................................................... 11 3.3 Power Spectral Density Measurement .............................................................................................................................................. 13 3.4 6dB Spectrum Bandwidth Measurement ........................................................................................................................................... 19 3.5 Radiated Emissions Measurement .................................................................................................................................................... 25 3.6 Band Edge and Fundamental Emissions Measurement .................................................................................................................... 43 3.7 Antenna Requirements ..................................................................................................................................................................... 48 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 49 5 TEST LOCATION ................................................................................................................................................... 51 6 TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 52 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................. A1 ~ A2 APPENDIX B. TEST PHOTOS ........................................................................................................................ B1 ~ B6 APPENDIX C. PHOTOGRAPHS OF EUT ..................................................................................................... C1 ~ C12 SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468 Issued Date : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AC History of This Test Report Original Issue Date:…

Text truncated - open the document above for the full version.

Test Report

SPORTON International Inc. Report Format Version: a F FCC TEST REPORT Report No. : FR133115-01AI FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : ASUS 300Mbps 802.11 b/g/n Wireless PCI-E card Model No. : PCE-N15 Brand Name : ASUS Filing Type : New Application Applicant Manufacturer : ASUSTek Computer INC. No. 150, Li-Te Rd., Peitou, Taipei, 11259 Taiwan FCC ID : MSQ-PCEN15 Received Date : Jan. 31, 2011 Final Test Date : Apr. 12, 2011 Statement Test result included is only for the 802.11n of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AI Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details ................................................................................................................................................................................... 3 2.2 Table for Filed Antenna ....................................................................................................................................................................... 3 2.3 Table for Carrier Frequencies ............................................................................................................................................................. 4 2.4 Table for Test Modes .......................................................................................................................................................................... 4 2.5 Table for Testing Locations ................................................................................................................................................................. 5 2.6 Table for Supporting Units .................................................................................................................................................................. 5 2.7 Table for Parameters of Test Software Setting .................................................................................................................................... 5 2.8 EUT Operation during Test ................................................................................................................................................................. 5 2.9 Test Configuration ............................................................................................................................................................................... 6 3 TEST RESULT ......................................................................................................................................................... 7 3.1 AC Power Line Conducted Emissions Measurement .......................................................................................................................... 7 3.2 Maximum Peak Output Power Measurement .................................................................................................................................... 11 3.3 Power Spectral Density Measurement .............................................................................................................................................. 14 3.4 6dB Spectrum Bandwidth Measurement ........................................................................................................................................... 20 3.5 Radiated Emissions Measurement .................................................................................................................................................... 26 3.6 Band Edge and Fundamental Emissions Measurement .................................................................................................................... 44 3.7 Antenna Requirements ..................................................................................................................................................................... 49 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 50 5 TEST LOCATION ................................................................................................................................................... 52 6 TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 53 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................. A1 ~ A2 APPENDIX B. TEST PHOTOS ........................................................................................................................ B1 ~ B6 APPENDIX C. PHOTOGRAPHS OF EUT ..................................................................................................... C1 ~ C12 SPORTON International Inc. Page No. : ii of ii TEL : 886-2-2696-2468 Issued Date : Apr. 18, 2011 FAX : 886-2-2696-2255 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AI History of This Test Report Original Issue Date: Apr. 1…

Text truncated - open the document above for the full version.

Test Setup Photos

Page No. : B1 of B6 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AI Appendix B. Test Photos Page No. : B2 of B6 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AI 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW EUT Page No. : B3 of B6 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AI SIDE VIEW Page No. : B4 of B6 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AI 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW Page No. : B5 of B6 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AI For radiated emissions 30MHz~1GHz FRONT VIEW REAR VIEW EUT Page No. : B6 of B6 FCC ID : MSQ-PCEN15 F FCC TEST REPORT Report No. : FR133115-01AI For radiated emissions above 1GHz FRONT VIEW REAR VIEW EUT

Contact Information

Applicant

Jackson Yen(Associate Vice President)

[email protected]+886-2-28943447Fax: +886-2-28987364

Test Firm

Sporton International IncKathy Lin

[email protected]886-2-26962468Fax: 886-2-26962255

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.42 GHz - 2.45 GHz	60.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is maximum combine conducted RF output power. Device is a 802.11bgn Adapter operating in a 2x2 Spatial Multiplexing MIMO configuration as described in this filing . The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
