MSQ-PD100CSWireless Charger

Quick Start Guide E17364 V1.1 / 2021 May Fruit and Vegetable Cleanliness Detector 2 Safety Precautions • This product is a sensor designed specifically to detect the degree of pollutant residue in the water while you are washing fruits and vegetables. • This product uses UV light to detect residues. For safety reasons, this product does not contain any anti-yellowing agents, therefore prolonged exposure to the UV lights it emits may cause the certain parts of this device to turn yellow after time. This is completely natural and does not affect the functions of the device, nor cause harm to humans. • This product uses UV light detection, therefore before opening the bottom cover or cleaning the device, ensure that the device is powered off or in Standby mode and make sure not to look directly into the light source. Please seek medical help immediately if you feel uncomfortable. • The materials used in the product comply to the TFDA (Taiwan Food and Drug Administration) standards, and cause no harm to humans. For more information, please refer to https://www.asus.com/tw/support/Download-Center/. Fruit and Vegetable test list Description Fruits and Vegetables not applicable to the test results (Including but not limited to: ) Rich in phytochemicals (Cholophyll / Anthocyanin); colorants are released in large amounts when washing these fruits and vegetables. This may affect the test results. Okinawa Spinach, Red Amaranth, Strawberry Rich in phytochemicals or plant spores, which are released in large quantities when washed and may affect the test results. Mushrooms, Cloud Ear Fungus, Seaweed, Enoki Mushroom * For the latest Fruits and Vegetables test list please refer to the ASUS website https://www.asus.com/us/Networking-IoT-Servers/Smart-Home/Smart-kitchen/PureGo-PD100/. 3 Getting Started 1. Charging your PureGo Please follow the steps below to charge your PureGo 1. Place the PureGo onto the charging dock with the front side facing outwards. (The side with the ASUS logo is the front side of the PureGo; the side with the model name and certifications is the rear of the PureGo.) 2. Connect the cable from the charging dock to the USB power adapter. 3. Plug the USB power adapter into a power outlet. NOTE: • Ensure to wait until your PureGo is fully charged before using it for the first time. Your PureGo is fully charged when the LED ring lights up green. • This device uses a power adapter with a power input of 5V/2A. Ensure to use the bundled power adapter when charging the PureGo. 4 2. Calibrating your PureGo CAUTION! • Ensure to follow the calibration tutorial and calibrate when using your PureGo for the first time. • You do not need to calibrate after every use, but we recommend calibrating your PureGo periodically (once every 1 to 3 months, depending on usage frequency) to ensure detection accuracy. CAUTION! To ensure the optical detection chamber is completely immersed in the water, the belt should be below water level when your PureGo is placed into the water. Belt To Calibrate your PureGo: 1. Press and hold the Start/Standby button for approximately 1.5 seconds until the LED ring lights up blue, then place your PureGo into clean water. 2. The LED ring will blink blue during calibration. When the calibration process is completed, the LED ring becomes a solid blue light. The calibration process should take about 25 seconds. 5 Status LED summary The status LED indicators and Start/Standby button are located on the top side of the device, and provide a quick way for you to view battery power, Bluetooth status, and test results through the different LED colors. Start/Standby button Bluetooth indicator Power indicator LED ring 3. Using the APP You may use the device independently, or link it to the PureGo APP for more detailed information. You can download and install the PureGo APP from Google Play or App Store, or scan the QR code with your mobile phone. AndroidiOS !"#$%& ' !"#$%& ( !"#$%&'()*+,-. /0123456789:'( ;<=> ?@ABBCDEFG/0H'(&I J=K-?@ABBCDEFGLMN OPQRSTUVWX !"" #$%&' PureGo NOTE: For more details, please refer to the User manual on the ASUS website (https://www.asus.com/us/Networking-IoT-Servers/Smart-Home/Smart-kitchen/PureGo- PD100/). Pairing through Bluetooth after downloading the APP: 1. Follow the instructions on the APP and long press the Start/Standbybutton located on the top of the device for about 5 seconds until the Bluetooth indicator lights up blue. 6 2. PD100 SNXXX should be displayed on the APP, where XXX represents the serial number of your PureGo device. 3. Select the device on your mobile phone to begin pairing. The pairing is successful if the Bluetooth indicator lights up solid blue. CAUTION! To ensure the optical detection chamber is completely immersed in the water, the belt should be below water level when your PureGo is placed into the water. 4. Detecting with the PureGo when washing fruits or vegetables Recommended washing steps 1. Clean the surface of the leafy parts and dirt from the roots of the fruits and vegetables using clean water or with a tool. 2. Soak the fruits and vegetables in clean water for approximately 1 minute to allow agricultural pesticide or other residue such as dust to dissolve in the water. PureGo's revolutionary smart water detection feature makes it so that no buttons have to be pressed during the detection process; PureGo will automatically begin detection once it is placed in the water. Belt 7 5. Remove the inedible parts of your fruits and vegetables. NOTE: A short press on the Start/Standby button will start/end this session. Notes when washing fruits and vegetables: • For precautions when washing fruits and vegetables, please visit the ASUS website (XXXX) for FAQ and the User Manual. • If your LED ring lights up red due to an error while washing the fruits and vegetables, please refer to the FAQ on the ASUS website (XXXX), and the Fruit and Vegetable test list in this manual. 3. Continue washing the fruits and vegetables with a smal…

Text truncated - open the document above for the full version.

FCC ID: MSQ-PD100CS Date: May 25, 2021 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: Type of Confidentiality Requested Exhibit ☒ Permanent Block Diagrams ☒ Short Term External Photos ☒ Short Term Internal Photos ☒ Permanent Operation Description/Theory of Operation ☐ Permanent Parts List & Placement/BOM ☐ Permanent Tune-Up Procedure ☒ Permanent Schematics ☒ Short Term Test Setup Photos ☒ Short Term User’s Manual The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Sincerely, ------------------------------------------------------ Jackson Yen / Associate Vice President ASUSTeK COMPUTER INC.

Declaration of Authorization We Name: ASUSTeK COMPUTER INC. Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan City: Taipei, Country: Taiwan Declare that: Name Representative of agent: Vincent Lin Agent Company name: DEKRA Testing and Certification Co., Ltd. Address: No.5-22, Ruishukeng, Linkou Dist., City: New Taipei City 24451, Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product Name: Wireless Charger Model: PD100CS FCC ID: MSQ-PD100CS IC : 3568A-PD100CS Trademark:ASUS on our behalf. This is valid until May 25, 2022, or until FCC and IC certification are completed, whichever comes sooner. Date: May 25, 2021 City: Taipei, Name: Jackson Yen Function: Associate Vice President Signature:

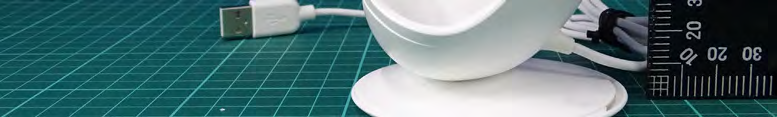

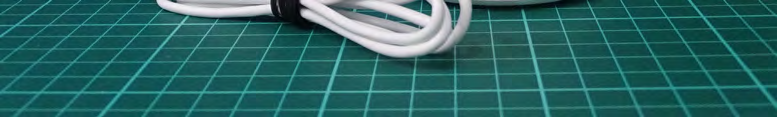

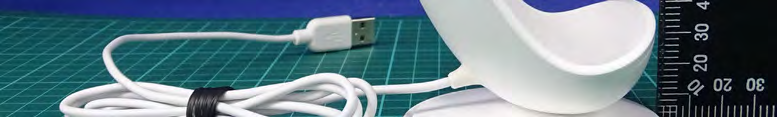

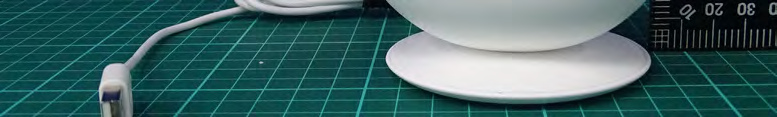

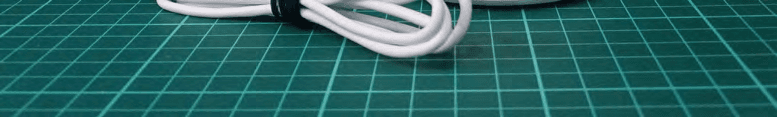

Report No.: 2130835R-E3032110102 Page : 1 of 9 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 2130835R-E3032110102 Page : 2 of 9 (3) EUT Photo (4) EUT Photo Report No.: 2130835R-E3032110102 Page : 3 of 9 (5) EUT Photo (6) EUT Photo

ASUSTeK COMPUTER INC. FCC ID.: MSQ-PD100CS 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan Tel : +886-2-28943447 The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 2130835R-E3032110102 Page : 4 of 9 (7) EUT Photo (8) EUT Photo Report No.: 2130835R-E3032110102 Page : 5 of 9 (9) EUT Photo (10) EUT Photo Report No.: 2130835R-E3032110102 Page : 6 of 9 (11) EUT Photo (Antenna) (12) EUT Photo (Antenna) Report No.: 2130835R-E3032110102 Page : 7 of 9 (13) EUT Photo (RF Module) (14) EUT Photo (RF Module) Report No.: 2130835R-E3032110102 Page : 8 of 9 (15) EUT Photo (16) EUT Photo Report No.: 2130835R-E3032110102 Page : 9 of 9 (17) EUT Photo

Report No.: 2130835R-E3082100015 Page: 1 of 9 RF Exposure Evaluation Report Product Name Wireless Charger Model No. PD100CS FCC ID. MSQ-PD100CS Applicant ASUSTeK COMPUTER INC. Address 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan Date of Receipt Mar. 21, 2021 Date of Declaration May 10, 2021 Report No. 2130835R-E3082100015 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration repor t of the e quipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF o r any agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testin g system, but are based on the results of the compliance measurement. Report No.: 2130835R-E3082100015 Page: 2 of 9 Issued Date: May 10, 2021 Report No.: 2130835R-E3082100015 Product Name Wireless Charger Applicant ASUSTeK COMPUTER INC. Address 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan Manufacturer ASUSTeK COMPUTER INC. Model No. PD100CS FCC ID. MSQ-PD100CS EUT Rated Voltage AC 100-240~50/60Hz EUT Test Voltage AC 120V/60Hz Trade Name ASUS Applicable Standard KDB 447498 D01 v06 For Field Strength Test Test Result Complied Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Senior Engineer / Bill Lin ) Approved By : ( Director / Vincent Lin ) Report No.: 2130835R-E3082100015 Page: 3 of 9 Revision History Report No. Ve r s i o n Description Issued Date 2130835R-E3082100015 V1.0 Initial issue of report. May 10, 2021 Report No.: 2130835R-E3082100015 Page: 4 of 9 1. RF Exposure Evaluation 1.1. Test Equipment Equipment Manufacturer Model No./Serial No. Specification Last Cal. X EM Field Meter Wavecontrol SMP2 / 18SN0746 1 Hz - 60 GHz Apr., 2021 X Isotropic EM Field Probe Wavecontrol WP400-3 / 18WP120014 1 Hz - 400 KHz Apr., 2021 X Isotropic EM Field Probe Wavecontrol WP400 / 18WP100392 1 Hz - 400 KHz Apr., 2021 X Isotropic EM Field Probe Wavecontrol WPF8 / 18WP040835 100 KHz - 8 GHz Apr., 2021 1.2. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/F 4.89/F *(900/F 2) 6 30-300 61.4 0.163 1 6 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/F 2.19/F *(180/F 2 ) 30 300-1500 27.5 0.073 0.2 30 300-1500 -- -- F/1500 30 1500-100,000 -- -- 1 30 Note: 1. RF Exposure evaluation should be conducted assuming a separation distance of 10 cm 2. The EUT is including four models for different marketing requirement. 1.3. Test Procedure The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils per the FCC 's request. (reference KDB 680106 D01 RF Exposure Wireless Charging Apps v03r01) The temperature and related humidity: 18°Cand 62％ RH. Report No.: 2130835R-E3082100015 Page: 5 of 9 1.4. Test Result of RF Exposure Evaluation for WPT Items to be covered Answer from applicant Power transfer frequency is less than 1 MHz. Operation frequency range is 111~205kHz. Output power from each primary coil is less than or equal to 15 watts. Output Power equal to 0.09mW. The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. Yes, allow coupling only between individual pairs of coils. Client device is placed directly in contact with the transmitter. Yes, meet the requirements. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes, meet the requirements. The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. *Electric Field Strength (V/m) @20cm = 1.12 V/m (< 307 V/m) MPE Limit (614 V/m) *50% =307 V/m *Magnetic Field Strength (A/m) @20cm =0.003 A/m (< 0.815 A/m ) MPE Limit (1.63 A/m) *50%= 0.815 A/m Report No.: 2130835R-E3082100015 Page: 6 of 9 Product : Wireless Charger Test Item : RF Exposure Evaluation Test Site : ACB1 Chamber Test Date : 2021/04/27 E-Field Emissions Test Position Frequency (MHz) Measurement Level @15cm (V/m) Limit (V/m) 50% Limit (V/m) Result Side 1 0.14730 0.600 614.0 307.0 PASS Side 2 0.14730 0.710 614.0 307.0 PASS Side 3 0.14730 0.710 614.0 307.0 PASS Side 4 0.14730 0.680 614.0 307.0 PASS Test Position Frequency (MHz) Measurement Level @20cm (V/m) Limit (V/m) 50% Limit (V/m) Result Top 0.14730 0.550 614.0 307.0 PASS Bottom 0.14730 0.490 614.0 307.0 PASS H-Field Emissions Test Position Frequency (MHz) Measurement Level @15cm (A/m) Limit (A/m) 50% Limit (A/m) Result Side 1 0.14730 0.080 1.63 0.815 PASS Side 2 0.14730 0.090 1.63 0.815 PASS Side 3 0.14730 0.230 1.63 0.815 PASS Side 4 0.14730 0.060 1.63 0.815 PASS Test Position Frequency (MHz) Measurement Level @20cm (V/m) Limit (V/m) 50% Limit (V/m) Result Top 0.14730 0.070 1.63 0.815 PASS Bottom 0.14730 0.010 1.63 0.815 PASS Report No.: 2130835R-E3082100015 Page: 7 of 9 1.5. EUT Test Setup Photographs Side 1(15cm) Side 2(15cm) Report No.: 2130835R-E3082…

Text truncated - open the document above for the full version.

Report No.: 2130835R-E3032110102 Page : 1 of 27 FCC Test Report Product Name Wireless Charger Model No. PD100CS FCC ID. MSQ-PD100-80AH Applicant ASUSTeK COMPUTER INC. Address 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan Date of Receipt Mar. 21, 2021 Issued Date May 10, 2021 Report No. 2130835R-E3032110102 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No.: 2130835R-E3032110102 Page : 2 of 27 Test Report Issued Date: May 10, 2021 Report No.: 2130835R-E3032110102 Product Name Wireless Charger Applicant ASUSTeK COMPUTER INC. Address 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan Manufacturer ASUSTeK COMPUTER INC. Model No. PD100CS FCC ID. MSQ-PD100-80AH EUT Rated Voltage AC 100-240~50/60Hz EUT Test Voltage AC 120V/60Hz Trade Name ASUS Applicable Standard FCC CFR Title 47 Part 15 Subpart C ANSI C63.4: 2014, ANSI C63.10: 2013 Test Result Complied Documented By : ( Senior Adm. Specialist / Jinn Chen ) Tested By : ( Senior Engineer / Bill Lin ) Approved By : ( Director / Vincent Lin ) Report No.: 2130835R-E3032110102 Page : 3 of 27 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ........................................................................................................... 5 1.1. EUT Description ................................................................................................................... 5 1.2. Test System Details ............................................................................................................... 6 1.3. Configuration of Test System ............................................................................................... 6 1.4. EUT Exercise Software ......................................................................................................... 6 1.5. Test Facility ........................................................................................................................... 7 1.6. List of Test Equipment .......................................................................................................... 8 1.7. Uncertainty ............................................................................................................................ 9 2. Conducted Emission ....................................................................................................................... 10 2.1. Test Setup ............................................................................................................................ 10 2.2. Limits .................................................................................................................................. 10 2.3. Test Procedure ..................................................................................................................... 11 2.4. Test Result of Conducted Emission .................................................................................... 12 3. Radiated Emission ........................................................................................................................... 14 3.1. Test Setup ............................................................................................................................ 14 3.2. Limits .................................................................................................................................. 15 3.3. Test Procedure ..................................................................................................................... 16 3.4. Test Result of Radiated Emission ....................................................................................... 17 4. Occupied Bandwidth ....................................................................................................................... 25 4.1. Test Setup ............................................................................................................................ 25 4.2. Test Procedure ..................................................................................................................... 25 4.3. Test Result of Occupied Bandwidth ................................................................................... 26 5. EMI Reduction Method During Compliance Testing .................................................................. 27 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No.: 2130835R-E3032110102 Page : 4 of 27 Revision History Report No. Ve r s i o n Description Issued Date 2130835R-E3032110102 V1.0 Initial issue of report. May 10, 2021 Report No.: 2130835R-E3032110102 Page : 5 of 27 1. GENERAL INFORMATION 1.1. EUT Description Product Name Wireless Charger Trade Name ASUS Model No. PD100CS FCC ID. MSQ-PD100-80AH Frequency Range 111kHz-205kHz Type of Modulation ASK Type of antenna Coil Antenna Power Adapter MFR: LEADER, M/N: MU10AE050200UA1 Input: AC 100-240V~50/60Hz, 0.3A Output: DC 5.0V, 2.0A Fruit and Vegetable Cleanliness Detector MFR: ASUS, M/N: PD100 Note: 1. The EUT is a Wireless Charger with a built-in 111kHz-205kHz transceiver. 2. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.209. 3. The radiation measurements are performed in X, Y, …
