MSQ-PLX31MHomePLUG AV Ethernet adapter

PL-X31M, PL-X32M HomePLUG AV Ethernet adapter User Manual PL-X31M,PL-X32M User Manual i Contents 1 Introduction...................................................................................................... 1 1.1 System Requirements ......................................................................... 1 1.2 Packing List......................................................................................... 1 2 Safety Precautions .......................................................................................... 2 3 Adapter............................................................................................................ 3 3.1 Ethernet Interface................................................................................ 3 3.2 Buttons................................................................................................ 3 3.3 LEDs ................................................................................................... 4 4 Utility Installation.............................................................................................. 6 5 How to Use the Utility ...................................................................................... 9 5.1 Main Tab ............................................................................................. 9 5.2 Privacy Tab........................................................................................ 12 5.3 Diagnostics Tab ................................................................................. 14 5.4 About Tab.......................................................................................... 16 6 How to Use the NMK Pushbutton .................................................................. 17 6.1 Forming a HomePlug AV Logical Network ......................................... 17 6.2 Joining a Network.............................................................................. 18 6.3 Leaving a Network............................................................................. 18 Appendix A Specifications............................................................................... 20 Appendix B Acronyms and Abbreviations........................................................ 22 Appendix C About QoS ................................................................................... 23 PL-X31M,PL-X32M User Manual 1 1 Introduction The PL-X31M, PL-X32M (also called “the device” hereinafter) is a low power consumption PLC device developed based on the master chip of INT6400. It can transmit the network data in the power line. The device is compatible with the latest requirements of the EUP Directive. When the device enters the lower power consumption mode, the consumption is less than 1W. The device can detect 200 Mbps PLC-Ethernet bridge devices in the power line network, measure data rate performance, ensure the security of the powering network, and perform system diagnosis. 1.1 System Requirements Operating System Windows 98SE, Windows 2000, Windows ME, Windows XP 32/64 bit and Windows Vista 32/ 64bit CPU Intel Pentium III or higher and clock rate faster than 2.0 GHz are recommended. RAM At least 128 MB Screen Resolution Any resolution Free Disk Space At least 20 MB Network Interface At least one fast Ethernet (100 Mbps) network interface card (NIC) and one Ethernet cord 1.2 Packing List
2 x Mini-PLC Devices
1 x CD-ROM
2 x RJ45 Ethernet cables PL-X31M,PL-X32M User Manual 2 2 Safety Precautions This device is used for to connect to the AC power line. Before using the device, read the instructions carefully, in order to use the device correctly and safely. For the installation instructions, refer to the installation section of this guide.
Follow all the warnings and instructions marked on the product.
Before cleaning the device, unplug it from the wall outlet. Use a dry cloth for cleaning. Do not use liquid cleaners or aerosol cleaners.
Do not place the device near water.
Do not place the device near or over a radiator or heat register.
Do not use an extension cord between the device and the AC power source.
Only professional technicians should service the device. Opening or removing covers may result in exposure to dangerous voltage points or other risks.
Unplug the device from the wall outlet and refer to professional service personnel for the following conditions: – If liquid has been spilled into the product – If the device has been exposed to rain or water – If the device does not operate normally when following the operation instructions – If the device exhibits a distinct change in performance PL-X31M,PL-X32M User Manual 3 3 Adapter 3.1 Ethernet Interface Use one end of a network cable to connect the Ethernet interface. Use the other end of the cable to connect the Ethernet interface of the computer or another Ethernet-enabled network device. 3.2 Buttons Figure 1 Side panel of the device Reset: Restore the factory defaults. Security: Set the membership state.
Pressing and holding the NMK button for more than 10 seconds randomizes the NMK value.
Pressing and holding the NMK button for more than 3 seconds makes the PL-X31M,PL-X32M User Manual 4 adapter a member of the existing AVLN. 3.3 LEDs There are 3 LEDs on the front panel to indicate the status of the adapter. Figure 2 Top view The following table describes the LEDs on the device. LED Color Behavior Description Green On Power is on Power Green Blink
System enters the power save mode.
System is resetting. PL-X31M,PL-X32M User Manual 5 LED Color Behavior Description
System is in the process of security setup. - Off Power is off. Green On The device is connecting to other devices via the Ethernet interface but not communicating with them. Green Blink The device is receiving or transmitting data via the Ethernet interface. Ethernet - Off The device is not connecting to other devices via the Ethernet interface. Green/Red On The device has connected to the power line network. The D…

Text truncated - open the document above for the full version.

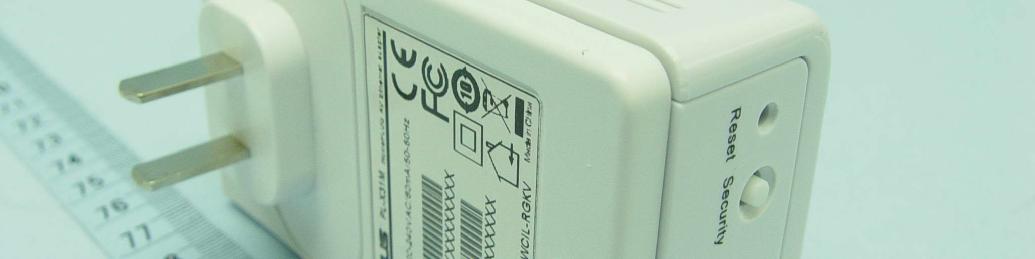

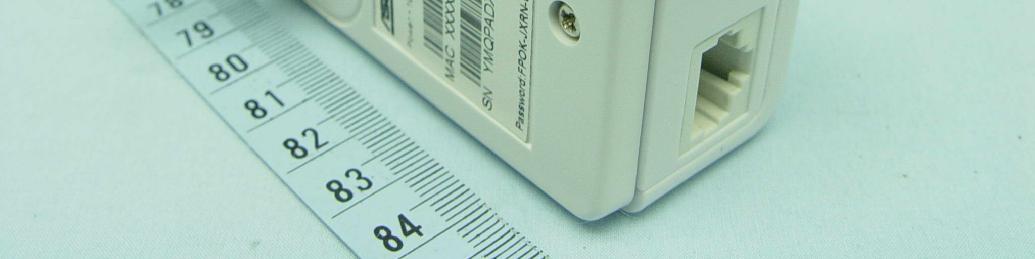

Page 1 CONSTRUCTION PHOTOS OF EUT

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: MSQ-PLX31M Report No.: RF110225C09 Operational Description This device is a HomePLUG AV Ethernet adapter, which is powered by 100 – 240Vac by itself. The highest operating frequency is 150 MHz. The other instruction, please have a look at the users manual.

Report No.: FD991217C06A 1 Report Format Version 4.0.0 Reference No.: 110131C04 FCC DoC TEST REPORT REPORT NO.: FD991217C06A MODEL NO.: PL-X31M (Refer to 3.1 for more details) FCC ID: MSQ-PLX31M RECEIVED: Dec. 17, 2010 TESTED: Dec. 18 ~ Dec. 23, 2010 ISSUED: Feb. 08, 2011 APPLICANT: ASUSTeK COMPUTER INC. ADDRESS: 15, Li-Te Rd., Peitou, Taipei 112, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 19, Hwa Ya 2nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 44 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by TAF, NVLAP, NIST or any government agency. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Report No.: FD991217C06A 2 Report Format Version 4.0.0 Reference No.: 110131C04 TABLE OF CONTENTS RELEASE CONTROL RECORD...........................................................................................4 1 CERTIFICATION........................................................................................................5 2 SUMMARY OF TEST RESULTS................................................................................6 2.1 MEASUREMENT UNCERTAINTY..............................................................................6 3 GENERAL INFORMATION.........................................................................................7 3.1 GENERAL DESCRIPTION OF EUT...........................................................................7 3.2 DESCRIPTION OF TEST MODES.............................................................................7 3.3 DESCRIPTION OF APPLIED STANDARD.................................................................8 3.4 DESCRIPTION OF SUPPORT UNITS.......................................................................8 3.5 CONFIGURATION OF SYSTEM UNDER TEST.........................................................9 4 EMISSION TEST.....................................................................................................10 4.1 CONDUCTED EMISSION MEASUREMENT (CURRENT CARRIER OFF)..............10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT (CURRENT CARRIER OFF) ................................................................................................................................10 4.1.2 TEST INSTRUMENT................................................................................................10 4.1.3 TEST PROCEDURE................................................................................................11 4.1.4 DEVIATION FROM TEST STANDARD.....................................................................11 4.1.5 TEST SETUP...........................................................................................................11 4.1.6 EUT OPERATING CONDITIONS.............................................................................11 4.1.7 TEST RESULTS.......................................................................................................12 4.2 CONDUCTED EMISSION MEASUREMENT (CURRENT CARRIER ON)................14 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT (CURRENT CARRIER ON)14 4.2.2 TEST INSTRUMENT................................................................................................14 4.2.3 TEST PROCEDURE................................................................................................15 4.2.4 DEVIATION FROM TEST STANDARD.....................................................................15 4.2.5 TEST SETUP...........................................................................................................15 4.2.6 EUT OPERATING CONDITIONS.............................................................................15 4.2.7 TEST RESULTS.......................................................................................................16 4.3 RADIATED EMISSION MEASUREMENT (CURRENT CARRIER OFF)...................18 4.3.1 LIMITS OF RADIATED EMISSION MEASUREMENT (CURRENT CARRIER OFF).18 4.3.2 TEST INSTRUMENT................................................................................................19 4.3.3 TEST PROCEDURE................................................................................................20 4.3.4 DEVIATION FROM TEST STANDARD.....................................................................20 4.3.5 TEST SETUP...........................................................................................................21 4.3.6 EUT OPERATING CONDITIONS.............................................................................21 Report No.: FD991217C06A 3 Report Format Version 4.0.0 Reference No.: 110131C04 4.3.7 TEST RESULTS.......................................................................................................22 4.4 RADIATED EMISSION MEASUREMENT (CURRENT CARRIER ON).....................24 4.4.1 LIMITS OF RADIATED EMISSION MEASUREMENT (CURRENT CARRIER ON)...24 4.4.2 TEST INSTRUMENT................................................................................................25 4.4.3 TEST PROCEDURE................................................................................................26 4.4.4 DEVIATION FROM TEST STANDARD.....................................................................28 4.4.5 TEST SETUP LOCATION........................................................................................29 4.4.6 TEST SETUP DIAGRAM..........................................................................................30 4.4.7 EUT OPERATING CONDITIONS.............................................................................32 4.4.8 TEST RESULTS.....................................…

Text truncated - open the document above for the full version.

Report No.: FD991217C06A 35 Report Format Version 4.0.0 Reference No.: 110131C04 5 PHOTOGRAPHS OF THE TEST CONFIGURATION Conducted Emission Test Report No.: FD991217C06A 36 Report Format Version 4.0.0 Reference No.: 110131C04 Radiated Emission Test (Current carrier off) Report No.: FD991217C06A 37 Report Format Version 4.0.0 Reference No.: 110131C04 Radiated Emission Test (IN-SITU TEST) (Current carrier on) (Installation 1) Report No.: FD991217C06A 38 Report Format Version 4.0.0 Reference No.: 110131C04 Report No.: FD991217C06A 39 Report Format Version 4.0.0 Reference No.: 110131C04 Radiated Emission Test (IN-SITU TEST) (Current carrier on) (Installation 2) Report No.: FD991217C06A 40 Report Format Version 4.0.0 Reference No.: 110131C04 Report No.: FD991217C06A 41 Report Format Version 4.0.0 Reference No.: 110131C04 Radiated Emission Test (IN-SITU TEST) (Current carrier on) (Installation 3) Report No.: FD991217C06A 42 Report Format Version 4.0.0 Reference No.: 110131C04 Radiated Emission Test (IN-SITU TEST) (Current carrier on) (Addition Measurement with Overhead Line-3)
