Quick Installation Guide A quick look Five LAN Gigabit ports USB 3.0 port x 1 WPS button x 1 Power on off button x 1 Wi-Fi LED: 2.4G LED / 5G LED: Three LEDs on: RP-AC68U has good signal connection with router. Two LEDs on: RP-AC68U has normal signal connection with router. One LEDs on: RP-AC68U has weak signal connection with router. Off: RP-N12 doesn’t connect to a router. Plug your RP-AC68U into a power outlet Near your Router/AP Method One Quick Setup using the WPS Button Use this if your Router or Access Point(AP) support WPS Power On Push the two WPS buttons Push the WPS button on your Router/AP Immediately push the WPS button on your RP-AC68U The Stylish LED should go to flashing in about 2 minutes. Wait until the Wi-Fi LED turn on. You could know the signal quality with different LED number. Relocate RP-AC68U to a location you like. After the extender is relocated to a new place, RP-AC68U will reconnect to your router automatically in about one minute. The ideal location for RP-AC68U is between your wireless router and wireless device. Make sure RP-AC68U is in a location where signals indictor LED has over 2 led on at least. Keep the RP-AC68U away from devices like cordless phones, Bluetooth devices and microwave ovens to minimize wireless interference. If possible, try to place your extender in open corridors or spacious locations rather than a crowded room. Enjoy! The Range Extender shares your router’s Wireless Network Name (SSID) and Wireless Password Frequently Asked Questions (FAQ) Q1: What should I do if my router doesn’t have a WPS button? A1: You can use Method Two to set up RP-AC68U Q2 Why is that the Wi-Fi LED does not light up after completing Method Two? A1: You may have entered the wrong router SSID and password. Reset your RP-AC56, double check your router SSID/password, and set up RP-AC56 again. Q3 How do I reset RP-AC68U A1: Press the RESET button on the button of RP-AC68U for about two (2) seconds. Wait for about five (5) seconds until the LEDs blink slowly. RP-AC68U Dual band Wireless Ranger Extender Reset button Method Two Setup using your Web Browser Power On Plug your RP-AC68U Near your Router/AP Login Disconnect your Ethernet connection. On your Wi-Fi enabled device, such as your desktop PC/notebook/tablet, find the default network name of your RP-AC68U and click or tap Connect. Go to the RP-AC68U web management page: http://repeater.asus.com and enter admin for both Username and Password. Configure Relocate Enjoy! The Range Extender shares your router’s Wireless Network Name (SSID) and Wireless Password The ideal location for RP-AC68U is between your wireless router and wireless device. Make sure RP-AC68U is in a location where signals indictor LED has over 2 led on at least. 1. On a web browser, enter http://repeater.asus.com. 2. Connect to a Wi-Fi network and when prompted, enter the security key. If your Wi-Fi network is hidden, click Manual setting. 3. You can either tick “Use default setting” or enter the SSID and security key/password for your extended network. When done, click Next. NOTE: Your RP-AC56’s wireless network name (SSID) changes to your existing Wi-Fi network name, ending with _RPT or _RPT5G and shares your router/AP’s Wireless Password. 4. Connect your wireless devices to the new Extender network. IMPORTANT! For the best Wi-Fi extender performance, place your RP-AC68U in an ideal location. Refer to Step 3 in Method One FCC Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. " RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance." The operation frequency of the device is in the 5150-5250 MHz band is for indoor use only. Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences …
Text truncated - open the document above for the full version.
ASUSTeK COMPUTER INC. 4F, No.150, Li-Te Rd., Peitou, Taipei , Taiwan RF_160, Issue 02RF_160, Issue 02 Declaration of Authorization We Name: ASUSTeK COMPUTER INC. Address: 4F, No.150, Li-Te Rd., Peitou, City: Taipei , Country: Taiwan Declare that: Name Representative of agent: RoyWang Agent Company name: QuieTek Corporation Address: No.75-2, Wangyekeng, Qionglin Township, City: Hsinchu Country County 30746, Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: Dual-band Wireless Range Extender Type designation: RP-AC68U Trademark: ASUS on our behalf. Date: 2015/10/7 City: Taipei Name: Jackson Yen Function: Associate Vice President Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

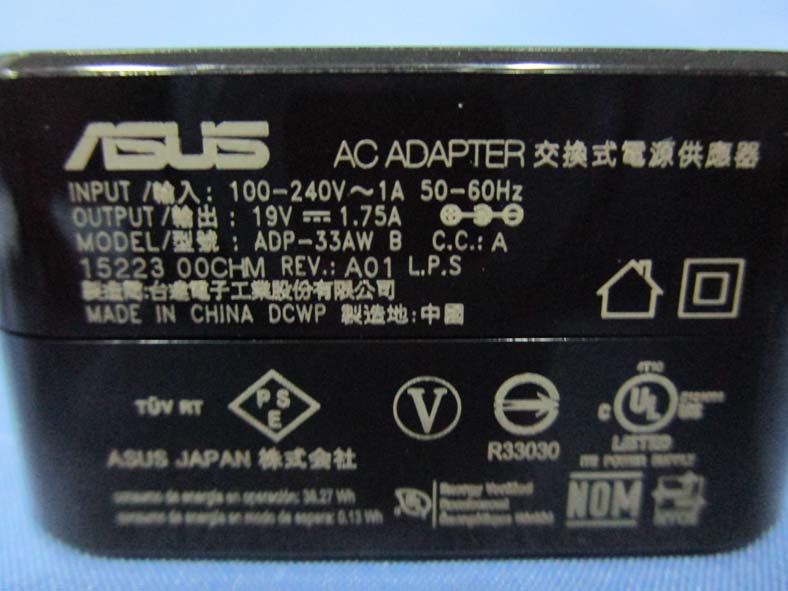

Report No: 1560497R-RFUSP39V00 Page: 736 of 752 Attachment 2 EUT External Photograph (1) EUT Photo (Power Adatper : PIE, AD890326) (2) EUT Photo Report No: 1560497R-RFUSP39V00 Page: 737 of 752 (3) EUT Photo Report No: 1560497R-RFUSP39V00 Page: 738 of 752 (4) EUT Photo (Power Adatper : Delta, ADP-33AW) (5) EUT Photo Report No: 1560497R-RFUSP39V00 Page: 739 of 752 (6) EUT Photo
FCC ID.: MSQ-RP0S01 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Dual-band Wireless Range Extender Model No.: RP-AC68U FCC ID : MSQ-RP0S01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ASUS Model number.: RP-AC68U
FCC ID.: MSQ-RP0S01 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Dual-band Wireless Range Extender Model No.: RP-AC68U FCC ID : MSQ-RP0S01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ASUS Model number.: RP-AC68U
Report No: 1560497R-RFUSP39V00 Page: 740 of 752 Attachment 3 EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No: 1560497R-RFUSP39V00 Page: 741 of 752 (3) EUT Photo (4) EUT Photo Report No: 1560497R-RFUSP39V00 Page: 742 of 752 (5) EUT Photo (6) EUT Photo Report No: 1560497R-RFUSP39V00 Page: 743 of 752 (7) EUT Photo (8) EUT Photo Report No: 1560497R-RFUSP39V00 Page: 744 of 752 (9) EUT Photo (10) EUT Photo Report No: 1560497R-RFUSP39V00 Page: 745 of 752 (11) EUT Photo (12) EUT Photo Report No: 1560497R-RFUSP39V00 Page: 746 of 752 (13) EUT Photo (14) EUT Photo Report No: 1560497R-RFUSP39V00 Page: 747 of 752 (15) EUT Photo (16) EUT Photo Report No: 1560497R-RFUSP39V00 Page: 748 of 752 (17) EUT Photo Report No: 1560497R-RFUSP39V00 Page: 749 of 752 (18) EUT Photo (MB) Report No: 1560497R-RFUSP39V00 Page: 750 of 752 (19) EUT Photo (MB) Report No: 1560497R-RFUSP39V00 Page: 751 of 752 (20) EUT Photo (Antenna) (21) EUT Photo (Antenna) Report No: 1560497R-RFUSP39V00 Page: 752 of 752 (22) EUT Photo (Antenna)
Report No. 1560497R-RF-US-Exp Page: 1 of 12 RF Exposure Evaluation Declaration Product Name : Dual-band Wireless Range Extender Trade Name : ASUS Model No. : RP-AC68U FCC ID. : MSQ-RP0S01 Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt : May 15, 2015 Date of Declaration : Sep. 24,2015 Report No. : 1560497R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 1560497R-RF-US-Exp Page: 2 of 12 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78% RH. Report No. 1560497R-RF-US-Exp Page: 3 of 12 1.3. Test Result of RF Exposure Evaluation Product Dual-band Wireless Range Extender Test Mode Mode1: Transmit-CDD Mode Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.57dBi or 2.28 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 347.5362 0.15764 6 2437 916.2205 0.41559 11 2462 254.6830 0.11552 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 176.1976 0.07992 6 2437 555.9043 0.25215 11 2462 134.5860 0.06105 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1560497R-RF-US-Exp Page: 4 of 12 Product Dual-band Wireless Range Extender Test Mode Mode1: Transmit-CDD Mode Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.57dBi or 2.28 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 130.6171 0.05925 6 2437 528.4453 0.23970 11 2462 203.2357 0.09219 IEEE 802.11n (40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 87.9023 0.03987 6 2437 219.7860 0.09969 9 2452 127.9381 0.05803 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1560497R-RF-US-Exp Page: 5 of 12 Product Dual-band Wireless Range Extender Test Mode Mode1: Transmit-CDD Mode Test Condition RF Exposure Evaluation Antenna Gain 5.2G Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.31dBi or 2.7 in linear scale. 5.8G Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.6 or 2.88 linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 275.4229 0.14794 40 5220 417.8304 0.22444 44 5240 413.0475 0.22187 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 760.3263 0.43563 153 5785 571.4786 0.32743 165 5825 567.5446 0.32518 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1560497R-RF-US-Exp Page: 6 of 12 Product Dual-band Wireless Range Extender Test Mode Mode1: Transmit-CDD Mode Test Condition RF Exposure Evaluation Antenna Gain 5.2G Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.31dBi or 2.7 in linear scale. 5.8G Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.6 or 2.88 linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 273.5269 0.14692 40 5220 411.1497 0.22085 44 5240 431.5191 0.23179 IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 508.1594 0.29115 153 5785 905.7326 0.51895 165 5825 872.9714 0.50017 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1560497R-RF-US-Exp Page: 7 of 12 Product Dual-band Wireless Range Extender Test Mode Mode1: Transmit-CDD Mode Test Condition RF Exposure Evaluation Antenna Gain 5.2G Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.31dBi or 2.7 in linear scale. 5.8G Antenna Gain: …
Text truncated - open the document above for the full version.
Report No: 1560497R-RFUSP39V00 Page: 1 of 752 FCC Test Report Product Name : Dual-band Wireless Range Extender Trade Name : ASUS Model No. : RP-AC68U FCC ID. : MSQ-RP0S01 Applicant: ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt:May 15, 2015 Issued Date :Sep. 24, 2015 Report No. :1560497R-RFUSP39V00 Report Version :V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 1560497R-RFUSP39V00 Page: 2 of 752 Test Report Certification Issued Date : Sep. 24, 2015 Report No. : 1560497R-RFUSP39V00 Product Name : Dual-band Wireless Range Extender Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer : (1) ASKEY COMPUTER CORPORATION (2) ASKEY TECHNOLOGY (JIANG SU) LTD. Model No. : RP-AC68U FCC ID. : MSQ-RP0S01 EUT Voltage : AC 100-240V, 50-60Hz Testing Voltage : AC 120V/60Hz Trade Name : ASUS Applicable Standard : FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2014 ANSI C63.10: 2013 Test Lab : QuieTek Hsin Chu Laboratory Test Result : Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Specialist ) Tested By : ( Jimmie Liu / Senior Engineer ) Approved By : ( Roy Wang / Director Manager ) Report No: 1560497R-RFUSP39V00 Page: 3 of 752 Revision History Report No. Version Description Issued Date 1560497R-RFUSP39V00 Rev. 0.1 Initial issue of report Sep. 24, 2015 Report No: 1560497R-RFUSP39V00 Page: 4 of 752 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/english/about/certificates.aspx?bval=5 The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/index_en.aspx If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 3024 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 181665 / IC Registration Number: 4075C-4 Report No: 1560497R-RFUSP39V00 Page: 5 of 752 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 8 1.1. EUT Description ............................................................................................................. 8 1.2. Test Mode ..................................................................................................................... 16 1.3. Tested System Details .................................................................................................. 17 1.4. Configuration of tested System .................................................................................... 17 1.5. EUT Exercise Software ................................................................................................ 18 1.6. Test Facility................................................................................................................... 19 2. Conducted Emission .................................................................................................... 20 2.1. Test Equipment............................................................................................................. 20 2.2. Test Setup .................................................................................................................... 20 2.3. Limits ............................................................................................................................ 21 2.4. Test Procedure ............................................................................................................. 21 2.5. Test Specification.......................................................................................................... 21 2.6. Uncertainty ................................................................................................................... 21 2.7. Test Result.................................................................................................................... 22 3. Peak Power Output ...................................................................................................... 30 3.1. Test Equipment............................................................................................................. 30 3.2. Test Setup .................................................................................................................... 30 3.3. Test procedures ............................................................................................................ 30 3.4. Limits ............................................................................................................................ 30 3.5. Test Specification.......................................................................................................... 30 3.6. Uncertainty ................................................................................................................... 30 3.7. Test Result...........…
Text truncated - open the document above for the full version.
Report No: 1560497R-RFUSP39V00 Page: 318 of 752 2412MHz (30MHz-25GHz)-802.11g (ANT 0) 2437MHz (30MHz-25GHz)-802.11 g (ANT 0) Report No: 1560497R-RFUSP39V00 Page: 319 of 752 2462MHz (30MHz-25GHz) -802.11g (ANT 0) Report No: 1560497R-RFUSP39V00 Page: 320 of 752 2412MHz (30MHz-25GHz)-802.11g (ANT 1) 2437MHz (30MHz-25GHz)-802.11g (ANT 1) Report No: 1560497R-RFUSP39V00 Page: 321 of 752 2462MHz (30MHz-25GHz) -802.11g (ANT 1) Report No: 1560497R-RFUSP39V00 Page: 322 of 752 2412MHz (30MHz-25GHz)-802.11g (ANT 2) 2437MHz (30MHz-25GHz)-802.11g (ANT 2) Report No: 1560497R-RFUSP39V00 Page: 323 of 752 2462MHz (30MHz-25GHz) -802.11g (ANT 2) Report No: 1560497R-RFUSP39V00 Page: 324 of 752 2412MHz (30MHz-25GHz)- IEEE802.11n 20MHz (ANT 0) 2437MHz (30MHz-25GHz)- IEEE802.11n 20MHz (ANT 0) Report No: 1560497R-RFUSP39V00 Page: 325 of 752 2462MHz (30MHz-25GHz) - IEEE802.11n 20MHz (ANT 0) Report No: 1560497R-RFUSP39V00 Page: 326 of 752 2412MHz (30MHz-25GHz)- IEEE802.11n 20MHz (ANT 1) 2437MHz (30MHz-25GHz)- IEEE802.11n 20MHz (ANT 1) Report No: 1560497R-RFUSP39V00 Page: 327 of 752 2462MHz (30MHz-25GHz) - IEEE802.11n 20MHz (ANT 1) Report No: 1560497R-RFUSP39V00 Page: 328 of 752 2412MHz (30MHz-25GHz)- IEEE802.11n 20MHz (ANT 2) 2437MHz (30MHz-25GHz)- IEEE802.11n 20MHz (ANT 2) Report No: 1560497R-RFUSP39V00 Page: 329 of 752 2462MHz (30MHz-25GHz) - IEEE802.11n 20MHz (ANT 2) Report No: 1560497R-RFUSP39V00 Page: 330 of 752 2422MHz (30MHz-25GHz)- IEEE802.11n 40MHz (ANT 0) 2437MHz (30MHz-25GHz)- IEEE802.11n 40MHz (ANT 0) Report No: 1560497R-RFUSP39V00 Page: 331 of 752 2452MHz (30MHz-25GHz) - IEEE802.11n 40MHz (ANT 0) Report No: 1560497R-RFUSP39V00 Page: 332 of 752 2422MHz (30MHz-25GHz)- IEEE802.11n 40MHz (ANT 1) 2437MHz (30MHz-25GHz)- IEEE802.11n 40MHz (ANT 1) Report No: 1560497R-RFUSP39V00 Page: 333 of 752 2452MHz (30MHz-25GHz) - IEEE802.11n 40MHz (ANT 1) Report No: 1560497R-RFUSP39V00 Page: 334 of 752 2422MHz (30MHz-25GHz)- IEEE802.11n 40MHz (ANT 2) 2437MHz (30MHz-25GHz)- IEEE802.11n 40MHz (ANT 2) Report No: 1560497R-RFUSP39V00 Page: 335 of 752 2452MHz (30MHz-25GHz) - IEEE802.11n 40MHz (ANT 2) Report No: 1560497R-RFUSP39V00 Page: 336 of 752 Product Dual-band Wireless Range Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/07/11 Test Site SR7 IEEE 802.11a (ANT 0), Antenna Gain: 4.6dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 30.795 ≧30 Pass 157 5785 55.531 ≧30 Pass 165 5825 41.091 ≧30 Pass Channel 149 Report No: 1560497R-RFUSP39V00 Page: 337 of 752 Channel 157 Report No: 1560497R-RFUSP39V00 Page: 338 of 752 Channel 165 Report No: 1560497R-RFUSP39V00 Page: 339 of 752 Product Dual-band Wireless Range Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/07/11 Test Site SR7 IEEE 802.11a (ANT 1), Antenna Gain: 4.45dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 34.658 ≧30 Pass 157 5785 55.448 ≧30 Pass 165 5825 42.877 ≧30 Pass Channel 149 Report No: 1560497R-RFUSP39V00 Page: 340 of 752 Channel 157 Report No: 1560497R-RFUSP39V00 Page: 341 of 752 Channel 165 Report No: 1560497R-RFUSP39V00 Page: 342 of 752 Product Dual-band Wireless Range Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/07/11 Test Site SR7 IEEE 802.11a (ANT 2), Antenna Gain: 3.56dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 32.592 ≧30 Pass 157 5785 59.321 ≧30 Pass 165 5825 47.606 ≧30 Pass Channel 149 Report No: 1560497R-RFUSP39V00 Page: 343 of 752 Channel 157 Report No: 1560497R-RFUSP39V00 Page: 344 of 752 Channel 165 Report No: 1560497R-RFUSP39V00 Page: 345 of 752 Product Dual-band Wireless Range Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/07/11 Test Site SR7 IEEE 802.11n (20MHz), (ANT 0) Antenna Gain: 4.6 dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 31.196 ≧30 Pass 157 5785 54.498 ≧30 Pass 165 5825 40.981 ≧30 Pass Channel 149 Report No: 1560497R-RFUSP39V00 Page: 346 of 752 Channel 157 Report No: 1560497R-RFUSP39V00 Page: 347 of 752 Channel 165 Report No: 1560497R-RFUSP39V00 Page: 348 of 752 Product Dual-band Wireless Range Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/07/11 Test Site SR7 IEEE 802.11n (20MHz), (ANT 1) Antenna Gain: 4.45dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 31.132 ≧30 Pass 157 5785 54.581 ≧30 Pass 165 5825 39.925 ≧30 Pass Channel 149 Report No: 1560497R-RFUSP39V00 Page: 349 of 752 Channel 157 Report No: 1560497R-RFUSP39V00 Page: 350 of 752 Channel 165 Report No: 1560497R-RFUSP39V00 Page: 351 of 752 Product Dual-band Wireless Range Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/07/11 Test Site SR7 IEEE 802.11n (20MHz), (ANT 2) Antenna Gain: 3.56dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 30.528 ≧30 Pass 157 5785 57.194 ≧30 Pass 165 5825 39.967 ≧30 Pass Channel 149 Report No: 1560497R-RFUSP39V00 Page: 352 of 752 Channel 157 Report No: 1560497R-RFUSP39V00 Page: 353 of 752 Channel 165 Report No: 1560497R-RFUSP39V00 Page: 354 of 752 Product Dual-band Wireless Range Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/07/11 Test Site SR7 IEEE 802.11n (40MHz), (ANT 0) Antenna Gain: 4.6dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 151 5755 30.851 ≧30 Pass 159 5795 38.207 ≧30 Pass Channel 151 (5755MHz) Report No: 1560497R-RFUSP39V00 Page: 355 of 752 Channel 159 (5795MHz) Report No: 1560497R-RFUSP39V00 Page: 356 of 752 Product Dual-band Wireless Range Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/07/11 Test Site SR7 IEEE 802.11n (40MHz), (ANT 1) Antenna Gain: 4.45dBi Channel Frequen…
Text truncated - open the document above for the full version.
Report No: 1560497R-RFUSP39V00 Page: 545 of 752 Product Dual-band Wireless Range Extender Test Item DTS Bandwidth Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/05/25 Test Site SR7 IEEE 802.11n (40MHz)(ANT 0) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 151 5755 36.51 ≧0.5 Pass 159 5795 36.50 ≧0.5 Pass Channel 151 Report No: 1560497R-RFUSP39V00 Page: 546 of 752 Channel 159 Report No: 1560497R-RFUSP39V00 Page: 547 of 752 Product Dual-band Wireless Range Extender Test Item DTS Bandwidth Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/05/25 Test Site SR7 IEEE 802.11n (40MHz)(ANT 1) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 151 5755 36.51 ≧0.5 Pass 159 5795 36.52 ≧0.5 Pass Channel 151 Report No: 1560497R-RFUSP39V00 Page: 548 of 752 Channel 159 Report No: 1560497R-RFUSP39V00 Page: 549 of 752 Product Dual-band Wireless Range Extender Test Item DTS Bandwidth Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/05/25 Test Site SR7 IEEE 802.11n (40MHz)(ANT 2) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 151 5755 36.51 ≧0.5 Pass 159 5795 36.49 ≧0.5 Pass Channel 151 Report No: 1560497R-RFUSP39V00 Page: 550 of 752 Channel 159 Report No: 1560497R-RFUSP39V00 Page: 551 of 752 Product Dual-band Wireless Range Extender Test Item DTS Bandwidth Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/05/25 Test Site SR7 IEEE 802.11ac (80MHz)(ANT 0) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 155 5775 75.81 ≧0.5 Pass Channel 155 Report No: 1560497R-RFUSP39V00 Page: 552 of 752 Product Dual-band Wireless Range Extender Test Item DTS Bandwidth Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/05/25 Test Site SR7 IEEE 802.11ac (80MHz)(ANT 1) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 155 5775 75.38 ≧0.5 Pass Channel 155 Report No: 1560497R-RFUSP39V00 Page: 553 of 752 Product Dual-band Wireless Range Extender Test Item DTS Bandwidth Test Mode Mode 1: Transmit_CDD Mode_AD890326 Date of Test 2015/05/25 Test Site SR7 IEEE 802.11ac (80MHz)(ANT 2) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 155 5775 75.64 ≧0.5 Pass Channel 155 Report No: 1560497R-RFUSP39V00 Page: 554 of 752 8. Occupied Bandwidth 8.1. Test Equipment The following test equipments are used during the test: Occupied Bandwidth / SR7 Instrument Manufacturer Model No. Serial No Next Cal. Date Spectrum Analyzer Agilent N9010A-EXA US47140172 2016/08/23 Note: All equipments that need to calibrate are with calibration period of 1 year. 8.2. Test Setup 8.3. Test Procedures The EUT was setup according to ANSI C63.10; te…
