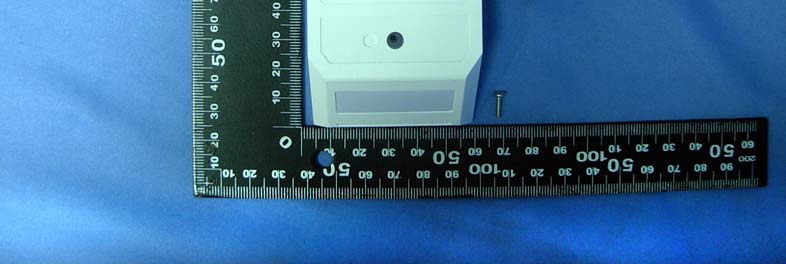

Report No：1530179R-RFUSP57V00 Page: 141 of 152 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

FCC ID.: MSQ- RPAC52 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Dual-band Wireless-AC750 Range Extender Model No.: RP-AC52 FCC ID : MSQ-RPAC52 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ASUS Model number.: RP-AC52

Report No：1530179R-RFUSP57V00 Page: 142 of 152 (3) EUT Photo (4) EUT Photo Report No：1530179R-RFUSP57V00 Page: 143 of 152 (5) EUT Photo (6) EUT Photo Report No：1530179R-RFUSP57V00 Page: 144 of 152 (7) EUT Photo (8) EUT Photo Report No：1530179R-RFUSP57V00 Page: 145 of 152 (9) EUT Photo (10) EUT Photo Report No：1530179R-RFUSP57V00 Page: 146 of 152 (11) EUT Photo (12) EUT Photo Report No：1530179R-RFUSP57V00 Page: 147 of 152 (13) EUT Photo (14) EUT Photo (ANT) Report No：1530179R-RFUSP57V00 Page: 148 of 152 (15) EUT Photo (16) EUT Photo (ANT) Report No：1530179R-RFUSP57V00 Page: 149 of 152 (17) EUT Photo (18) EUT Photo Report No：1530179R-RFUSP57V00 Page: 150 of 152 (19) EUT Photo (20) EUT Photo Report No：1530179R-RFUSP57V00 Page: 151 of 152 (21) EUT Photo (22) EUT Photo Report No：1530179R-RFUSP57V00 Page: 152 of 152 (23) EUT Photo (24) EUT Photo

Report No. 1530179R-RF-US-Exp Page: 1 of 8 RF Exposure Evaluation Declaration Product Name ： Dual-band Wireless-AC750 Range Extender Model No. ： RP-AC52 FCC ID. ： MSQ-RPAC52 Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt : 2015/03/10 Date of Declaration : 2015/05/21 Report No. : 1530179R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 1530179R-RF-US-Exp Page: 2 of 8 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1530179R-RF-US-Exp Page: 3 of 8 1.3. Test Result of RF Exposure Evaluation Product Dual-band Wireless-AC750 Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3dBi or 2 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 72.4436 0.02882 6 2437 44.2588 0.01761 11 2462 54.4503 0.02167 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 40.3645 0.01606 6 2437 199.5262 0.07939 11 2462 34.2768 0.01364 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1530179R-RF-US-Exp Page: 4 of 8 Product Dual-band Wireless-AC750 Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3dBi or 2 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 41.0204 0.01632 6 2437 182.3896 0.07257 11 2462 41.3048 0.01643 IEEE 802.11n (40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 24.2103 0.00963 6 2437 82.6038 0.03287 9 2452 23.8781 0.00950 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1530179R-RF-US-Exp Page: 5 of 8 Product Dual-band Wireless-AC750 Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3dBi or 2 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 58.2103 0.02316 40 5220 104.7129 0.04166 44 5240 108.8930 0.04333 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 72.1107 0.02869 153 5785 136.4583 0.05429 165 5825 125.8925 0.05009 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1530179R-RF-US-Exp Page: 6 of 8 Product Dual-band Wireless-AC750 Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3dBi or 2 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 58.2103 0.02316 40 5220 110.1539 0.04383 44 5240 112.4605 0.04475 IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 58.0764 0.02311 153 5785 133.3521 0.05306 165 5825 115.8777 0.04611 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1530179R-RF-US-Exp Page: 7 of 8 Product Dual-band Wireless-AC750 Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3dBi or 2 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 38 5190 25.3513 0.01009 46 5230 111.1732 0.04423 IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power De…

Text truncated - open the document above for the full version.

Report No：1530179R-RFUSP57V00 Page: 1 of 152 FCC Test Report Product Name ： Dual-band Wireless-AC750 Range Extender Model No. ： RP-AC52 FCC ID. ： MSQ-RPAC52 Applicant： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt： 2015/03/10 Issued Date ：2015/05/21 Report No. ：1530179R-RFUSP57V00 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：1530179R-RFUSP57V00 Page: 2 of 152 Test Report Certification Issued Date : 2015/05/21 Report No. : 1530179R-RFUSP57V00 Product Name ： Dual-band Wireless-AC750 Range Extender Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： RP-AC52 FCC ID. ： MSQ-RPAC52 EUT Voltage ： AC 100-240V, 50-60Hz Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart E Section 15.407: 2014 ANSI C63.10 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Demi Chang / Engineering Adm. Specialist ) Reviewed By : ( Bruno Tsai / Engineer ) Approved By : ( Roy Wang / Director ) Report No：1530179R-RFUSP57V00 Page: 3 of 152 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site: http://www.quietek.com/english/about/certificates.aspx?bval=5 The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/index_en.aspx If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 3024 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No：1530179R-RFUSP57V00 Page: 4 of 152 TABLE OF CONTENTS Description Page 1. General Information...................................................................................................................... 6 1.1. EUT Description .......................................................................................................................... 6 1.2. Test Mode.................................................................................................................................. 11 1.3. Tested System Details............................................................................................................... 12 1.4. Configuration of tested System ................................................................................................. 13 1.5. EUT Exercise Software ............................................................................................................. 13 1.6. Test Facility ............................................................................................................................... 14 2. Conducted Emission .................................................................................................................. 15 2.1. Test Equipment ......................................................................................................................... 15 2.2. Test Setup ................................................................................................................................. 15 2.3. Limits ......................................................................................................................................... 16 2.4. Test Procedure .......................................................................................................................... 16 2.5. Test Specification ...................................................................................................................... 16 2.6. Uncertainty ................................................................................................................................ 16 2.7. Test Result ................................................................................................................................ 17 2.8. Test Photo ................................................................................................................................. 19 3. 99% & 26dB & DTS Bandwidth .................................................................................................. 20 3.1. Test Equipment ......................................................................................................................... 20 3.2. Test Setup ................................................................................................................................. 20 3.3. Limits ......................................................................................................................................... 20 3.4. Test Procedure .......................................................................................................................... 20 3.5. Uncertainty ................................................................................................................................ 20 3.6. Test Result .........................................................................................…

Text truncated - open the document above for the full version.

Report No：1530179R-RFUSP57V00 Page: 19 of 152 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No：1530179R-RFUSP57V00 Page: 92 of 152 6.7. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：1530179R-RFUSP57V00 Page: 93 of 152 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
