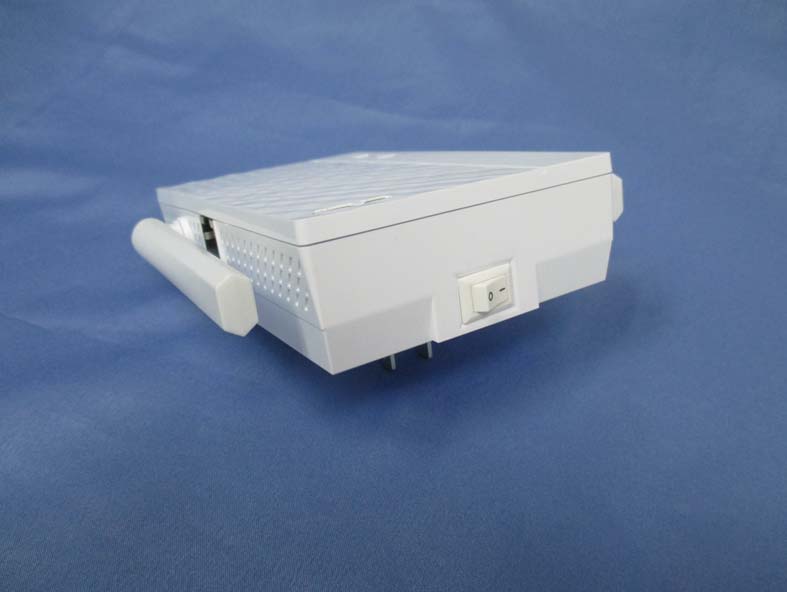

Report No：1540255R-RFUSP56V00 Page: 244 of 253 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo

FCC ID.: MSQ-RPAC56 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Dual-band Wireless-AC1200 Range Extender Model No.: RP-AC56, RP-AC1200 FCC ID : MSQ-RPAC56 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ASUS Model number.: RP-AC56, RP-AC1200

RELEASE DATE : 2015/05/15

Report No：1540255R-RFUSP56V00 Page: 245 of 253 (3) EUT Photo (4) EUT Photo Report No：1540255R-RFUSP56V00 Page: 246 of 253 (5) EUT Photo (6) EUT Photo Report No：1540255R-RFUSP56V00 Page: 247 of 253 (7) EUT Photo (8) EUT Photo Report No：1540255R-RFUSP56V00 Page: 248 of 253 (9) EUT Photo (10) EUT Photo Report No：1540255R-RFUSP56V00 Page: 249 of 253 (11) EUT Photo (12) EUT Photo Report No：1540255R-RFUSP56V00 Page: 250 of 253 (13) EUT Photo (14) EUT Photo Report No：1540255R-RFUSP56V00 Page: 251 of 253 (15) EUT Photo Report No：1540255R-RFUSP56V00 Page: 252 of 253 (16) EUT Photo (MB) Report No：1540255R-RFUSP56V00 Page: 253 of 253 (17) EUT Photo (MB)

Report No. 1540255R-RF-US-Exp Page: 1 of 8 RF Exposure Evaluation Declaration Product Name ： Dual-band Wireless-AC1200 Range Extender Model No. ： RP-AC56, RP-AC1200 FCC ID. ： MSQ-RPAC56 Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt : 2015/04/10 Date of Declaration : 2015/05/22 Report No. : 1540255R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 1540255R-RF-US-Exp Page: 2 of 8 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1540255R-RF-US-Exp Page: 3 of 8 1.3. Test Result of RF Exposure Evaluation Product Dual-band Wireless-AC1200 Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 162.9296 0.05121 6 2437 203.2357 0.06388 11 2462 202.3019 0.06359 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 80.3526 0.02526 6 2437 300.6076 0.09449 11 2462 84.5279 0.02657 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1540255R-RF-US-Exp Page: 4 of 8 Product Dual-band Wireless-AC1200 Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 79.0679 0.02485 6 2437 246.6039 0.07752 11 2462 76.9130 0.02418 IEEE 802.11n (40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 48.9779 0.01540 6 2437 134.2765 0.04221 9 2452 48.7528 0.01532 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1540255R-RF-US-Exp Page: 5 of 8 Product Dual-band Wireless-AC1200 Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 114.8154 0.05733 40 5220 209.8940 0.10481 44 5240 163.3052 0.08155 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 146.8926 0.07335 153 5785 167.1091 0.08345 165 5825 170.2159 0.08500 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1540255R-RF-US-Exp Page: 6 of 8 Product Dual-band Wireless-AC1200 Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 113.5011 0.05668 40 5220 146.5548 0.07318 44 5240 146.2177 0.07301 IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 116.9499 0.05840 153 5785 148.9361 0.07437 165 5825 150.3142 0.07506 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1540255R-RF-US-Exp Page: 7 of 8 Product Dual-band Wireless-AC1200 Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 38 5190 50.9331 0.02543 46 5230 133.9677 0.06690 IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MH…
