MSQ-RPAC68UDual-band Wireless Range Extender

Quick Installation Guide A quick look Five LAN Gigabit ports USB 3.0 port x 1 WPS button x 1 Power on off button x 1 Wi-Fi LED: 2.4G LED / 5G LED: Three LEDs on: RP-AC68U has good signal connection with router. Two LEDs on: RP-AC68U has normal signal connection with router. One LEDs on: RP-AC68U has weak signal connection with router. Off: RP-N12 doesn’t connect to a router. Plug your RP-AC68U into a power outlet Near your Router/AP Method One Quick Setup using the WPS Button Use this if your Router or Access Point(AP) support WPS Power On Push the two WPS buttons Push the WPS button on your Router/AP Immediately push the WPS button on your RP-AC68U The Stylish LED should go to flashing in about 2 minutes. Wait until the Wi-Fi LED turn on. You could know the signal quality with different LED number. Relocate RP-AC68U to a location you like. After the extender is relocated to a new place, RP-AC68U will reconnect to your router automatically in about one minute. The ideal location for RP-AC68U is between your wireless router and wireless device. Make sure RP-AC68U is in a location where signals indictor LED has over 2 led on at least. Keep the RP-AC68U away from devices like cordless phones, Bluetooth devices and microwave ovens to minimize wireless interference. If possible, try to place your extender in open corridors or spacious locations rather than a crowded room. Enjoy! The Range Extender shares your router’s Wireless Network Name (SSID) and Wireless Password Frequently Asked Questions (FAQ) Q1: What should I do if my router doesn’t have a WPS button? A1: You can use Method Two to set up RP-AC68U Q2 Why is that the Wi-Fi LED does not light up after completing Method Two? A1: You may have entered the wrong router SSID and password. Reset your RP-AC56, double check your router SSID/password, and set up RP-AC56 again. Q3 How do I reset RP-AC68U A1: Press the RESET button on the button of RP-AC68U for about two (2) seconds. Wait for about five (5) seconds until the LEDs blink slowly. RP-AC68U Dual band Wireless Ranger Extender Reset button Method Two Setup using your Web Browser Power On Plug your RP-AC68U Near your Router/AP Login Disconnect your Ethernet connection. On your Wi-Fi enabled device, such as your desktop PC/notebook/tablet, find the default network name of your RP-AC68U and click or tap Connect. Go to the RP-AC68U web management page: http://repeater.asus.com and enter admin for both Username and Password. Configure Relocate Enjoy! The Range Extender shares your router’s Wireless Network Name (SSID) and Wireless Password The ideal location for RP-AC68U is between your wireless router and wireless device. Make sure RP-AC68U is in a location where signals indictor LED has over 2 led on at least. 1. On a web browser, enter http://repeater.asus.com. 2. Connect to a Wi-Fi network and when prompted, enter the security key. If your Wi-Fi network is hidden, click Manual setting. 3. You can either tick “Use default setting” or enter the SSID and security key/password for your extended network. When done, click Next. NOTE: Your RP-AC56’s wireless network name (SSID) changes to your existing Wi-Fi network name, ending with _RPT or _RPT5G and shares your router/AP’s Wireless Password. 4. Connect your wireless devices to the new Extender network. IMPORTANT! For the best Wi-Fi extender performance, place your RP-AC68U in an ideal location. Refer to Step 3 in Method One FCC Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. " RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance." The operation frequency of the device is in the 5150-5250 MHz band is for indoor use only. Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences …

Text truncated - open the document above for the full version.

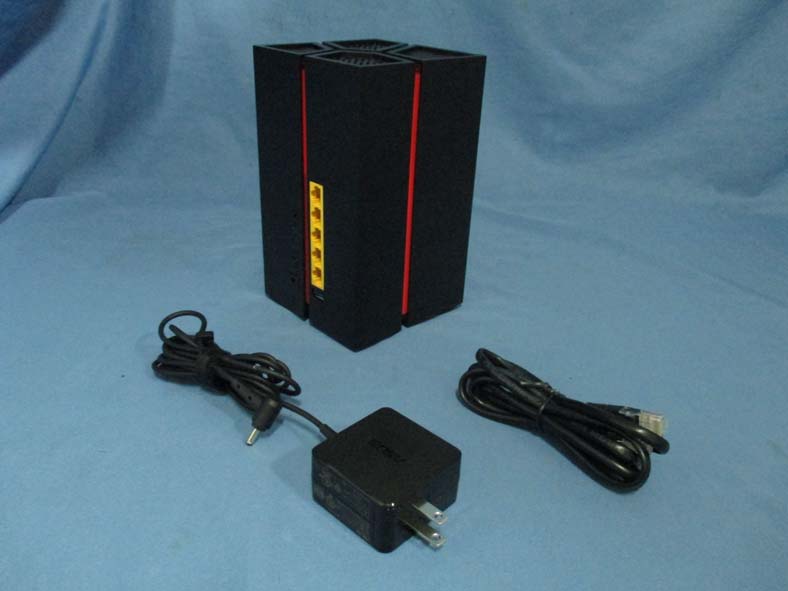

Report No： 1550369R-RFUSP39V00 Page: 360 of 374 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo Report No： 1550369R-RFUSP39V00 Page: 361 of 374 (3) EUT Photo

FCC ID.: MSQ-RPAC68U FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Dual-band Wireless Range Extender Model No.: RP-AC68U FCC ID : MSQ-RPAC68U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ASUS Model number.: RP-AC68U

WPS 1. 2. 3. 4. 5. DCIN RP-AC68 Dual Band AC1900 Ranger Extender

Report No. 1550369R-RF-US-Exp Page: 1 of 6 RF Exposure Evaluation Declaration Product Name ： Dual-band Wireless Range Extender Model No. ： RP-AC68U FCC ID. ： MSQ-RPAC68U Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt : 2015/05/15 Date of Declaration : 2015/05/26 Report No. : 1550369R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 1550369R-RF-US-Exp Page: 2 of 6 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1550369R-RF-US-Exp Page: 3 of 6 1.3. Test Result of RF Exposure Evaluation Product Dual-band Wireless Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.57dBi or 2.28 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 415.9106 0.18865 6 2437 731.1391 0.33164 11 2462 152.4053 0.06913 Report No. 1550369R-RF-US-Exp Page: 4 of 6 Product Dual-band Wireless Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.6dBi or 2.88 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 172.9816 0.09911 40 5220 202.3019 0.11591 44 5240 207.9697 0.11916 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1550369R-RF-US-Exp Page: 5 of 6 Product Dual-band Wireless Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.6dBi or 2.88 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 447.7133 0.25652 153 5785 435.5119 0.24953 165 5825 191.8669 0.10993 IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 401.7908 0.23021 153 5785 396.2780 0.22705 165 5825 314.7748 0.18035 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1550369R-RF-US-Exp Page: 6 of 6 Product Dual-band Wireless Range Extender Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.6dBi or 2.88 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 151 5755 335.7376 0.19236 159 5795 408.3194 0.23395 IEEE 802.11ac(80MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 155 5775 231.7395 0.13278 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Report No： 1550369R-RFUSP39V00 Page: 1 of 374 FCC Test Report Product Name ： Dual-band Wireless Range Extender Model No. ： RP-AC68U FCC ID. ： MSQ-RPAC68U Applicant： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt：2015/05/15 Issued Date ：2015/05/26 Report No. ：1550369R-RFUSP39V00 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 1550369R-RFUSP39V00 Page: 2 of 374 Test Report Certification Issued Date : 2015/05/26 Report No. : 1550369R-RFUSP39V00 Product Name ： Dual-band Wireless Range Extender Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ： (1) ASKEY COMPUTER CORPORATION (2) ASKEY TECHNOLOGY( JIANG SU) LTD. Model No. ： RP-AC68U FCC ID. ： MSQ-RPAC68U EUT Voltage : AC 100-240V, 50-60Hz Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247:2014 ANSI C63.10: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Specialist ) Reviewed By : ( Jimmie Liu / Senior Engineer ) Approved By : ( Roy Wang / Director Manager ) Report No： 1550369R-RFUSP39V00 Page: 3 of 374 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/english/about/certificates.aspx?bval=5 The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/index_en.aspx If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 3024 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 1550369R-RFUSP39V00 Page: 4 of 374 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 7 1.1. EUT Description ............................................................................................................. 7 1.2. Test Mode ..................................................................................................................... 12 1.3. Tested System Details .................................................................................................. 13 1.4. Configuration of tested System .................................................................................... 13 1.5. EUT Exercise Software ................................................................................................ 14 1.6. Test Facility................................................................................................................... 15 2. Conducted Emission .................................................................................................... 16 2.1. Test Equipment............................................................................................................. 16 2.2. Test Setup .................................................................................................................... 16 2.3. Limits ............................................................................................................................ 17 2.4. Test Procedure ............................................................................................................. 17 2.5. Test Specification.......................................................................................................... 17 2.6. Uncertainty ................................................................................................................... 17 2.7. Test Result.................................................................................................................... 18 2.8. Test Photo .................................................................................................................... 22 3. Peak Power Output ...................................................................................................... 23 3.1. Test Equipment............................................................................................................. 23 3.2. Test Setup .................................................................................................................... 23 3.3. Test procedures ............................................................................................................ 23 3.4. Limits ............................................................................................................................ 23 3.5. Test Specification.......................................................................................................... 23 3.6. Uncertainty ................................................................................................................... 23 3.7. Test Result.................................................................................................................... 24 4. Radiated Emission ..................................…

Text truncated - open the document above for the full version.

Report No： 1550369R-RFUSP39V00 Page: 177 of 374 Product Dual-band Wireless Range Extender Test Item RF antenna conducted test Test Mode Mode 1: Transmit Date of Test 2015/05/24 Test Site SR7 5745MHz (30MHz~25GHz)-802.11a (ANT 0) 5785MHz (30MHz~25GHz)-802.11a (ANT 0) Report No： 1550369R-RFUSP39V00 Page: 178 of 374 5825MHz (30MHz~25GHz)-802.11a (ANT 0) Report No： 1550369R-RFUSP39V00 Page: 179 of 374 5745MHz (30MHz~25GHz)-802.11a (ANT 1) 5785MHz (30MHz~25GHz)-802.11a (ANT 1) Report No： 1550369R-RFUSP39V00 Page: 180 of 374 5825MHz (30MHz~25GHz)-802.11a (ANT 1) Report No： 1550369R-RFUSP39V00 Page: 181 of 374 5745MHz (30MHz~25GHz)-802.11a (ANT 2) 5785MHz (30MHz~25GHz)-802.11a (ANT 2) Report No： 1550369R-RFUSP39V00 Page: 182 of 374 5825MHz (30MHz~25GHz)-802.11a (ANT 2) Report No： 1550369R-RFUSP39V00 Page: 183 of 374 5745MHz (30MHz~25GHz)- 802.11n(20MHz)(ANT 0) 5785MHz (30MHz~25GHz)- 802.11n(20MHz)(ANT 0) Report No： 1550369R-RFUSP39V00 Page: 184 of 374 5825MHz (30MHz~25GHz)- 802.11n(20MHz)(ANT 0) Report No： 1550369R-RFUSP39V00 Page: 185 of 374 5745MHz (30MHz~25GHz)- 802.11n(20MHz)(ANT 1) 5785MHz (30MHz~25GHz)- 802.11n(20MHz)(ANT 1) Report No： 1550369R-RFUSP39V00 Page: 186 of 374 5825MHz (30MHz~25GHz)- 802.11n(20MHz)(ANT 1) Report No： 1550369R-RFUSP39V00 Page: 187 of 374 5745MHz (30MHz~25GHz)- 802.11n(20MHz)(ANT 2) 5785MHz (30MHz~25GHz)- 802.11n(20MHz)(ANT 2) Report No： 1550369R-RFUSP39V00 Page: 188 of 374 5825MHz (30MHz~25GHz)- 802.11n(20MHz)(ANT 2) Report No： 1550369R-RFUSP39V00 Page: 189 of 374 5755MHz (30MHz~25GHz)-802.11n(40MHz)-ANT 0 5795MHz (30MHz~25GHz) -802.11n(40MHz)-ANT 0 Report No： 1550369R-RFUSP39V00 Page: 190 of 374 5755MHz (30MHz~25GHz)-802.11n(40MHz)-ANT 1 5795MHz (30MHz~25GHz) -802.11n(40MHz)-ANT 1 Report No： 1550369R-RFUSP39V00 Page: 191 of 374 5755MHz (30MHz~25GHz)-802.11n(40MHz)-ANT 2 5795MHz (30MHz~25GHz) -802.11n(40MHz)-ANT 2 Report No： 1550369R-RFUSP39V00 Page: 192 of 374 5775MHz (30MHz~25GHz)-802.11ac(80MHz)-ANT 0 5775MHz (30MHz~25GHz) -802.11ac(80MHz)-ANT 1 Report No： 1550369R-RFUSP39V00 Page: 193 of 374 5775MHz (30MHz~25GHz) -802.11ac(80MHz)-ANT 2 Report No： 1550369R-RFUSP39V00 Page: 194 of 374 6. Radiated Emission Band Edge 6.1. Test Equipment The following test equipments are used during the test: Radiated Emission Band Edge / CB1 Instrument Manufacturer Model No. Serial No Next Cal. Date Double Ridged Guide Horn Antenna Schwarzback BBHA 9120 D743 2016/01/26 Spectrum Analyzer Agilent E4440A MY46187335 2016/01/07 k Type Cable Huber Suhner Sucoflex 102 25623/2 2016/01/26 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 6.2. Test Setup Report No： 1550369R-RFUSP39V00 Page: 195 of 374 6.3. Limits Emissions radiated outside of the specified frequency bands, except for harmonics, shall be attenuated by at least 20dB below the level of the fundamental or to the general radiated emission limits in paragraph 15.209, whichever is the lesser attenuation. 6.4. Test Procedure The EUT was setup according to ANSI C63.10: 2009 and tested according to DTS test procedure of KDB558074 v03r02 for compliance to FCC 47CFR 15.247 requirements. The EUT and its simulators are placed on a turn table which is 0.8 meter above ground. The turn table can rotate 360 degrees to determine the position of the maximum emission level. The EUT was positioned such that the distance from antenna to the EUT was 3 meters. The antenna can move up and down between 1 meter and 4 meters to find out the maximum emission level. Both horizontal and vertical polarization of the antenna are set on measurement. In order to find the maximum emission, all of the interface cables must be manipulated according to ANSI C63.10: 2009 on radiated measurement. 6.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2014 6.6. Uncertainty The measurement uncertainty ± 3.9 dB above 1GHz Report No： 1550369R-RFUSP39V00 Page: 196 of 374 6.7. Test Result Radiated is defined as Site : CB1 Time : 2015/05/21 - 16:21 Limit : FCC_SpartC_15.247_H_03M_PK Margin : 6 Probe : CB1_FCC_EFS_1-18G_H2 - HORIZONTAL Power : AC120V/60Hz EUT : Dual-band Wireless Range Extender Note : 802.11b 2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 28.899 27.17156.069-17.931 74.000 PEAK 2 2385.959 29.724 32.98862.712-11.288 74.000 PEAK 3 2390.000 29.768 33.12362.891-11.109 74.000 PEAK 4 * 2412.946 30.017 86.972116.99042.990 74.000 PEAK 5 2483.500 30.738 30.53261.271-12.729 74.000 PEAK 6 2491.607 30.745 32.24462.989-11.011 74.000 PEAK 7 2500.000 30.740 30.26361.002-12.998 74.000 PEAK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average measurements: RBW = 1MHz, VBW = 10 Hz, Sweep: Auto. 4. “ * ”, means this data is the worst emission level. 5. Measurement Level = Reading Level + Correct Factor. 6. The average measurement was not performed when the peak measured data under the limit of average detection. Report No： 1550369R-RFUSP39V00 Page: 197 of 374 Site : CB1 Time : 2015/05/21 - 16:20 Limit : FCC_SpartC_15.247_H_03M_AV Margin : 6 Probe : CB1_FCC_EFS_1-18G_H2 - HORIZONTAL Power : AC120V/60Hz EUT : Dual-band Wireless Range Extender Note : 802.11b 2412MHz Frequency (MHz) Correct Factor (dB) Reading Level (dBuV) Measure Level (dBuV/m) Margin (dB) Limit (dBuV/m) Detector Type 1 2310.000 28.899 15.13944.037-9.963 54.000 AVERAGE 2 2386.459 29.730 22.38652.116-1.884 54.000 AVERAGE 3 2390.000 29.768 21.39751.165-2.835 54.000 AVERAGE 4 * 2412.746 30.016 84.035114.05060.050 54.000 AVERAGE 5 2483.500 30.738 18.10048.839-5.161 54.000 AVERAGE 6 2492.106 30.745 18.60249.347-4.653 54.000 AVERAGE 7 2500.000 30.740 19.73850.477-3.523 54.000 AVERAGE Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Peak measurements: RBW = 1MHz, VBW = 3 MHz, Sweep: Auto. 3. Average mea…

Text truncated - open the document above for the full version.

Report No： 1550369R-RFUSP39V00 Page: 278 of 374 Product Dual-band Wireless Range Extender Test Item DTS Bandwidth Test Mode Mode 1: Transmit Date of Test 2015/05/25 Test Site SR7 IEEE 802.11ac (80MHz)(ANT 0) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 155 5775 75.81 >0.5 Pass Channel 155 Report No： 1550369R-RFUSP39V00 Page: 279 of 374 Product Dual-band Wireless Range Extender Test Item DTS Bandwidth Test Mode Mode 1: Transmit Date of Test 2015/05/25 Test Site SR7 IEEE 802.11ac (80MHz)(ANT 1) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 155 5775 75.38 >0.5 Pass Channel 155 Report No： 1550369R-RFUSP39V00 Page: 280 of 374 Product Dual-band Wireless Range Extender Test Item DTS Bandwidth Test Mode Mode 1: Transmit Date of Test 2015/05/25 Test Site SR7 IEEE 802.11ac (80MHz)(ANT 2) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 155 5775 75.64 >0.5 Pass Channel 155 Report No： 1550369R-RFUSP39V00 Page: 281 of 374 8. Occupied Bandwidth 8.1. Test Equipment The following test equipments are used during the test: Occupied Bandwidth / SR7 Instrument Manufacturer Model No. Serial No Next Cal. Date Spectrum Analyzer Agilent N9010A-EXA US47140172 2015/07/14 Note: 1. All equipments that need to calibrate are with calibration period of 1 year. 8.2. Test Setup 8.3. Test Procedures The EUT was setup according to ANSI C63.10; tested according to DTS test procedure of KDB558074 v03r02 for compliance to FCC 47CFR 15.247 requirements. Set RBW = 1-5% of the OBW, Set the VBW ≧ 3xRBW, Sweep Time=Auto. 8.4. Limits NA 8.5. Test Specification According to FCC Part 15 Subpart C Paragraph 15.247: 2014 8.6. Uncertainty The measurement uncertainty is defined as ±150Hz Report No： 1550369R-RFUSP39V00 Page: 282 of 374 8.7. Test Result Product Dual-band Wireless Range Extender Test Item Occupied Bandwidth Test Mode Mode 1: Transmit Date of Test 2015/05/24 Test Site SR7 802.11 b (ANT 0) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 1 2412 15.048 -- Pass 6 2437 15.038 -- Pass 11 2462 15.011 -- Pass Channel 1 Report No： 1550369R-RFUSP39V00 Page: 283 of 374 Channel 6 Report No： 1550369R-RFUSP39V00 Page: 284 of 374 Channel 11 Report No： 1550369R-RFUSP39V00 Page: 285 of 374 Product Dual-band Wireless Range Extender Test Item Occupied Bandwidth Test Mode Mode 1: Transmit Date of Test 2015/05/24 Test Site SR7 802.11 b (ANT 1) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 1 2412 15.084 -- Pass 6 2437 15.061 -- Pass 11 2462 15.054 -- Pass Channel 1 Report No： 1550369R-RFUSP39V00 Page: 286 of 374 Channel 6 Report No： 1550369R-RFUSP39V00 Page: 287 of 374 Channel 11 Report No： 1550369R-RFUSP39V00 Page: 288 of 374 Product Dual-band Wireless Range Extender Test Item Occupied Bandwidth Test Mode Mode 1: Transmit Date of Test 2015/05/24 Test Site SR7 802.11 b (ANT 2) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 1 2412 15.053 -- Pass 6 2437 15.044 -- Pass 11 2462 15.041 -- Pass Channel 1 Report No： 1550369R-RFUSP39V00 Page: 289 of 374 Channel 6 Report No： 1550369R-RFUSP39V00 Page: 290 of 374 Channel 11 Report No： 1550369R-RFUSP39V00 Page: 291 of 374 Product Dual-band Wireless Range Extender Test Item Occupied Bandwidth Test Mode Mode 1: Transmit Date of Test 2015/05/17 Test Site SR7 802.11 a (ANT 0) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 149 5745 17.441 -- Pass 157 5785 17.400 -- Pass 165 5825 17.472 -- Pass Channel 149 Report No： 1550369R-RFUSP39V00 Page: 292 of 374 Channel 157 Report No： 1550369R-RFUSP39V00 Page: 293 of 374 Channel 165 Report No： 1550369R-RFUSP39V00 Page: 294 of 374 Product Dual-band Wireless Range Extender Test Item Occupied Bandwidth Test Mode Mode 1: Transmit Date of Test 2015/05/17 Test Site SR7 802.11 a (ANT 1) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 149 5745 18.054 -- Pass 157 5785 17.738 -- Pass 165 5825 17.700 -- Pass Channel 149 Report No： 1550369R-RFUSP39V00 Page: 295 of 374 Channel 157 Report No： 1550369R-RFUSP39V00 Page: 296 of 374 Channel 165 Report No： 1550369R-RFUSP39V00 Page: 297 of 374 Product Dual-band Wireless Range Extender Test Item Occupied Bandwidth Test Mode Mode 1: Transmit Date of Test 2015/05/17 Test Site SR7 802.11 a (ANT 2) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 149 5745 17.392 -- Pass 157 5785 17.316 -- Pass 165 5825 17.230 -- Pass Channel 149 Report No： 1550369R-RFUSP39V00 Page: 298 of 374 Channel 157 Report No： 1550369R-RFUSP39V00 Page: 299 of 374 Channel 165 Report No： 1550369R-RFUSP39V00 Page: 300 of 374 Product Dual-band Wireless Range Extender Test Item Occupied Bandwidth Test Mode Mode 1: Transmit Date of Test 2015/05/17 Test Site SR7 IEEE 802.11n (20MHz)(ANT 0) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 149 5745 18.218 -- Pass 157 5785 18.112 -- Pass 165 5825 18.136 -- Pass Channel 149 Report No： 1550369R-RFUSP39V00 Page: 301 of 374 Channel 157 Report No： 1550369R-RFUSP39V00 Page: 302 of 374 Channel 165 Report No： 1550369R-RFUSP39V00 Page: 303 of 374 Product Dual-band Wireless Range Extender Test Item Occupied Bandwidth Test Mode Mode 1: Transmit Date of Test 2015/05/17 Test Site SR7 IEEE 802.11n (20MHz)(ANT 1) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 149 5745 18.543 -- Pass 157 5785 18.475 -- Pass 165 5825 18.460 -- Pass Channel 149 Report No： 1550369R-RFUSP39V00 Page: 304 of 374 Channel 157 Report No： 1550369R-RFUSP39V00 Page: 305 of 374 Channel 165 Report No： 1550369R-RFUSP39V00 Page: 306 of 374 Product Dual-band Wireless Range Extender Test Item Occupied Bandwidth Test Mode Mode 1: Transmit Date of Test 2015/05/17 Test Site SR7 IEEE 802.11n (20MHz)(ANT 2) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 149 5745 18.220 -- Pass 157 5785 18.193 -- Pass 165 5825 18.200 -- Pass Channel 149 Report No： 1550369R-RFUSP39V00 Page: 307 of 374 Channel 157 Report No： 1550369R-RFUSP39V00 Page: 308 of 374 Channel 165 Repo…

Text truncated - open the document above for the full version.

Report No： 1550369R-RFUSP39V00 Page: 22 of 374 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No： 1550369R-RFUSP39V00 Page: 131 of 374 4.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View…
