  1. Home/
  2. ASUSTeK Computer Inc/
  3. MSQ-RPAX2K00

MSQ-RPAX2K00AX3000 Dual-Band WiFi Range Extender

ASUSTeK Computer Inc
AX3000 Dual-Band WiFi Range Extender - FCC ID MSQ-RPAX2K00 - ASUSTeK Computer Inc
Click to zoom

Application Details

Equipment Class
NII - Unlicensed National Information Infrastructure TX
Date of Grant
Nov 17, 2022
Application Purpose
Original Equipment
Date of Application
Nov 15, 2022
Equipment Note
AX3000 Dual-Band WiFi Range Extender
Frequency Range
5745.00000000 - 5825.00000000
Company
ASUSTeK Computer Inc
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Placing your RP-AX58 Plug your RP-AX58 into a power outlet near your router/AP. Check the LEDs and see the LED explanations. METHOD 1 Download the ASUS Extender App and follow the onscreen instructions METHOD 2 Connect via WPS Press the WPS button on your router/ AP. Press the WPS button on your RP-AX58 for more than two (2) seconds until the LED starts to blink blue. RP-AX58 AX3000 Dual-Band WiFi Range Extender Quick Start Guide Hardware Explanations Button Explanations RESET BUTTON Reset the system to its factory default settings. WPS BUTTON Launch the WPS Wizard. LAN PORT Connect your PC to the LAN port with a network cable. BEFORE SETUP SETUP METHODS WE SUGGEST... Set up RP-AX58 as a WiFi range extender Plug RP-AX58 into a power outlet. 2 The LED will start breathing white for 3 seconds while booting up. LAN port LED WPS button reset button LED Explanations WiFi Range Extender Mode StatusLED Behavior Booting upBlinking White Booting up complete (not connected to Router) Solid Blue Reset (use a pin to press the reset button for 5 seconds) Blinking Yellow Rescue modeSolid Purple Starting WPSBlinking Blue Connected to the router with Good Signal Solid White Connected to the router with Weak Signal Solid Yellow No SignalSolid Red AP mode (with wired connection)Solid White AP mode (without wired connection)Solid Red Wait for the LED to flash and turn solid blue, indicating that your RP-AX58 is ready to connect to your existing router/AP. around 2 meters 3 If you would like to connect RP-AX58 to other WiFi networks excluding AiMesh-supported routers, please download the ASUS Extender App or set up with the WPS button. 12 01 12 • To minimize interference, keep the routers away from devices like cordless phones, Bluetooth devices and microwave ovens. • We recommend that you place the routers in an open or spacious location. NOTES: AiMesh Mode StatusLED Behavior Booting upBlinking White Booting up complete (not connected to AiMesh Router) Solid Blue Reset (use a pin to press the reset button for 5 seconds) Blinking Yellow Rescue modeSolid Purple Connecting to the AiMesh RouterBlinking Blue Connected to the AiMesh Router with Good Signal Solid White Connected to the AiMesh Router with Weak Signal Solid Yellow No SignalSolid Red Ethernet backhaulSolid White 1 If your AiMesh router cannot find RP-AX58 nearby or synchronization fails, please check followings and try again. i. Download AiMesh - supported fireware at: https://www.asus.com/AiMesh/. ii. Launch a web GUI. You will be redirected to the ASUS Setup Wizard. If not, navigate to http://www. asusrouter.com. iii. Go to Administration > Firmware Upgrade. Click Choose File, and upload the AiMesh-supported firmware. iv. After the firmware is uploaded, please go to the Network Map page to check and make sure that the AiMesh icon shows up. v. Use a pin to press the reset button on your RP-AX58 for at least 5 seconds. Release the reset button when the power LED is flashing slowly. Q1 A: Yes. AiMesh system supports both wireless and wired connection between an AiMesh router and node to maximize throughput and stability. AiMesh analyzes the wireless signal strength for each frequency band available, and then determines automatically whether a wireless or wired connection is best to serve as the inter-router connection backbone. To know more about ASUS AiMesh, please go to https://www.asus.com/AiMesh/. FAQ TROUBLE SHOOTING FREQUENTLY ASKED QUESTIONS a Plug RP-AX58 into a power outlet near your router/AP. Ensure that it is within 3 meters from the AiMesh router. b Your AiMesh router is upgraded to AiMesh- supported firmware. Could I setup wired connection between AiMesh routers and nodes (Ethernet backhaul)? 1 Follow the setup steps to establish a connection between the AiMesh router and RP-AX58 via WiFi first. 2 Place the RP-AX58 in an ideal location for the best coverage. Run an Ethernet cable from the LAN port of the AiMesh router to the Ethernet backhaul port of RP- AX58. 3 AiMesh system will auto-select the best path for data transmission, whether wired or wireless. ASUS Recycling/Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions. REACH Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital de- vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a ci…

Text truncated - open the document above for the full version.

Cover Letter(s)

ASUSTeK COMPUTER INC. 1F., No. 15, Lide Rd., Beitou, Taipei City 112, Taiwan Confidential Letter Date: 2022/11/11 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID:MSQ-RPAX2K00 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Short Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request short-term confidential treatment of information accompanying this application as outlined below until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: ● External Photos ● Internal Photos ● Test Setup photos ● Users Manuals Respectfully, Applicant’s company name : ASUSTeK COMPUTER INC. Applicant’s company address : 1F., No. 15, Lide Rd., Beitou, Taipei City 112, Taiwan Signature : Name and Job Title : Jackson Yen / Associate Vice President E-Mail : [email protected] Tel : (886)2-2894-3447 Fax : (886)2-2898-7364

Cover Letter(s)

ASUSTeK COMPUTER INC. 1F., No. 15, Lide Rd., Beitou, Taipei City 112, Taiwan Power of Attorney Date: 2022/11/11 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Hsinchu Laboratory Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. FCC ID: MSQ-RPAX2K00 Respectfully, Applicant’s company name : ASUSTeK COMPUTER INC. Applicant’s company address : 1F., No. 15, Lide Rd., Beitou, Taipei City 112, Taiwan Signature : Name and Job Title : Jackson Yen / Associate Vice President E-Mail : [email protected] Tel : (886)2-2894-3447 Fax : (886)2-2898-7364

Cover Letter(s)

ASUSTeK COMPUTER INC. 1F., No. 15, Lide Rd., Beitou, Taipei City 112, Taiwan TPC Declaration Letter Date: 2022/11/11 FCC ID:MSQ-RPAX2K00 To Whom It May Concern: We, ASUSTeK COMPUTER INC., declare that the device supports the TPC function in final F/W when EUT is sold to FCC market. Respectfully, Applicant’s company name : ASUSTeK COMPUTER INC. Applicant’s company address : 1F., No. 15, Lide Rd., Beitou, Taipei City 112, Taiwan Signature : Name and Job Title : Jackson Yen / Associate Vice President E-Mail : [email protected] Tel : (886)2-2894-3447 Fax : (886)2-2898-7364

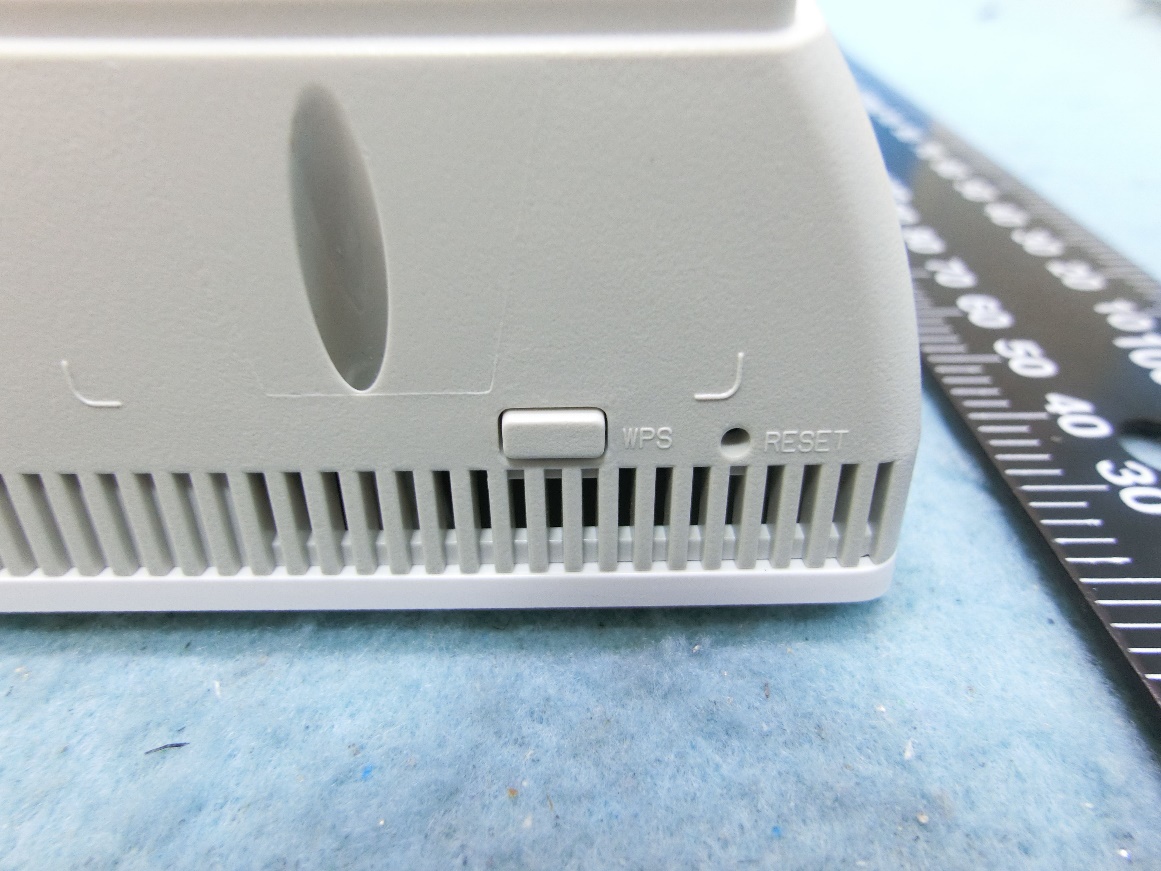

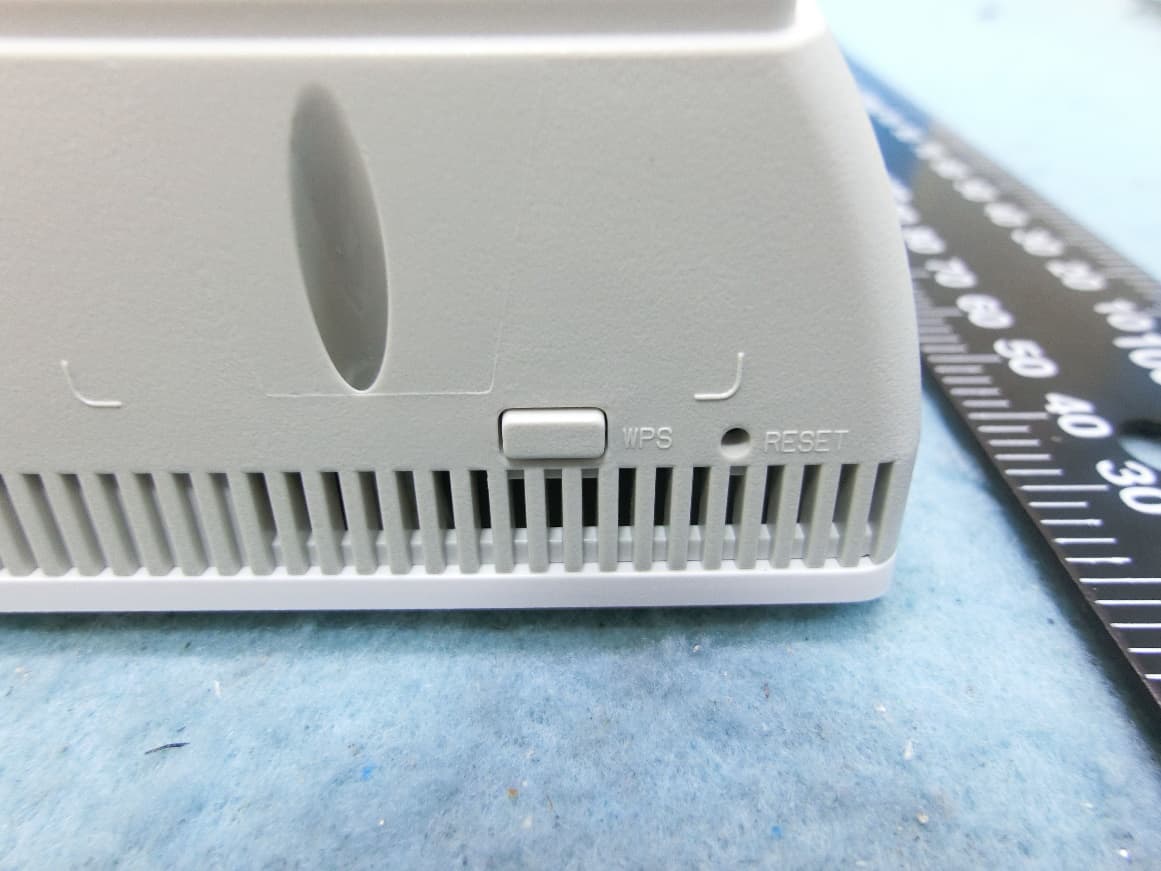

External Photos

PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 1 of 4 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 11, 2022 Report Version : 01 Brand Name: ASUS Model Name: RP-AX58 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 2 of 4 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 11, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 3 of 4 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 11, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 4 of 4 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 11, 2022 Report Version : 01

ID Label/Location Info

Label and location (both sides of the device)

Internal Photos

PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 1 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 Brand Name: ASUS Model Name: RP-AX58 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 2 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 3 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 4 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 Ant. 2 Ant. 1 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 5 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 6 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 7 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 8 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 9 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 10 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 11 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 12 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 13 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 14 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 15 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 16 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 17 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 18 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 19 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 20 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 21 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 22 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 23 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 24 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 25 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01 PHOTOGRAPHS OF EUT EP262309 Sporton International Inc. Page No. : 26 of 26 Report Template No.: SE Ver 1.0_EP Issued Date : Nov. 15, 2022 Report Version : 01

RF Exposure Info

RADIO EXPOSURE TEST REPORT Report No. : FA262309 TEL : 886-3-656-9065 Page Number : 2 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 15, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Antenna Information ............................................................................................................................... 6 1.3 Table for EUT Supports Function ........................................................................................................... 7 1.4 Accessories ............................................................................................................................................ 7 1.5 Applicable Standards ............................................................................................................................. 7 1.6 Testing Location ..................................................................................................................................... 7 2 Maximum Permissible Exposure ........................................................................................................ 8 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 8 2.2 MPE Calculation Method ........................................................................................................................ 8 2.3 MPE Exemption ...................................................................................................................................... 9 2.4 Calculated Result and Limit .................................................................................................................. 10 Photographs of EUT v01 RADIO EXPOSURE TEST REPORT Report No. : FA262309 TEL : 886-3-656-9065 Page Number : 3 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 15, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FA262309 01 Initial issue of report Nov. 15, 2022 RADIO EXPOSURE TEST REPORT Report No. : FA262309 TEL : 886-3-656-9065 Page Number : 4 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 15, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PA SS - Declaration of Conformity: 1. The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. It’s means measurement values may risk exceeding the limit of regulation standards, if measurement uncertainty is include in test results. 2. The measurement uncertainty please refer to report ”Measurement Uncertainty”. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Vicky Huang RADIO EXPOSURE TEST REPORT Report No. : FA262309 TEL : 886-3-656-9065 Page Number : 5 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 15, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) VHT: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 5GHz WLAN 5150-5250 5250-5350 5470-5725 5725-5850 5180-5250 5260-5320 5500-5720 5745-5825 802.11a/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) 802.11ac: OFDM (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) 802.11ax: OFDMA (BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM) RADIO EXPOSURE TEST REPORT Report No. : FA262309 TEL : 886-3-656-9065 Page Number : 6 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 15, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 1.2 Antenna Information Ant. Port Brand Holder Model Name Antenna Type Connector Gain (dBi) 1 1 SHENZHEN GONGJIN ELECTRONICS CO., LTD EmP301e-B-I45(B) PCB Antenna I-PEX Note1 2 2 SHENZHEN GONGJIN ELECTRONICS CO., LTD EmP301f-B-I45(G) PCB Antenna I-PEX Note1 Note1: <Antenna Gain> Note2: The above information was declared by manufacturer. Note3: Directional gain information Ant. Port Antenna Gain (dBi) 2.4GHz 5GHz 1 1 3 3 2 2 3 3 RADIO EXPOSURE TEST REPORT Report No. : FA262309 TEL : 886-3-656-9065 Page Number : 7 of 10 FAX : 886-3-656-9085 Issued Date : Nov. 15, 2022 Report Template No.: CB-A1_1 Ver1.1 Report Version : 01 For 2.4GHz function: For IEEE 802.11b/g/n/VHT/ax mode (2TX/2RX): Port 1 and Port 2 can be used as transmitting/receiving antenna. Port 1 and Port 2 could transmit/receive simultaneously. For 5GHz function: For IEEE 802.11a/n/ac/ax mode (2TX/2RX): Port 1 and Port 2 can be used as transmitting/receiving antenna. Port 1 and Port 2 could transmit/receive simultaneously. 1.3 Table for EUT Supports Function Function Supports type AP Router Master Bridge Client without radar detection Repeater Master Mesh Master Note 1: The AP Router mode was selected to test and recorded in this test report. Note 2: The above information was declared by manufacturer. 1.4 Accessories N…

Text truncated - open the document above for the full version.

Test Report

SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 1 页 共 8页 未经允许,不得复制 EmP301e-B-I45(B)_天线规格书 拟 制: 普星 日期: 2020-1-20 审 核: 邓文 日期: 2020-1-20 批 准: 秦祥宏 日期: 2020-1-20 文件编号 版本号 T-PD-xxx A0 生效日期 密级程度 2018-11-01 秘密 发放范围:深圳:各产品事业部研发部、测试部、供应商管理部、品管部、生产工艺部、资源优化部、样品物 料科、工程部、中试部、采购部、器件工程部、体系管理部 上海: 各产品事业部研发部、测试部、质量管理科 太仓: 研发部、采购部、工程部、中试部、品管部、体系管理科 SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 2 页 共 8页 未经允许,不得复制 一、 规格指标 1、技术规格指标 设计标准 IEEE802.11n and 802.11a/b/g 频率范围(Frequency Range) 2.4-2.5GHz&5.15-5.85 GHz 阻抗(Impedance) 50 ±10 Ohms 电压驻波比(VSWR) 1.92:1 回波损耗(Return Loss) -10dB or Less Radiation Omni-directional 增益(Gain) [email protected] GHz&5GHz 极化(Polarization) Linear polarization Admitted Power 30dbm Cable RF113 2、物理规格指标及材质要求 本体Body 40*8*1.0mm FR4 Operating Temp -40°C~+70°C Storage Temp -40°C~+70°C Color Black 二、 成品图纸 1、成品2D图纸 图一、天线成品图 SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 3 页 共 8页 未经允许,不得复制 2、成品实物图 图二、天线成品实物图 三、 电气性能实测结果 1、回波损耗(Return loss) 频率(GHz) 回波损耗值(db) 2.4 -19.12 dB 2.5 -22.2 dB 5.15 -21.2 dB 5.85 -16.1 dB 测试环境: 图三、网络分析仪 SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 4 页 共 8页 未经允许,不得复制 测试结果: 图四、回波损耗截图 2、辐射图(2D、3DRaditation Pattern) Frequency(GHz) Gain(dbi) Efficiency 2.45 2.8 75% 5.5 2.9 80% 测试环境: 图五、微波暗室 SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 5 页 共 8页 未经允许,不得复制 测试结果: 2.45GHz 5.5GHz XZ 2.45GHz 5.5GHz YZ 2.45GHz 5.5GHz XY SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 6 页 共 8页 未经允许,不得复制 2.45GHz 5.5GHz 图六、辐射图截图 四、 PCB安装及布局要求 1、 天线与机壳要求: 图七、天线与机壳安装示意图 注:天线距离PCB板边缘距离不低于15mm,天线通过机壳结构卡位固定,也可以通过泡 棉背胶固定。 五、 外观要求 1. 无毛边;无破损; 2. 无刮伤;无颜色不符; 3. 无内导体脱落,松动或异响等不良; 六、 试装检验 项目 检查 检测 测 试 方 法 与 判 定 标 准 判定结果 SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 7 页 共 8页 未经允许,不得复制 内容 工具 组装 检验 装配 效果 目视 厚薄规 将天线与PCB、机壳、天线馈线装配时,须组装顺畅,不 可有松动、难装或装不到位的现象 合格 七、 电气性能 项目 试验方法及条件 规格及要求 实验结果 特性阻抗 用TDR测试天线特性阻抗 阻抗50欧±10欧 合格 驻波比 在2.4-2.5GHz&5.15-5.85 GHz 用网络分析仪测试驻波比 VSWR驻波比1.92:1 MAX 合格 回波损耗 在2.4-2.5GHz&5.15-5.85 GHz 用网络分析仪测试回波损耗 回波损耗-10dB MAX 合格 增益 在2.4GHz-2.5GHz&5.15-5.85 GHz微波暗室测试增益和场型图 场形图增益符合规格要求 合格 SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 8 页 共 8页 未经允许,不得复制 八、 包装、运输、贮存要求 1. 包装要求: 1.1包装箱应标记生产厂家、产品名称、型号、标准号、重量及生产日期或批号,且包装材 料应保持干燥、整洁、对产品无腐蚀作用。 1.2包材纸箱要求:K=A B9加强芯抗压>500KG;抗爆>12-15KG。 1.3纸箱外形尺寸标准需要与产线统一标准; 1.4内置天线需要用专用吸塑壳包装; 2. 运输要求:包装的产品适应现代交通工具运输,但产品在运输过程中要防止雨淋和酸碱腐 蚀,不得重力抛掷和猛力挤压 3. 贮存要求:温度:-40°C~70°C,相对湿度:20%~75%。

Test Report

SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 1 页 共 8页 未经允许,不得复制 EmP301f-B-I45(B)_天线规格书 拟 制: 普星 日期: 2020-1-20 审 核: 邓文 日期: 2020-1-20 批 准: 秦祥宏 日期: 2020-1-20 文件编号 版本号 T-PD-xxx A0 生效日期 密级程度 2018-11-01 秘密 发放范围:深圳:各产品事业部研发部、测试部、供应商管理部、品管部、生产工艺部、资源优化部、样品物 料科、工程部、中试部、采购部、器件工程部、体系管理部 上海: 各产品事业部研发部、测试部、质量管理科 太仓: 研发部、采购部、工程部、中试部、品管部、体系管理科 SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 2 页 共 8页 未经允许,不得复制 一、 规格指标 1、技术规格指标 设计标准 IEEE802.11n and 802.11a/b/g 频率范围(Frequency Range) 2.4-2.5GHz&5.15-5.85 GHz 阻抗(Impedance) 50 ±10 Ohms 电压驻波比(VSWR) 1.92:1 回波损耗(Return Loss) -10dB or Less Radiation Omni-directional 增益(Gain) [email protected] GHz&5GHz 极化(Polarization) Linear polarization Admitted Power 30dbm Cable RF113 2、物理规格指标及材质要求 本体Body 40*8*1.0mm FR4 Operating Temp -40°C~+70°C Storage Temp -40°C~+70°C Color Black 二、 成品图纸 1、成品2D图纸 图一、天线成品图 SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 3 页 共 8页 未经允许,不得复制 2、成品实物图 图二、天线成品实物图 三、 电气性能实测结果 1、回波损耗(Return loss) 频率(GHz) 回波损耗值(db) 2.4 -19.12 dB 2.5 -22.2 dB 5.15 -21.2 dB 5.85 -16.1 dB 测试环境: 图三、网络分析仪 SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 4 页 共 8页 未经允许,不得复制 测试结果: 图四、回波损耗截图 2、辐射图(2D、3DRaditation Pattern) Frequency(GHz) Gain(dbi) Efficiency 2.45 2.8 76% 5.5 2.9 81% 测试环境: 图五、微波暗室 SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 5 页 共 8页 未经允许,不得复制 测试结果: 2.45GHz 5.5GHz XZ 2.45GHz 5.5GHz YZ 2.45GHz 5.5GHz XY SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 6 页 共 8页 未经允许,不得复制 2.45GHz 5.5GHz 图六、辐射图截图 四、 PCB安装及布局要求 1、 天线与机壳要求: 图七、天线与机壳安装示意图 注:天线距离PCB板边缘距离不低于15mm,天线通过机壳结构卡位固定,也可以通过泡 棉背胶固定。 五、 外观要求 1. 无毛边;无破损; 2. 无刮伤;无颜色不符; 3. 无内导体脱落,松动或异响等不良; 六、 试装检验 项目 检查 检测 测 试 方 法 与 判 定 标 准 判定结果 SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 7 页 共 8页 未经允许,不得复制 内容 工具 组装 检验 装配 效果 目视 厚薄规 将天线与PCB、机壳、天线馈线装配时,须组装顺畅,不 可有松动、难装或装不到位的现象 合格 七、 电气性能 项目 试验方法及条件 规格及要求 实验结果 特性阻抗 用TDR测试天线特性阻抗 阻抗50欧±10欧 合格 驻波比 在2.4-2.5GHz&5.15-5.85 GHz 用网络分析仪测试驻波比 VSWR驻波比1.92:1 MAX 合格 回波损耗 在2.4-2.5GHz&5.15-5.85 GHz 用网络分析仪测试回波损耗 回波损耗-10dB MAX 合格 增益 在2.4GHz-2.5GHz&5.15-5.85 GHz微波暗室测试增益和场型图 场形图增益符合规格要求 合格 SHENZHEN GONGJIN ELECTRONICS CO., LTD 文件编号:D032101 第 8 页 共 8页 未经允许,不得复制 八、 包装、运输、贮存要求 1. 包装要求: 1.1包装箱应标记生产厂家、产品名称、型号、标准号、重量及生产日期或批号,且包装材 料应保持干燥、整洁、对产品无腐蚀作用。 1.2包材纸箱要求:K=A B9加强芯抗压>500KG;抗爆>12-15KG。 1.3纸箱外形尺寸标准需要与产线统一标准; 1.4内置天线需要用专用吸塑壳包装; 2. 运输要求:包装的产品适应现代交通工具运输,但产品在运输过程中要防止雨淋和酸碱腐 蚀,不得重力抛掷和猛力挤压 3. 贮存要求:温度:-40°C~70°C,相对湿度:20%~75%。

Test Report

DFS TEST REPORT Report No. : FZ262309 TEL : 886-3-656-9065 Page Number : 2 of 155 FAX : 886-3-656-9085 Issued Date : Nov. 15, 2022 Report Template No.: CB-A12_3 Ver1.1 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories ............................................................................................................................................ 9 1.3 Support Equipment ................................................................................................................................. 9 1.4 Applicable Standards ........................................................................................................................... 10 1.5 Testing Location Information ................................................................................................................ 10 2 Test Configuration of EUT ................................................................................................................. 11 2.1 Test Channel Frequencies Configuration ............................................................................................. 11 2.2 The Worst Case Measurement Configuration ...................................................................................... 11 3 Dynamic Frequency Selection (DFS) Test Result ........................................................................... 12 3.1 General DFS Information ..................................................................................................................... 12 3.2 Radar Test Waveform Calibration ........................................................................................................ 15 3.3 UNII Detection Bandwidth .................................................................................................................... 30 3.4 Channel Availability Check (CAC) ........................................................................................................ 35 3.5 In-service Monitoring ............................................................................................................................ 39 3.6 Statistical Performance Check ............................................................................................................. 47 4 Test Equipment and Calibration Data ............................................................................................ 154 5 Measurement Uncertainty ............................................................................................................... 155 Appendix A. Test Photos Photographs of EUT v01 DFS TEST REPORT Report No. : FZ262309 TEL : 886-3-656-9065 Page Number : 3 of 155 FAX : 886-3-656-9085 Issued Date : Nov. 15, 2022 Report Template No.: CB-A12_3 Ver1.1 Report Version : 01 History of this test report Report No. Version Description Issued Date FZ262309 01 Initial issue of report Nov. 15, 2022 DFS TEST REPORT Report No. : FZ262309 TEL : 886-3-656-9065 Page Number : 4 of 155 FAX : 886-3-656-9085 Issued Date : Nov. 15, 2022 Report Template No.: CB-A12_3 Ver1.1 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 3.3 FCC KDB 905462 7.8.1 DFS: UNII Detection Bandwidth Measurement PA SS - 3.4 FCC KDB 905462 7.8.2.1 DFS: Initial Channel Availability Check Time PA SS - 3.4 FCC KDB 905462 7.8.2.2 DFS: Radar Burst at the Beginning of the Channel Availability Check Time PA SS - 3.4 FCC KDB 905462 7.8.2.3 DFS: Radar Burst at the End of the Channel Availability Check Time PA SS - 3.5 FCC KDB 905462 7.8.3 DFS: In-Service Monitoring for Channel Move Time (CMT) PA SS - 3.5 FCC KDB 905462 7.8.3 DFS: In-Service Monitoring for Channel Closing Transmission Time (CCTT) PA SS - 3.5 FCC KDB 905462 7.8.3 DFS: In-Service Monitoring for Non-Occupancy Period (NOP) PA SS - 3.6 FCC KDB 905462 7.8.4 DFS: Statistical Performance Check PA SS - 3.1.4 FCC KDB 905462 8.1 User Access Restrictions N/A Manufacturer attestation NOT accessible to user Note 1: Client without radar detection (Bridge), only Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period are required to perform. Note 2: Mesh, Repeater mode, only Statistical Performance Check (Section 7.8.4) on one of the radar types is required to perform. Declaration of Conformity: 1. The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. It’s means measurement values may risk exceeding the limit of regulation standards, if measurement uncertainty is include in test results. 2. The measurement uncertainty please refer to report ”Measurement Uncertainty”. Comments and…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jackson Yen(Associate Vice President)
[email protected]+886-2-28943447Fax: +886-2-28987364

Test Firm

Sporton International Inc. Hsinchu LaboratoryAlex Chen
[email protected]+886-3-327-3456Fax: +886-3-327-0978

Technical Specifications

#Rule PartsFrequency RangePower Output
415E5.75 GHz - 5.83 GHz979.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is the maximum combined conducted output power. This device must be installed and operated so as to provide a separation distance of at least 44 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures, or as evaluated in this filing. This device supports 20, 40, 80 and 160 MHz bandwidth modes.
