MSQ-RT0K00Gigabit Router Dual-band Wireless-N900

Quick Start Guide RT-N66U Dark Knight Gigabit Router Wireless-N900 ® E7019 / Second Edition / November 2011 EC Declaration of Conformity We, the undersigned, Manufacturer: ASUSTek COMPUTER INC. Address, City: No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C. Country: TAIWAN Authorized representative in Europe: ASUS COMPUTER GmbH Address, City: HARKORT STR. 21-23, 40880 RATINGEN Country: GERMANY declare the following apparatus: Product name : Dark Knight Double 450Mbps Dual N Band Router Model name : RT-N66U conform with the essential requirements of the following directives: 2004/108/EC-EMC Directive EN 55022:2006+A1:2007 Class B EN 61000-3-2:2006+A2:2009 Class A EN 55024:1998+A1:2001+A2:2003 EN 61000-3-3:2008 1999/5/EC-R &TTE Directive EN 300 328 V1.7.1(2006-10) EN 301 893 V1.5.1(2008-12) EN 62311:2008 EN 301 489-1 V1.8.1(2008-04) EN 301 489-17 V2.1.1(2009-05) 2006/95/EC-LVD Directive EN 60950-1:2006 EN 60950-1:2006+A11:2009 EN 60065:2002+A1:2006+A11:2008 2009/125/EC-ErP Directive Regulation (EC) No. 1275/2008 EN 62301:2005 Regulation (EC) No. 642/2009 EN 62301:2005 Regulation (EC) No. 278/2009 EN 62301:2005 Ver. 110101 CE marking Declaration Date: Nov. 1, 2011 Year to begin affixing CE marking:2011 Position : CEO Name : Jerry Shen Signature :__________ (ECconformity marking) NOTE / <T-CHINESE> / <FRENCH> / <PORTUGUESE> / <SPANISH> • For more details, refer to the user manual included in the support CD. • <T-CHINESE> • <FRENCH> • <PORTUGUESE> • <SPANISH> Table of contents English .............................................................................................4 T-Chinese ........................................................................................17 French ..............................................................................................30 Portuguese ....................................................................................43 Spanish ............................................................................................56 4 English Package contents RT-N66U AC adapter Network cable Quick Start Guide Support CD (User Manual/utilities) Warranty card Stand A quick look 1) Power LED5) 5GHz LED9) USB 2.0 ports 2) LAN LED6) USB 2.0 LED10) Reset button 3) WAN LED7) Power (DC-In) port11) Internet & LAN ports 4) 2.4GHz LED8) Power switch12) WPS button NOTE: If any of the items is damaged or missing, contact your retailer. 791012 11 8 12 3 5 6 4 5 English NOTES: • USB External HDD/Flash disk: • The wireless router works with most USB HDDs/Flash disks up to 2TB and supports read-write access for FAT16, FAT32, EXT2, EXT3, and NTFS. • To safely remove the USB disk, launch the web GUI (http://192.168.1.1), then in the Network Map page's upper right corner, click the USB icon and click Eject USB 1. • Incorrect removal of the USB disk may cause data corruption. • For the list of file system and hard disk partitions that the wireless router supports, visit http://event.asus.com/networks/ disksupport • For the list of printers that the wireless router supports, visit http://event.asus.com/networks/printersupport 6 Positioning your wireless router For the best wireless signal transmission between the wireless router and the network devices connected to it, ensure that you: • Place the wireless router in a centralized area for a maximum wireless coverage for the network devices. • Keep the device away from metal obstructions and away from direct sunlight. • Keep the device away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss. • To ensure the best wireless signal, orient the three detachable antennas as shown in the drawing below. • For optimum performance, adjust the internal cooling system. Refer to the user manual for details. • Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates. 45 0 45 0 90 0 English 7 Mounting to the stand • Align and insert the stand’s mounting hooks to the wireless router’s mounting holes. Before you proceed 1. Unplug and disconnect the wires/cables from your existing modem setup and release your computer’s outmoded IP address. a: Unplug the AC adapter from the power outlet and disconnect it from your cable/ADSL modem. b: Disconnect the network cable from your cable/ADSL modem. c: Reboot your computer (recommended). Modem OFF ! a b c English 8 WARNING! Before disconnecting the wires/cables, ensure that your cable/ADSL modem has been turned off for at least two minutes. If your modem has a backup battery, remove it as well. 2. Set up your wireless environment. RT-N66U Computer Modem LAN Power Wall Power Outlet Power WAN a b c d a: Insert your wireless router’s AC adapter to the DC-In port and plug it to a power outlet. b: Using the bundled network cable, connect your computer to your wireless router’s LAN port. IMPORTANT! Ensure that the WAN and LAN LEDs are blinking. c: Using another network cable, connect your modem to your wireless router’s WAN port. d: Insert your modem’s AC adapter to the DC-In port and plug it to a power outlet. English 9 3. Disable some settings on your computer. A. Disable the proxy server, if enabled. B. Set the TCP/IP settings to automatically obtain an IP address. C. Disable the dial-up connection, if enabled. NOTE: For more details on disabling your computer settings, refer to Frequently Asked Questions (FAQs). 1. Configure your wireless settings via the wireless router’s web graphics user interface (web GUI). a: Launch your web browser such as Internet Explorer, Firefox, Google Chrome, or Safari. Getting started b a English 10 NOTE: If QIS does not launch automatically, follow these steps to manually launch QIS: • On your web browser, key in http://192.168.1.1 and run the Quick Internet Setup (QIS) Wizard again. • Disable the…

Text truncated - open the document above for the full version.

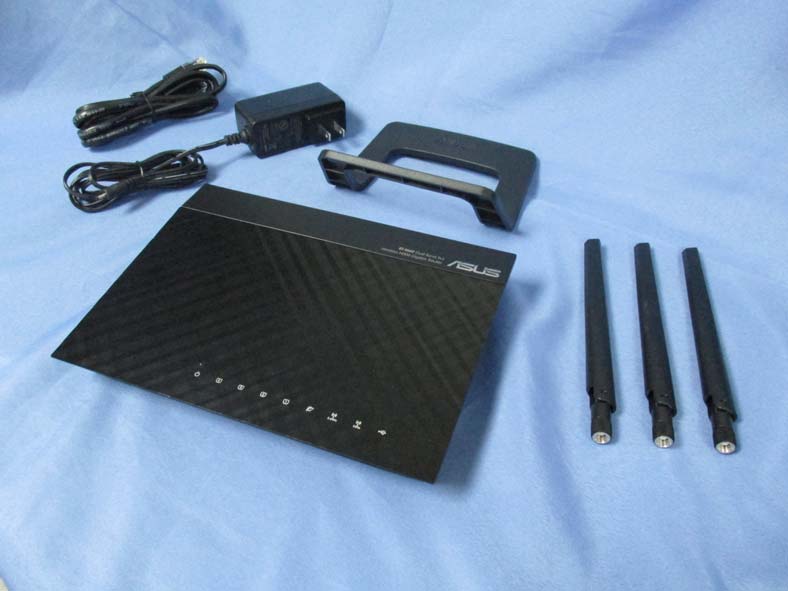

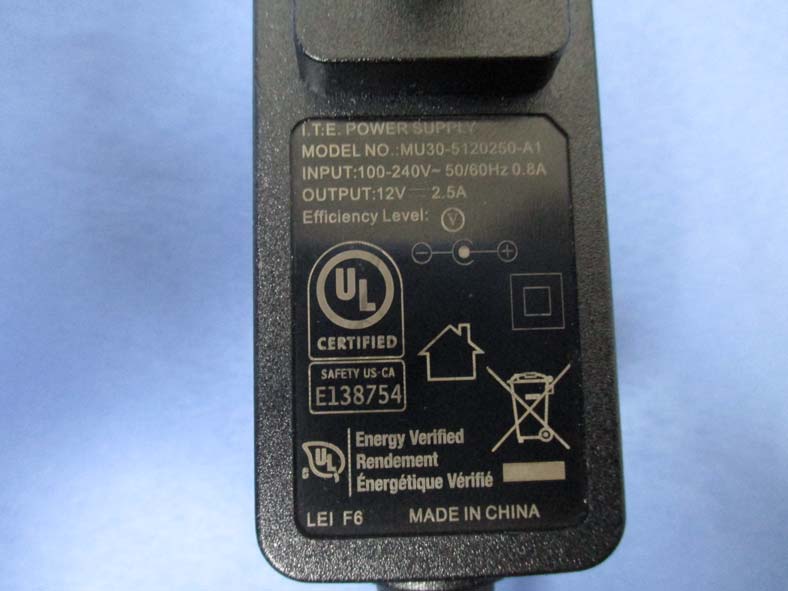

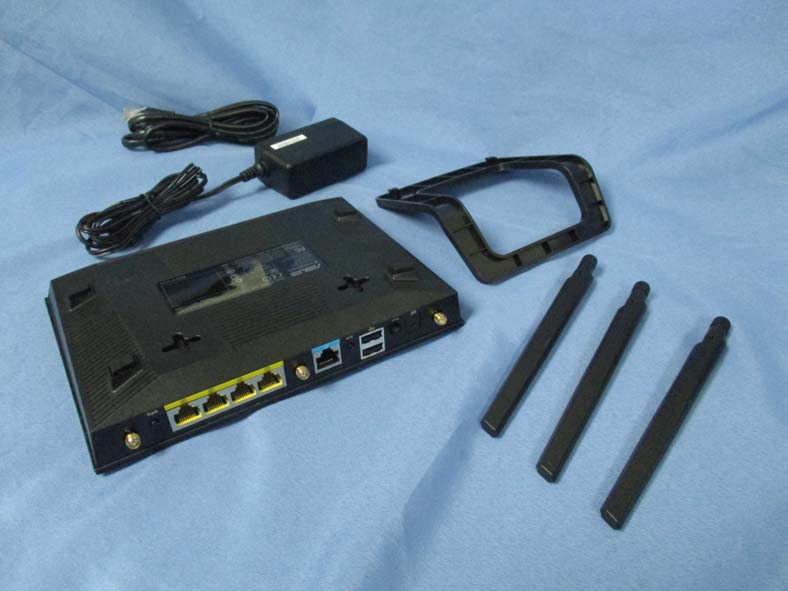

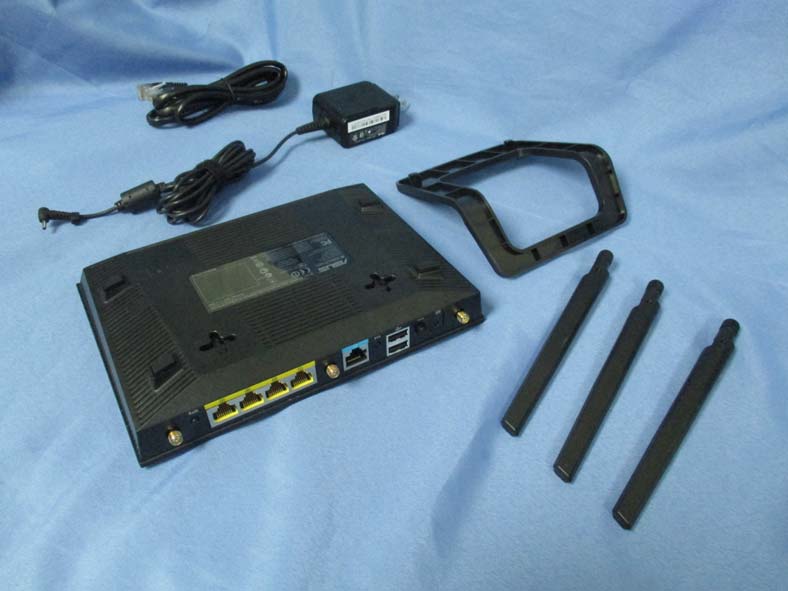

Report No： 1490542R-RFUSP28V00 Page: 582 of 601 Attachement EUT Photograph (1) EUT Photo (M/N: RT-N66U/RT-N66R) (Power Adatper: ASUS, AD82030) (2) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 583 of 601 (3) EUT Photo (M/N: RT-N66W) (Power Adatper: ASUS, AD82030) (4) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 584 of 601 (5) EUT Photo (6) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 585 of 601 (7) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 586 of 601 (8) EUT Photo (M/N: RT-N66U/RT-N66R) (Power Adatper: I.T.E., MU30-5120250-A1) (9) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 587 of 601 (10) EUT Photo (M/N: RT-N66W) (Power Adatper: I.T.E., MU30-5120250-A1) (11) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 588 of 601 (12) EUT Photo (13) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 589 of 601 (14) EUT Photo

FCC ID.: MSQ-RT0K00 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Gigabit Router Dual-band Wireless-N900 Model No.: RT-N66U, RT-N66R, RT-N66W FCC ID : MSQ-RT0K00 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: ASUS Model number.: RT-N66U, RT-N66R, RT-N66W

Report No： 1490542R-RFUSP28V00 Page: 590 of 601 (15) EUT Photo (16) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 591 of 601 (17) EUT Photo (18) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 592 of 601 (19) EUT Photo (20) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 593 of 601 (21) EUT Photo (22) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 594 of 601 (23) EUT Photo (24) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 595 of 601 (25) EUT Photo (26) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 596 of 601 (27) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 597 of 601 (28) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 598 of 601 (29) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 599 of 601 (30) EUT Photo (Antenna: Walsin/ RFDPA141000SBLB812) (31) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 600 of 601 (32) EUT Photo (Antenna: Whayu / C660-510332-A) (33) EUT Photo Report No： 1490542R-RFUSP28V00 Page: 601 of 601 (34) EUT Photo (Antenna: Walsin/ RFDPA141000SBLB803) (35) EUT Photo

Report No. 1490542R-RF-US-Exp Page: 1 of 7 RF Exposure Evaluation Declaration Product Name ： Gigabit Router Dual-band Wireless-N900 Model No. ： RT-N66U, RT-N66R, RT-N66W FCC ID. ： MSQ-RT0K00 Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt : 2014/09/27 Date of Declaration : 2014/01/29 Report No. : 1490542R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 1490542R-RF-US-Exp Page: 2 of 7 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1490542R-RF-US-Exp Page: 3 of 7 1.3. Test Result of RF Exposure Evaluation Product Gigabit Router Dual-band Wireless-N900 Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 88.4912 0.02782 6 2437 164.0590 0.05157 11 2462 101.4846 0.03190 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 54.4503 0.01712 6 2437 293.3594 0.09221 11 2462 45.2898 0.01424 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1490542R-RF-US-Exp Page: 4 of 7 Product Gigabit Router Dual-band Wireless-N900 Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 59.1970 0.01861 6 2437 299.6401 0.09419 11 2462 43.8127 0.01377 IEEE 802.11n (40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 23.0622 0.00725 6 2437 73.1644 0.02300 9 2452 22.2382 0.00699 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1490542R-RF-US-Exp Page: 5 of 7 Product Gigabit Router Dual-band Wireless-N900 Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 158.8547 0.07932 40 5220 123.4810 0.06166 44 5240 251.9997 0.12584 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 349.3816 0.17446 153 5785 310.7420 0.15517 165 5825 262.6032 0.13113 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1490542R-RF-US-Exp Page: 6 of 7 Product Gigabit Router Dual-band Wireless-N900 Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 114.7097 0.05728 40 5220 179.4734 0.08962 44 5240 292.0788 0.14585 IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 321.2921 0.16044 153 5785 328.7002 0.16414 165 5825 260.9156 0.13029 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 1490542R-RF-US-Exp Page: 7 of 7 Product Gigabit Router Dual-band Wireless-N900 Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 38 5190 22.1208 0.01105 46 5230 230.2502 0.11497 IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MHz) Outp…

Text truncated - open the document above for the full version.

Report No： 1490542R-RFUSP28V00 Page: 1 of 601 FCC Test Report Product Name ： Gigabit Router Dual-band Wireless-N900 Model No. ： RT-N66U, RT-N66R, RT-N66W FCC ID. ： MSQ-RT0K00 Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt：2014/09/24 Issued Date ：2015/01/29 Report No. ：1490542R-RFUSP28V00 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 1490542R-RFUSP28V00 Page: 2 of 601 Test Report Certification Issued Date : 2015/01/29 Report No. : 1490542R-RFUSP28V00 Product Name ： Gigabit Router Dual-band Wireless-N900 Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ： (1) Askey Technology(Jiangsu)LTD. (2) Compal Networking (KunShan) Co., LTD. Model No. ： RT-N66U, RT-N66R, RT-N66W FCC ID. ： MSQ-RT0K00 EUT Voltage : AC 100-240V, 50-60Hz Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247:2013 ANSI C63.10: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Engineering Adm. Specialist ) Reviewed By : ( Bruno Tsai / Engineer ) Approved By : ( Roy Wang / Director ) Report No： 1490542R-RFUSP28V00 Page: 3 of 601 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site: http://www.quietek.com/chinese/about/certificates.aspx?bval=5 The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 3024 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No： 1490542R-RFUSP28V00 Page: 4 of 601 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 7 1.1. EUT Description ............................................................................................................. 7 1.2. Test Mode ..................................................................................................................... 14 1.3. Tested System Details .................................................................................................. 15 1.4. Configuration of tested System .................................................................................... 16 1.5. EUT Exercise Software ................................................................................................ 16 1.6. Test Facility...................................................................................................................17 2. Conducted Emission .......................................................................................................... 18 2.1. Test Equipment............................................................................................................. 18 2.2. Test Setup .................................................................................................................... 18 2.3. Limits ............................................................................................................................ 19 2.4. Test Procedure ............................................................................................................. 19 2.5. Test Specification.......................................................................................................... 19 2.6. Uncertainty ................................................................................................................... 19 2.7. Test Result....................................................................................................................20 2.8. Test Photo .................................................................................................................... 28 3. Peak Power Output ............................................................................................................ 30 3.1. Test Equipment............................................................................................................. 30 3.2. Test Setup .................................................................................................................... 30 3.3. Test procedures ............................................................................................................ 30 3.4. Limits ............................................................................................................................ 30 3.5. Test Specification.......................................................................................................... 30 3.6. Uncertainty ................................................................................................................... 30 3.7. Test Result....................................................................................................................31 4. Radiated Emis…

Text truncated - open the document above for the full version.

Report No： 1490542R-RFUSP28V00 Page: 247 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item RF antenna conducted test Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/12/21 Test Site SR7 2412MHz (30MHz-25GHz)-802.11b (ANT 0) 2437MHz (30MHz-25GHz)-802.11b (ANT 0) Report No： 1490542R-RFUSP28V00 Page: 248 of 601 2462MHz (30MHz-25GHz) -802.11b (ANT 0) Report No： 1490542R-RFUSP28V00 Page: 249 of 601 2412MHz (30MHz-25GHz)-802.11b (ANT 1) 2437MHz (30MHz-25GHz)-802.11b (ANT 1) Report No： 1490542R-RFUSP28V00 Page: 250 of 601 2462MHz (30MHz-25GHz) -802.11b (ANT 1) Report No： 1490542R-RFUSP28V00 Page: 251 of 601 2412MHz (30MHz-25GHz)-802.11b (ANT 2) 2437MHz (30MHz-25GHz)-802.11b (ANT 2) Report No： 1490542R-RFUSP28V00 Page: 252 of 601 2462MHz (30MHz-25GHz) -802.11b (ANT 2) Report No： 1490542R-RFUSP28V00 Page: 253 of 601 2412MHz (30MHz-25GHz)-802.11g (ANT 0) 2437MHz (30MHz-25GHz)-802.11g (ANT 0) Report No： 1490542R-RFUSP28V00 Page: 254 of 601 2462MHz (30MHz-25GHz) -802.11g (ANT 0) Report No： 1490542R-RFUSP28V00 Page: 255 of 601 2412MHz (30MHz-25GHz)-802.11g (ANT 1) 2437MHz (30MHz-25GHz)-802.11g (ANT 1) Report No： 1490542R-RFUSP28V00 Page: 256 of 601 2462MHz (30MHz-25GHz) -802.11g (ANT 1) Report No： 1490542R-RFUSP28V00 Page: 257 of 601 2412MHz (30MHz-25GHz)-802.11g (ANT 2) 2437MHz (30MHz-25GHz)-802.11g (ANT 2) Report No： 1490542R-RFUSP28V00 Page: 258 of 601 2462MHz (30MHz-25GHz) -802.11g (ANT 2) Report No： 1490542R-RFUSP28V00 Page: 259 of 601 2412MHz (30MHz-25GHz)- 802.11n(20MHz)(ANT 0) 2437MHz (30MHz-25GHz)- 802.11n(20MHz)(ANT 0) Report No： 1490542R-RFUSP28V00 Page: 260 of 601 2462MHz (30MHz-25GHz) -802.11n(20MHz)(ANT 0) Report No： 1490542R-RFUSP28V00 Page: 261 of 601 2412MHz (30MHz-25GHz)- 802.11n(20MHz)(ANT 1) 2437MHz (30MHz-25GHz)- 802.11n(20MHz)(ANT 1) Report No： 1490542R-RFUSP28V00 Page: 262 of 601 2462MHz (30MHz-25GHz) -802.11n(20MHz)(ANT 1) Report No： 1490542R-RFUSP28V00 Page: 263 of 601 2412MHz (30MHz-25GHz)- 802.11n(20MHz)(ANT 2) 2437MHz (30MHz-25GHz)- 802.11n(20MHz)(ANT 2) Report No： 1490542R-RFUSP28V00 Page: 264 of 601 2462MHz (30MHz-25GHz) -802.11n(20MHz)(ANT 2) Report No： 1490542R-RFUSP28V00 Page: 265 of 601 2422MHz (30MHz-25GHz)- 802.11n(40MHz)-(ANT 0) 2437MHz (30MHz-25GHz)- 802.11n(40MHz)- (ANT 0) Report No： 1490542R-RFUSP28V00 Page: 266 of 601 2452MHz (30MHz-25GHz) -802.11n(40MHz) (ANT 0) Report No： 1490542R-RFUSP28V00 Page: 267 of 601 2422MHz (30MHz-25GHz)- 802.11n(40MHz)-(ANT 1) 2437MHz (30MHz-25GHz)- 802.11n(40MHz)- (ANT 1) Report No： 1490542R-RFUSP28V00 Page: 268 of 601 2452MHz (30MHz-25GHz) -802.11n(40MHz) (ANT 1) Report No： 1490542R-RFUSP28V00 Page: 269 of 601 2422MHz (30MHz-25GHz)- 802.11n(40MHz)-(ANT 2) 2437MHz (30MHz-25GHz)- 802.11n(40MHz)- (ANT 2) Report No： 1490542R-RFUSP28V00 Page: 270 of 601 2452MHz (30MHz-25GHz) -802.11n(40MHz) (ANT 2) Report No： 1490542R-RFUSP28V00 Page: 271 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item RF antenna conducted test Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/12/21 Test Site SR7 IEEE 802.11a (ANT 0), Antenna Gain: 4dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 38.833 ≧30 Pass 157 5785 56.974 ≧30 Pass 165 5825 43.796 ≧30 Pass Channel 149 Report No： 1490542R-RFUSP28V00 Page: 272 of 601 Channel 157 Report No： 1490542R-RFUSP28V00 Page: 273 of 601 Channel 165 Report No： 1490542R-RFUSP28V00 Page: 274 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item RF antenna conducted test Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/12/21 Test Site SR7 IEEE 802.11a (ANT 1), Antenna Gain: 4dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 38.415 ≧30 Pass 157 5785 55.796 ≧30 Pass 165 5825 45.628 ≧30 Pass Channel 149 Report No： 1490542R-RFUSP28V00 Page: 275 of 601 Channel 157 Report No： 1490542R-RFUSP28V00 Page: 276 of 601 Channel 165 Report No： 1490542R-RFUSP28V00 Page: 277 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item RF antenna conducted test Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/12/21 Test Site SR7 IEEE 802.11a (ANT 2), Antenna Gain: 4dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 33.304 ≧30 Pass 157 5785 54.565 ≧30 Pass 165 5825 43.194 ≧30 Pass Channel 149 Report No： 1490542R-RFUSP28V00 Page: 278 of 601 Channel 157 Report No： 1490542R-RFUSP28V00 Page: 279 of 601 Channel 165 Report No： 1490542R-RFUSP28V00 Page: 280 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item RF antenna conducted test Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/12/21 Test Site SR7 IEEE 802.11n (20MHz), (ANT 0) Antenna Gain: 4dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 37.834 ≧30 Pass 157 5785 55.562 ≧30 Pass 165 5825 43.914 ≧30 Pass Channel 149 Report No： 1490542R-RFUSP28V00 Page: 281 of 601 Channel 157 Report No： 1490542R-RFUSP28V00 Page: 282 of 601 Channel 165 Report No： 1490542R-RFUSP28V00 Page: 283 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item RF antenna conducted test Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/12/21 Test Site SR7 IEEE 802.11n (20MHz), (ANT 1) Antenna Gain: 4dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 35.616 ≧30 Pass 157 5785 54.676 ≧30 Pass 165 5825 44.600 ≧30 Pass Channel 149 Report No： 1490542R-RFUSP28V00 Page: 284 of 601 Channel 157 Report No： 1490542R-RFUSP28V00 Page: 285 of 601 Channel 165 Report No： 1490542R-RFUSP28V00 Page: 286 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item RF antenna conducted test Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/12/21 Test Site SR7 IEEE 802.11n (20MHz), (ANT 2) Antenna Gain: 4dBi Channel Frequency (MHz) Measure Level (dBc) Limit (dBc) Result 149 5745 33.728 ≧30 Pass 157 5785 55.361 ≧30 Pass 165 5825 43.621 ≧30 Pass Channel 149 Report No： 1490542R-RFUSP28V00 Page: 287 of 601 Channel 157 Report No： 1490542R-RFUSP28V00 Page: 288 of 601 Channel 165 Report No： 1490542R-RFUSP28V00 Page: 289 of 601 Product Gigabit Ro…

Text truncated - open the document above for the full version.

Report No： 1490542R-RFUSP28V00 Page: 411 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item DTS Bandwidth Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/11/23 Test Site SR7 IEEE 802.11n (20MHz)(ANT 0) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 1 2412 17.600 ≧0.5 Pass 6 2437 17.610 ≧0.5 Pass 11 2462 17.620 ≧0.5 Pass Channel 1 Report No： 1490542R-RFUSP28V00 Page: 412 of 601 Channel 6 Report No： 1490542R-RFUSP28V00 Page: 413 of 601 Channel 11 Report No： 1490542R-RFUSP28V00 Page: 414 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item DTS Bandwidth Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/11/23 Test Site SR7 IEEE 802.11n (20MHz)(ANT 1) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 1 2412 17.630 ≧0.5 Pass 6 2437 17.620 ≧0.5 Pass 11 2462 17.630 ≧0.5 Pass Channel 1 Report No： 1490542R-RFUSP28V00 Page: 415 of 601 Channel 6 Report No： 1490542R-RFUSP28V00 Page: 416 of 601 Channel 11 Report No： 1490542R-RFUSP28V00 Page: 417 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item DTS Bandwidth Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/11/23 Test Site SR7 IEEE 802.11n (20MHz)(ANT 2) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 1 2412 17.620 ≧0.5 Pass 6 2437 17.640 ≧0.5 Pass 11 2462 17.620 ≧0.5 Pass Channel 1 Report No： 1490542R-RFUSP28V00 Page: 418 of 601 Channel 6 Report No： 1490542R-RFUSP28V00 Page: 419 of 601 Channel 11 Report No： 1490542R-RFUSP28V00 Page: 420 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item DTS Bandwidth Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/11/23 Test Site SR7 IEEE 802.11n (40MHz)(ANT 0) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 3 2422 36.310 ≧0.5 Pass 6 2437 36.330 ≧0.5 Pass 9 2452 36.320 ≧0.5 Pass Channel 3 Report No： 1490542R-RFUSP28V00 Page: 421 of 601 Channel 6 Report No： 1490542R-RFUSP28V00 Page: 422 of 601 Channel 9 Report No： 1490542R-RFUSP28V00 Page: 423 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item DTS Bandwidth Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/11/23 Test Site SR7 IEEE 802.11n (40MHz)(ANT 1) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 3 2422 36.350 ≧0.5 Pass 6 2437 36.360 ≧0.5 Pass 9 2452 36.350 ≧0.5 Pass Channel 3 Report No： 1490542R-RFUSP28V00 Page: 424 of 601 Channel 6 Report No： 1490542R-RFUSP28V00 Page: 425 of 601 Channel 9 Report No： 1490542R-RFUSP28V00 Page: 426 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item DTS Bandwidth Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/11/23 Test Site SR7 IEEE 802.11n (40MHz)(ANT 2) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 3 2422 36.350 ≧0.5 Pass 6 2437 36.340 ≧0.5 Pass 9 2452 36.320 ≧0.5 Pass Channel 3 Report No： 1490542R-RFUSP28V00 Page: 427 of 601 Channel 6 Report No： 1490542R-RFUSP28V00 Page: 428 of 601 Channel 9 Report No： 1490542R-RFUSP28V00 Page: 429 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item DTS Bandwidth Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/12/21 Test Site SR7 802.11 a (ANT 0) Channel No. Frequency (MHz) Measure Level (MHz) Limit (MHz) Result 149 5745 16.430 ≧0.5 Pass 157 5785 16.410 ≧0.5 Pass 165 5825 16.390 ≧0.5 Pass Channel 149 Report No： 1490542R-RFUSP28V00 Page: 430 of 601 Channel 157 Report No： 1490542R-RFUSP28V00 Page: 431 of 601 Channel 165 Report No： 1490542R-RFUSP28V00 Page: 432 of 601 Product Gigabit Router Dual-band Wireless-N900 Test Item DTS Bandwidth Test Mode Mode 1: Transmit_AD82030 Date of Test 2014/12/21 Test Sit…

Text truncated - open the document above for the full version.
