MSQ-RT0V00Wireless-AC2600 Dual WAN VPN Wireless Router

User Guide BRT-AC828/M2 Wireless-AC2600 Dual WAN VPN Wireless Router SSD failover 2 Copyright © 2015 ASUSTeK Computer Inc. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. E11131 First Edition November 2015 3 Table of contents 1 Getting to know your wireless router 1.1 Welcome! ........................................................................................6 1.2 Package contents .........................................................................6 1.3 Your wireless router .....................................................................7 1.4 Positioning your router ..............................................................9 1.5 Setup Requirements ................................................................10 1.6 Router Setup ...............................................................................11 1.6.1 Wired connection ..................................................................11 1.6.2 Wireless connection .............................................................12 2 Getting started 2.1 Logging into the Web GUI .....................................................14 2.2 Quick Internet Setup (QIS) with Auto-detection ...........15 2.3 Connecting to your wireless network ................................18 3 Configuring the General settings 3.1 Using the Network Map .........................................................19 3.1.1 Setting up the wireless security settings ......................20 3.1.2 Managing your network clients .......................................22 3.1.3 Monitoring your USB device .............................................23 3.2 Creating a Guest Network ......................................................26 3.3 Using the USB Application .....................................................28 3.3.1 Using AiDisk ............................................................................28 3.3.2 Using Servers Center ............................................................30 3.3.3 3G/4G ........................................................................................35 3.4 Using AiCloud 2.0 ......................................................................36 3.4.1 Cloud Disk ................................................................................37 3.4.2 Smart Access ...........................................................................39 3.4.3 Smart Sync ...............................................................................40 4 Table of contents 4 Configuring the Advanced Settings 4.1 Wireless .........................................................................................41 4.1.1 General ......................................................................................41 4.1.2 WPS ............................................................................................43 4.1.3 WDS (Bridge) ...........................................................................45 4.1.4 Wireless MAC Filter ...............................................................47 4.1.5 RADIUS Setting ......................................................................48 4.1.6 Professional .............................................................................49 4.2 LAN .................................................................................................51 4.2.1 LAN IP ........................................................................................51 4.2.2 DHCP Server ............................................................................52 4.2.3 Route .........................................................................................54 4.2.4 IPTV ............................................................................................55 4.3 WAN ...............................................................................................56 4.3.1 Internet Connection .............................................................56 4.3.2 Dual WAN .................................................................................59 4.3.3 Port Trigger ..............................................................................60 4.3.4 Virtual Server/Port Forwarding ........................................62…

Text truncated - open the document above for the full version.

ASUSTeK COMPUTER INC. 4F, No.150, Li-Te Rd., Peitou, Taipei , Taiwan Federal Communications Commission November 23, 2015 Authorization and Evaluation Division ATTESTATION FCC ID: MSQ-RT0V00 Product: Wireless-AC2600 Dual WAN VPN Wireless Router Model: BRT-AC828/M2 We don't provide any controls or software to allow operation outside the USA frequency band when we sell this product in USA. We also promise that the end user or installer will not be able to change countries. For United States only channels 1-11 will be available. Best Regards Jackson Yen ASUSTeK COMPUTER INC. Tel: 886-2-2894-3447 ext 3106 Fax:886-2-2898-7364 E-mail: [email protected]

FCC, Request for non-disclosure Date: 19-Oct-10 RF_501, Issue 7 Page 1 of 1 Company Name: ASUSTeK COMPUTER INC. Address :4F, No.150, Li-Te Rd., Peitou, City: Taipei, Country: Taiwan To: Telefication B.V.,Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject:Request for confidentiality FCC ID: MSQ- RT0V00 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicanthereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification:180 DAYS Planned Release Date STC: (notes 2, 3, 4, 5). If no date is given, 45 days from grant date will be used. Date:2015/11/23 Name and signature of applicant: Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

ASUSTeK COMPUTER INC. 4F, No.150, Li-Te Rd., Peitou, Taipei , Taiwan RF_160, Issue 02RF_160, Issue 02 Declaration of Authorization We Name: ASUSTeK COMPUTER INC. Address: 4F, No.150, Li-Te Rd., Peitou, City: Taipei , Country: Taiwan Declare that: Name Representative of agent: RoyWang Agent Company name: QuieTek Corporation Address: No.75-2, Wangyekeng, Qionglin Township, City: Hsinchu Country County 30746, Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: Wireless-AC2600 Dual WAN VPN Wireless Router Type designation: BRT-AC828/M2 Trademark: ASUS on our behalf. Date: 2015/11/23 City: Taipei Name: Jackson Yen Function: Associate Vice President Signature:  . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

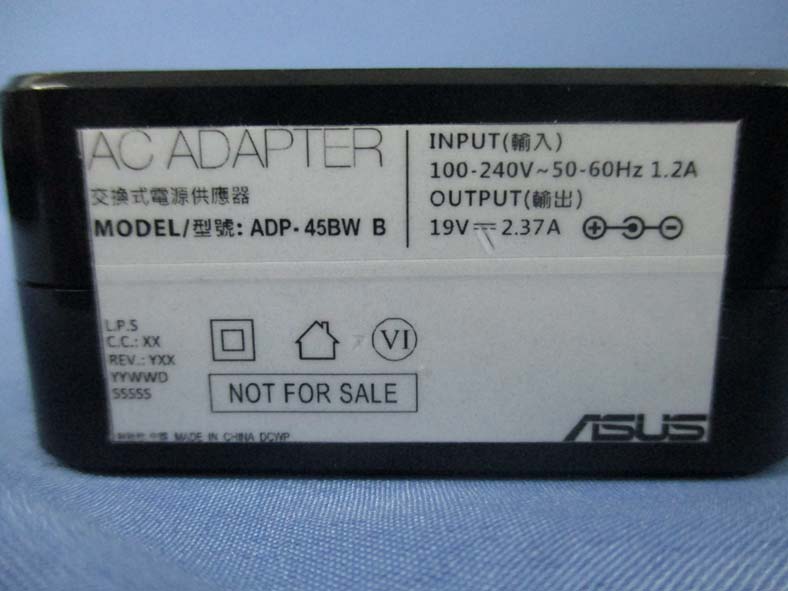

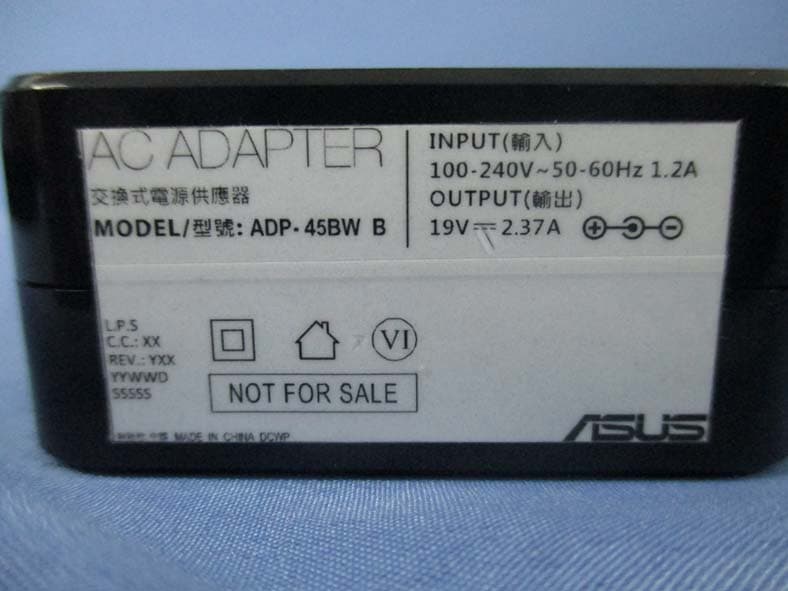

Report No：15B0233R-RFUSP28V00 Page: 967 of 986 Attachment 2 EUT External Photograph (1) EUT Photo (Power Adatper: ASUS., ADP-45BW B) (2) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 968 of 986 (3) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 969 of 986 (4) EUT Photo (Power Adatper: ASUS., ADP-65DW B) (5) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 970 of 986 (6) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 971 of 986 (7) EUT Photo (Power Adatper: ASUS., AD883J20) (8) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 972 of 986 (9) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 973 of 986 (10) EUT Photo (Power Adatper: ASUS., AD887320) (11) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 974 of 986 (12) EUT Photo

Back side of the EUT

Report No：15B0233R-RFUSP28V00 Page: 975 of 986 Attachment 3 EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 976 of 986 (3) EUT Photo (4) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 977 of 986 (5) EUT Photo (6) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 978 of 986 (7) EUT Photo (8) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 979 of 986 (9) EUT Photo (10) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 980 of 986 (11) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 981 of 986 (12) EUT Photo (MB) Report No：15B0233R-RFUSP28V00 Page: 982 of 986 (13) EUT Photo (MB) Report No：15B0233R-RFUSP28V00 Page: 983 of 986 (14) EUT Photo (MB) Report No：15B0233R-RFUSP28V00 Page: 984 of 986 (15) EUT Photo (16) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 985 of 986 (17) EUT Photo (18) EUT Photo Report No：15B0233R-RFUSP28V00 Page: 986 of 986 (19) EUT Photo (Antenna)

Report No：15B0233R-RF-US-Exp Page: 1 of 10 RF Exposure Evaluation Declaration Product Name ： Wireless-AC2600 Dual WAN VPN Wireless Router Trade Name ： ASUS Model No. ： BRT-AC828/M2 FCC ID. ： MSQ-RT0V00 Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt : Nov. 10, 2015 Issued Date : Nov. 23, 2015 Report No. : 15B0233R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：15B0233R-RF-US-Exp Page: 2 of 10 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No：15B0233R-RF-US-Exp Page: 3 of 10 1.3. Test Result of RF Exposure Evaluation Product Wireless-AC2600 Dual WAN VPN Wireless Router Test Mode Mode 1: Transmit_CDD Mode Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber are 2.18dBi or 1.65 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b (ANT 0+1+2+3) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 796.1594 0.26134 6 2437 946.2372 0.31061 11 2462 663.7431 0.21788 IEEE 802.11g (ANT 0+1+2+3) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 264.8500 0.08694 6 2437 810.9611 0.26620 11 2462 261.8183 0.08594 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No：15B0233R-RF-US-Exp Page: 4 of 10 Product Wireless-AC2600 Dual WAN VPN Wireless Router Test Mode Mode 1: Transmit_CDD Mode Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber are 2.18dBi or 1.65 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) (ANT 0+1+2+3) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 255.8586 0.08399 6 2437 794.3282 0.26074 11 2462 277.9713 0.09125 IEEE 802.11n (40MHz) (ANT 0+1+2+3) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 145.2112 0.04767 6 2437 273.5269 0.08979 9 2452 109.6478 0.03599 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No：15B0233R-RF-US-Exp Page: 5 of 10 Product Wireless-AC2600 Dual WAN VPN Wireless Router Test Mode Mode 1: Transmit_CDD Mode Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.19dBi or2.08 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a (ANT 0+1+2+3) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 294.4422 0.12184 40 5220 297.8516 0.12325 44 5240 289.7344 0.11989 IEEE 802.11 n(20MHz) (ANT 0+1+2+3) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 309.7419 0.12817 40 5220 308.3188 0.12758 44 5240 306.9022 0.12700 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No：15B0233R-RF-US-Exp Page: 6 of 10 Product Wireless-AC2600 Dual WAN VPN Wireless Router Test Mode Mode 1: Transmit_CDD Mode Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.19dBi or2.08 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) (ANT 0+1+2+3) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 38 5190 374.9730 0.15516 46 5230 635.3309 0.26290 IEEE 802.11 ac(80MHz) (ANT 0+1+2+3) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 42 5210 287.0781 0.11879 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No：15B0233R-RF-US-Exp Page: 7 of 10 Product Wireless-AC2600 Dual WAN VPN Wireless Router Test Mode Mode 1: Transmit_CDD Mode Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.19dBi or2.08 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a (ANT 0+1+2+3) WLAN Function Channel Channel Frequency (…

Text truncated - open the document above for the full version.

Report No：15B0233R-RFUSP56V00 Page: 1 of 274 FCC Test Report Product Name ： Wireless-AC2600 Dual WAN VPN Wireless Router Trade Name ： ASUS Model No. ： BRT-AC828/M2 FCC ID. ： MSQ-RT0V00 Applicant： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt：Nov. 02, 2015 Issued Date ：Nov. 23, 2015 Report No. ：15B0233R-RFUSP56V00 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：15B0233R-RFUSP56V00 Page: 2 of 274 Test Report Certification Issued Date : Nov. 23, 2015 Report No. : 15B0233R-RFUSP56V00 Product Name ： Wireless-AC2600 Dual WAN VPN Wireless Router Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Manufacturer ： ASUSTeK COMPUTER INC. Model No. ： BRT-AC828/M2 FCC ID. ： MSQ-RT0V00 EUT Voltage : AC 100-240V, 50-60Hz Testing Voltage ： AC 120V/60Hz Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart E Section 15.407:2014 ANSI C63.10: 2013 Test Lab ： QuieTek Hsin Chu Laboratory Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : (Carol Tsai / Senior Engineering Adm. Specialist ) Tested By : ( Bruno Tsai / Engineer ) Approved By : ( Roy Wang / Director ) Report No：15B0233R-RFUSP56V00 Page: 3 of 274 Revision History Report No. Version Description Issued Date 15B0233R-RFUSP56V00 V1.0 Initial issue of report Nov. 23, 2015 Report No：15B0233R-RFUSP56V00 Page: 4 of 274 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/english/about/certificates.aspx?bval=5 The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/index_en.aspx If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 3024 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 181665 / IC Registration Number: 4075C-4 Report No：15B0233R-RFUSP56V00 Page: 5 of 274 TABLE OF CONTENTS Description Page 1. General Information...................................................................................................................... 7 1.1. EUT Description .......................................................................................................................... 7 1.2. Test Mode.................................................................................................................................. 16 1.3. Tested System Details............................................................................................................... 17 1.4. Configuration of tested System ................................................................................................. 18 1.5. EUT Exercise Software ............................................................................................................. 19 1.6. Test Facility ............................................................................................................................... 20 2. Conducted Emission .................................................................................................................. 21 2.1. Test Equipment ......................................................................................................................... 21 2.2. Test Setup ................................................................................................................................. 21 2.3. Limits ......................................................................................................................................... 22 2.4. Test Procedure .......................................................................................................................... 22 2.5. Test Specification ...................................................................................................................... 22 2.6. Uncertainty ................................................................................................................................ 22 2.7. Test Result ................................................................................................................................ 23 3. 99% & 26dB Bandwidth .............................................................................................................. 31 3.1. Test Equipment ......................................................................................................................... 31 3.2. Test Setup ................................................................................................................................. 31 3.3. Limits ......................................................................................................................................... 31 3.4. Test Procedure .......................................................................................................................... 31 3.5. Uncertainty .......................................................…

Text truncated - open the document above for the full version.

Report No：15B0233R-RFUSP56V00 Page: 246 of 274 Attachment 1 Test Setup Photograph <Conducted Emission> Test Mode ： Mode 1: Transmit_CDD Mode_Adapter 1 Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit_CDD Mode_Adapter 1 Description： Back View of Conducted Emission Test Setup Report No：15B0233R-RFUSP56V00 Page: 247 of 274 Test Mode ： Mode 2: Transmit_Adapter 2 Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 2: Transmit_Adapter 2 Description： Back View of Conducted Emission Test Setup Report No：15B0233R-RFUSP56V00 Page: 248 of 274 Test Mode ： Mode 3: Transmit_Adapter 3 Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 3: Transmit_Adapter 3 Description： Back View of Conducted Emission Test Setup Report No：15B0233R-RFUSP56V00 Page: 249 of 274 Test Mode ： Mode 4: Transmit_Adapter 4 Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 4: Transmit_Adapter 4 Description： Back View of Conducted Emission Test Setup Report No：15B0233R-RFUSP56V00 Page: 250 of 274 <Radiated Emission> Test Mode ： Mode 1: Transmit_CDD Mode_Adapter 1 Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit_CDD Mode_Adapter 1 Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：15B0233R-RFUSP56V00 Page: 251 of 274 Test Mode ： Mode 2: Transmit_Adapter 2 Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 2: Transmit_Adapter 2 Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：15B0233R-RFUSP56V00 Page: 252 of 274 Test Mode ： Mode 3: Transmit_Adapter 3 Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 3: Transmit_Adapter 3 Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：15B0233R-RFUSP56V00 Page: 253 of 274 Test Mode ： Mode 4: Transmit_Adapter 4 Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 4: Transmit_Adapter 4 Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：15B0233R-RFUSP56V00 Page: 254 of 274 Test Mode ： Mode 1: Transmit_CDD Mode_Adapter 1 Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit_CDD Mode_Adapter 1 Description： Back View of Radiated Emission Test Setup (Horn)
