MSQ-RT1901300Mbps Wireless N Router

User Guide Wireless-N300 Wireless N300 Router 2 Copyright © 2015 ASUSTeK Computer Inc. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. E10377 First Edition May 2015 3 Table of contents 1 Getting to know your wireless router 6 1.1 Package contents .........................................................................6 1.2 Your wireless router .....................................................................7 1.4 Positioning your router ..............................................................9 1.5 Setup Requirements ................................................................10 1.6 Router Setup ...............................................................................11 1.6.1 Wired connection ..................................................................11 1.6.2 Wireless connection .............................................................12 2 Getting started 14 2.1 Logging into the Web GUI .....................................................14 2.2 Quick Internet Setup (QIS) with Auto-detection ...........15 2.3 Connecting to your wireless network ................................19 3 Configuring the General settings 20 3.1 Using the Network Map .........................................................20 3.1.1 Setting up the wireless security settings ......................21 3.1.2 Managing your network clients .......................................22 3.2 Creating a Guest Network ......................................................23 3.3 Using the Traffic Manager ......................................................25 3.3.1 Managing QoS (Quality of Service) Bandwidth..........25 3.3.2 Monitoring Traffic .................................................................28 3.4 Setting up Parental Control ...................................................29 4 Configuring the Advanced Settings 30 4.1 Wireless .........................................................................................30 4.1.1 General ......................................................................................30 4.1.2 WPS ............................................................................................33 4.1.3 WDS ............................................................................................35 4.1.4 Wireless MAC Filter ...............................................................37 4 Table of contents 4.1.5 RADIUS Setting ......................................................................38 4.1.6 Professional .............................................................................39 4.2 LAN .................................................................................................41 4.2.1 LAN IP ........................................................................................41 4.2.2 DHCP Server ............................................................................42 4.2.3 Route .........................................................................................44 4.2.4 IPTV ...............................................................................................45 4.3 WAN ...............................................................................................46 4.3.1 Internet Connection .............................................................46 4.3.2 Port Trigger ..............................................................................49 4.3.3 Virtual Server/Port Forwarding ........................................51 4.3.4 DMZ............................................................................................54 4.3.5 DDNS .........................................................................................55 4.3.6 NAT Passthrough ...................................................................56 4.4 IPv6 .................................................................................................57 4.5 VPN Server ...................................................................................58 4.6 Firewall ..........................................................................................59 4.6.1 General ......................................................................................59 4.6.2 URL Filter ......…

Text truncated - open the document above for the full version.

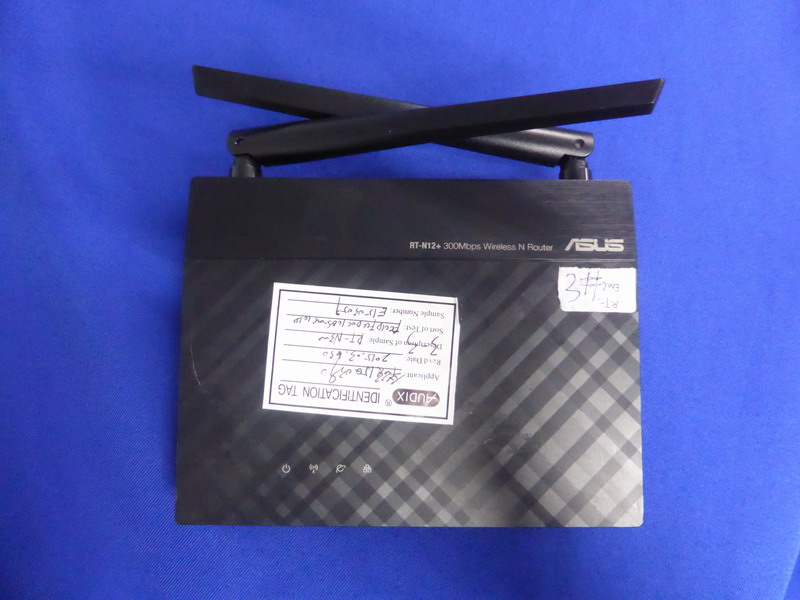

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 14-1 14. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT

1 2 3 4 A B C D 56 1 2 3 4 56 A B C D DATE: ASUS RT-N300 1. 黑色印刷，无边框,R1.5 2.材料: 50# 亮白PET,不过光膜,过UV油墨,背胶 NOTES(技术要求）: (Material:,no film,UV coated,adhesive)50# bright white PET (Black printing,no frame,) R1.5 1:1 印刷盒底标贴 XXXX N/A CHECK DRAW PDE 61100000XXXX A0 Editor Description Remark Date 150710 罗明 苏健 N/A 3. .原材料及后处理工艺均能满足我司《环保技术标准》要求 (Raw materials and the corresponding post processing should meet requirements defined in the T&W Environmental Protection Technical Standards) 0 -0.2 0 - 0 . 2 BARCODE: CODE 128 69.5 mm 3 0 . 5 m m 1.以下内容由供应商印刷： 2. 以下内容由工厂在供应商印刷的基础上打印： MAC 位数及内容见生产信息发布流程 PIN Code 位数及内容见生产信息发布流程 F/W Ver.:Vx.x.x.x为虚指，位数及内容见生产信息发布流程 0.5A 0.5A RT-N300 RT-N300 FCC ID:MSQ-RT1901 IC:3568A-RTN300 FCC ID:MSQ-RT1901 IC:3568A-RTN300 Location

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 14-2 Figure 3 General Appearance of the EUT Figure 4 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 14-3 Figure 5 Inside of the EUT Figure 6 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 14-4 Figure 7 Components Side of the PCB Figure 8 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 14-5 Figure 9 Power Adapter#1 Figure 10 Power Adapter#1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 14-6 Figure 11 Power Adapter#2 Figure 12 Power Adapter#2 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 14-7 Figure 13 LNA Cable

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 10-1 PG 4πR 2 10. MPE ESTIMATION 10.1.Limit for General Population/ Uncontrolled Exposures Fre quencyPower density (mW/ cm 2 )Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 10.2. Estimation Result EUT:300Mbps Wireless N Router M/N:RT-N300 Test date: 2014-04-14 Pressure: 101.2±1.0 kpa Humidity: 49.6±3.0% Tested by: kobe_huang Test site: RF site Temperature:22.7±0.6 °C Test Mode CH Peak Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Antenna Gain (Linear) MPE 11b CH1 20.92 123.59 6.53 4.50 0.1106 CH6 20.73 118.30 6.53 4.50 0.1059 CH11 20.03 100.69 6.53 4.50 0.0901 11g CH1 22.80 190.55 6.53 4.50 0.1706 CH6 23.56 226.99 6.53 4.50 0.2032 CH11 21.63 145.55 6.53 4.50 0.1303 11n HT20 CH1 22.26 168.27 6.53 4.50 0.1506 CH6 23.45 221.31 6.53 4.50 0.1981 CH11 21.88 154.17 6.53 4.50 0.1380 11n HT40 CH3 17.64 58.08 6.53 4.50 0.0520 CH6 20.17 103.99 6.53 4.50 0.0931 CH9 17.37 54.58 6.53 4.50 0.0489 MPE= (R=20cm)

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of ASUSTek COMPUTER INC. 300Mbps Wireless N Router Model Number: RT-N300 FCC ID: MSQ-RT1901 Prepared for : ASUSTek COMPUTER INC. 4F,NO.150 Li-Te Rd.Beitou, Tai pei Taiwan,R.O.C Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F15120 Date of Test ： Apr.09 ~ May.07, 2015 Date of Report ： Jul.22, 2015 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS ......................................................... 1-1 1.1. Description of Standards and Results ................................................................................... 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information ................................................................................................................... 2-2 2.3. Tested Supporting System Details ........................................................................................ 2-3 2.4. Block Diagram of Test Setup ............................................................................................... 2-3 2.5. Test Facility .......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) ..................................................... 2-4 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments ................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits ...................................................................... 3-1 3.4. Configuration of EUT on Test .............................................................................................. 3-2 3.5. Operating Condition of EUT ................................................................................................ 3-2 3.6. Test Procedure ...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results ..................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment ..................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-2 4.3. Radiated Emission Limit ...................................................................................................... 4-3 4.4. EUT Configuration on Test .................................................................................................. 4-3 4.5. Operating Condition of EUT ................................................................................................ 4-3 4.6. Test Procedure ...................................................................................................................... 4-4 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. CONDUCTED SPURIOUS EMISSIONS ..................................................................... 5-1 5.1. Test Equipment ..................................................................................................................... 5-1 5.2. Limit ..................................................................................................................................... 5-1 5.3. Test Procedure ...................................................................................................................... 5-1 5.4. Test result ............................................................................................................................. 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment ..................................................................................................................... 6-1 6.2. Limit ..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. 6dB Bandwidth Test ........................................................................................................ 7-1 7.1. Test Equipment ..................................................................................................................... 7-1 7.2. Limit ..................................................................................................................................... 7-1 7.3. Test Procedure ...................................................................................................................... 7-1 7.4. Test Results ..............................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 13-2 13.2.Photos of Radiated Emission Test 30-1000MHz R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:MSQ-RT1901 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F15120 13-3 Above 1000MHz
