MSQ-RTAC2K00Wireless-AC1900 Dual Band Gigabit Router

Quick Start Guide RT-AC68U V4 Dual BandRT-AC68U V4 Dual Band 3x3 Wireless-AC 1900 Gigabit Router3x3 Wireless-AC 1900 Gigabit Router ̈ NA17952 / First Edition / May 2021 Table of contentsTable of contents English .............................................................................................3 Français Canadien .......................................................................18 Español ............................................................................................33 Português do Brasil .....................................................................48 3 English 15 9101311814127653 Package contentsPackage contents RT-AC68U AC adapter Network cable (RJ-45) Quick Start Guide Warranty Card A quick look at your RT-AC68UA quick look at your RT-AC68U 1 LAN 1~4 LEDs 6 Power LED 11 USB 3.0/2.0 ports 2 WAN (Internet) LED 7 WPS button 12 WAN port 3 USB 3.0/2.0 LEDs 8 Wi-Fi On/Off button 13 LED On/Off button 4 2.4GHz LED 9 Power switch 14 LAN ports 5 5GHz LED 10 Power (DCIN) port 15 Reset button NOTE: I f any of the items is damaged or missing, contact your retailer. 124 4 English NOTES: • USB External HDD/Flash disk: • The wireless router works with most USB HDDs/Flash disks up to 2TB and supports read-write access for FAT16, FAT32, EXT2, EXT3, and NTFS. • To safely remove the USB disk, launch the web GUI (http://192.168.1.1), then in the Network Map page's upper right corner, click the USB icon and click Eject USB 3.0 / USB 2.0. • Incorrect removal of the USB disk may cause data corruption. • For the list of file system and hard disk partitions that the wireless router supports, visit http://event.asus.com/networks/disksupport • For the list of printers that the wireless router supports, visit http://event.asus.com/networks/printersupport 5 English Installing your routerInstalling your router IMPORTANT: Before installing the router, ensure that Internet connection is available 1. Position your wireless router. For the optimal wireless transmission between the wireless router and connected wireless devices, ensure that you: • Place the wireless router in a centralized area for a maximum wireless coverage for the network devices. • Keep the wireless router away from metal obstructions and away from direct sunlight. • Keep the wireless router away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss. • To ensure the best wireless signal, orient the three detachable antennas as shown in the drawing below. • Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates. 45 ° 90 ° 45 ° 6 English RT-AC68U Computer Wall Power Outlet LAN Modem Power WAN a b c d Modem OFF! a b c 2. Prepare your modem. a. Unplug the AC adapter from the power outlet and disconnect it from your cable/ADSL modem. b. Disconnect the network cable from your cable/ADSL modem. c. Reboot your computer (recommended). WARNING! Before disconnecting the wires/cables, ensure that your cable/ADSL modem has been turned off for at least two minutes. If your modem has a backup battery, remove it as well. 3. Set up your wireless environment. 7 English a. I nsert your wireless router’s AC adapter to the DCIN port and plug it to a power outlet. b. Using another network cable, connect your modem to your wireless router’s WAN port. c. I nsert your modem’s AC adapter to the DCIN port and plug it to a power outlet. d. Using the bundled network cable, connect your computer to your wireless router’s LAN port. Ensure that the WAN and LAN LEDs are blinking. NOTE: You can also set up RT-AC68U using a mobile device such as smartphone or tablet PC. To do this, go to Setup your router using a mobile device for details. a. Disable the proxy server, if enabled. b. Set the TCP/IP settings to automatically obtain an IP address. c. Disable the dial-up connection, if enabled. NOTE: F or more details on disabling your computer settings, refer to Frequently Asked Questions (FAQs). 4. Disable some settings on your computer. 8 English To set up your router using QIS (Quick Internet Setup): 1. Press the power button at the back of your router. Ensure that the Power, LAN and WAN LEDs are on. 2. Launch your web browser such as Internet Explorer, Firefox, Google Chrome, or Safari. Setting up your router using the Quick Internet Setup Setting up your router using the Quick Internet Setup WizardWizard NOTE: If QIS does not launch automatically, enter http://192.168.1.1 or http://router.asus.com in the address bar and refresh the browser again. 3. Assign your router login name and password and click Next. You will need this login name and password to log into RT-AC68U to view or change the router settings. You can take note of your router login name and password for future use. 9 English 4. The wireless router’s Quick Internet Setup (QIS) feature automatically detects if your ISP connection type is Dynamic IP, PPPoE, PPTP, L2TP, and Static IP. Please obtain the necessary information about your Internet connection type from your Internet Service Provider (ISP). If your connection type is Dynamic IP (DHCP), QIS wizard will automatically direct you to the next step. NOTE: If your connection type is Static IP, choose Static IP and click Next. Key in IP address, subnet mask, default gateway and DNS server information provided by your ISP. Click Next to proceed. RT-AC68U Setup of router (RT-AC68U) administrator password Login name: Login password: 10 English 5. Assign the network name (SSID) and security key for your 2.4GHz and 5GHz wireless connection. Click Apply when done. 6. Your Internet and wireless settings are displayed. Click Next to continue. 7. Read the wireless network connection tutorial. When done, click Finish. 11 English You can also use your mobile device such as a s…

Text truncated - open the document above for the full version.

ASUSTeK COMPUTER INC. 1F., No.15, Lide Rd., 112 Beitou Dist., Taipei City, TAIWAN Date: 2021-05-21 FCC ID: MSQ-RTACIB00 To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Jackson Yen / Associate Vice President ASUSTeK COMPUTER INC. Tel: +886-2- 2894-3447 Extension: 23106 FAX : 886-2-2898-7364 E-MAIL:[email protected]

ASUSTeK COMPUTER INC. 1F., No.15, Lide Rd., 112 Beitou Dist., Taipei City, TAIWAN Date: 2021-05-21 FCC ID: MSQ-RTACIB00 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 180 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------- Jackson Yen / Associate Vice President ASUSTeK COMPUTER INC. Tel: +886-2- 2894-3447 Extension: 23106 FAX : 886-2-2898-7364 E-MAIL:[email protected]

ASUSTeK COMPUTER INC. 1F., No.15, Lide Rd., 112 Beitou Dist., Taipei City, TAIWAN Date: May 21, 2021 We, ASUSTeK COMPUTER INC. declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: MSQ-RTACIB00 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------- Jackson Yen, Authorized Signatory ASUSTeK COMPUTER INC. Tel: +886-2- 2894-3447 Extension: 23106 FAX : 886-2-2898-7364 E-MAIL:[email protected]

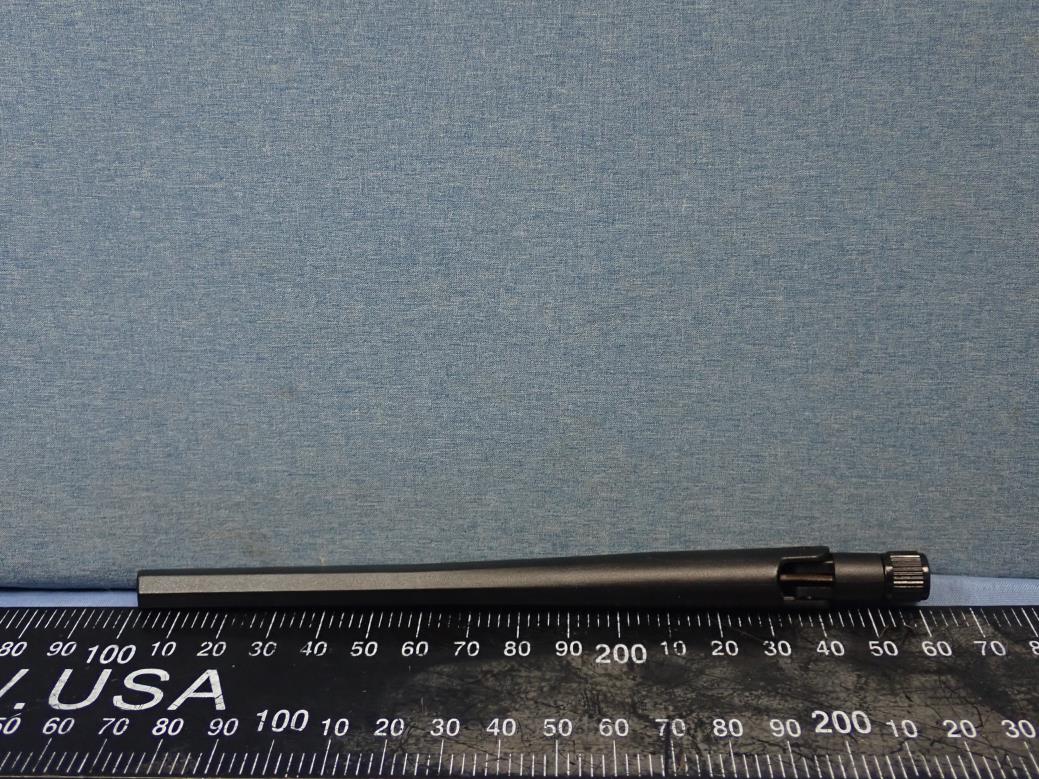

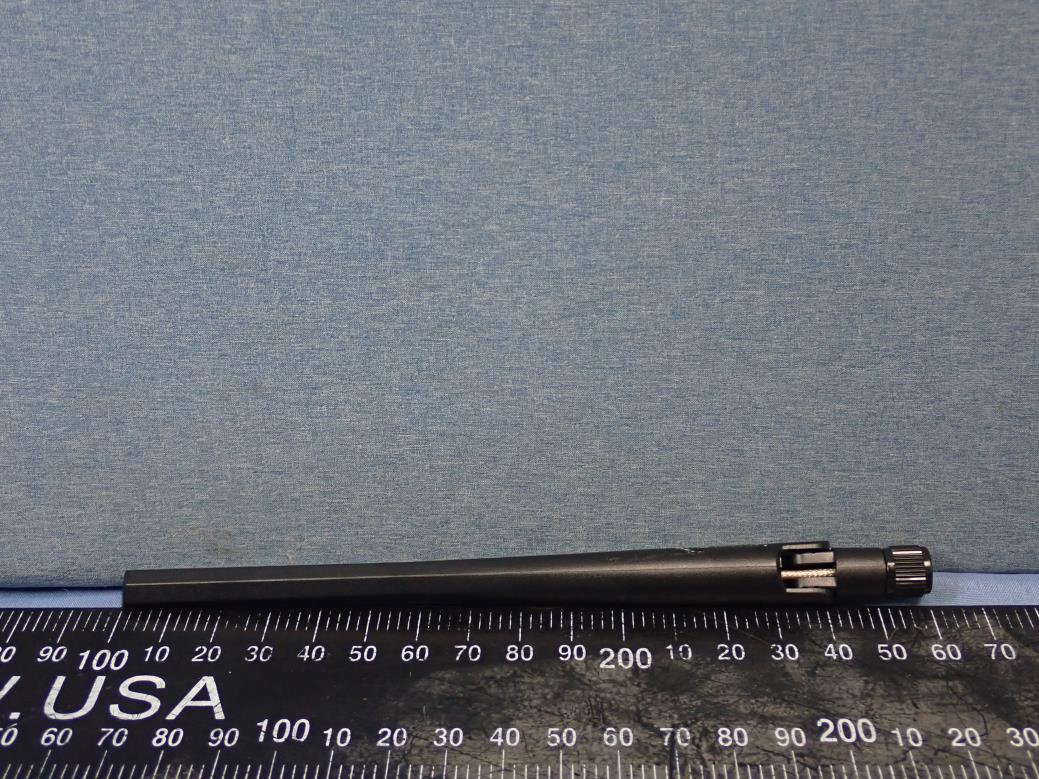

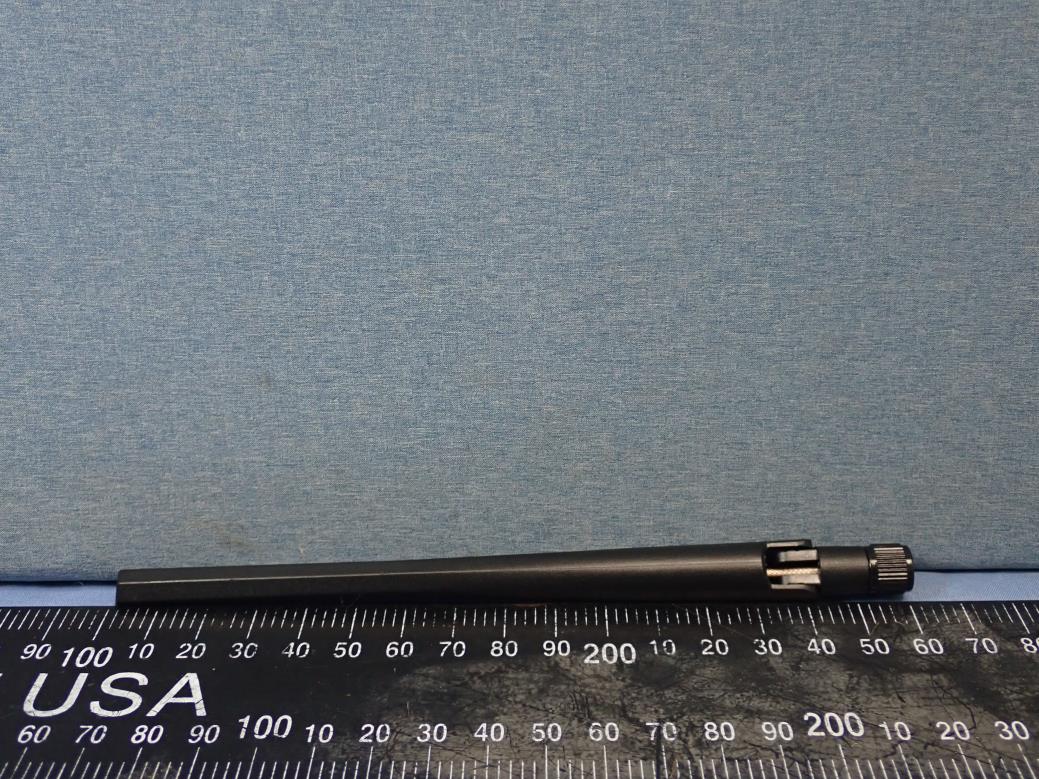

Reference No.: BCWK-WTW-P20120330-1 Page 1/14 CONSTRUCTION PHOTOS OF EUT Reference No.: BCWK-WTW-P20120330-1 Page 2/14 Reference No.: BCWK-WTW-P20120330-1 Page 3/14 Reference No.: BCWK-WTW-P20120330-1 Page 4/14 Reference No.: BCWK-WTW-P20120330-1 Page 5/14 Antenna set1_Chain 0 Reference No.: BCWK-WTW-P20120330-1 Page 6/14 Antenna set2_Chain 0 Reference No.: BCWK-WTW-P20120330-1 Page 7/14 Antenna set1_Chain 1 Reference No.: BCWK-WTW-P20120330-1 Page 8/14 Antenna set2_Chain 1 Reference No.: BCWK-WTW-P20120330-1 Page 9/14 Antenna set1_Chain 2 Reference No.: BCWK-WTW-P20120330-1 Page 10/14 Antenna set2_Chain 2 Reference No.: BCWK-WTW-P20120330-1 Page 11/14 Adapter: MU30B1120250-A1 Reference No.: BCWK-WTW-P20120330-1 Page 12/14 Reference No.: BCWK-WTW-P20120330-1 Page 13/14 Adapter: WA-30P12FU Reference No.: BCWK-WTW-P20120330-1 Page 14/14 RJ45 Cable
