139449R-RFUSP37V02 Datamax Electronics(DongGuan)Co.,Ltd.

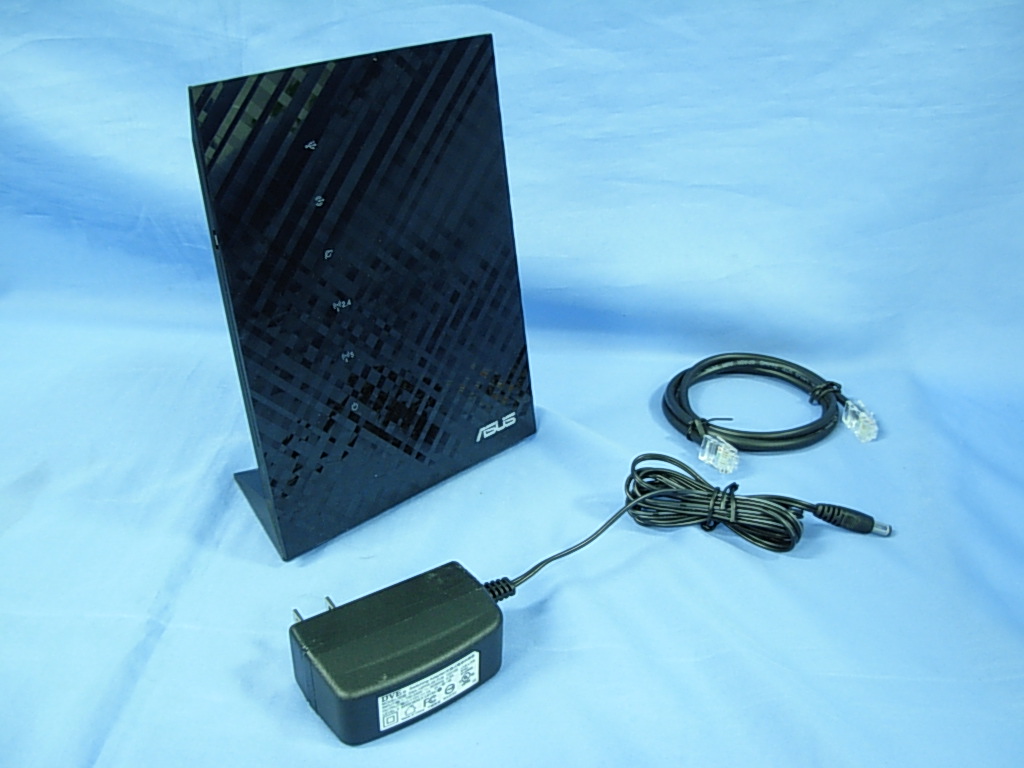

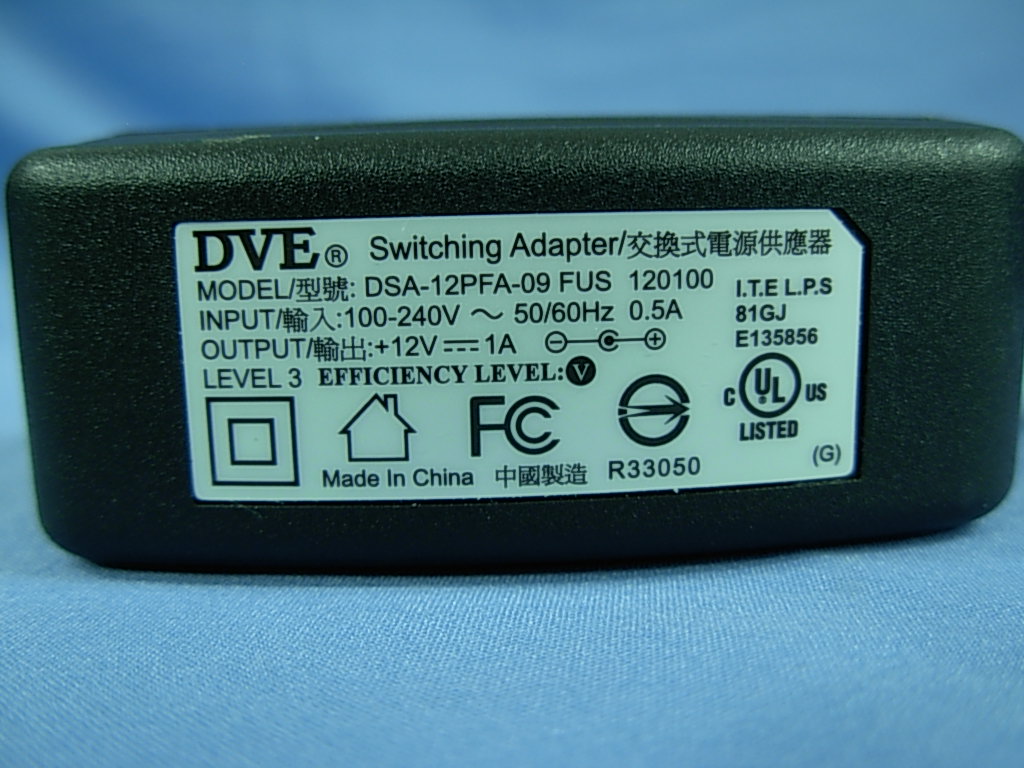

Report No：139449R-RFUSP46V01 Page: 116of 123 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo Report No：139449R-RFUSP46V01 Page: 117of 123 (3) EUT Photo

ASUSTeK COMPUTER INC. 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. FCC ID.: MSQ-RTAC52U FCC ID AND DoC Label

Report No：139449R-RFUSP46V01 Page: 118of 123 (4) EUT Photo (5) EUT Photo Report No：139449R-RFUSP46V01 Page: 119of 123 (6) EUT Photo (7) EUT Photo Report No：139449R-RFUSP46V01 Page: 120of 123 (8) EUT Photo (9) EUT Photo Report No：139449R-RFUSP46V01 Page: 121of 123 (10) EUT Photo (11) EUT Photo (MB) Report No：139449R-RFUSP46V01 Page: 122of 123 (12) EUT Photo (13) EUT Photo (MB) Report No：139449R-RFUSP46V01 Page: 123of 123 (14) EUT Photo (15) EUT Photo (ANT)

Report No. 139449R-RF-US-Exp Page: 1 of 8 RF Exposure Evaluation declaration Product Name ：802.11ac Dual Band Router Model No. ：RT-AC52U FCC ID. ：MSQ-RTAC52U Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Date of Receipt : 2013/09/10 Date of Declaration : 2013/11/01 Report No. : 139449R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 139449R-RF-US-Exp Page: 2 of 8 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 139449R-RF-US-Exp Page: 3 of 8 1.3. Test Result of RF Exposure Evaluation Product 802.11ac Dual Band Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.68dBi or 2.94 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 341.1929 0.19956 6 2437 628.0584 0.36735 11 2462 371.5352 0.21731 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 187.0682 0.10941 6 2437 522.3962 0.30555 11 2462 161.4359 0.09442 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 139449R-RF-US-Exp Page: 4 of 8 Product 802.11ac Dual Band Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.68dBi or 2.94 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 294.4422 0.17222 6 2437 519.9960 0.30414 11 2462 316.9567 0.18539 IEEE 802.11n (40MHz) ANT 0+1 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 220.8005 0.12914 6 2437 860.9938 0.50359 9 2452 169.0441 0.09887 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 139449R-RF-US-Exp Page: 5 of 8 Product 802.11ac Dual Band Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.47dBi or 2.22 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 31.1889 0.01377 44 5220 28.7740 0.01271 48 5240 30.0608 0.01328 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 203.7042 0.08997 157 5785 189.6706 0.08377 165 5825 213.3045 0.09421 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 139449R-RF-US-Exp Page: 6 of 8 Product 802.11ac Dual Band Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.47dBi or 2.22 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 30.2691 0.01337 44 5220 31.4051 0.01387 48 5240 32.5837 0.01439 IEEE 802.11 n(20MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 204.6445 0.09038 157 5785 208.9296 0.09227 165 5825 195.4339 0.08631 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 139449R-RF-US-Exp Page: 7 of 8 Product 802.11ac Dual Band Router Test Mode Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.47dBi or 2.22 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 38 5190 45.1856 0.01996 46 5230 49.3174 0.02178 IEEE 802.11 n(40MHz) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 )…

Text truncated - open the document above for the full version.

Report No：139449R-RFUSP46V01 Page: 1of 123 FCC Test Report Product Name：802.11ac Dual Band Router Model No. ：RT-AC52U FCC ID. ：MSQ-RTAC52U Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Date of Receipt：2013/09/10 Issued Date ：2013/11/01 Report No. ：139449R-RFUSP46V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：139449R-RFUSP46V01 Page: 2of 123 Test Report Certification Issued Date : 2013/11/01 Report No. : 139449R-RFUSP46V01 Product Name ： 802.11ac Dual Band Router Applicant ： ASUSTeK COMPUTER INC. Address ： 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Manufacturer ： Datamax Electronics(DongGuan)Co.,Ltd. Model No. ： RT-AC52U FCC ID. ： MSQ-RTAC52U EUT Voltage : AC 100-240V, 50-60Hz Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart E Section 15.407: 2012 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Fonbo Fang / Engineering Adm. Assistant ) Reviewed By : ( Sabrina Tsai / Engineer ) Approved By : ( Roy Wang / Director ) Report No：139449R-RFUSP46V01 Page: 3of 123 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No：139449R-RFUSP46V01 Page: 4of 123 TABLE OF CONTENTS Description Page 1. General Information...................................................................................................................... 6 1.1. EUT DESCRIPTION.........................................................................................................................................6 1.2. OPERATIONAL DESCRIPTION......................................................................................................................... 11 1.3. TEST MODE.................................................................................................................................................12 1.4. TESTED SYSTEM DETAILS.............................................................................................................................13 1.5. CONFIGURATION OF TESTED SYSTEM............................................................................................................14 1.6. EUT EXERCISE SOFTWARE..........................................................................................................................14 1.7. TEST FACILITY.............................................................................................................................................15 2. Conducted Emission .................................................................................................................. 16 2.1. TEST EQUIPMENT.........................................................................................................................................16 2.2. TEST SETUP................................................................................................................................................16 2.3. LIMITS.........................................................................................................................................................17 2.4. TEST PROCEDURE.......................................................................................................................................17 2.5. TEST SPECIFICATION....................................................................................................................................17 2.6. UNCERTAINTY..............................................................................................................................................17 2.7. TEST RESULT...............................................................................................................................................18 2.8. TEST PHOTO................................................................................................................................................20 3. 99% & 26dB Bandwidth .............................................................................................................. 21 3.1. TEST EQUIPMENT.........................................................................................................................................21 3.2. TEST SETUP................................................................................................................................................21 3.3. LIMITS.........................................................................................................................................................21 3.4. TEST PROCEDURE...............................…

Text truncated - open the document above for the full version.

Report No：139449R-RFUSP46V01 Page: 20of 123 2.8. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Transmit Description： Back View of Conducted Emission Test Setup Report No：139449R-RFUSP46V01 Page: 87of 123 7.7. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bi-Log) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bi-Log) Report No：139449R-RFUSP46V01 Page: 88of 123 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
