MSQ-RTAC66UDual Band 3*3 802.11ac Gigabit Router

Quick Start Guide RT-AC66U Dual Band 3x3 802.11AC Gigabit Router ® WEU7417 / First Edition / May 2012 WEU7417_RT-AC66U_QSG.indd 15/22/12 6:03:10 PM English .............................................................................................4 Nederlands ....................................................................................17 Suomi ...............................................................................................30 Français ...........................................................................................43 Deutsch ...........................................................................................56 Norsk ................................................................................................69 Dansk ...............................................................................................81 Svenska ...........................................................................................95 Ελληνικά ..........................................................................................108 Italiano ............................................................................................121 Português .......................................................................................134 Español ............................................................................................147 Русский ...........................................................................................160 Table of contents NOTE • For more details, refer to the user manual included in the support CD. • Für weitere Details beziehen Sie sich auf das Handbuch auf der Support-CD. • Katso lisätietoja tuki-CD-levyllä olevasta käyttöoppaasta. • Pour plus de détails, consultez le manuel de l'utilisateur contenu dans le CD de support. • Für weitere Details beziehen Sie sich auf das Handbuch auf der Support-CD. • For mer detaljert informasjon, se brukerveiledningen som fulgte med på støtte CD-en. • For yderligere oplysninger herom, bedes du venligst se i brugervejledningen på den medfulgte cd. WEU7417_RT-AC66U_QSG.indd 25/22/12 6:03:11 PM • För ytterligare detaljer, se bruksanvisningen på support-CD: n. • Για περισσότερες λεπτομέρειες, ανατρέξτε στο εγχειρίδιο χρήστη που περιλαμβάνεται στο CD υποστήριξης. • Per approfondimenti. consultare il manuale utente nel CD di supporto. • Para mais detalhes, consulte o manual do utilizador incluído no CD de suporte. • Para obtener más detalles, consulte el manual del usuario incluido en el CD de soporte. • Для получения подробной информации. обратитесь к руководству пользователя на компакт-диске. WEU7417_RT-AC66U_QSG.indd 35/22/12 6:03:11 PM 4 English Package contents RT-AC66U AC adapter Network cable Quick Start Guide Support CD (User Manual/utilities) Warranty card Stand A quick look 1) Power LED5) 5GHz LED9) USB 2.0 ports 2) LAN LED6) USB 2.0 LED10) Reset button 3) WAN LED7) Power (DC-IN) port11) Internet & LAN ports 4) 2.4GHz LED8) Power switch12) WPS button NOTE: If any of the items is damaged or missing, contact your retailer. 791012 11 8 12 3 5 6 4 WEU7417_RT-AC66U_QSG.indd 45/22/12 6:03:14 PM 5 English NOTES: • USB External HDD/Flash disk: • The wireless router works with most USB HDDs/Flash disks up to 2TB and supports read-write access for FAT16, FAT32, EXT2, EXT3, and NTFS. • To safely remove the USB disk, launch the web GUI (http://192.168.1.1), then in the Network Map page's upper right corner, click the USB icon and click Eject USB 1. • Incorrect removal of the USB disk may cause data corruption. • For the list of file system and hard disk partitions that the wireless router supports, visit http://event.asus.com/networks/ disksupport • For the list of printers that the wireless router supports, visit http://event.asus.com/networks/printersupport WEU7417_RT-AC66U_QSG.indd 55/22/12 6:03:15 PM 6 Positioning your wireless router For the best wireless signal transmission between the wireless router and the network devices connected to it, ensure that you: • Place the wireless router in a centralized area for a maximum wireless coverage for the network devices. • Keep the device away from metal obstructions and away from direct sunlight. • Keep the device away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss. • To ensure the best wireless signal, orient the three detachable antennas as shown in the drawing below. • For optimum performance, adjust the internal cooling system. Refer to the user manual for details. • Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates. 45 0 45 0 90 0 English WEU7417_RT-AC66U_QSG.indd 65/22/12 6:03:16 PM 7 Mounting to the stand • Align and insert the stand’s mounting hooks to the wireless router’s mounting holes. Before you proceed 1. Unplug and disconnect the wires/cables from your existing modem setup and release your computer’s outmoded IP address. a: Unplug the AC adapter from the power outlet and disconnect it from your cable/ADSL modem. b: Disconnect the network cable from your cable/ADSL modem. c: Reboot your computer (recommended). Modem OFF ! a b c English WEU7417_RT-AC66U_QSG.indd 75/22/12 6:03:18 PM 8 WARNING! Before disconnecting the wires/cables, ensure that your cable/ADSL modem has been turned off for at least two minutes. If your modem has a backup battery, remove it as well. 2. Set up your wireless environment. a: Insert your wireless router’s AC adapter to the DC-IN port and plug it to a power outlet. b: Using the bundled network cable, connect your computer to your wireless router’s LAN port. IMPORTANT! Ensure that the WAN and LAN LEDs are blinking. c: Using another network cable, connect your modem to your wireless router’s WAN port. d: Insert your modem’s AC adapter to th…

Text truncated - open the document above for the full version.

74 Norsk 3. Deaktiver noen innstillinger på datamaskinen. A. Deaktiver proxyserveren, hvis denne er aktivert. B. Still inn TCP/IP-innstillingene til å automatisk innhente en IP-adresse. C. Deaktver den eksterne oppringingen, hvis denne er aktivert. MERK: For flere detaljer om deaktivering av datamaskininnstillingene, henvis til Spørsmål og svar. 1. Konfigurer de trådløse innstillingene dine via det nettbaserte gren- sesnittet. a: Start nettleseren din, f.eks. Internet Explorer, Firefox, Google Chrome, eller Safari. Komme i gang b a WEU7417_RT-AC66U_QSG.indd 745/22/12 6:04:17 PM 75 Norsk MERK: Hvis QIS ikke starter automatisk, følger du disse trinnene for å manuelt starte QIS: • I nettleseren din, skriv inn http://192.168.1.1 og kjør Quick Internet Setup (QIS)-veiviseren igjen. • Deaktiver proxy-innstillingene, ekstern oppringing, og sett opp TCP/IP-innstillingene til å automatisk hente inn en IP-adresse. For mer informasjon, henvis til Spørsmål og svar-delen eller bruk oppsetts- veiviseren på support CD-en for automatisk problemløsning. b: Den trådløse ruterens Quick Internet Setup (QIS)-funksjonen registrerer automatisk om ISP-tilkoblingstypen din er Dynamic IP (Dyna- misk IP), PPPoE, PPTP, L2TP og Static IP (Statisk IP). Tast inn nødvendig informasjon for tilkoblingstypen din. ADVARSEL! Få nødvendig informasjon om Internett-tilkoblingstypen din fra Internettleverandøren din (ISP). MERK: Auto-detection (Automatisk registrering) av ISP-tilkoblingstypen din skjer når du konfigurerer den trådløse ruteren for første gang eller når den trådløse ruteren er nullstilt til standard- innstillingene. MERK: Du kan tilordne et nettverksnavn med opptil 32 tegn. c: Tilordne nettverksnavnet (SSID) og sikkerhetsnøkkelen for din 2,4 GHz og 5 GHz trådløse tilkobling. Klikk på Apply (Bruk) når du er ferdig. d: Innstillingene for Internett og trådløst vises. Klikk Next (Neste) for å fortsette. e: Les opplæringen for trådløs nett- verkstilkobling. Når du er ferdig klikk på Finish (Avslutt). WEU7417_RT-AC66U_QSG.indd 755/22/12 6:04:19 PM 76 Norsk Spørsmål og svar Etter at å ha fulgt trinnene, kan jeg fremdeles ikke få tilgang til den trådløse ruterens nettbaserte brukergrensesnitt for å konfigurere den trådløse ruterens innstillinger. A. Deaktiver proxyserveren, hvis denne er aktivert. Windows® 7 1. Klikk på Start > Internet Explorer for å åpne nett- leseren. 2. Klikk på Tools (Verktøy) > Internet options (Al- ternativer for Internett) > Connections (Tilkoblinger)-kategorien > LAN settings (LAN-innstillinger). 3. Fra Local Area Network (LAN) Settings (Innstil - linger for lokalt nettverk) -skjermen, fjern krysset for Use a proxy server for your LAN (Bruk en proxy-server til lokal- nettet). 4. Klikk på OK når du er ferdig. WEU7417_RT-AC66U_QSG.indd 765/22/12 6:04:19 PM 77 Norsk MAC OS 1. Fra menylinjen, klikk på Safari > Preferences... (Valg...) > Kategorien Advanced (Avansert) > Change Settings... (Endre innstillinger...). 2. Fra listen over protokoller, fravelg FTP Proxy og Web Proxy (HTTPS). 3. Klikk på Apply Now (Bruk nå) når du er ferdig. MERK: Henvis til nettleserens hjelpefunksjon for detaljer om deakti- vering av proxyserveren. B. Still inn TCP/IP-innstillingene til å automatisk innhente en IP-adresse. Windows® 7 1. Klikk på Start > Control Panel (Kontrollpanel) > Network and Internet (Nettverk og Internett) > Network and Sharing Center (Nettverks- og delingssenter) > Manage network connections (Administrere nettverkstilkoblinger). 2. Velg Internet Protocol Version 4(TCP/IPv4) og klikk deretter på Properties (Egenskaper). WEU7417_RT-AC66U_QSG.indd 775/22/12 6:04:20 PM 78 Norsk 3. For å automatisk hente inn IPv4 IP-innstillin- gene, kryss av for Obtain an IP address auto- matically (Motta en IP-adresse automatisk). 4. Klikk på OK når du er ferdig. MAC OS 1. Klikk på Apple-ikonet øverst til venstre på skjermen. 2. Klikk på System Preferences (Systemvalg) > Network (Nettverk) > Configure... (Konfigurer ...). 3. Fra TCP/IP-kategorien, velg Using DHCP (Bruke DHCP) i Configure IPv4 (Konfigurer IPv4)-rullegardinlisten. MERK: Henvis til operativsystemets hjelp- og støttefunksjon for de- taljer om konfigurering av datamaskinens TCP/IP-innstillinger. WEU7417_RT-AC66U_QSG.indd 785/22/12 6:04:21 PM 79 Norsk C. Deaktver den eksterne oppringingen, hvis denne er aktivert. D. Lukk alle åpne nettleservinduer. MERK: Henvis til nettleserens hjelpefunksjon for detaljer om deakti- vering av innstillingene for ekstern tilkobling. Windows® 7 1. Klikk på Start > Internet Explorer for å åpne nett- leseren. 2. Klikk på Tools (Verktøy) > Internet options (Al- ternativer for Internett) > Connections (Tilkob- linger)-kategorien. 3. Kryss av for Never dial a connection (Slå aldri opp et nummer). 4. Klikk på OK når du er ferdig. Klienten kan ikke etablere en trådløs tilkobling med ruteren. Utenfor rekkevidde: • Plasser ruteren nærmere den trådløse klienten. • Prøv å endre kanalinnstillingene. Autentifisering: • Bruk kablet tilkobling for å koble til ruteren. • Sjekk de trådløse sikkerhetsinnstillingene. • Trykk på Reset-knappen på bakpanelet i mer enn fem sekunder. WEU7417_RT-AC66U_QSG.indd 795/22/12 6:04:21 PM 80 Norsk Kan ikke finne ruteren: • Trykk på Reset-knappen på bakpanelet i mer enn fem sekunder. • Sjekk innstillingen i den trådløse adapteren som SSID og krypteringsinnstillinger. Kan ikke få tilgang til Internett via en trådløs LAN-adapter. • Flytt ruteren nærmere den trådløse klienten. • Sjekk om den trådløse adapteren er koblet til den rette trådløse ruteren. • Sjekk om den trådløse kanalen som brukes samsvarer med kanalene som er tilgjengelige i landet/området ditt. • Sjekk krypteringsinnstillingene. • Sjekk om ADSL- eller kabeltilkoblingen stemmer. • Prøv på nytt med en annen Ethernet-kabel. Dersom ADSL "LINK"-lyset blinker kontinuerlig eller slukkes, er ikke Internettilgang mulig - ruteren kan ikke etablere en tilkobling med ADSL- nettverket. • Kontroller at kablene dine er riktig koblet til. • Koble strømledningen fra…

Text truncated - open the document above for the full version.

135 Português NOTAS: • Disco Rígido USB Externo/Disco Flash: • O router sem fios funciona com a maioria dos Discos Rígidos USB/Discos Flash com até 2TB de capacidade e suporta o acesso de leitura-escrita nos sistemas FAT16, FAT32, EXT2, EXT3 e NTFS. • Para remover em segurança o disco USB, aceda à interface Web (http://192.168.1.1) e no canto superior direito da página Network Map (Mapa de rede), clique no ícone USB e em Eject USB 1 (Ejectar USB 1). • A remoção incorrecta do disco USB poderá danificar os dados. • Para consultar a lista de sistemas de ficheiros e de partições de disco rígido que o router sem fios suporta, visite http://event. asus.com/ networks/disksupport • Para consultar a lista de impressoras que o router suporta, visite http://event.asus.com/networks/printersupport WEU7417_RT-AC66U_QSG.indd 1355/22/12 6:05:01 PM 136 Português Colocação do router Para garantir a melhor qualidade de transmissão entre o router sem fios e os dispositivos de rede a ele ligados: • Coloque o router sem fios numa área central para obter a maior cobertura possível sem fios para os seus dispositivos de rede. • Mantenha o dispositivo afastado de obstruções de metal e de luz solar directa. • Mantenha o dispositivo afastado de dispositivos Wi-Fi que utilizam apenas a norma 802.11g ou 20MHz, periféricos de computador que utilizam a banda 2,4GHz, dispositivos Bluetooth, telefones sem fios, transformadores, motores de alta resistência, lâmpadas fluorescentes, fornos microondas, frigoríficos e outros equipamentos industriais para evitar interferências ou perdas de sinal. • Para garantir um sinal sem fios ideal, oriente as três antenas amovíveis tal como ilustrado nas imagens abaixo. • Para obter um desempenho ideal, ajuste o sistema de arrefecimento interno. Consulte o manual do utilizador para obter mais informações. • Actualize sempre para o firmware mais recente. Visite o Web site da ASUS em http://www.asus.com para obter as actualizações de firmware mais recen- tes. 45 0 45 0 90 0 WEU7417_RT-AC66U_QSG.indd 1365/22/12 6:05:02 PM 137 Português Opções de montagem • Alinhe e insira os ganchos de montagem do suporte nos orifícios de montagem do roteador sem fio. Antes de prosseguir 1. Desligue os fios/cabos ligados ao modem e liberte o endereço IP antigo do seu computador. a: Desligue o transformador AC da tomada eléctrica e desligue-o do modem por cabo/ADSL. b: Desligue o cabo de rede do modem por cabo/ADSL. c: Reinicie o computador (recomendado). Modem OFF ! a b c WEU7417_RT-AC66U_QSG.indd 1375/22/12 6:05:03 PM 138 Português AVISO! Antes de desligar os fios/cabos, certifique-se de que o modem por cabo/ADSL se encontra desligado há pelo menos dois minutos. Se o modem possuir uma bateria de reserva, remova-a também. 2. Configure o ambiente da sua rede sem fios. a: Ligue o transformador AC do router sem fios à porta de entrada DC e a uma tomada eléctrica. b: Utilizando o cabo de rede, ligue o seu computador à porta LAN do router sem fios. IMPORTANTE! Certifique-se de que os LEDs WAN e LAN estão a piscar. c: Utilizando outro cabo de rede, ligue o seu modem à porta WAN do router sem fios. d: Ligue o transformador AC do modem à porta de entrada DC e a uma tomada eléctrica. RT-AC66U Computer Modem LAN Power Wall Power Outlet Power WAN a b c d WEU7417_RT-AC66U_QSG.indd 1385/22/12 6:05:03 PM 139 Português 3. Desactive algumas configurações no seu computador. A. Desactive o servidor proxy, caso esteja activado. B. Configurar as definições de TCP/IP para obter automaticamente um endereço IP. C. Desactive a ligação de acesso telefónico, caso esteja activada. NOTA: Para obter mais detalhes acerca de como desactivar as configu- rações do seu computador, consulte as Perguntas Frequentes (FAQ). 1. Configure as definições da rede sem fios utilizando a interface Web (GUI Web). a: Execute o seu navegador Web, como por exemplo o Internet Explorer, o Firefox ,Google Chrome ou o Safari. Introdução b a WEU7417_RT-AC66U_QSG.indd 1395/22/12 6:05:05 PM 140 Português NOTAS: Se a função QIS não iniciar automaticamente, siga estes passos para iniciar a função QIS manualmente: • No navegador Web, introduza http://192.168.1.1 e execute novamente o Assistente de Configuração Rápida de Internet (QIS). • Desactive as definições de proxy, a ligação de acesso telefónico e configure as definições de TCP/IP para obter um endereço IP automa- ticamente. Para obter mais detalhes, consulte a secção de Perguntas Frequentes ou utilize o Assistente de Configuração incluído no CD de suporte para executar um diagnóstico automático. b: A função de Configuração Rápida de Internet (QIS) do router sem fios de- tecta automaticamente se o tipo de ligação do seu ISP é de Dynamic IP (IP Dinâmico), PPPoE, PPTP, L2TP, e Static IP (IP Estático). Introduza as informações necessárias para o seu tipo de ligação. IMPORTANTE! Contacte o seu Fornecedor de Serviços de Internet (ISP), para obter as informações necessárias relativas ao seu tipo de ligação à Internet. NOTA: A detecção automática do tipo de ligação do seu ISP ocorrerá quando configurar o router sem fios pela primeira vez ou quando forem repostas as predefinições do router sem fios. NOTA: Pode atribuir um nome de rede com um máximo de 32 carac- teres. c: Atribua o nome de rede (SSID) e a chave de segurança para a sua liga- ção sem fio a 2,4GHz e 5GHz. Clique em Apply (Aplicar) quando terminar. d: Serão exibidas as suas definições de Internet e da ligação sem fios. Clique em Next (Seguinte) para continuar. e: Leia o tutorial de ligação da rede sem fios. Clique em Finish (Concluir) quando terminar. WEU7417_RT-AC66U_QSG.indd 1405/22/12 6:05:06 PM 141 Português Perguntas Frequentes (FAQ) Depois de seguir todos os passos, ainda não consigo aceder à interface gráfica Web do router (GUI Web) para configurar as definições do router sem fios. A. Desactive o servidor proxy, caso esteja activado. Windows® 7 1. Clique em Start (Iniciar) > Internet Explorer para executar o navegador Web. 2. Clique em Tools (Ferrame…

Text truncated - open the document above for the full version.

ASUSTeK COMPUTER INC. No.15, Li-Te Rd., Peitou, Taipei , Taiwan Attestation for FCC Declaration of Conformity FCC ID: MSQ-RTAC66U Data: May 25, 2012 Please be notified that we, the undersigned, ASUSTeK COMPUTER INC. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is 125201R-RFUSP37V02. Testing in regards to this report was done by QuieTek Corporation, located at 2F, No.345, Xinhu 2nd Rd., Neihu District,, Taipei Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely,

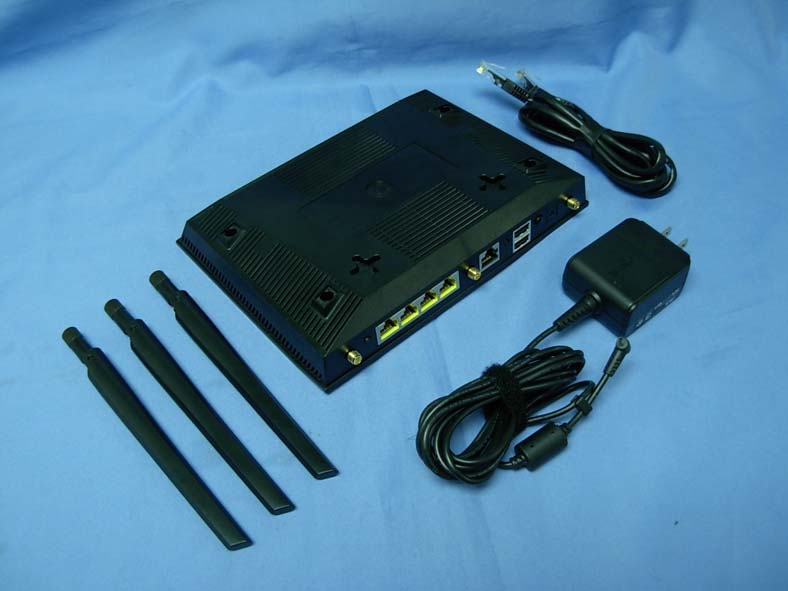

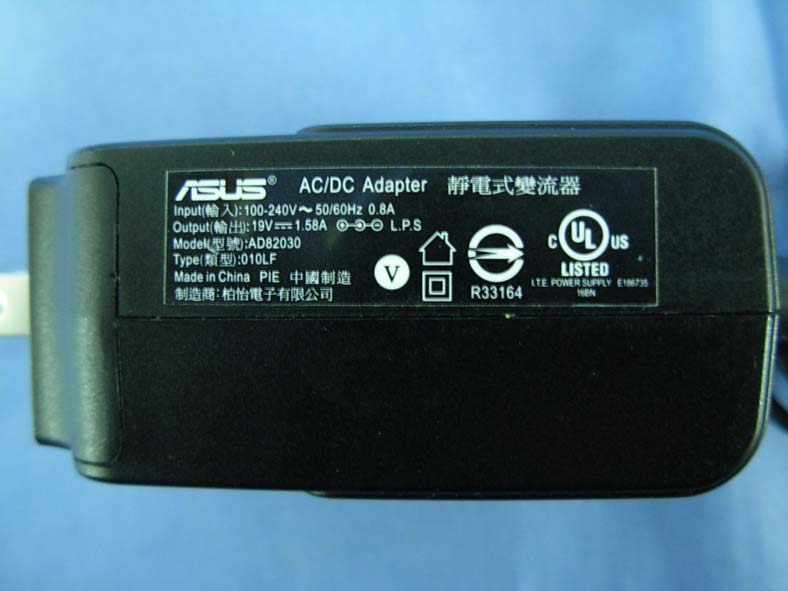

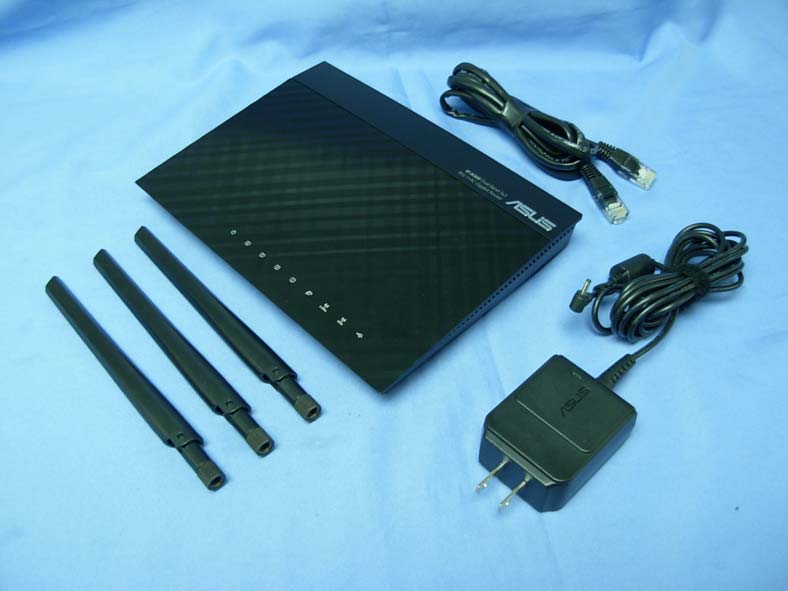

Report No： 125201R-RFUSP42V01 Page: 474 of 484 Attachement EUT Photograph (1) EUT Photo (Power Adatper: ASUS, EXA1004UH) (2) EUT Photo Report No： 125201R-RFUSP42V01 Page: 475 of 484 (3) EUT Photo Report No： 125201R-RFUSP42V01 Page: 476 of 484 (4) EUT Photo (Power Adapter: ASUS, AD82030) (5) EUT Photo Report No： 125201R-RFUSP42V01 Page: 477 of 484 (6) EUT Photo

Linda_wu V2 1510-0LXV000 Paper / Other RT2320W-E61(RoHS) Label(安規+認證) V1New 2012/05/07 Add 2012/05/09 V2 V3 PART NO. DRAFTER PART NAME MODEL NO. MATERIAL 材質 代號 Product Unit 2012.05.09 89.5mm 2 1.5 1.5 39.5mm Input:19V 1.58A N13219 ASUSTek Computer Inc. ASUS RT-AC66U FCC ID:MSQ-RTAC66U Model: RT-AC66U Dual Band 3x3 802.11AC Gigabit Router IC: 3568A-RTAC66U Notes: 1.被貼物材質: ABS+PC 2.黏貼位置:機器底部凹槽 3.尺寸: 89.5*39.5(右下角2C) 4.材質: 透明麥拉(聚酯薄膜,厚度0.188mm) +3M467MP 5.印刷: 黑色印刷+PMS Grey 9C 透明麥拉(聚酯薄膜, 厚度0.188mm)+3M467MP 4.1 0.97 5mm 請注意：認證尚未完成，LABEL不能貼在機器上！~

ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. FCC ID.: MSQ-RTAC66U FCC ID AND DoC Label

Report No： 125201R-RFUSP42V01 Page: 477 of 483 (7) EUT Photo (8) EUT Photo Report No： 125201R-RFUSP42V01 Page: 478 of 483 (9) EUT Photo (10) EUT Photo Report No： 125201R-RFUSP42V01 Page: 479 of 483 (11) EUT Photo (12) EUT Photo Report No： 125201R-RFUSP42V01 Page: 480 of 483 (13) EUT Photo (14) EUT Photo Report No： 125201R-RFUSP42V01 Page: 481 of 483 (15) EUT Photo (16) EUT Photo Report No： 125201R-RFUSP42V01 Page: 482 of 483 (17) EUT Photo (MB) (18) EUT Photo (Ant.) Report No： 125201R-RFUSP42V01 Page: 483 of 483 (19) EUT Photo (20) EUT Photo

Report No. 125201R-RF-US-Exp Page: 1 of 10 RF Exposure Evaluation declaration Product Name ： Dual Band 3x3 802.11AC Gigabit Router Model No. ： RT-AC66U FCC ID. ： MSQ-RTAC66U Applicant : ASUSTeK COMPUTER INC. Address : No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Date of Receipt : 2012/04/27 Date of Declaration : 2012/05/21 Report No. : 125201R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 125201R-RF-US-Exp Page: 2 of 10 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 125201R-RF-US-Exp Page: 3 of 10 1.3. Test Result of RF Exposure Evaluation Product Dual Band 3x3 802.11AC Gigabit Router Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 246.6039 0.07776 6 2437 301.9952 0.09522 11 2462 270.3958 0.08526 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 297.8516 0.09391 6 2437 337.2873 0.10635 11 2462 175.7924 0.05543 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 125201R-RF-US-Exp Page: 4 of 10 Product Dual Band 3x3 802.11AC Gigabit Router Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 554.6257 0.17488 6 2437 592.9253 0.18695 11 2462 639.7348 0.20171 IEEE 802.11n (40MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 321.3661 0.10133 6 2437 290.4023 0.09157 9 2452 328.8516 0.10369 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 125201R-RF-US-Exp Page: 5 of 10 Product Dual Band 3x3 802.11AC Gigabit Router Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 31.8420 0.01004 40 5220 33.2660 0.01049 44 5240 30.5492 0.00963 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 580.7644 0.18312 153 5785 552.0774 0.17407 165 5825 540.7543 0.17050 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 125201R-RF-US-Exp Page: 6 of 10 Product Dual Band 3x3 802.11AC Gigabit Router Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 2.51 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 34.6737 0.01093 40 5220 35.8096 0.01129 44 5240 35.3997 0.01116 IEEE 802.11 n(20MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 797.9947 0.25161 153 5785 801.6781 0.25277 165 5825 799.8343 0.25219 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 125201R-RF-US-Exp Page: 7 of 10 Product Dual Band 3x3 802.11AC Gigabit Router Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2dBi or 1.58 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) (ANT 0+1+2) WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 38 5190 46.7735 0.01475 46 5230 44.…

Text truncated - open the document above for the full version.

Report No： 125201R-RFUSP42V01 Page: 1 of 483 Test Report Product Name ： Dual Band 3x3 802.11AC Gigabit Router Model No. ： RT-AC66U FCC ID. ： MSQ-RTAC66U Applicant ： ASUSTeK COMPUTER INC. Address ： No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Date of Receipt： 2012/04/27 Issued Date ：2012/05/21 Report No. ：125201R-RFUSP42V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No： 125201R-RFUSP42V01 Page: 2 of 483 Test Report Certification Issued Date : 2012/05/21 Report No. : 125201R-RFUSP42V01 Product Name ： Dual Band 3x3 802.11AC Gigabit Router Applicant ： ASUSTeK COMPUTER INC. Address ： No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. Manufacturer ： (1) Askey Technology (Jiang Su) Ltd. (2) Compal Networking (KunShan) Co., Ltd. Model No. ： RT-AC66U FCC ID. ： MSQ-RTAC66U EUT Voltage : AC 100-240V, 50-60Hz Trade Name ： ASUS Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247:2011 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Carol Tsai / Adm. Specialist) Reviewed By : ( Ben Huang / Assistant Engineer) Approved By : ( Roy Wang / Manager ) Report No： 125201R-RFUSP42V01 Page: 3 of 483 TABLE OF CONTENTS Description Page 1. General Information.............................................................................................................. 5 1.1. EUT Description ............................................................................................................. 5 1.2. Operational Description ................................................................................................ 12 1.3. Test Mode ..................................................................................................................... 13 1.4. Tested System Details .................................................................................................. 15 1.5. Configuration of tested System .................................................................................... 16 1.6. EUT Exercise Software ................................................................................................ 16 1.7. Test Facility...................................................................................................................17 2. Conducted Emission .......................................................................................................... 19 2.1. Test Equipment............................................................................................................. 19 2.2. Test Setup .................................................................................................................... 19 2.3. Limits ............................................................................................................................ 20 2.4. Test Procedure ............................................................................................................. 20 2.5. Test Specification.......................................................................................................... 20 2.6. Uncertainty ................................................................................................................... 20 2.7. Test Result....................................................................................................................21 2.8. Test Photo .................................................................................................................... 29 3. Peak Power Output ...........…
