User Guide RT-AC68U Wireless-AC1900 Dual Band Gigabit Router 8U  Copyright © 2013 ASUSTeK Computer Inc. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”). Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. E8119 First Edition March 2013  Table of contents 1 Getting to know your wireless router 6 1.1 Welcome! ........................................................................................6 1.2 Package contents .........................................................................6 1.3 Your wireless router .....................................................................7 1.4 Positioning your router ..............................................................9 1.5 Setup Requirements ................................................................10 1.6 Router Setup ...............................................................................11 1.6.1 Wired connection ..................................................................11 1.6.2 Wireless connection .............................................................12 2 Getting started 14 2.1 Logging into the Web GUI .....................................................14 2.2 Quick Internet Setup (QIS) with Auto-detection ...........15 2.3 Connecting to your wireless network ................................19 3 Configuring the General settings 20 3.1 Using the Network Map .........................................................20 3.1.1 Setting up the wireless security settings ......................21 3.1.2 Managing your network clients .......................................22 3.1.3 Monitoring your USB device .............................................23 3.2 Creating a Guest Network ......................................................26 3.3 Using the Traffic Manager ......................................................28 3.3.1 Managing QoS (Quality of Service) Bandwidth..........28 3.3.2 Monitoring Traffic .................................................................31 3.4 Setting up Parental Control ...................................................32 3.5 Using the USB Application .....................................................33 3.5.1 Using AiDisk ...............................................................................33 3.5.2 Using Servers Center ............................................................35 3.5.3 3G/4G ........................................................................................41  Table of contents 3.6 Using AiCloud .............................................................................43 3.6.1 Cloud Disk ................................................................................44 3.6.2 Smart Access ...........................................................................46 3.6.3 Smart Sync ...............................................................................47 4 Configuring the Advanced Settings 48 4.1 Wireless .........................................................................................48 4.1.1 General ......................................................................................48 4.1.2 WPS ............................................................................................51 4.1.3 Bridge ........................................................................................53 4.1.4 Wireless MAC Filter ...............................................................55 4.1.5 RADIUS Setting ......................................................................56 4.1.6 Professional .............................................................................57 4.2 LAN .................................................................................................59 4.2.1 LAN IP ........................................................................................59 4.2.2 DHCP Server ............................................................................60 4.2.3 Route .........................................................................................62 4.2.4 IPTV ...............................................................................................63 4.3 WAN ...............................................................................................64 4.3.1 Internet Connection .........…

Text truncated - open the document above for the full version.

 3.6.3 Smart Sync To use Smart Sync: 1. Launch AiCloud, click Smart Sync > Go. 2. Select ON to enable Smart Sync. 3. Click Add new account. 4. Enter your ASUS WebStorage account password and select the directory that you want to sync with WebStorage. 5. Click Apply.  4 Configuring the Advanced Settings 4.1 Wireless 4.1.1 General The General tab allows you to configure the basic wireless settings. To configure the basic wireless settings: 1. From the navigation panel, go to Advanced Settings > Wireless > General tab. 2. Select 2.4GHz or 5GHz as the frequency band for your wireless network. 3. Assign a unique name containing up to 32 characters for your SSID (Service Set Identifier) or network name to identify your wireless network. Wi-Fi devices can identify and connect to the wireless network via your assigned SSID. The SSIDs on the information banner are updated once new SSIDs are saved to the settings. NOTE: You can assign unique SSIDs for the 2.4 GHz and 5GHz frequency bands.  4. In the Hide SSID field, select Yes to prevent wireless devices from detecting your SSID. When this function is enabled, you would need to enter the SSID manually on the wireless device to access the wireless network. 5. Select any of these wireless mode options to determine the types of wireless devices that can connect to your wireless router: Auto: Select Auto to allow 802.11AC, 802.11n, 802.11g, and 802.11b devices to connect to the wireless router. Legacy: Select Legacy to allow 802.11b/g/n devices to connect to the wireless router. Hardware that supports 802.11n natively, however, will only run at a maximum speed of 54Mbps. N only: Select N only to maximize wireless N performance. This setting prevents 802.11g and 802.11b devices from connecting to the wireless router. 6. Select the operating channel for your wireless router. Select Auto to allow the wireless router to automatically select the channel that has the least amount of interference. 7. Select any of these channel bandwidth to accommodate higher transmission speeds: 40MHz: Select this bandwidth to maximize the wireless throughput. 20MHz (default): Select this bandwidth if you encounter some issues with your wireless connection. 8. Select any of these authentication methods: • Open System: This option provides no security. • Shared Key: You must use WEP encryption and enter at least one shared key. • • • 0 • WPA/WPA2 Personal/WPA Auto-Personal: This option provides strong security. You can use either WPA (with TKIP) or WPA2 (with AES). If you select this option, you must use TKIP + AES encryption and enter the WPA passphrase (network key). • WPA/WPA2 Enterprise/WPA Auto-Enterprise: This option provides very strong security. It is with integrated EAP server or an external RADIUS back-end authentication server. • Radius with 802.1x NOTE: Your wireless router supports the maximum transmission rate of 54Mbps when the Wireless Mode is set to Auto and encryption method is WEP or TKIP. 9. Select any of these WEP (Wired Equivalent Privacy) Encryption options for the data transmitted over your wireless network: • Off: Disables WEP encryption • 64-bit: Enables weak WEP encryption • 128-bit: Enables improved WEP encryption. 10.When done, click Apply. 1 4.1.2 WPS WPS (Wi-Fi Protected Setup) is a wireless security standard that allows you to easily connect devices to a wireless network. You can configure the WPS function via the PIN code or WPS button. NOTE: Ensure that the devices support WPS. To enable WPS on your wireless network: 1. From the navigation panel, go to Advanced Settings > Wireless > WPS tab. 2. In the Enable WPS field, move the slider to ON. 3. WPS uses 2.4GHz by default. If you want to change the frequency to 5GHz, turn OFF the WPS function, click Switch Frequency in the Current Frequency field, and turn WPS ON again.  NOTE: WPS supports authentication using Open System, WPA-Personal, and WPA2-Personal. WPS does not support a wireless network that uses a Shared Key, WPA-Enterprise, WPA2-Enterprise, and RADIUS encryption method. 3. In the WPS Method field, select Push Button or Client PIN code. If you select Push Button, go to step 4. If you select Client PIN code, go to step 5. 4. To set up WPS using the router’s WPS button, follow these steps: a. Click Start or press the WPS button found at the rear of the wireless router. b. Press the WPS button on your wireless device. This is normally identified by the WPS logo. Note: Check your wireless device or its user manual for the location of the WPS button. c. The wireless router will scan for any available WPS devices. If the wireless router does not find any WPS devices, it will switch to standby mode. 5. To set up WPS using the Client’s PIN code, follow these steps: a. Locate the WPS PIN code on your wireless device’s user manual or on the device itself. b. Key in the Client PIN code on the text box. c. Click Start to put your wireless router into WPS survey mode. The router’s LED indicators quickly flash three times until the WPS setup is completed.  4.1.3 Bridge Bridge or WDS (Wireless Distribution System) allows your ASUS wireless router to connect to another wireless access point exclusively, preventing other wireless devices or stations to access your ASUS wireless router. It can also be considered as a wireless repeater where your ASUS wireless router communicates with another access point and other wireless devices. To set up the wireless bridge: 1. From the navigation panel, go to Advanced Settings > Wireless > Bridge tab. 2. Select the frequency band for the wireless bridge. 3. In the AP Mode field, select any of these options: • AP Only: Disables the Wireless Bridge function. • WDS Only: Enables the Wireless Bridge feature but prevents other wireless devices/stations from connecting to the router.  • HYBRID: Enables the Wireless Bridge feature and allows other wireless devices/stations to connect to the router. NOTE: In Hybrid mode, wireless devices connected to the AS…

Text truncated - open the document above for the full version.

 5 Utilities NOTES: • Install the wireless router's utilities from the bundled support CD. • If Autorun is disabled, run setup.exe from the root directory of the support CD. • The utilities are not supported on MAC OS. 5.1 Device Discovery Device Discovery is an ASUS WLAN utility that detects an ASUS wireless router device, and allows you to configure the wireless networking settings. To launch the Device Discovery utility: • From your computer’s desktop, click Start > All Programs > ASUS Utility > RT-AC68U Wireless Router > Device Discovery. NOTE: When you set the router to Access Point mode, you need to use Device Discovery to get the router’s IP address.  5.2 Firmware Restoration Firmware Restoration is used on an ASUS Wireless Router that failed during its firmware upgrading process. It uploads the firmware that you specify. The process takes about three to four minutes. IMPORTANT: Launch the rescue mode on the router before using the Firmware Restoration utility. NOTE: This feature is not supported on MAC OS. To launch the rescue mode and use the Firmware Restoration utility: 1. Unplug the wireless router from the power source. 2. Hold the Reset button at the rear panel and simultaneously replug the wireless router into the power source. Release the Reset button when the Power LED at the front panel flashes slowly, which indicates that the wireless router is in the rescue mode.  3. Set a static IP on your computer and use the following to set up your TCP/IP settings: IP address: 192.168.1.x Subnet mask: 255.255.255.0 4. From your computer’s desktop, click Start > All Programs > ASUS Utility RT-AC68U Wireless Router > Firmware Restoration. 5. Specify a firmware file, then click Upload. NOTE: This is not a firmware upgrade utility and cannot be used on a working ASUS Wireless Router. Normal firmware upgrades must be done through the web interface. Refer to Chapter 4: Configuring the Advanced Settings for more details. 5.3 Setting up your printer server 5.3.1 ASUS EZ Printer Sharing ASUS EZ Printing Sharing utility allows you to connect a USB printer to your wireless router’s USB port and set up the print server. This allows your network clients to print and scan files wirelessly.  NOTE: The print server function is supported on Windows® XP, Windows® Vista, and Windows® 7. To set up the EZ Printer sharing mode: 1. From the navigation panel, go to General > USB Application > Network Printer Server. 2. Click Download Now! to download the network printer utility. NOTE: Network printer utility is supported on Windows® XP, Windows® Vista, and Windows® 7 only. To install the utility on Mac OS, select Use LPR protocol for sharing printer. 3. Unzip the downloaded file and click the Printer icon to run the network printer setup program.  4. Follow the onscreen instructions to set up your hardware, then click Next. 5. Wait a few minutes for the initial setup to finish. Click Next. 6. Click Finish to complete the installation. 0 8. After the printer’s driver installation is complete, network clients can now use the printer. 7. Follow the Windows ® OS instructions to install the printer driver. 1 5.3.2 Using LPR to Share Printer You can share your printer with computers running on Windows® and MAC operating system using LPR/LPD (Line Printer Remote/ Line Printer Daemon). Sharing your LPR printer To share your LPR printer: 1. From the Windows® desktop, click Start > Devices and Printers > Add a printer to run the Add Printer Wizard. 2. Select Add a local printer and then click Next.  3. Select Create a new port then set Type of Port to Standard TCP/IP Port. Click New Port. 4. In the Hostname or IP address field, key in the IP address of the wireless router then click Next.  5. Select Custom then click Settings. 6. Set Protocol to LPR. In the Queue Name field, key in LPRServer then click OK to continue.  7. Click Next to finish setting up the standard TCP/IP port. 8. Install the printer driver from the vendor-model list. If your printer is not in the list, click Have Disk to manually install the printer drivers from a CD-ROM or file.  9. Click Next to accept the default name for the printer. 10. Click Finish to complete the installation.  5.4 Download Master Download Master is a utility that helps you download files even while your laptops or other devices are switched off. NOTE: You need a USB device connected to the wireless router to use Download Master. To use Download Master: 1. Click General > USB application > Download Master to download and install the utility automatically. NOTE: If you have more than one USB drive, select the USB device you want to download the files to. 2. After the download process is finished, click the Download Master icon to start using the utility. 3. Click Add to add a download task. 4. Select a download type such as BitTorrent, HTTP, or FTP. Provide a torrent file or a URL to begin downloading. NOTE: For details on Bit Torrent, refer to section 5.4.1 Configuring the Bit Torrent download settings.  5. Use the navigation panel to configure the advanced settings. To configure BitTorrent download settings: 1. From Download Master’s navigation panel, click Bit Torrent to launch the Bit Torrent Setting page. 2. Select a specific port for your download task. 3. To prevent network congestion, you can limit the maximum upload and download speeds under Speed Limits. 4. You can limit the maximum number of allowed peers and enable or disable file encryption during downloads. 5.4.1 Configuring Bit Torrent download settings  5.4.2 NZB settings You can set up a USENET server to download NZB files. After entering USENET settings, Apply.  6 Troubleshooting This chapter provides solutions for issues you may encounter with your router. If you encounter problems that are not mentioned in this chapter, visit the ASUS support site at: http://support.asus.com/ for more product information and contact details of ASUS Technical Support. 6.1 Basic Troubleshooting…

Text truncated - open the document above for the full version.

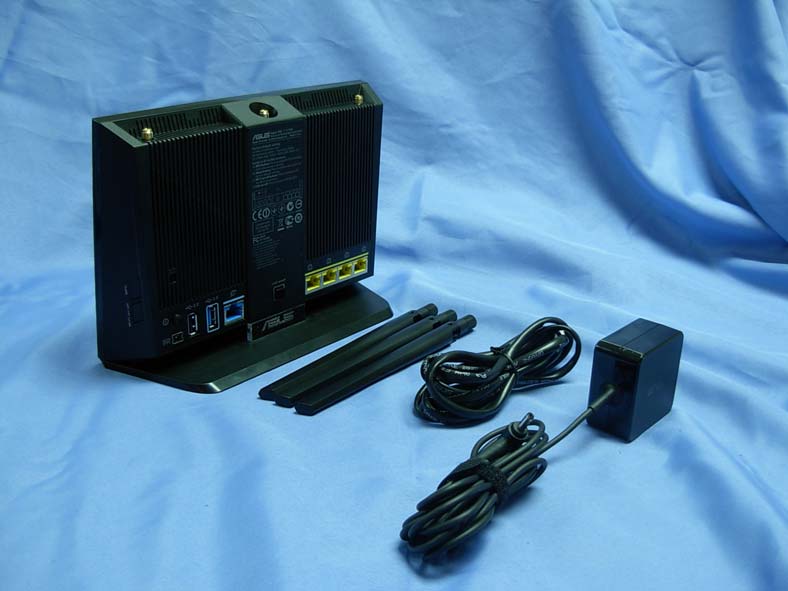

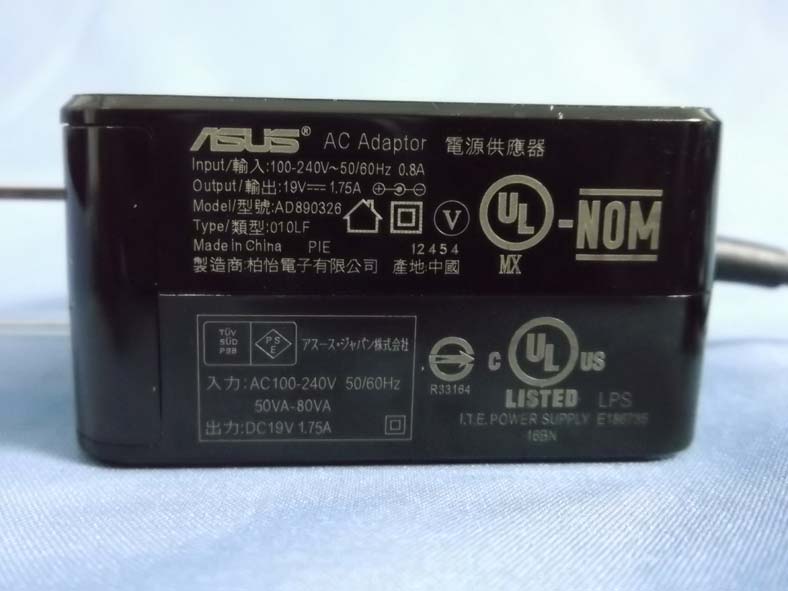

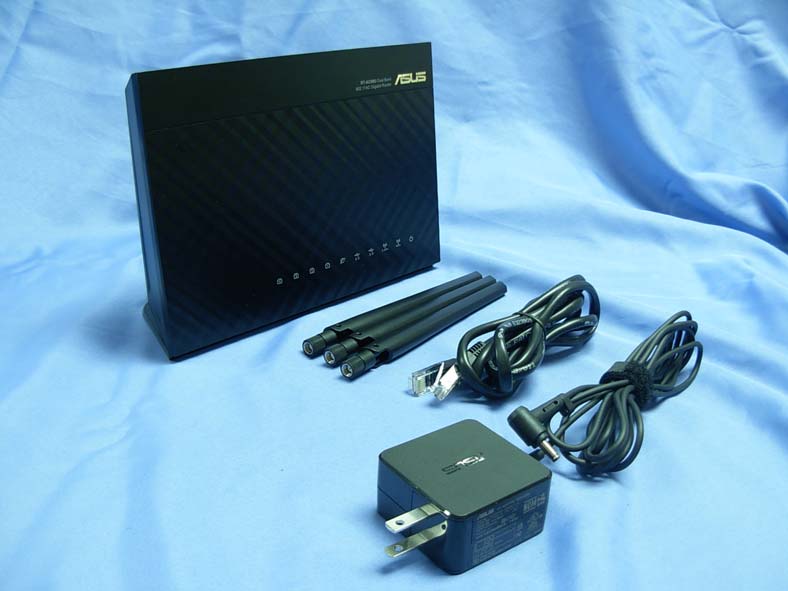

Report No：134199R-RFUSP46V01 Page: 278 of 292 Attachement EUT Photograph (1) EUT Photo (Adapter: EXA1206UH) (2) EUT Photo Report No：134199R-RFUSP46V01 Page: 279 of 292 (3) EUT Photo (4) EUT Photo (Adapter : AD890326) Report No：134199R-RFUSP46V01 Page: 280 of 292 (5) EUT Photo (6) EUT Photo

ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. FCC ID.: MSQ-RTAC68U FCC ID AND DoC Label

ASUSTeK COMPUTER INC. No. 15, Li-Te Rd., Peitou, Taipei 112, Taiwan R.O.C. FCC ID.: MSQ-RTAC68U FCC ID AND DoC Label

Report No：134199R-RFUSP46V01 Page: 281 of 292 (7) EUT Photo (8) EUT Photo Report No：134199R-RFUSP46V01 Page: 282 of 292 (9) EUT Photo (10) EUT Photo Report No：134199R-RFUSP46V01 Page: 283 of 292 (11) EUT Photo (12) EUT Photo Report No：134199R-RFUSP46V01 Page: 284 of 292 (13) EUT Photo (14) EUT Photo Report No：134199R-RFUSP46V01 Page: 285 of 292 (15) EUT Photo (16) EUT Photo Report No：134199R-RFUSP46V01 Page: 286 of 292 (17) EUT Photo (18) EUT Photo Report No：134199R-RFUSP46V01 Page: 287 of 292 (19) EUT Photo (20) EUT Photo Report No：134199R-RFUSP46V01 Page: 288 of 292 (21) EUT Photo (22) EUT Photo (MB) Report No：134199R-RFUSP46V01 Page: 289 of 292 (23) EUT Photo (MB) (24) EUT Photo (MB) Report No：134199R-RFUSP46V01 Page: 290 of 292 (25) EUT Photo (MB) (26) EUT Photo (LAN Cable) Report No：134199R-RFUSP46V01 Page: 291 of 292 (27) EUT Photo (LAN Cable) (28) EUT Photo (Antenna : WAISIN,RFDPA141000SBLB802) Report No：134199R-RFUSP46V01 Page: 292 of 292 (29) EUT Photo (Antenna :MAG.,EDA-1410-25GR2-A1)

Report No. 134199R-RF-US-Exp Page: 1 of 14 RF Exposure Evaluation declaration Product Name ： Wireless-AC1900 Dual Band Gigabit Router Model No. ： RT-AC68U, RT-AC68R FCC ID. ： MSQ-RTAC68U Applicant : ASUSTeK COMPUTER INC. Address : 4F, No. 150, Li-Te Rd., Peitou, Taipei, Taiwan Date of Receipt : 2013/04/09 Date of Declaration : 2013/08/29 Report No. : 134199R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 134199R-RF-US-Exp Page: 2 of 14 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 134199R-RF-US-Exp Page: 3 of 14 1.3. Test Result of RF Exposure Evaluation Product Wireless-AC1900 Dual Band Gigabit Router Test Mode Transmit (CDD Mode) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.91dBi or 1.55 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11b WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 220.8005 0.06809 6 2437 246.6039 0.07604 11 2462 338.8442 0.10449 IEEE 802.11g WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 255.8586 0.07890 6 2437 765.5966 0.23608 11 2462 191.4256 0.05903 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 134199R-RF-US-Exp Page: 4 of 14 Product Wireless-AC1900 Dual Band Gigabit Router Test Mode Transmit (CDD Mode) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1.91dBi or 1.55 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11n (20MHz) ANT 0+1+2 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412 176.1976 0.05433 6 2437 599.7911 0.18495 11 2462 165.1962 0.05094 IEEE 802.11n (40MHz) ANT 0+1+2 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 3 2422 133.3521 0.04112 6 2437 220.8005 0.06809 9 2452 107.8947 0.03327 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 134199R-RF-US-Exp Page: 5 of 14 Product Wireless-AC1900 Dual Band Gigabit Router Test Mode Transmit (CDD Mode) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.04dBi or 2.54 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 16.4816 0.00833 44 5220 17.0608 0.00862 48 5240 16.5196 0.00835 IEEE 802.11a WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 831.7638 0.42030 157 5785 939.7233 0.47486 165 5825 905.7326 0.45768 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 134199R-RF-US-Exp Page: 6 of 14 Product Wireless-AC1900 Dual Band Gigabit Router Test Mode Transmit (CDD Mode) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.04dBi or 2.54 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(20MHz) ANT 0+1+2 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 36 5180 16.7109 0.00844 44 5220 16.3305 0.00825 48 5240 16.8267 0.00850 IEEE 802.11 n(20MHz) ANT 0+1+2 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 149 5745 801.6781 0.40510 157 5785 957.1941 0.48369 165 5825 933.2543 0.47159 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . Report No. 134199R-RF-US-Exp Page: 7 of 14 Product Wireless-AC1900 Dual Band Gigabit Router Test Mode Transmit (CDD Mode) Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 4.04dBi or 2.54 in linear scale. Output Power into Antenna & RF Exposure Evaluation Distance: IEEE 802.11 n(40MHz) ANT 0+1+2 WLAN Function Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/…
