MSQ-RTGW00Wireless-AC3100 Dual Band Gigabit Router

Quick Start Guide RT-AC88U Wireless-AC3100 Dual Band Gigabit Router ̈ E10303 / First Edition / April 2015 Q10303_RT-AC88U_QSG.indd 12015/4/23 16:54:37 NOTE / <T-CHINESE> / <FRENCH> / <SPANISH> • For more details, refer to the user manual included in the support CD. • <T-CHINESE> • <FRENCH> • <SPANISH> Table of contents English .............................................................................................3 T-Chinese ........................................................................................xx French ..............................................................................................xx Spanish ............................................................................................xx Q10303_RT-AC88U_QSG.indd 22015/4/23 16:54:38 3 English A quick look USB 3.0 portWi-Fi On/Off button Power LEDReset button 5GHz LED / 2.4GHz LED WPS button WAN (Internet) LED Red: No IP or no physical connection. On : Has physical connection to a wide area network (WAN). USB 2.0 port LAN 1~8 LEDLAN 1 ~ 8 ports USB 3.0 LEDWAN (Internet) port USB 2.0 LEDPower (DC-IN) port WPS LEDPower button WPS LED On/Off button WiFi WPS Q10303_RT-AC88U_QSG.indd 32015/4/23 16:54:39 4 English NOTES: • If any of the items is damaged or missing, contact your retailer. • USB External HDD/Flash disk: • The wireless router works with most USB HDDs/Flash disks up to 4TB and supports read-write access for FAT16, FAT32, NTFS, and HFS+. • To safely remove the USB disk, launch the web GUI (http://router. asus.com), then in the Network Map page's upper right corner, click the USB icon and click Eject USB 3.0 / USB 2.0. • Incorrect removal of the USB disk may cause data corruption. • For the list of file system and hard disk partitions that the wireless router supports, visit http://event.asus.com/networks/ disksupport • For the list of printers that the wireless router supports, visit http://event.asus.com/networks/printersupport Package contents RT-AC88U Wireless RouterAC adapter Network cable (RJ-45) Quick Start Guide Support CD (User Manual) Q10303_RT-AC88U_QSG.indd 42015/4/23 16:54:39 5 English Installing your router IMPORTANT: Before installing the router, ensure that Internet connec- tion is available. 1. Position your wireless router. For optimal wireless transmission between the wireless router and connected wireless devices, ensure that you: • Place the wireless router in a centralized area for a maximum wireless coverage for the network devices. • Keep the wireless router away from metal obstructions and away from direct sunlight. • Keep the wireless router away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss. • Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates. • To ensure the best wireless signal, orient the four detachable antennas as shown in the drawing below. 45 ° 45 ° WiFi WPS Q10303_RT-AC88U_QSG.indd 52015/4/23 16:54:39 6 English 2. Prepare your modem. a. Unplug the AC adapter from the power outlet and disconnect it from your cable/ADSL modem. b. Disconnect the network cable from your cable/ADSL modem. c. Reboot your computer (recommended). Modem OFF! a b c WARNING! Before disconnecting the wires/cables, ensure that your cable/ADSL modem has been turned off for at least two minutes. If your modem has a backup battery, remove it as well. Q10303_RT-AC88U_QSG.indd 62015/4/23 16:54:39 7 English 3. Set up your wireless environment. RT-AC88U Computer Wall Power Outlet Modem Power LAN WAN a b c d a. Insert your wireless router’s AC adapter to the DC-IN port and plug it to a power outlet. b. Using another network cable, connect your modem to your wireless router’s WAN port. c. Insert your modem’s AC adapter to the the DC-IN port and plug it to a power outlet. d. Using the bundled network cable, connect your computer to your wireless router’s LAN port. Ensure that the WAN and LAN LEDs are blinking. 4. Disable some settings on your computer. a. Disable the proxy server, if enabled. b. Set the TCP/IP settings to automatically obtain an IP address. c. Disable the dial-up connection, if enabled. NOTE: For more details on disabling your computer settings, refer to Frequently Asked Questions (FAQs). Q10303_RT-AC88U_QSG.indd 72015/4/23 16:54:40 8 English Quick Internet Setup (QIS) with Auto-detection The Quick Internet Setup (QIS) function guides you in quickly setting up your Internet connection. NOTE: When setting the Internet connection for the first time, press the Reset button on your wireless router to reset it to its factory default settings. To use QIS with auto-detection: 1. Log into the Web GUI. The QIS page launches automatically. NOTES: • By default, the login username and password for your wireless router's Web GUI is admin. • The wireless router's login username and password is different from the 2.4GHz/5GHz network name (SSID) and security key. The wireless router's login username and password allows you to log into your wireless router's Web GUI to configure your wireless router's settings. The 2.4GHz/5GHz network name (SSID) and security key allows Wi-Fi devices to log in and connect to your 2.4GHz/5GHz network. Q10303_RT-AC88U_QSG.indd 82015/4/23 16:54:40 9 English 2. The wireless router automatically detects if your ISP connection type is Dy- namic IP, PPPoE, PPTP and L2TP. Key in the necessary information for your ISP connection type. IMPORTANT! Obtain the necessary information from your ISP about the Internet connection type. for Automatic IP (DHCP) for PPPoE, PPTP and L2TP Q10303_RT-AC88U_QSG.indd 92015/4/23 16:54:40 10 English NOTES: • The auto-detection of your ISP connection type takes place when you configure the wireless router for the first time or when your wireless router is reset to its def…

Text truncated - open the document above for the full version.

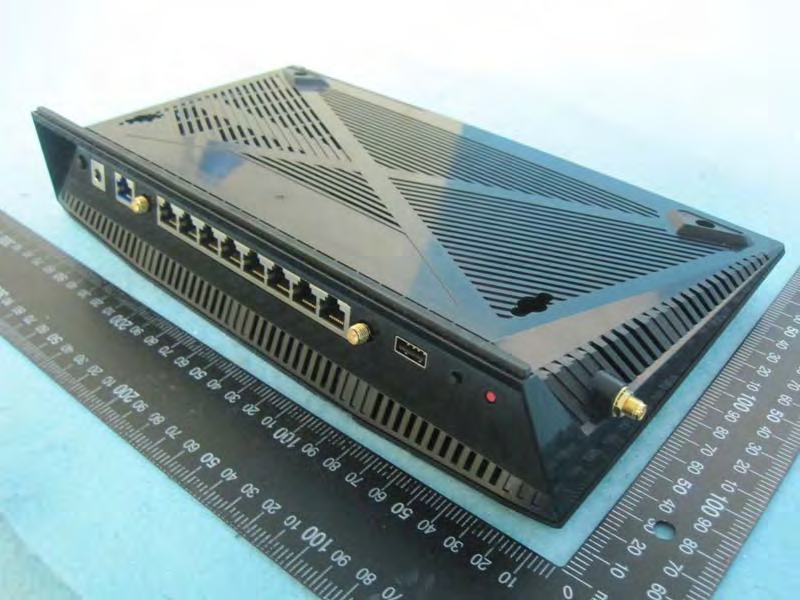

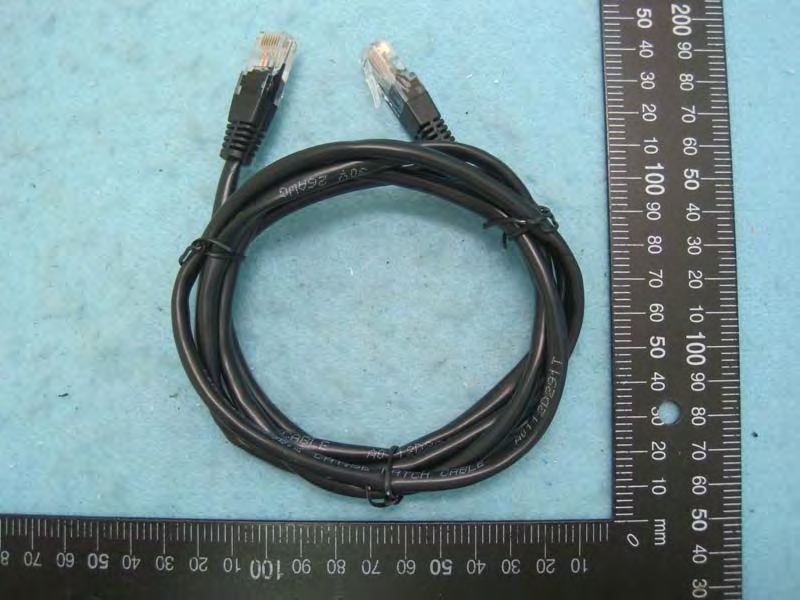

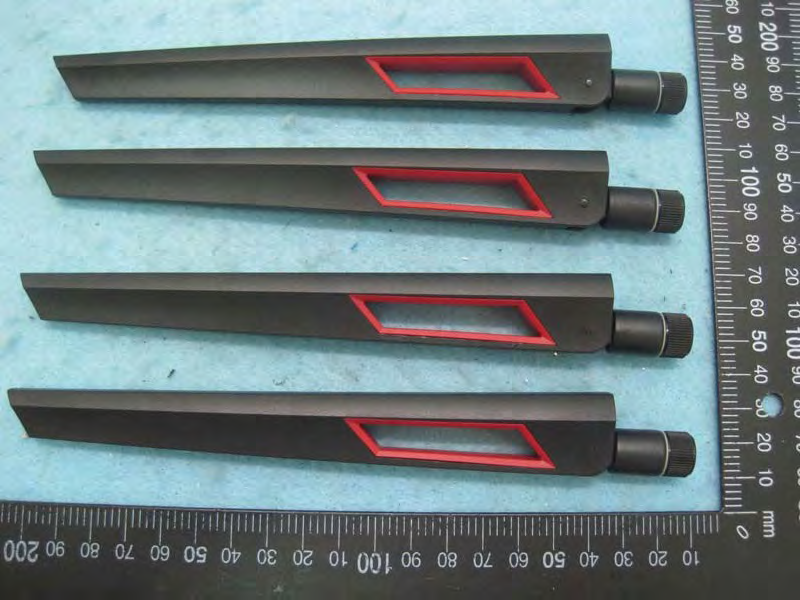

Report No.:531828 SPORTON International Inc. PAGE NUMBER : 1 OF 12 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Photographs of EUT RT-AC88U, RT-AC88R Report No.:531828 SPORTON International Inc. PAGE NUMBER : 2 OF 12 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 3 OF 12 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 4 OF 12 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 RT-AC3100 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 5 OF 12 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 6 OF 12 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Adapter 1 Model No.: ADP-45BW B Report No.:531828 SPORTON International Inc. PAGE NUMBER : 7 OF 12 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 8 OF 12 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Adapter 2 Model No.: AD883J20 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 9 OF 12 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Adapter 3 Model No.: ADP-65DW B Report No.:531828 SPORTON International Inc. PAGE NUMBER : 10 OF 12 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 11 OF 12 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 RJ-45 Cable Dipole Antenna Report No.:531828 SPORTON International Inc. PAGE NUMBER : 12 OF 12 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973

Label here

Report No.:531828 SPORTON International Inc. PAGE NUMBER : 1 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Photographs of EUT Silver Heat sink (for model name: RT-AC3100,RT-AC88R, RT-AC88U) Report No.:531828 SPORTON International Inc. PAGE NUMBER : 2 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 3 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 4 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 5 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 6 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 7 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 8 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 9 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 10 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 11 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 12 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 13 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 14 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 15 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 16 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 17 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 18 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 19 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Red Heat sink (for model name: RT-AC88R,RT-AC88U) Report No.:531828 SPORTON International Inc. PAGE NUMBER : 20 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Report No.:531828 SPORTON International Inc. PAGE NUMBER : 21 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973 Black Heat sink (for model name: RT-AC3100) Report No.:531828 SPORTON International Inc. PAGE NUMBER : 22 OF 22 TEL : 886-3-327-3456 ISSUE DATE : May 25, 2015 FAX : 886-3-327-0973

Report No.: FR531828 FCC ID: MSQ-RTGW00 Page No. : B1 of B4 Appendix B. Maximum Permissible Exposure Report No.: FR531828 FCC ID: MSQ-RTGW00 Page No. : B2 of B4 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby that distance of at least 0.2 m is normally maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.25m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR531828 FCC ID: MSQ-RTGW00 Page No. : B3 of B4 1.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure For 5GHz Band (NII): Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11 ac VHT20 MCS0NSS1 : 26.53dBm The maximum combined Average Output Power Distance (m) Test Freq. (MHz) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.25 5180 9.39 8.6908 26.5268 449.4467 0.497586 1 Complies Note:                        ANT N j N k kj N g lGainDirectiona SSANT 1 2 1 , log10 For 5GHz Band (DTS): Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11ac VHT40 MCS0NSS1: 26.53dBm The maximum combined Average Output Power Distance (m) Test Freq. (MHz) Directional Gain Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.25 5755 9.39 8.6908 26.5307 449.8550 0.498038 1 Complies Note:                        ANT N j N k kj N g lGainDirectiona SSANT 1 2 1 , log10 For 2.4GHz Band: Antenna Type : Dipole Antenna Conducted Power for IEEE 802.11ac VHT20 MCS0NSS1: 27.49 dBm The maximum combined Average Output Power Distance (m) Test Freq. (MHz) Directional Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 0.25 2437 8.27 6.7152 27.4935 561.4941 0.480325 1 Complies Note:                        ANT N j N k kj N g lGainDirectiona SSANT 1 2 1 , log10 Report No.: FR531828 FCC ID: MSQ-RTGW00 Page No. : B4 of B4 Conclusion: Both of the WLAN 2.4GHz Band and WLAN 5GHz Band can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.480325 / 1 + 0.498038 / 1 = 0.978363, which is less than “1”. This confirmed that the device complies.

Report No.: FR531828 FCC ID: MSQ-RTGW00 Page No. : C1 of C3 Appendix C. Radiated Emission Co-location Report Report No.: FR531828 FCC ID: MSQ-RTGW00 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations 2.4G + 5G Horizontal Report No.: FR531828 FCC ID: MSQ-RTGW00 Page No. : C3 of C3 Vertical

Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 128 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11n MCS0/Nss1 VHT40 CH 6 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 129 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11n MCS0/Nss1 VHT40 CH 9 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 130 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11n MCS0/Nss2 VHT20 CH 6 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 131 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11n MCS0/Nss2 VHT40 CH 6 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 132 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11ac MCS0/Nss1 VHT20 CH 149 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 133 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11ac MCS0/Nss1 VHT20 CH 157 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 134 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11ac MCS0/Nss1 VHT20 CH 165 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 135 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11ac MCS0/Nss1 VHT40 CH 151 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 136 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11ac MCS0/Nss1 VHT40 CH 159 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 137 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11ac MCS0/Nss1 VHT80 CH 155 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 138 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11ac MCS0/Nss2 VHT20 CH 149 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 139 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11ac MCS0/Nss2 VHT20 CH 157 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 140 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11ac MCS0/Nss2 VHT20 CH 165 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 141 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11ac MCS0/Nss2 VHT40 CH 151 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 142 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11ac MCS0/Nss2 VHT40 CH 159 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 143 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Temperature 26°C Humidity 55% Test Engineer Gino Huang Configurations IEEE 802.11ac MCS0/Nss2 VHT80 CH 155 / Ant. 1 + Ant. 2 + Ant. 3+ Ant. 4 Test Date May 16, 2015 Horizontal Vertical Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : 144 of 205 FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 4.6. Emissions Measurement 4.6.1. Limit 30dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 4.6.2. Measuring Instruments and Setting Please refer to section 5 of equipments list in this report. The following table is the setting of the spectrum analyzer. Spectrum Parameter Setting Attenuation Auto Span Frequency 100 MHz RBW / VBW (…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company ASUSTeK COMPUTER INC. Applicant Address 4F, No. 150, Li-Te Rd., Peitou, Taipei 112, Taiwan FCC ID MSQ-RTGW00 Manufacturer’s company (1) ASKEY TECHNOLOGY (JIANG SU) LTD Manufacturer Address NO1388, Jiao Tong Road, Wujiang Economic Technological Development Area Jiangsu Province 215200 China Manufacturer’s company (2) Compal Networking (KunShan) Co., LTD. Manufacturer Address No. 520, Nabbang Rd., Economic & Technical Development Zone Kunshan, Jiangsu Province China Product Name Wireless-AC3100 Dual Band Gigabit Router Brand Name ASUS Model No. RT-AC3100,RT-AC88R,RT-AC88U Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Apr. 10, 2015 Final Test Date May 22, 2015 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11b/g, IEEE 802.11n and IEEE 802.11a/ac of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r02, KDB 662911 D01 v02r01, KDB644545 D01 v01r02 Note: Using 1.5m table as an alternative was permitted by the FCC per TCBC conference call of Dec. 2, 2014. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR531828AA Report Format Version: Rev. 01 Page No. : i of ii FCC ID: MSQ-RTGW00 Issued Date : May 25, 2015 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................7 3.3. Table for Filed Antenna.......................................................................................................................................................................8 3.4. Table for Carrier Frequencies .............................................................................................................................................................9 3.5. Table for Test Modes .........................................................................................................................................................................10 3.6. Table for Testing Locations................................................................................................................................................................15 3.7. Table for Multiple List.........................................................................................................................................................................15 3.8. Table for Supporting Units .................................................................................................................................................................16 3.9. Table for Parameters of Test Software Setting ...................................................................................................................................17 3.10. EUT Operation during Test .................................................................................................................................................................18 3.11. Duty Cycle ........................................................................................................................................................................................19 3.12. Test Configurations ...........................................................................................................................................................................20 4. TEST RESULT ................................................................................................................................................... 24 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................24 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................28 4.3. Power Spectral Density Measurement ..............................................................................................................................................32 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................74 4.5. Radiated Emissions Measurement ....................................................................................................................................................97 4.6. Emissions Measurement ...................................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR531828 FCC ID: MSQ-RTGW00 Page No. : A1 of A5 Appendix A. Test Photos Report No.: FR531828 FCC ID: MSQ-RTGW00 Page No. : A2 of A5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR531828 FCC ID: MSQ-RTGW00 Page No. : A3 of A5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR531828 FCC ID: MSQ-RTGW00 Page No. : A4 of A5 Test Configuration: 30MHz~1GHz / Test Mode: Mode 2 FRONT VIEW REAR VIEW Report No.: FR531828 FCC ID: MSQ-RTGW00 Page No. : A5 of A5 Test Configuration: Above 1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW
